If your aftermarket sound unit or factory stereo behaves erratically–random shutdowns, no power, or distorted audio–check the gray connector (C1) first. Pin 10 (orange/black stripe) delivers a critical 12V memory feed; corrosion here mimics amplifier failure. Clean with contact cleaner, not sandpaper–oxidation returns faster than solder can bond.
Harness colors shift between model years. The factory service manual lists pink (accessory), yellow (battery constant), and black (ground) for the 2000–2004 series, but verify with a multimeter before splicing. Factory-issued schematics from online repositories often omit splice points for theft-deterrent modules, which steal 3V from pin 7 (dark green). Tapping this incorrectly kills the data bus.

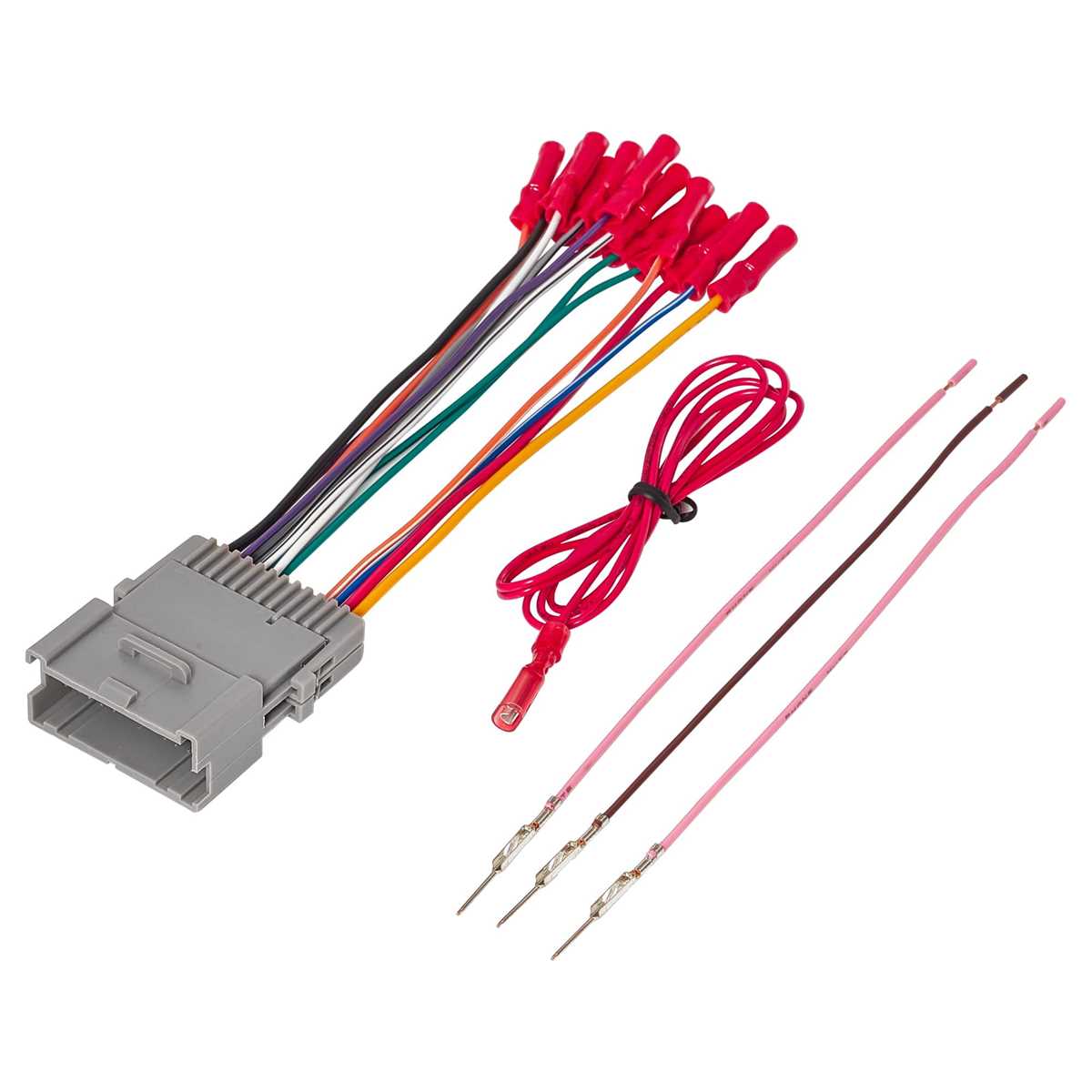

For amplifier relay activation, trace the light blue/white stripe wire running behind the climate control housing. The relay itself resides under the glovebox, fused at 10A–replace with the same rating or risk melting the harness insulation. Metra’s AX-CHEV1 connector kit maps 90% of pins, but leaves the antenna trigger (pin 14, solid brown) unshielded; wrap it in foil if static persists.
Static hum at idle usually stems from shared ground paths with the ECM. The manual recommends a dedicated ground post near the fuse block, but drilling into chassis rail paint exposes bare metal for more consistent contact. Avoid zinc-plated hardware–it accelerates galvanic corrosion with aluminum body panels.
Swap your speaker outputs to 4-ohm wiring if upgrading door drivers. The factory Bose amplifier expects 2-ohm coils; exceeding this draws excessive current from the fuse 34 (40A) circuit, detected as a short by the BCM. Check resistance across each channel before power-up–values over 5 ohms indicate broken voice coils.
Electrical Guide for Aftermarket Sound System in GM Compact Sedan (Pre-2003 Model)

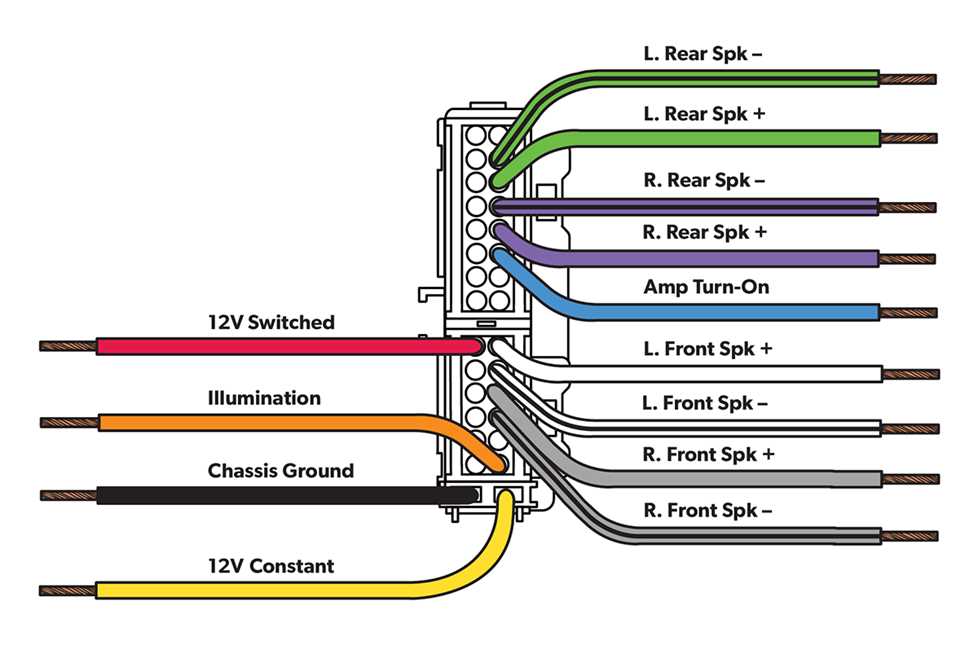

Begin by locating the ISO harness behind the factory audio unit–it’s bundled with the car’s main wiring loom near the dashboard’s lower left side. The connector will have 12 pins arranged in two rows, labeled A through L.
Pin A (yellow) delivers constant 12V power, essential for memory functions like preset stations. Connect this directly to the battery via a 10A fuse to prevent voltage spikes from corrupting settings. Pin B (red) switches power through the ignition, activating the system only when the key is turned–use this for primary power distribution to avoid parasitic drain.
Ground wires (pin G, black) must terminate at the chassis using a dedicated bolt stripped of paint and corrosion–sand the contact surface before securing with a star washer. Weak grounding causes unwanted noise and intermittent operation. For speaker outputs, pins C (gray, front right positive), D (gray/black, front right negative), E (white, front left positive), and F (white/black, front left negative) carry amplified signals; avoid exceeding 8 ohms impedance to prevent overheating.
Rear speaker wires follow the same color-coding but branch off toward the trunk. Pin H (purple, rear right positive) and I (purple/black, rear right negative) exit the harness near the left kick panel, while J (green, rear left positive) and K (green/black, rear left negative) run along the driver-side sill plate. Route these through existing grommets to prevent chafing against metal edges.
If integrating a subwoofer, tap the rear speaker wires before they reach the factory amplifier–usually a small rectangular module behind the glove box. Splice in RCA adapters here for cleaner low-frequency output. For models with premium sound systems, pin L (dark blue/white) carries a data signal for chimes; leave this disconnected if installing an aftermarket head unit to avoid false alerts.
Dimmer control is handled by pin M (brown) in vehicles equipped with automatic headlights. This wire adjusts display brightness in sync with dashboard lights–connect it to the new stereo’s illumination wire to maintain consistency. Failure to link these results in a display that’s either too bright at night or invisible during the day.
When testing connections, use a multimeter set to 20V DC. Probe each wire while cycling the ignition to confirm voltage levels–expect 0V with the key off, 12V with the key on. For speaker wires, set the meter to ohms and verify continuity between positive and negative leads; readings should hover around 4 ohms. Any deviation suggests a short or open circuit requiring tracing back to the source.
Common Pitfalls
Skipping the fuse on the constant power wire risks a dead battery within 24 hours. Soldering joints instead of using crimp connectors invites corrosion–apply dielectric grease after crimping for longevity. Ignoring the vehicle’s factory amplifier (if present) will leave rear speakers silent; bypass it only if replacing all speakers simultaneously. Lastly, rushing the installation may damage the climate control module, housed next to the audio unit–remove it gently using a plastic pry tool.
Locating the Precise Harness Connections for OEM Audio Unit Extraction
Before disconnecting the factory stereo, verify the following wire assignments behind the head unit’s mounting bracket–misidentification risks short circuits or signal loss. The primary power feed (constant 12V) is typically yellow with a thin black stripe, while the switched ignition lead (accessory power) appears as red with a light blue tracer. Ground connections are solid black with no markings, often bundled with a bolted chassis point near the lower dash panel. Speaker wires follow this pattern:
- Front left (+): gray with a violet stripe
- Front left (-): gray with black stripe
- Front right (+): white with green stripe
- Front right (-): white with black stripe
- Rear left (+): brown with yellow stripe
- Rear left (-): brown with black stripe
- Rear right (+): dark blue with red stripe
- Rear right (-): dark blue with black stripe
Use a multimeter set to DC voltage to confirm wire functions–probe the yellow wire (with ignition off) for 12V, then activate the ignition to check the red wire. Antenna control is pink with a black stripe, often overlooked during replacement. Illumination dimming is handled by an orange lead, which may require a 5-7.5V test light for verification. Label each wire with masking tape before unplugging the harness to avoid mismatches during reinstallation. If the vehicle has steering wheel controls, an additional tan or light green auxiliary connector may be present–do not sever this unless replacing with a compatible aftermarket interface.
Step-by-Step Guide to Installing a New Stereo with Factory Cables
Begin by matching the aftermarket connector wires to the vehicle’s original harness using a multimeter. Identify the 12V constant (yellow), accessory (red), ground (black), and speaker outputs (front/rear pairs) by testing continuity or voltage. Label each wire with masking tape to prevent misconnection, as factory hues may differ from aftermarket color codes.
Trim the aftermarket harness adapter wires, leaving ½ inch of exposed copper, then crimp or solder each joint to the factory wires. Secure connections with heat-shrink tubing or electrical tape, ensuring no bare metal touches adjacent contacts. For speaker outputs, verify polarity with a 9V battery: a brief pulse should move the cone outward for positive. Mismatches cause phase cancellation, degrading sound.
Common Wire Pairings
| Factory Wire Color | Aftermarket Function | Notes |
|---|---|---|
| Dark Green/White Stripe | Left Front Speaker (+) | Check for 4Ω resistance |
| Gray/Black Stripe | Right Front Speaker (-) | Avoid shorting to ground |
| Light Blue/White Stripe | Amplifier Trigger | Only splice if using external amp |
Insert the factory harness into the new stereo’s plug, then test functionality before mounting the unit. Power on and toggle between FM/aux inputs; static or no audio indicates a loose ground or incorrect speaker pairing. If the display dims inconsistently, locate the illumination wire (typically orange) and connect it to the vehicle’s dash lighting circuit to sync brightness.
Troubleshooting Common Issues with Power, Ground, and Speaker Connections
Begin by verifying the constant 12V line (typically yellow) with a multimeter–it should read between 12.6V and 14.5V when the ignition is off. If voltage drops below 11V, inspect the fuse (commonly a 10A or 15A) for corrosion or blown filaments, and test the leads between the harness and battery terminal. Corroded ground points behind the dashboard (often a black wire bolted to the chassis) can cause intermittent power loss; clean the connection with a wire brush and apply dielectric grease to prevent oxidation. For speaker issues, check impedance with an ohmmeter–each voice coil should measure 4Ω; readings below 3Ω indicate a short, while infinite resistance suggests an open circuit.
Isolating Signal Path Problems
Use a 9V battery to test speakers individually: touch the positive and negative leads briefly to each terminal–pops or clicks confirm functionality, while silence means a faulty coil or wiring break. Probe RCA outputs (if applicable) with an oscilloscope for signal presence; absence of waveform points to a head unit failure. If static persists, disconnect the antenna lead and reseat it–a loose coaxial connection often causes interference. For dimmed displays or erratic behavior, trace the illumination wire (usually orange or orange/white) to the fuse box, ensuring it matches the vehicle’s lighting circuit voltage.
