Start by breaking the electronic layout into key functional blocks: power lines, signal paths, and component placement. Power rails should run along the sides of the prototyping board–red for positive, blue or black for ground–without crossing mid-board unless necessary. Connect these first using 22 AWG jumper wires, ensuring stable voltage distribution before adding active parts.
Match component footprints directly to their symbols in the schematic. Resistors, capacitors, and ICs should sit horizontally or vertically, avoiding diagonal placements that complicate signal tracing. For DIP packages, align pin 1 with the board’s notch or marker; SMD components require matching land patterns on adapter plates before transfer. Keep passive elements as close as possible to the pins they serve to minimize parasitic inductance.
Signal paths demand short, unobstructed routes. Long loops act as antennas; twisting or bundling parallel wires reduces crosstalk. Use different colored jumpers–yellow for data, green for clocks–to distinguish paths. Avoid routing signals near oscillators or switching regulators, where electromagnetic interference peaks. Ground planes beneath high-frequency traces stabilize impedance; absent a plane, run a dedicated ground wire beneath critical paths.
Verify connections incrementally. A continuity tester saves debugging hours; probe from schematic symbols to board contacts before applying power. Start with low-current sections–LEDs, resistors–then incrementally enable power-hungry elements like motors or processors. Use a bench supply with current limiting to catch shorts before they damage components. Log test points on a separate diagram as you progress.
Thermal considerations influence layout decisions. Heat-generating parts–voltage regulators, power MOSFETs–should occupy edge positions for ventilation. Leave clearance between dense components; use vertical stacking for ICs with heatsinks. Small probing areas near test pins speed up signal re-routing if adjustments are needed later. Document deviations from the original layout–component substitutions, jumper improvisations–on a revised schematic.
Building Schematic Layouts on Prototyping Boards
Begin by mapping each component from your electrical schematic onto the prototyping platform using color-coded jumper wires to mirror signal paths. Place ICs first, aligning their pins with the board’s centerline to maximize connectivity options–avoid bridging gaps smaller than 0.5mm between conductive strips. For passive elements like resistors (≤1/4W) and capacitors (≤50V), insert leads into adjacent holes, bending them at 45° to secure positioning without solder. Complex networks with transistors or MOSFETs demand heat sinks if continuous current exceeds 100mA; mount them vertically with the flat side facing the board’s edge to improve stability. Always verify connections with a multimeter in continuity mode before powering–false contacts in protoboards can cause thermal runaway in active components within 30 seconds at 5V.
Key Placement Rules
- Route high-frequency tracks (
- Decouple every IC with a 0.1µF capacitor placed within 2mm of its VCC pin–failure increases noise susceptibility by up to 40%.
- Group analog and digital grounds separately, connecting them at a single point near the power supply’s negative terminal.
- For microcontrollers, reserve the outer columns for GPIO and the inner rows for oscillators/crystals to prevent interference with adjacent signals.
- When stacking boards, use risers ≥3mm tall to avoid shorting conductive rails–verify clearance with calipers at 0.1mm precision.

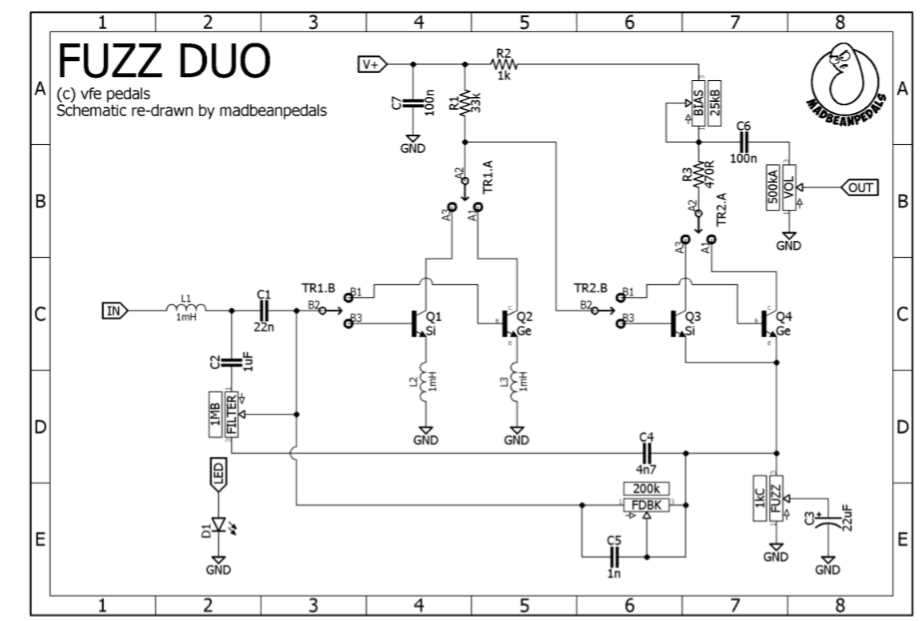

Identify Key Components from the Schematic
Begin by isolating power sources in the layout. DC batteries, AC adapters, or voltage regulators typically appear as distinct symbols–look for standardized labels like “VCC,” “5V,” or “GND.” Note their positions and connections; mismatched polarity or incorrect voltage ratings will disrupt functionality or damage parts. Use a multimeter to verify expected values if the documentation lacks clarity.
Locate active elements such as transistors, operational amplifiers, or microcontrollers. These often require precise orientation–check datasheets for pin configurations. For example, a bipolar junction transistor (BJT) has emitter, base, and collector pins; reversing these will prevent proper signal amplification or switching. Highlight unique identifiers like “Q1” or “IC2” directly on the schematic.
Trace Passive Elements and Their Roles
Resistors, capacitors, and inductors form the backbone of signal conditioning and energy storage. Identify their values–common markings include color bands (resistors), numeric codes (capacitors), or direct notation (e.g., “10kΩ,” “100nF”). Pay special attention to electrolytic capacitors; incorrect polarity can cause catastrophic failure. Cross-reference values with tolerances–low-precision components may introduce unintended noise or instability.
Map the precise routing of conductive paths between components. Even minor deviations–like jumper wires crossing unintended traces–can introduce parasitic capacitance or short circuits. Use highlighters to mark distinct paths: red for power rails, blue for ground, and green for signal lines. Confirm that each connection aligns with the schematic’s netlist before proceeding to physical assembly.
Verify Component Interactions
Examine how discrete parts interact within subcircuits. A voltage divider, for instance, relies on specific resistor ratios; swapping values will alter output voltage. Test critical nodes with an oscilloscope to ensure waveform integrity–ripple on a supply line might indicate inadequate decoupling. Keep an eye out for feedback loops in amplifiers; incorrect placement of components can turn negative feedback into positive, causing oscillation.
Prioritize components critical to safety or precision. Fuses, transient voltage suppressors, and thermal cutoffs protect against overcurrent or overheating. Precision resistors in analog circuits must match their stated values closely; even a 1% deviation can skew measurements. Document all substitutions or deviations from the schematic to troubleshoot later if anomalies arise during testing.
Match Schematic Icons to Real Prototyping Components
Start by identifying each symbol’s corresponding hardware element: resistors link to axial leads, capacitors pair with radial or disk types based on polarity marks, and transistors require verifying pinouts (e.g., TO-92 or TO-220 packages). Label every symbol with part numbers–1kΩ ¼W for resistors, 10µF 25V for electrolytics–to eliminate guesswork during assembly. Place jumpers strategically: short red wires for power rails, blue/black for ground to maintain clarity. Use a multimeter on continuity mode to confirm connections before inserting components.
Group related components spatially–keep IC sockets near decoupling capacitors, space transformers away from sensitive digital ICs to reduce interference. For diodes, align the cathode band (silver strip) with the schematic’s bar marker. Verify LED polarity: the longer leg (anode) connects to the positive side. When handling switches, note the common pin–often the center terminal on SPDT designs–and cross-reference with datasheets for less common variants like rotary encoders.
Strategic Placement of Electronic Parts on Prototyping Boards
Begin by mapping component proximity based on signal paths: place ICs first, aligning their power rails with the central bus strips to avoid trace crossings. Use the following spacing rules for DIP packages–pin rows 0.3 inches apart, with adjacent sockets offset by at least 0.1 inches to prevent short circuits when inserting jumper wires. For resistors and capacitors, group them near their respective IC pins or connectors to minimize lead length; values above 10kΩ should sit within 0.2 inches of the target node to reduce stray capacitance interference.
| Component type | Min. clearance | Max. lead bend radius |
|---|---|---|
| Resistor (¼W) | 0.15″ between bodies | 0.05″ |
| Ceramic capacitor | 0.1″ | 0.03″ |
| IC socket (14-16 pin DIP) | 0.3″ between adjacent sockets | N/A |

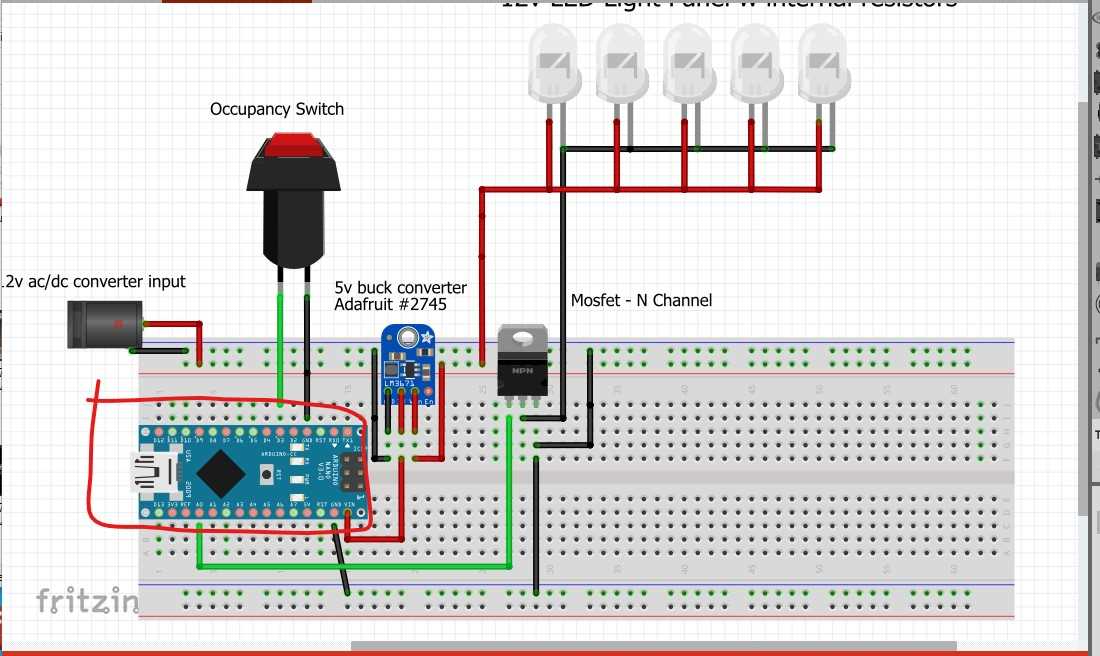

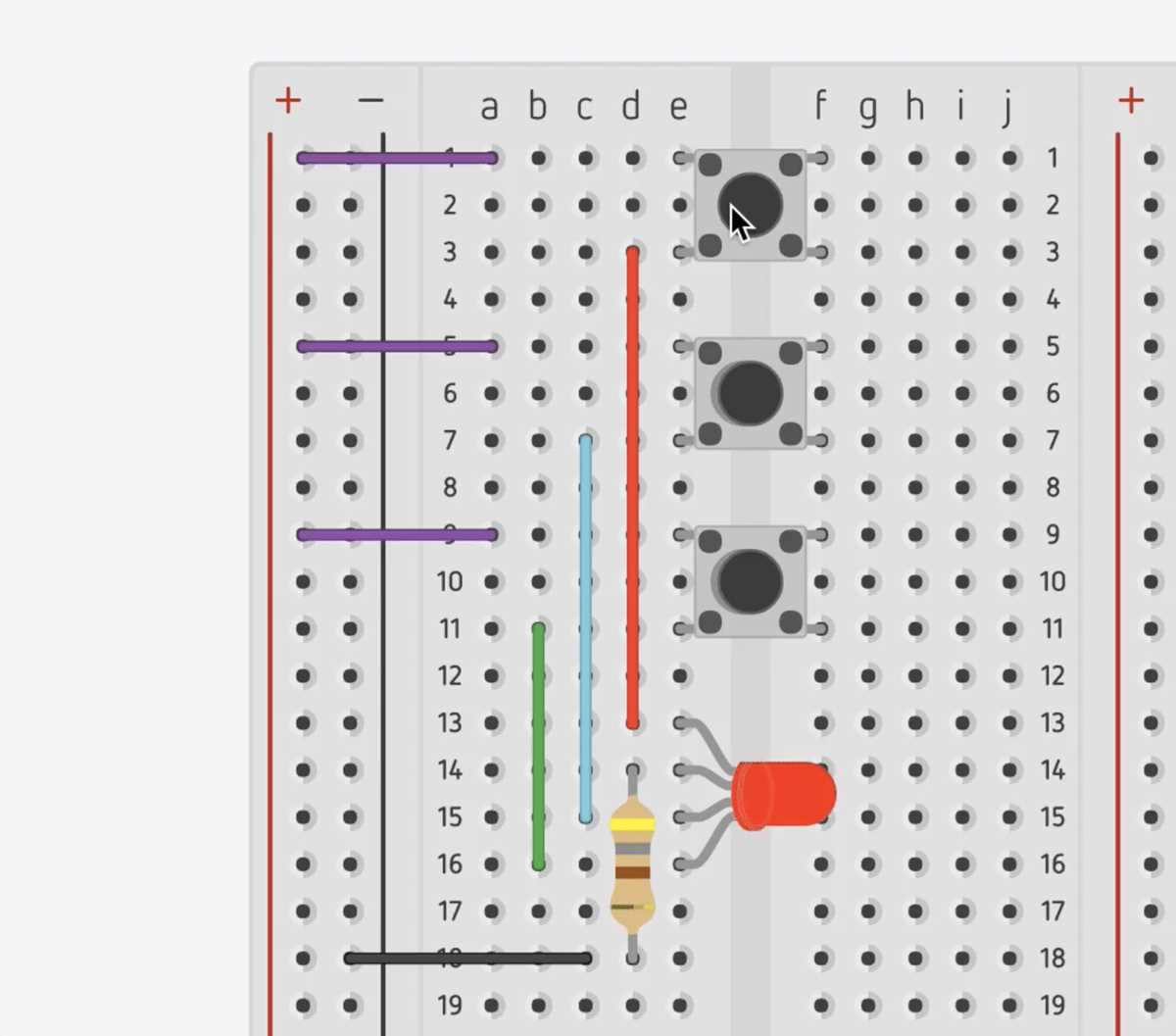

Route jumper wires vertically whenever possible, reserving horizontal runs for high-current paths. Color-code wires–red for VCC, black for ground, blue for signals–so that each path can be traced without lifting adjacent components. Verify overlap-free placement by sliding a 0.1-inch dowel between parts; if the dowel contacts a lead, adjust spacing until it moves freely. Finalize by labeling each node directly on the board with adhesive marker dots, ensuring future modifications remain unambiguous.

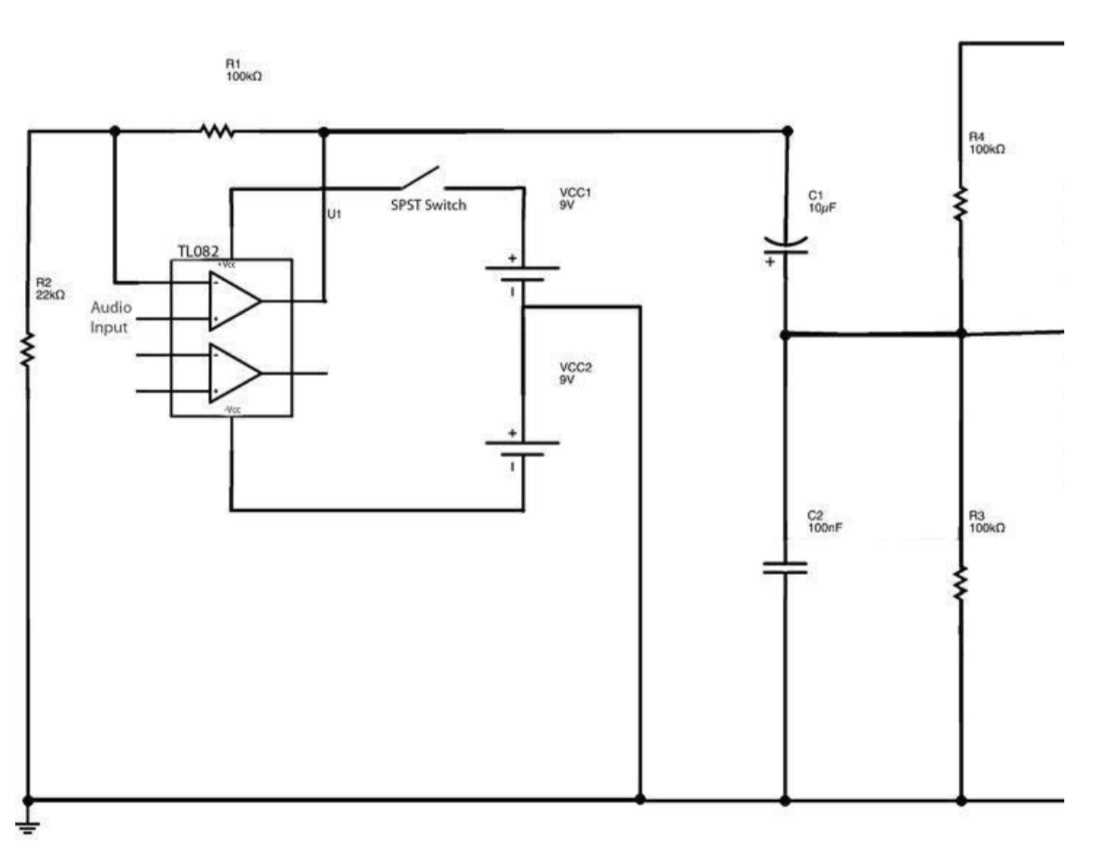

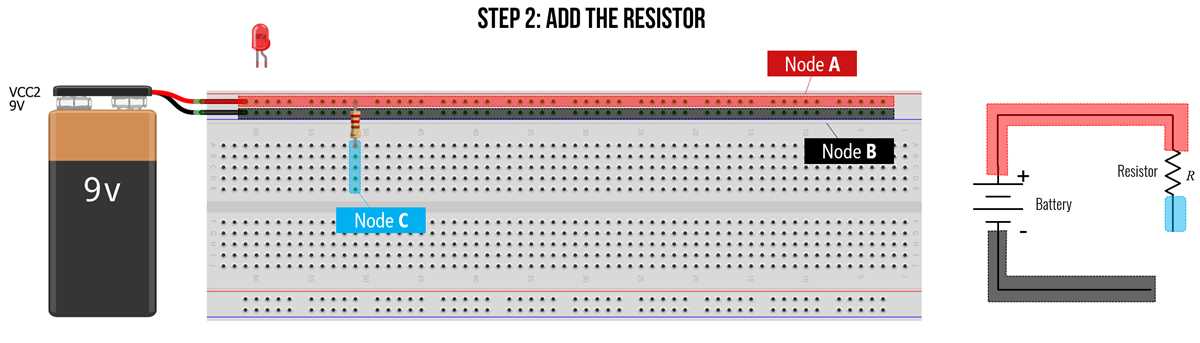

Replicate Power and Ground Connections Accurately
Identify the main rails on your prototyping board–these are the long vertical strips marked with red (+) and blue/black (-) lines. Connect all positive terminals to the red rail and all negative or ground points to the blue/black rail without exception. Skipping this step introduces floating pins, unpredictable behavior, or component failure.
Use 22-20 AWG solid-core wires for power distribution. Stranded wires increase resistance and can loosen over time. Cut wires precisely to length–excess slack creates clutter, while overly tight connections risk breaking when adjusting the layout. Twist stripped ends gently to prevent fraying, ensuring a clean insertion into the board’s holes.
For multi-component setups, distribute power in a star topology rather than daisy-chaining. Run separate wires from the rail to each component’s power pin. Daisy-chaining forces current through shared paths, leading to voltage drops, especially with high-drain parts like microcontrollers or LEDs.
Verify Connections Before Powering Up
- Set a multimeter to continuity mode. Probe between the rail and each component’s power/ground pin. A beep confirms a solid connection; silence indicates a break.
- Check for accidental shorts by measuring resistance between the red and blue rails. Values below 10 kΩ suggest a bridge–inspect all intersections.
- Power the setup with a current-limited supply (50-100 mA) initially. Observe for overheating or unexpected behavior before applying full voltage.
Label all wires at both ends with masking tape or small sticky notes. A single loose wire in a complex assembly wastes hours of debugging. Include the pin name (e.g., VCC, GND, 5V) and the target component (e.g., U2-Pin8). Use a fine-tip permanent marker to keep labels legible.
Avoid relying on the board’s internal rails alone for high-current devices. Components drawing >50 mA (motors, relays, high-brightness LEDs) should bypass the rails and connect directly to the power source via thicker wires (18-16 AWG). Attach separate decoupling capacitors (0.1 µF ceramic + 10-100 µF electrolytic) across each device’s power pins to stabilize voltage and suppress noise.
Common Pitfalls and Fixes
- Voltage drop: Measure voltage at the farthest component from the source. If below 90% of the supply, add a second power wire parallel to the rail.
- Loose connections: Press wires firmly into holes–half-seated pins cause intermittent faults. Re-seat components if shifting them slightly disrupts operation.
- Ground loops: Connect all grounds at a single point near the power source to minimize noise. Avoid splitting ground paths between analog and digital sections.
