Begin by deactivating the circuit breaker controlling the target electrical junction to eliminate shock risks. Verify power shutdown with a multimeter–probe the neutral and live terminals to ensure zero voltage reading. A misidentified circuit could result in severe injury or fire hazards.
For a standard 120V setup, identify the incoming cable: three conductors–hot (black or red), neutral (white), and ground (bare or green)–plus an optional second live wire for split circuits. Match each wire to its brass, silver, or green terminal on the receptacle. Miswiring–such as reversing neutral and ground–voids safety compliance and risks trip-free short circuits.
Use a torque screwdriver to tighten terminal screws to manufacturer-specified inch-pounds (typically 12–18 lb-in). Loose connections overheat, degrading the plastic housing and causing intermittent power failures. Wrap the device in electrical tape to insulate metal components before mounting it in the wall box, preventing accidental shorts against box edges.
For split-circuit configurations, break the brass tab between the top and bottom live terminals using needle-nose pliers. This isolates each half’s polarity, allowing independent circuit operation. Failure to remove the tab merges both feed paths, tripping the breaker under even moderate loads.
Re-energize the circuit only after double-checking connections with a non-contact voltage tester. Observe for 10 minutes under load–any flickering or warmth indicates incorrect installation. Address faults immediately to prevent progressive damage to downstream appliances.
Connecting a Quad Electrical Socket Safely
Ensure the circuit breaker is off before handling any connections. Use a non-contact voltage tester to verify the absence of current in the cables. For a standard quad socket installation, you’ll need:
- Four-gang electrical box rated for the current load (minimum 15A)
- 14/2 or 12/2 NM-B cable (match wire gauge to circuit amperage)
- Grounding pigtails if the device lacks built-in ground screws
- Wire strippers and insulated screwdrivers

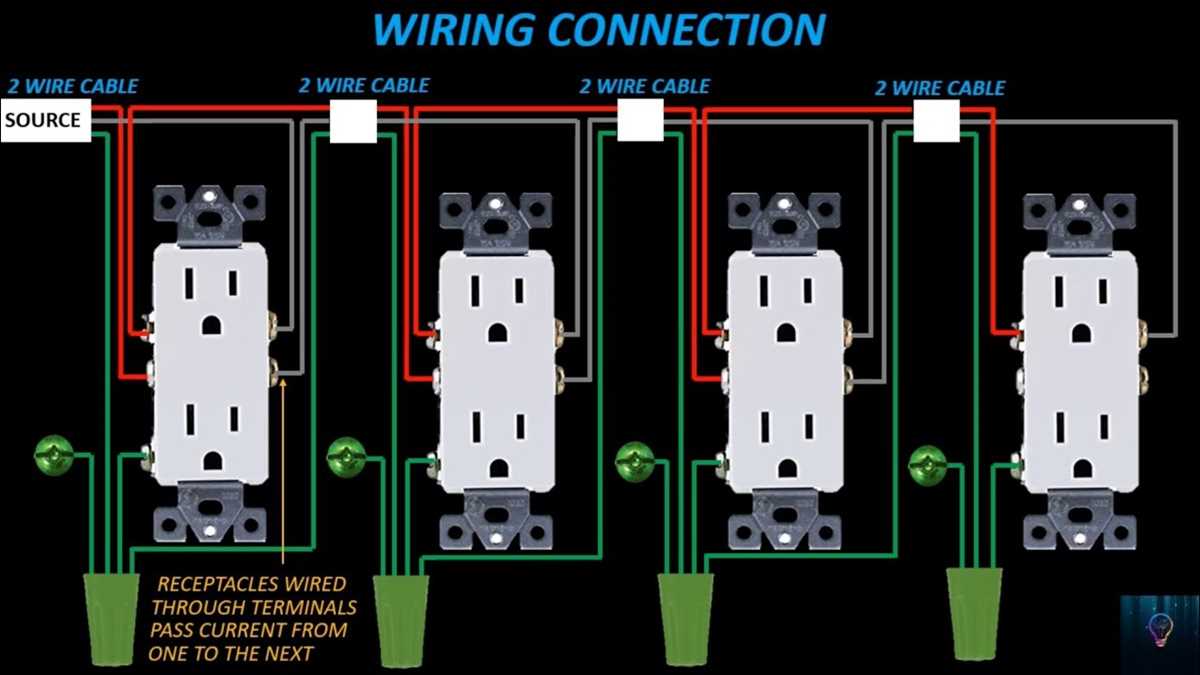

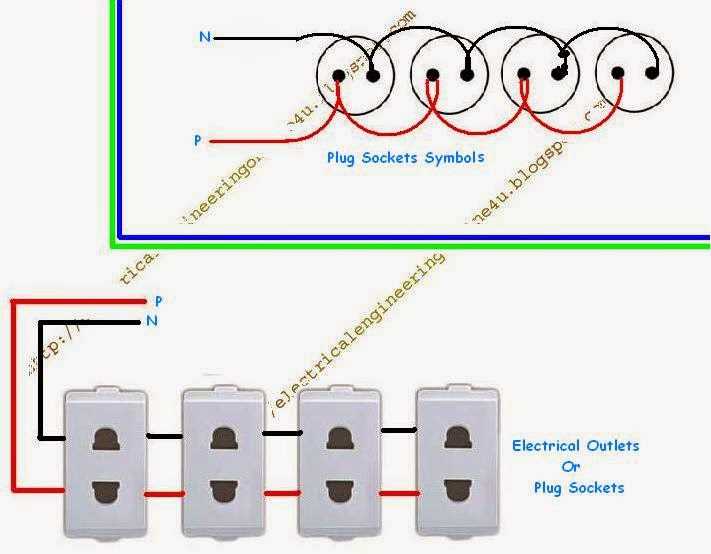

Strip 5/8″ of insulation from the end of each conductor. Connect the black (live) conductor to the brass terminal screws, white (neutral) to silver screws, and bare/green (ground) to the green grounding screw. For a series configuration, use a short jumper wire between adjacent brass and silver screws to carry power to all four positions–never daisy-chain ground wires. Twist each connection clockwise before securing under the terminal screws to prevent loosening over time.
Common Mistakes to Avoid
- Overloading the circuit: A single 15A circuit should not exceed 12A continuous load when powering four sockets simultaneously.
- Mixing wire gauges: Combining 14AWG and 12AWG wires on the same connection can cause overheating.
- Skipping torque specifications: Under-tightened terminal screws loosen; over-tightened can strip threads–use a torque screwdriver set to 12-15 lb-in.
- Ignoring box fill capacity: A four-gang box requires a minimum volume of 25 cubic inches (for 14AWG wire).
Equipment and Supplies Required for Installing a Quadruple Socket
Begin by ensuring you have a voltage tester with a sensitivity of at least 100-600V AC. Non-contact models like the Klein Tools NCVT-3 reduce risk during live circuit verification.
Use strippers rated for 12-14 AWG solid copper wire, such as the Ideal T-Stripper 45-121. These handle both stranded and solid conductors without nicking, crucial for preventing future shorts.
- 14-gauge THHN copper wire (black, white, green/bare) – minimum 3-foot lengths per terminal.
- Electrical tape (3M Super 33+) for insulating splices and labeling circuits.
- Wire nuts (2-3 size, UL-listed) like Ideal 72B for secure connections.
A heavy-duty multimeter with continuity testing (e.g., Fluke 117) confirms proper grounding and polarity. Verify resistance below 1 ohm across grounding paths before finalizing installation.
Select a metal or PVC gang box sized for quadruple units. For 4-gang configurations, use a 22 cu. in. box (minimum) per NEC 314.16. Deep boxes prevent wire crowding during termination.
Specialized Hand Tools
- Side-cutting pliers (Knipex 95 02 160) for precise trimming.
- Fish tape (25 ft minimum) if routing through joists or studs.
- Hammer-drill with 1/2″ masonry bit for mounting in concrete block.
Opt for torque screwdrivers calibrated to NEC 110.14(D) specifications (18-24 lb-in for #10 screws). Undersized torque causes loosening; overtightening damages terminal threads.
Keep a fireproof mat (e.g., Owens Corning FM6070) beneath work areas when soldering connections to isolated copper conductors. This prevents melting adjacent insulation during heat application.
Step-by-Step Guide to Identifying Hot, Neutral, and Ground Conductors
Begin by securing the panel cover with a non-contact voltage tester. Hold the probe 1–2 cm from each terminal to detect live circuits. The hot conductor will trigger the tester’s audible/visual alert at 50V or higher, while neutral and ground remain silent. Mark the hot lead immediately with red or black electrical tape.
For split-phase systems (120/240V), two hot conductors will test live–label them L1 and L2. Neutral (white or gray) and ground (bare, green, or green/yellow) require different verification. Disconnect the fixture at the terminal block, then use a multimeter in AC voltage mode. Measure between each hot lead and neutral: expect 110–120V. Between hots: 220–240V. Neutral to ground should read near 0V; any reading above 1V indicates a fault.
Using Resistance for Confirmation
De-energize the circuit at the breaker. Set the multimeter to continuity mode. Probe the suspected neutral to a known ground source (e.g., metal junction box). A beep confirms continuity–neutral is correctly bonded. Probe the hot conductor to ground: no continuity should appear. If tempted to skip this step, remember that reversed neutral/ground wires cause 15–30% energy loss and fire risks.
Identify the ground conductor by its color or lack thereof–bare copper, green insulation, or striped green/yellow. Verify by probing its terminal to a grounded surface: continuity should exist. For neutrals, check the terminal screw–it’s often silver-colored. Hot conductors screw into brass or gold terminals. If colors are stripped (e.g., older installations), rely on terminal material and voltage tests.
Document findings on a circuit map. Label each conductor at both ends with colored tape or tags. Hot: red/black; neutral: white/gray; ground: green. Re-check all connections with the tester before re-energizing. Misidentified conductors can melt insulation (exceeding 60°C) or trip GFCIs unexpectedly.
How to Safely Deactivate Power Before Installing an Electrical Receptacle
Locate the circuit breaker panel and identify the switch controlling the circuit where the receptacle will be modified. Use a non-contact voltage tester to confirm the absence of current in the target wires after flipping the breaker–never rely solely on the breaker’s position. For added certainty, test adjacent receptacles on the same circuit to ensure they are also dead.
Label the breaker with the exact circuit it controls if the panel lacks clear markings. Standard breaker sizes for household circuits include 15-amp (14-gauge wire) and 20-amp (12-gauge wire), but verify wire gauge with a caliper before proceeding. Here’s a quick reference:
| Breaker Rating (A) | Wire Gauge (AWG) | Minimum Wire Type |
|---|---|---|
| 15 | 14 | Copper (THHN/THWN) |
| 20 | 12 | Copper (THHN/THWN) |
Shut off the main power if the circuit breaker panel labels are unclear or if multiple circuits feed into the same junction box. This eliminates the risk of backfeeding through alternative paths, such as shared neutrals in split-circuits. Always wear insulated gloves rated for at least 600V when handling live wires, even after cutting power.
Verify the voltage tester is functional by testing it on a known live circuit before and after use. If the receptacle has aluminum wiring (common in homes built between 1965–1973), apply antioxidant paste to connections and use CO/ALR-rated devices to prevent oxidation-related failures. Never assume a single-pole switch controls an entire circuit–test all wires individually.
Steps to Confirm Power Isolation
1. Flip the breaker to the OFF position and secure it with tape to prevent accidental reactivation.
2. Probe the screws of the receptacle with the voltage tester–no reading should appear.
3. Check the wires at the junction box, focusing on the hot (black/red), neutral (white), and ground (bare/green) terminals.
4. Test nearby receptacles on the same wall to rule out improper circuit mapping.
5. If any reading appears, re-examine the breaker panel or consult an updated electrical schematic.
Proper Terminal Sequence for a Quadruple Electrical Port
Begin by attaching the grounding conductor to the green or bare screw–this is non-negotiable for safety. The brass-hued screws accept the line conductors carrying current, while silver screws secure the neutral leads. Position tools to maintain tension on wires while tightening screws to avoid slippage.
Prioritize the top-left brass terminal for the first hot lead (black or red insulation), ensuring it connects firmly. Follow immediately with the top-right silver terminal for its matching neutral (white jacket). This symmetrical pairing prevents confusion during verification later.
Proceed to the bottom terminals: secure the second hot conductor on the lower-left brass screw, then attach its corresponding neutral to the lower-right silver screw. Cross-check torque on all four screws–loose connections generate heat and pose fire risks.
Verify continuity with a multimeter after securing all terminals; probe between brass and silver contacts to confirm circuit integrity. A reading of zero ohms indicates correct polarity. Any deviation signals reversed connections–rectify before energizing.
When using 14- or 12-gauge conductors, strip exactly 12.7 mm of insulation to prevent shorts while ensuring full engagement around terminal screws. Twist stranded copper clockwise before insertion if not using push-in clamps.
Label terminals with permanent marker if multiple ports exist nearby: “T-L Hot,” “T-R Neutral,” “B-L Hot,” “B-R Neutral.” This eliminates guesswork during future inspections or modifications.
Handling Split-Circuit Configurations
For shared-neutral setups, bridge the neutral screws internally if the device supports it–omit external jumpers to prevent overloading. Confirm the breaker panel assigns dual 15- or 20-amp circuits if splitting; mismatched ratings cause breaker trips.
Seal unused terminal openings with approved caps–never leave exposed metal. Recheck all screws after closing the faceplate; vibrations during installation can loosen connections. Energize and test with a non-contact voltage tester as final validation.
