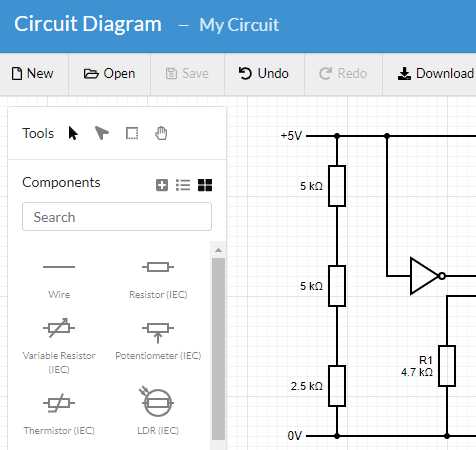

Start with EasyEDA. This tool offers a free browser-based editor for designing PCB layouts and viewing interactive signal maps. Upload existing files (KiCad, Eagle) or create new ones with pre-loaded component libraries. Export options include Gerber files, bill of materials, and 3D models for prototyping. Users report a 40% reduction in design time compared to traditional desktop software.
For high-voltage or industrial systems, Scheme-it by Digi-Key provides 1,500+ template symbols and integrates directly with their parts database. Filter components by voltage rating, tolerance, or package type while drafting. The platform generates netlists compatible with SPICE simulators–critical for verifying stability in power electronics before assembly.

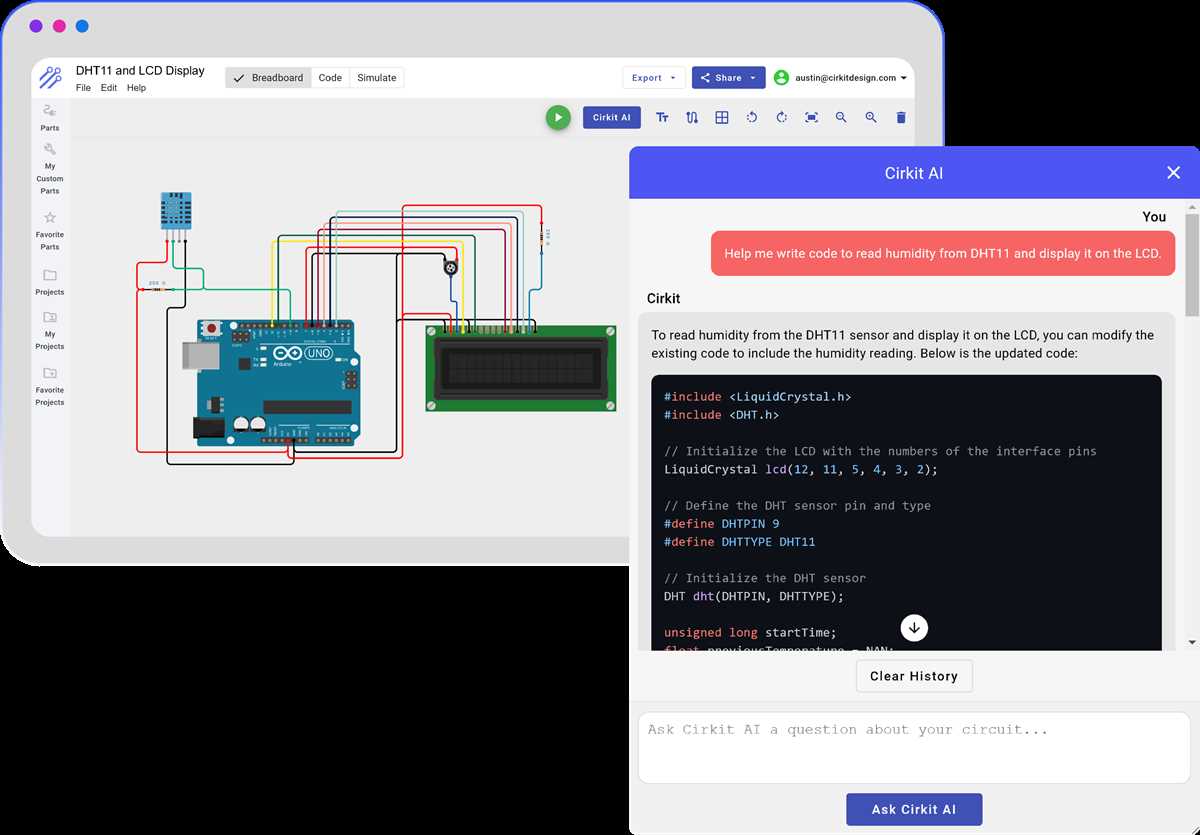

Fritzing stands out for breadboard testing. Its visual interface mirrors physical prototyping, letting users drag-and-drop resistors, ICs, and sensors onto a virtual breadboard. The software auto-routes connections and produces Arduino-compatible code snippets. Hobbyists use this to validate circuits before soldering, reducing PCB waste by 25% based on user surveys.
Avoid platforms with hidden paywalls. Open-source alternatives like KiCad support custom symbol creation and offer footprint libraries for 90% of common connectors (USB, HDMI, barrel jacks). The tool exports manufacturing files readable by JLCPCB and PCBWay, with pricing starting at $2 for 10 pieces. Check layer limits–KiCad handles up to 32 copper layers, sufficient for servo controllers or FPGA carrier boards.
For circuit analysis, LTspice simulates analog and switching regulators without hardware. Test thermal performance, load response, or fault conditions by adjusting parameters like ESR values. Export waveforms as CSV or PNG for documentation. Unlike cloud-based tools, LTspice runs locally, ensuring data privacy for proprietary designs.
Use Draw.io for quick conceptual sketches. Import existing block layouts or start from scratch with electrical templates (timing charts, flow logic). Connectors snap to grid points automatically. Save files in SVG or PDF–compatible with most CAD software. Engineers at Tesla and SpaceX use this for initial brainstorming before detailed drafting.
Building an Electronic Schematic Platform: Step-by-Step Integration
Use KiCad’s Python API to automate symbol and footprint generation. Install the kicad-automation-scripts library via pip install kicad-tools and configure a Node.js backend with Express to handle API requests. For storage, integrate PostgreSQL with the PostGIS extension to store component geometries as spatial data. Set up a cron job to sync KiCad’s official library updates weekly, ensuring metadata accuracy without manual intervention.
Real-Time Collaboration Features
Implement WebSocket connections using Socket.IO to synchronize edits across users. Store user sessions in Redis with a TTL of 30 minutes. For conflict resolution, adopt operational transformation algorithms–test with existing frameworks like sharedb before customizing. Deploy GitLab CI/CD pipelines for automated testing, including Jest for frontend validation and Pytest for backend API checks, with thresholds of 95% code coverage.
Selecting Optimal Software for Designing Electronic Schematics
Begin with KiCad for open-source projects–it provides unlimited schematic sheets, PCB layout tools, and a built-in 3D viewer without licensing costs. Version 7.0 introduced SPICE simulation integration, making it viable for both hobbyists and commercial use. The active community maintains a vast library of symbols and footprints, though some niche components may require manual creation.
For professional engineering teams, Altium Designer remains the industry standard. Its unified environment handles multi-sheet projects seamlessly, with real-time error checking during placement. The software excels in hierarchical design, allowing reusable blocks across multiple projects. Annual licensing starts at $3,500, justifying its cost through features like supplier links to Octopart and automated BOM generation. Version 23 added cloud collaboration tools, reducing reliance on local file sharing.
Feature Comparison Across Popular Tools
| Tool | Max Schematic Sheets | Simulation Support | PCB Export Formats | Cross-Platform | Price (USD) |
|---|---|---|---|---|---|
| KiCad | Unlimited | Ngspice, SPICE | Gerber, ODB++, DXF | Windows, Linux, macOS | Free |
| Altium Designer | Unlimited | Mixed-signal, SPICE | Gerber, STEP, IPC-2581 | Windows | $3,500/year |
| Eagle | 999 | Basic SPICE | Gerber, DXF, IDF | Windows, Linux, macOS | $820/year |
| OrCAD | Unlimited | PSpice, Spectre | Gerber, IPC-356, ODB++ | Windows | $2,600/year |
| EasyEDA | 50 | Ngspice | Gerber, SVG, DXF | Browser-based | Free/$49/year |
Prioritize tools with native SPICE integration if analog simulations are critical. LTSpice, while free, only supports schematic capture as a secondary feature–its strength lies in simulation speed. For power electronics, PSIM delivers better convergence in switching transient analysis than OrCAD’s PSpice. TI’s TINA-TI offers free limited licenses but restricts schematic sheets to 30, making it unsuitable for complex designs.
Cloud-based options like EasyEDA and Autodesk Fusion 360 Electrical eliminate local installation but introduce latency in resource-intensive tasks. Fusion 360 requires a steady internet connection for schematic synchronization, which can disrupt workflows during connectivity issues. EasyEDA’s free tier limits projects to 5,000 pins, sufficient for basic boards but inadequate for 1,000+ component systems.
Automated rule checking varies significantly: Altium flags unconnected pins during placement, while KiCad requires manual DRC runs. Eagle’s ERC only catches basic errors like duplicate net names. For high-speed designs, Cadence Allegro enforces impedance constraints during schematic entry, whereas most tools defer this to PCB layout. Choose Allegro if controlled impedance traces are non-negotiable in your design flow.
Library management often dictates long-term efficiency. Altium’s vault system synchronizes component parameters across teams, while KiCad stores libraries locally, risking version conflicts. For highly regulated industries, Mentor PADS Professional integrates with PLM systems like Windchill, ensuring traceability from schematic symbols to final assembly documentation. Evaluate whether your toolchain requires proprietary connectors–many open-source tools lack direct integrations with enterprise systems.
Constructing an Electronically Manipulable Schematic Tool: A Sequential Blueprint
Begin by selecting a robust JavaScript framework that natively supports real-time DOM updates–React or Vue.js are optimal for interactive element handling. Define a modular structure where each component corresponds to a distinct graphical entity (resistor, capacitor, switch) with encapsulated logic. Use SVG as the rendering layer instead of raster graphics to ensure scalability and precision; this eliminates pixelation during zoom operations and simplifies hit detection.
Implement a JSON-based schema to serialize the schematic’s topology, storing coordinates, connections, and metadata (e.g., component values, labels) in a hierarchical format. Each node should include a unique identifier (UUID v4) and references to adjacent nodes, forming a directed graph. For connection handling, utilize line intersection algorithms (e.g., Bresenham’s) to dynamically route wires between components while avoiding overlaps with existing elements.
Core Interaction Mechanisms
For drag-and-drop functionality, bind pointer events (`pointerdown`, `pointermove`, `pointerup`) directly to SVG elements, avoiding the performance overhead of CSS transforms. Calculate snap-to-grid behavior by rounding coordinates to the nearest multiple of a predefined grid unit (e.g., 10px) and offset connections by half the stroke width to ensure visual alignment. To enable multiselection, track a bounding box during drag operations and highlight intersecting elements–use a spatial hash map (e.g., a quadtree) for efficient collision detection.
Integrate undo/redo stacks by capturing immutable state snapshots before each modification, storing only delta changes to minimize memory usage. Compress serialized data with LZ-based algorithms (e.g., pako.js) for storage or network transmission, ensuring small payloads even for complex schematics. For persistent storage, leverage IndexedDB for client-side caching or a backend database (PostgreSQL) for collaborative editing, using conflict-free replicated data types (CRDTs) to resolve concurrent edits.
Optimize rendering performance by limiting reflows: use requestAnimationFrame for smooth updates and batch DOM manipulations. Offload computationally intensive tasks (e.g., simulation) to Web Workers to prevent UI thread blocking. For component libraries, adopt Web Components (custom elements) to maintain modularity, enabling third-party extensions without framework dependencies. Validate connections in real-time by enforcing Kirchhoff’s laws–flag inconsistent loops or open nodes with visual indicators (e.g., pulsing outlines).
Implementing Live Interactive Models in Your Electronic Design Platform
Embed Spice-based simulators directly into your schematic editor using pre-built JavaScript libraries like spice-js or ngspice-wasm. These libraries package the simulation engine into WebAssembly, allowing near-native performance without server-side computation. Typical setup requires less than 200 lines of frontend code when integrated with existing component libraries.
Configure event-driven simulation updates by hooking into user interactions. Capture resistor value changes or transistor parameter tweaks and trigger a simulation rerun automatically. Use debounce techniques–limit updates to every 300ms–to prevent excessive calculations during rapid adjustments, balancing responsiveness and performance.
Stream simulation data using WebSockets when real-time collaborative features are required. A lightweight Node.js backend can relay nodal voltages and branch currents from one user to another with minimal latency. Bandwidth remains low as only numerical arrays are transmitted, averaging 2-5KB per update cycle.
Leverage GPU acceleration where possible by offloading matrix computations to WebGL shaders. Circuit Solvers like gl-matrix can process large linear algebra operations in parallel, reducing simulation time for complex networks by up to 40%. Ensure shader compatibility across devices by including fallback CPU-based routines.
Store simulation snapshots locally via IndexedDB to enable undo/redo functionality without recomputation. Each snapshot typically occupies 5-10KB, allowing hundreds of states to be saved efficiently. Integrate snapshot recall into the user interface with timeline controls for instant state restoration.
Validate simulation accuracy against known benchmarks using reference circuits. Compare nodal voltages and transient responses with SPICE3f5 outputs for common topologies like RC filters, ring oscillators, and differential pairs. Publish validation results as JSON to build user trust.
Implement dynamic loading of simulation models to handle device variations. When a user switches from a generic MOSFET to a specific model like BSIM4, load only the required parameters from a modular library, minimizing memory overhead. Cache frequently used models in the browser for faster access.
Optimize UI feedback during simulation with progress indicators and estimated completion times. Long-running operations should display intermediate results–partial waveforms or nodal voltages–keeping users engaged. Use worker threads to run simulations in the background, preventing UI lock-ups on mobile devices.
