Start by selecting a shunt resistor with a known ohmic value–typically 0.01Ω for ranges up to 10A. Solder it directly in series with the load path to minimize lead resistance errors. Use Kelvin (four-wire) connections if measuring currents below 1A to eliminate voltage drop inaccuracies from contact points.
Connect a moving-coil meter or digital multimeter (DMM) in parallel across the shunt. For analog designs, ensure the meter’s internal resistance (often 50-200Ω) matches the shunt’s voltage output; a 50mV drop at 10A requires a meter scaled to 50mV full deflection. Calibrate using a known power supply (e.g., a 1A load through a 0.1Ω shunt should read 100mV).
Bypass capacitance (100nF) across the shunt filters high-frequency noise–critical in switching circuits. For AC currents, add a bridge rectifier with low-forward-voltage diodes (e.g., 1N5817) ahead of the meter to prevent reverse polarity damage. Ground the negative terminal of the shunt to a clean earth reference to avoid ground loops.
Test the configuration with a transient load: a MOSFET switching 5A at 1kHz should show stable readings (±2%) without needle oscillation. For autoranging, use analog switches (e.g., CD4066) with precision resistors (1%, 0.1Ω tolerance) to scale inputs dynamically. Store assembled units at 25°C for 24 hours before final calibration to account for thermal drift.
Designing a Current Measurement Setup for Precision
Select a low-resistance shunt resistor matched to your anticipated load range. For microampere readings, a 100 Ω resistor introduces minimal voltage drop while maintaining measurable potential differences. Ensure the resistor’s tolerance is within 0.1% to avoid skewing readings by more than ±0.25% at full scale. Place the shunt in series with the load, not parallel, to prevent bypassing current.
Use a galvanometer or high-impedance voltmeter across the shunt to detect voltage. A 10 MΩ input impedance meter reduces loading errors to under 0.01% for most applications. For DC measurements, polarity matters–connect the positive terminal of the meter to the higher potential side of the shunt. Avoid reversing leads, as this can damage analog indicators.
Calibration Steps for Accurate Readings
Before connecting to the main power source, verify the setup with a known current. A benchtop supply with adjustable output serves as a reference. Dial the current to half-scale of your meter’s range, then adjust the meter’s zero and span controls until the reading matches the supply’s output. Document these adjustments for reproducibility.
- Check shunt dissipation: A 0.5 W resistor handles 50 mA at 100 Ω without overheating. Exceeding this risks drift.

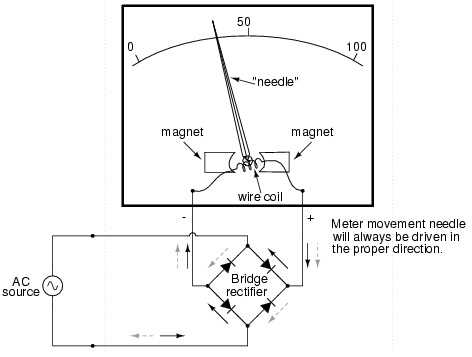

- For AC signals, add a diode bridge to rectify current before measurement. Remember that silicon diodes introduce a 0.7 V forward drop.
- Twist measurement leads to reduce noise, especially in high-frequency applications.
Safety and Signal Integrity Considerations
Isolate the measuring device from high-voltage nodes using optocouplers or Hall-effect sensors. Direct connections risk ground loops and false readings. When measuring currents above 1 A, upgrade the shunt to a 0.01 Ω manganin block, which maintains stability up to 100 A without thermal drift. Mount the block on a heatsink if continuous operation is required.
For transient currents, employ a storage oscilloscope with a 10:1 probe across the shunt. This captures spikes without saturating the instrument. Set the probe’s attenuation to match the scope’s input range, and ensure grounding is shared with the shunt’s reference point to prevent ground bounce.
Test the completed assembly under full load. Compare readings against a certified multimeter; discrepancies larger than 0.5% warrant revisiting calibration or shunt selection. Replace resistors showing temperature coefficients above 50 ppm/°C to maintain accuracy in variable environments.
- Label all connections to prevent miswiring.
- Avoid soldering directly to shunt resistors–use screw terminals for secure contact.
- In battery-powered setups, add a fuse rated at 120% of the maximum expected current.
Key Elements for Constructing a Current Measurement Setup
Begin with a precision shunt resistor–its value dictates measurement range. For microampere scales, select 100Ω to 1kΩ; for milliamperes, drop to 0.1Ω–10Ω. Temperature coefficient must stay below 50 ppm/°C to prevent drift. Avoid wire-wound types unless absolute stability is required–thick-film resistors offer better cost-to-performance balance for most applications.
Select a galvanometer or low-offset operational amplifier with input bias current under 1 nA. For high-side sensing, prioritize instrumentation amplifiers with common-mode rejection above 100 dB. Discrete BJTs can suffice for basic designs, but FET-input front ends eliminate input offset errors at wider bandwidths. Match the amplifier’s input impedance to the shunt’s value to minimize loading effects–aim for at least 100× the shunt resistance.
| Component | Purpose | Critical Specifications |
|---|---|---|
| Shunt Resistor | Converts current to measurable voltage | TCR 2× expected dissipation |
| Instrumentation Amplifier | Amplifies differential voltage | CMRR >100 dB, input bias 100 kHz |
| Low-Pass Filter | Rejects noise | Cutoff 60° |
| ADC | Digitizes signal | Resolution ≥16-bit, ENOB >14-bit, sampling rate >10× signal frequency |
Integrate a low-pass filter with cutoff frequency at least 10× below the signal’s highest component. Use a 2nd-order Sallen-Key topology for sharp roll-off; ceramic capacitors with X7R dielectric minimize voltage coefficient errors. For 50/60 Hz rejection, set the cutoff to 10 Hz with
Choose an ADC with resolution exceeding the required dynamic range by 2 bits. SAR converters suit low-speed, high-accuracy needs; ΔΣ types excel in noise-heavy environments. Drive the ADC with a low-output-impedance buffer (
Isolate high-voltage paths with optocouplers or isolated amplifiers (e.g., ISO124) when measuring above 48V. For battery-powered systems, select components with quiescent current under 100 µA. Calibration requires a precision current source (e.g., Keithley 6221)–adjust gain trim pots to match the ADC’s reference. Store calibration data in EEPROM to correct for shunt tolerance (±0.1% achievable).
Validate performance with a four-point Kelvin connection to shunt terminals–this eliminates lead resistance errors (>1 mΩ impact at 1A). For pulsed currents, ensure the amplifier’s slew rate exceeds the signal’s edge rate; a 10 V/µs minimum prevents slew-rate limiting on 1 µs pulses. Log data at 1 kS/s minimum for transient capture–higher rates add marginal benefit beyond 10 kS/s in most cases.
Practical Guide to Integrating a Precision Bypass Resistor into Current Measurement Tools
Select a shunt with a resistance value that divides the expected current range into measurable voltage drops–typically 50 mV to 100 mV at full scale. For a 10 A instrument, a 0.01 Ω resistor yields 100 mV, simplifying signal conditioning. Verify tolerance; 1% precision parts suffice for most industrial applications, while 0.1% minimizes calibration drift.
Place the bypass resistor in series with the load path, ensuring minimal lead resistance contamination. Copper traces or heavy-gauge wire (AWG 12 or thicker) connect the shunt terminals to the main conductor, reducing parasitic voltage drops. Keep lead lengths symmetrical to cancel thermal EMF errors.
Isolate the measurement taps from high-current leads using dedicated, fine-gauge wires (AWG 24–26). Twist the pairs to reject magnetic interference, routing them perpendicular to power lines. Shielding with foil or braid becomes critical above 10 kHz, though DC and low-frequency meters ignore this.
Solder or bolt the shunt connections with a torque no less than 0.5 Nm; loose joints introduce milliohm-level errors that skew readings by several percent. Use star washers beneath bolts to maintain clamping force over thermal cycles. For high-power setups, silver-plated copper lugs prevent oxidation at the interface.
Calibrate the meter with a known reference source–a precision 4-wire decade box simulates target currents. Adjust the gain resistor until the display matches the applied current. Log baseline voltages at room temperature; repeat measurements after 30 minutes of max-rated current to verify drift.
Avoid placing the shunt near heat sources–proximity to transformers or power semiconductors elevates temperature, altering resistance. If unavoidable, choose manganin or constantan alloys with near-zero temperature coefficients (±15 ppm/°C). Submerge the shunt in dielectric oil for extreme thermal stabilization when currents exceed 50 A.
Test for common-mode interference by shorting both measurement leads to chassis; residual voltage should remain below 1 mV. If not, separate the current path from the voltage sense circuit with an isolated DC-DC converter, ensuring at least 500 V isolation barrier. Ground loops ruin accuracy–bond the meter’s low-side reference to a single chassis point only.
Document the final configuration: shunt value, lead sizes, calibration offsets, and operational limits. Store raw voltage readings alongside calculated current values to simplify future diagnostics. Recalibrate yearly or after any wiring modification, even minor board reworks can shift the bias by microvolts.
Calculating the Correct Shunt Resistance for Your Measurement Device

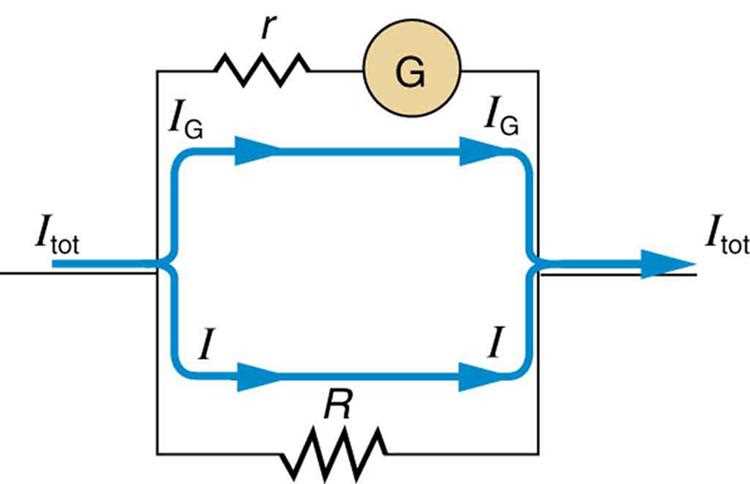

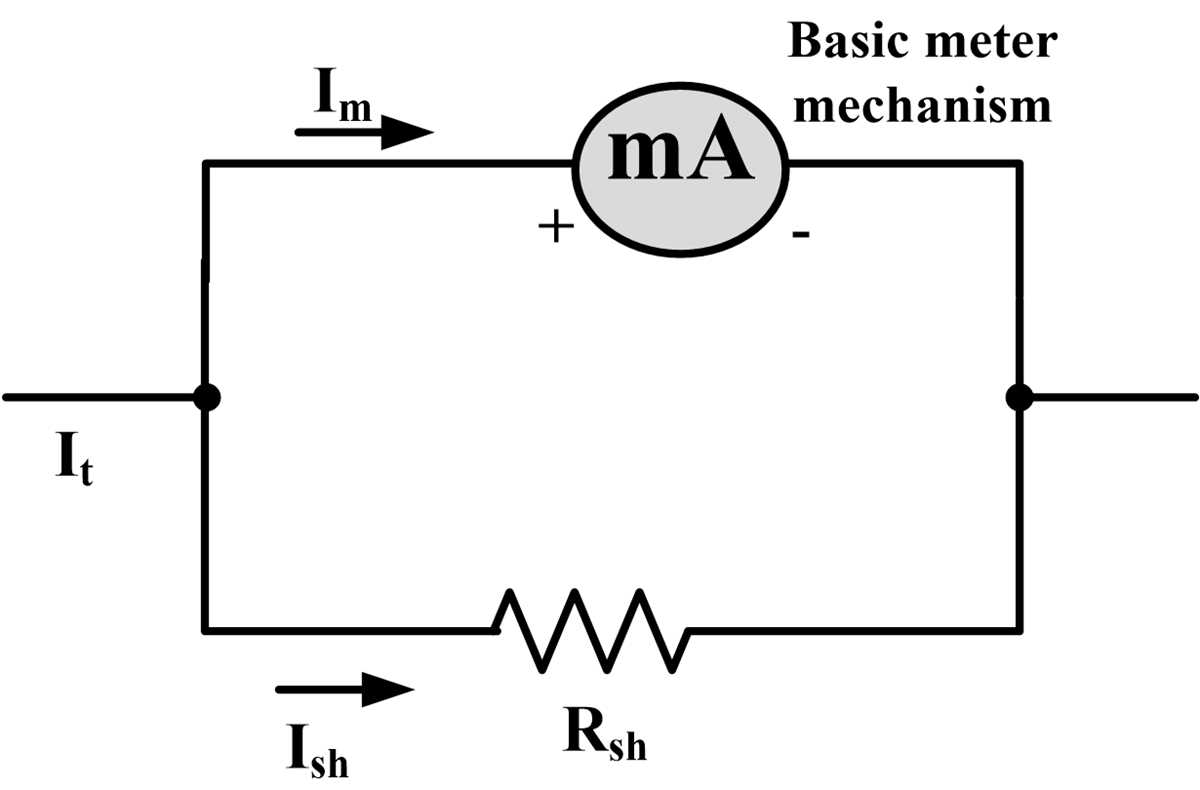

To determine the optimal shunt resistance, use the formula Rshunt = (Im × Rm) / (Itotal – Im), where Im is the full-scale deflection current of your meter, Rm its internal resistance, and Itotal the maximum current you intend to measure. For example, if your meter has a 50 µA sensitivity and 2 kΩ internal resistance, and you need to measure 1 A, the shunt should be (50×10-6 × 2000) / (1 – 50×10-6) ≈ 0.1 Ω. Precision resistors with ±1% tolerance or better are recommended to maintain accuracy–avoid carbon composition types, which drift under heat.
Key Adjustments for High-Current Scenarios
For currents exceeding 10 A, use thick-film or metal-strip shunts (e.g., Manganin or Constantan alloys) with resistance values below 0.01 Ω to minimize power dissipation (P = I²R). A 10 mΩ shunt handling 50 A will dissipate 25 W–ensure proper heatsinking or forced air cooling. Verify calculations by temporarily inserting a precision decade box in series; adjust until the meter’s reading aligns with a calibrated reference. For pulsed currents, account for the shunt’s inductance–select non-inductive wirewound variants or four-terminal Kelvin shunts to eliminate measurement errors.
