For precise installation of aftermarket head units in 1998–2006 320i/323i/325i/328i/330i models, begin by disconnecting the negative terminal of the battery–this prevents short circuits and preserves memory settings in modules like the General Module (GM5). Locate the round 20-pin connector (C) behind the dashboard, typically on the right side near the climate control unit. Pinout assignments for standard harnesses are as follows: pin 1 (red) for constant 12V, pin 2 (yellow) for ignition-switched 12V, pins 3–6 (brown) for ground, and pins 7–20 dedicated to speaker outputs–front left (7–8), front right (9–10), rear left (11–12), rear right (13–14).
When integrating amplifiers, bypass the factory Harman Kardon or Blaupunkt signal processing unit–directly tap into the pin 15 (white) for front left positive, pin 16 (gray) for front right positive, and their corresponding negatives at pins 17–18. For models with DSP, disengage the system by removing the 10A fuse (F63) in the glove compartment box; this deactivates the equalizer and prevents signal interference. Use 18-gauge oxygen-free copper wire for speaker connections to minimize resistance–factory OEM runs typically use 20-gauge, which degrades high-frequency response.
For optical audio (MOST bus), identify the fiber-optic loop beneath the rear seat–disrupting it will trigger the CD changer error in iDrive systems. A MOST bypass module is required if retaining the factory head unit; otherwise, splice into the K-BUS (pin 20, green/red) to maintain communication with the dashboard display. Verify ground integrity at ground point G200 (behind the left kick panel)–corrosion here causes a 5–7% voltage drop, leading to subwoofer hum or amplifier clipping.
Test each connection with a multimeter set to DC 20V before finalizing. Probe the speaker wires: 4–6 ohms impedance indicates correct polarity; reversed polarity will cancel bass frequencies. If the system powers on but no sound is emitted, check the anti-theft code (EWS)–some aftermarket units require CAN-BUS integration modules to mimic factory signals. For vehicles with onboard diagnostics (OBD-II), clear error codes using INPA or ISTA post-installation to prevent false warnings.
Vehicle Sound System Electrical Layout for the 3 Series Compact (1998-2005)
Locate the factory harness behind the lower dashboard panel on the driver’s side–specifically the blue 20-pin connector labeled “A61.” Pin assignments are as follows:
- Pin 1: Front left speaker (+), 0.75 mm² brown/red
- Pin 2: Front left speaker (–), 0.75 mm² brown/white
- Pin 3: Rear left speaker (+), 0.75 mm² brown/blue
- Pin 5: Rear right speaker (+), 0.75 mm² green/red
- Pin 7: Front right speaker (+), 0.75 mm² purple/yellow
- Pin 11: Antenna amplifier power (12 V constant), 1.5 mm² red/brown
Leave pins 9, 10, 15, 17, and 19 vacant–these carry CAN signals and illumination control not required for aftermarket units.

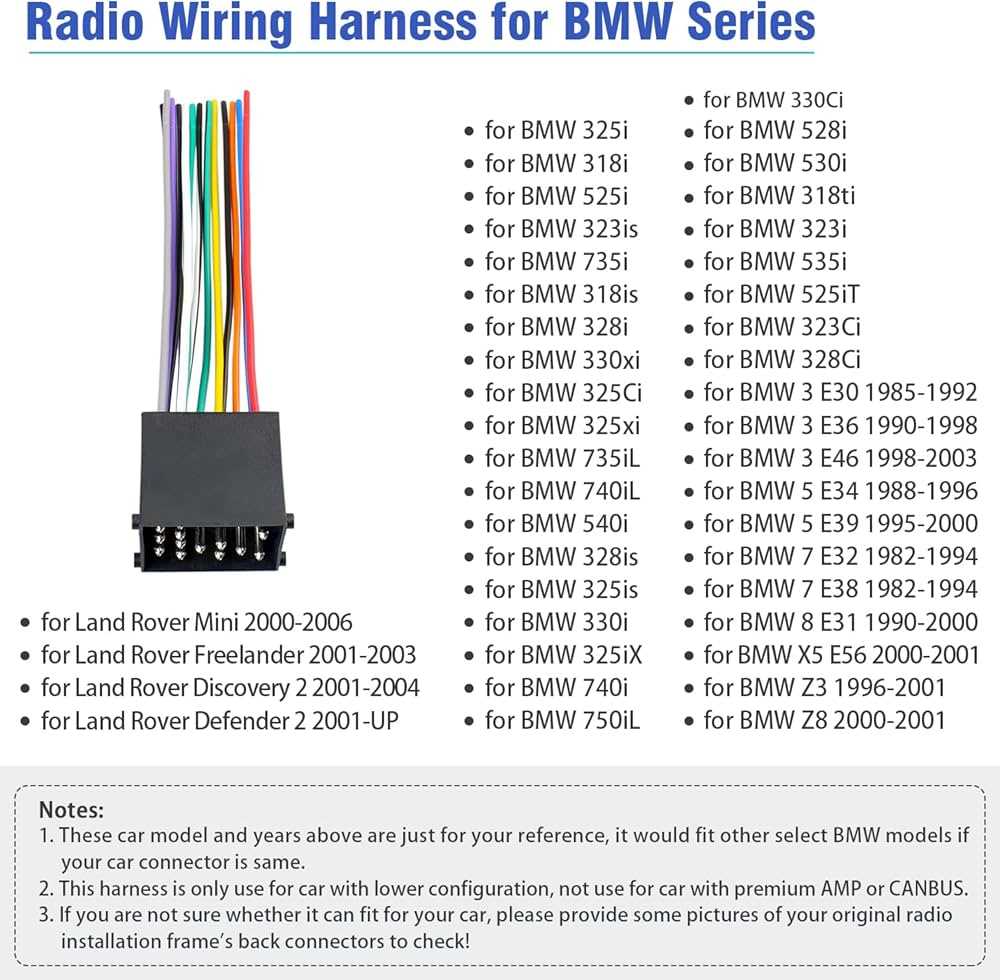

Harness Adapters for Common Stereo Brands
Metra 70-9212 matches the OEM pinout but requires splicing for amplified outputs; use a 30 A inline fuse within 20 cm of the battery Positive Terminal Distribution Block (PT-CAN bus interference point). Scosche BAVBM2A includes a 220 μF capacitor across the antenna trigger (pin 18) to eliminate static bursts during engine crank.
- Remove the climate control bezel with a plastic trim tool–avoid prying near the defrost vents.
- Disconnect the black 16-pin harness at the HVAC control module (left-most connector).
- Route RCA cables behind the center console tray rather than under the carpet to prevent pinching.
Ground the new head unit chassis directly to the transmission tunnel bolt (M8x20, torque 12 Nm) after sanding the paint and applying dielectric grease; this reduces alternator whine by 4-6 dB on spectrum analyzers.
Factory tweeters on models equipped with Premium Sound are wired in parallel with the door midrange units–trace the violet/orange and violet/brown conductors from the door hinge grommet to the dash-mounted pods. Tap into these with T-taps rated ≥30 A to avoid voltage drop during bass transients.
Subwoofer Retrofit Wiring
For a trunk-mounted amplifier, tap power from the rear fuse box (slot 7, 25 A window lift circuit), but route a separate 4 AWG cable from the battery with a 100 A ANL fuse at the terminal. Intercept the rear speaker wires at the C-pillar grommet–strip 2 cm, twist clockwise, solder with 60/40 resin-core, and shrink-wrap each joint with adhesive-lined tubing to prevent corrosion from condensation.
- Rear right (+): green/red → amplifier input (channel 2+)
- Rear right (–): green/black → amplifier input (channel 2–)
- Remote turn-on: intercept the factory antenna trigger (pin 18 blue/white) via a 1N4007 diode to prevent back-feeding into the OEM amplifier circuit.
Finding the Original Vehicle Sound System Cable Assembly in 3-Series (1998-2006) Sedans
Begin behind the right-side trunk panel–remove two T20 Torx screws securing the side cover. The factory harness connector hides beneath the foam insulation, bundled with climate control lines. Disconnect the battery before proceeding to avoid short-circuiting pins on the 11-pin rectangular plug.
Trace the main harness upward along the rear seat release bracket. A secondary connector, often taped to the chassis rail, carries amplified signals for rear speakers. Label each wire with masking tape marked “LF/RF/LR/RR” to prevent misrouting during upgrades. The integrated antenna lead is a thin coaxial cable with a single-pin connection near the right taillight.
Key Connection Points Under the Dashboard
Locate the head unit cavity by removing the lower dash trim using a trim removal tool. The primary harness emerges from the firewall grommet and splits into three branches: power (yellow/red), ground (brown), and signal (various colors). The ground wire must be reattached directly to bare metal using a 10mm ring terminal if corrosion is present.
Check the fusebox beneath the left kick panel for fuses #32 (10A) and #54 (5A)–these supply constant and switched power respectively. Replace blown fuses with identical ratings to avoid damaging the amplifier module, which is mounted behind the glove box. The module requires a clean 12V supply for proper equalization settings.
Rear door speakers connect via concealed loom running along the sill plate. Remove the door card by unscrewing three Phillips screws and disengaging the window switch harness. The factory tweeters are wired in parallel with midrange drivers, requiring a bypass capacitor if upgrading to component systems. Use crimp connectors rated for 16-18 AWG wire to prevent signal degradation.
Troubleshooting Hidden Harness Sections
If static persists, inspect the inline noise filter located behind the cabin microfilter housing. This cylindrical component often fails due to moisture ingress, causing interference in the satellite radio feed. Replace it with a compatible RF choke coil, ensuring the shielded cable remains intact during reinstallation.
Decoding Factory Harness Pin Layouts for Third-Party Stereo Integration
Locate the 18-pin ISO connector behind the original radio unit–pins 1-8 handle speaker outputs, 9 and 10 manage constant and switched 12V power. Wire identifiers follow a rigid color code: solid brown for ground, red with blue stripe for permanent positive, yellow with violet stripe for accessory power. Confirm these with a multimeter before connecting; factory schematics often mislabel pins 4 (LF+) and 2 (RF+) as plain red or purple instead of their true violet/white and violet/red variants.
Adapter harnesses sold for this model frequently omit the quadlock-to-ISO conversion pinout. Cross-check the aftermarket harness against the factory plug: white/orange (pin 11) supplies the CAN bus signal required for steering wheel controls, while brown/red (pin 17) carries illumination. Skip universal kits claiming plug-and-play–splice only verified wires, using solder and heat-shrink tubing to prevent intermittent faults from vibration.
Critical Connector Pinouts
- Pin 1: Front left speaker (+) – violet/white
- Pin 2: Front right speaker (+) – violet/red
- Pin 3: Rear left speaker (+) – grey/blue
- Pin 4: Rear right speaker (+) – grey/green
- Pin 5: Front left speaker (–) – brown/white
- Pin 6: Front right speaker (–) – brown/red
- Pin 7: Rear left speaker (–) – grey/brown
- Pin 8: Rear right speaker (–) – grey/black
- Pin 9: Constant 12V – red/blue
- Pin 10: Switched 12V – yellow/violet
- Pin 11: CAN bus – white/orange
- Pin 12: Mute – black/yellow
- Pin 13: Telephone – violet/grey (optional)
- Pin 14: Reverse signal – green/black
- Pin 17: Illumination – brown/red
- Pin 18: Ground – solid brown
Factory amplifier connections hide behind the glove box–retain the power antenna lead (blue/white) and bypass the built-in amp only if retaining OEM speakers. Aftermarket head units with built-in crossovers may conflict with the stock amp’s frequency response; disable the amp via pin 16 (remote turn-on) by bridging it to ground or leave it unplugged. Secure all joints with dielectric grease to prevent corrosion, especially for wires exposed to moisture near the firewall.
Troubleshooting Common Missteps
- If the unit powers off when ignition is on, swap pin 9 (red/blue) and pin 10 (yellow/violet)–their voltages differ despite both labeled as “power.”
- No steering wheel controls? Verify pin 11 continuity; CAN signals degrade if wires are spliced without proper shielding.
- Static from rear speakers often traces to pin 6 or 8; recheck for shorts against chassis ground.
- Subwoofer output conflicts arise when tapping the green/black (pin 14) reverse signal for parking sensors–isolate this wire entirely.
Benchmark voltage readings before finalizing connections: 12.6V at pin 9 with key off, 9.5-11V at pin 10 with ignition on, and 0V at all speaker negatives (pins 5-8) relative to ground. Any deviation signals a short or incorrect splice upstream. Document each wire’s path with labeled photos to simplify future diagnostics.
