Begin by locating the aftermarket head unit’s ISO harness adapter–this bypasses factory wiring complications. The GMLAN data bus (pins 1, 6, 10, 13) must remain untouched; cutting these wires risks disabling OnStar, chimes, or vehicle diagnostics. For speaker outputs, match the gray/orange (+) and gray/brown (-) front door wires to the amplifier’s corresponding terminals. Ground the chassis directly to unpainted metal within 18 inches of the head unit, avoiding shared grounds with high-draw components like A/C compressors.
Factory steering wheel controls rely on a single-wire resistive network. Integrate an ASWC-1 module (Metra) by splicing into the light green/white wire at the radio connector. Verify voltage fluctuations between 0.5V and 4.5V with a multimeter before finalizing connections–erratic readings indicate a defective switch cluster. For navigation interfaces, the purple/yellow speed signal and purple/white reverse light wire enable GPS calibration; tap into these at the vehicle harness, not the radio.
Avoid daisy-chaining power leads. The yellow constant 12V wire and red accessory wire must each connect to separate fuses–use a Add-a-Circuit (Mini 250) for the latter, pulling from an ignition-switched source like the cigarette lighter. For subwoofer integration, the rear amplifier’s harness (located behind the driver’s side kick panel) uses dark blue/white for remote turn-on–this wire carries 12V only when the factory amp is active. Test with a 10A fuse inline to prevent back-feeding into the Bose system.
High-current amplifiers require 8-gauge wire or thicker, routed away from ABS modules and ECU harnesses to prevent interference. Secure all wire runs with plastic loom tubing and avoid sharp edges near the dashboard’s firewall grommet. Post-installation, reset the vehicle’s BCM by disconnecting the negative battery terminal for 10 minutes–this clears radio presets without erasing adaptive throttle or transmission shift maps.
Audio System Harness Color Codes for 2008 Platform Trucks
Locate the 12-pin harness connector behind the factory head unit; the following color assignments apply to both premium and base audio configurations:
| Pin | Function | Wire Color |
|---|---|---|
| 1 | Battery Constant (+12V) | Yellow |
| 2 | Ground | Black |
| 3 | Ignition Switched (+12V) | Red |
| 4 | Front Left Speaker (+) | Gray |
| 5 | Front Left Speaker (–) | Gray/Black |
| 6 | Front Right Speaker (+) | White |
| 7 | Front Right Speaker (–) | White/Black |
| 8 | Rear Left Speaker (+) | Green |
| 9 | Rear Left Speaker (–) | Green/Black |
| 10 | Rear Right Speaker (+) | Purple |
| 11 | Rear Right Speaker (–) | Purple/Black |
| 12 | Amplifier Remote Turn-On | Dark Blue/White (optional; present only in premium setups) |

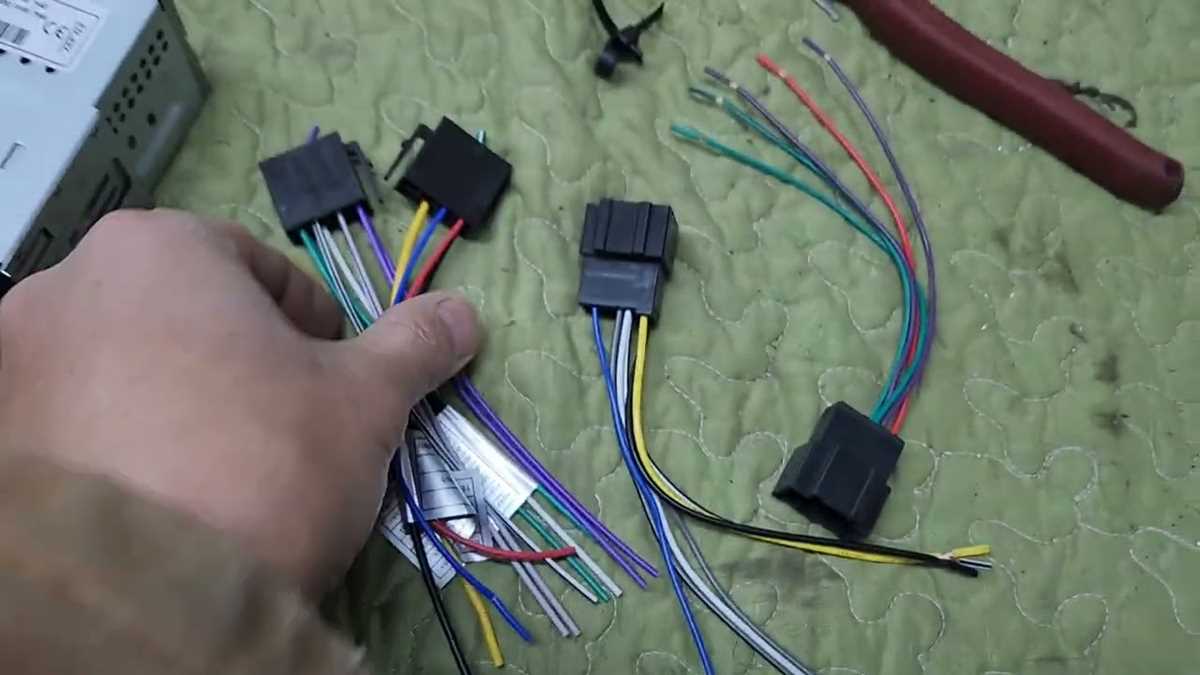

Aftermarket integration requires a harness adapter; Metra GMOS-04 covers part number 70-2004 or Axxess AX-GM11 for Bose models. Verify wire gauge–primary power leads should handle 10 A minimum; speaker wires carry 18 AWG twisted pairs to suppress interference.
Test continuity between body ground and the radio chassis; resistance should read below 0.2 Ω. If higher, clean connection surfaces with contact cleaner and re-tighten bolts securing the unit.
Amplifier-equipped variants include an additional 4-pin connector near the subwoofer enclosure–match green (enable) and white (data) terminals when upgrading; reversed polarity risks loudspeaker damage.
How to Find the OEM Radio Connector in Your Full-Size SUV
Disconnect the negative battery terminal first–this prevents shorts and protects the vehicle’s electrical system. The factory radio harness is typically tucked behind the dashboard’s lower panel on the driver’s side. Remove the screws securing the trim panel beneath the steering column, then gently pry it away using a plastic trim tool to avoid damaging clips.
The climate control module sits directly above the radio opening; you’ll need to unplug its connectors and remove two 7mm bolts to detach it. Once lifted, the original 12-pin connector for the audio unit will be exposed–look for a white or gray plastic housing with labeled wires (e.g., “BATT,” “ILL,” “ACC”). If unsure, verify pin assignments with a test light before splicing.
Trace the harness backward toward the firewall–it routes through a bundle secured by zip ties near the brake pedal support. Cutting the ties carefully grants better access for inspecting or replacing damaged wires. Avoid tugging; the harness feeds into multiple modules, including the body control and instrument cluster.
Pro tip: Label each wire with masking tape before disconnecting. The rear speaker outputs (usually purple/gray and tan/white pairs) and power feeds (yellow for constant 12V, red for ignition-switched) are critical for aftermarket integration. If corrosion is present, clean contacts with electrical contact cleaner before reattaching.
Precision Wire Connection Guide for Factory Audio System Replacement
Locate the 12-pin harness behind the OEM head unit–grey plastic connector labeled “A.” Release the red retention clip before attempting to disconnect. Match each terminal to the corresponding aftermarket adapter using the following color mappings:
- Yellow (B+) – Constant 12V supply; fuse link connects directly to battery via 15A fuse in under-hood box. Use 18-gauge wire for splicing to prevent voltage drop.
- Red (ACC) – Switched power from ignition (run/start); controlled by instrument cluster BCM. Verify continuity at pin 12 before connecting to prevent backfeeding.
- Black (Ground) – Chassis ground at firewall stud (M10 bolt, 14mm). Scrape paint to bare metal; torque to 12 Nm to ensure signal stability.
- Dark Blue/White (LF+) – Front left speaker positive; max 4 ohms impedance. Polarity reversal causes phase cancellation.
- Light Blue (LF–) – Front left speaker negative. Twist with LF+ wire to reduce interference over 1.5 ft runs.
- Green/White (RF+) – Front right positive. Pair with Green (RF–) using identical twisting method.
- Purple/White (RR+) – Rear right positive. Check for 2.5V DC offset at idle RPM if using premium amplifier.
- Purple (RR–) – Rear right negative. Solder connections; crimping may loosen under thermal cycling.
- Grey/White (LR+) – Rear left positive. Connect last to diagnose speaker faults sequentially.
- Grey (LR–) – Rear left negative. Verify door switch integration if tweeters exhibit intermittent operation.
- Orange/White (Illumination) – Dimmer-controlled 0-12V PWM; isolate from CAN bus data wires or risk LCD flicker.
- Brown/White (Mute) – Active-low signal from OnStar module; floating input causes 2-second audio dropout post-call.
Use a multimeter in continuity mode to confirm each splice. Set probes to 200Ω scale–readings above 0.5Ω indicate cold solder joints. Repeat measurements after reinstalling the dash trim to account for mechanical stress.
The 8-pin brown connector (“B”) handles auxiliary inputs. Key pins:
- Pink – Aux R+ (2.2V RMS max).
- Light Green – Aux R– (shield drain).
- White – Aux L+.
- Dark Green – Aux L–.
- Tan – Navigation mute (connect to aftermarket GPS only if retaining OEM nav unit).
Rear backup camera wires exit the tailgate harness via a 4-pin sealed connector (pins C1-C4). Color standards:
- C1 (Yellow) – Camera power (6V regulated).
- C2 (Black) – Sensor ground.
- C3 (Red/Black) – Video signal (composite 1V p-p).
- C4 (White) – Reverse trigger (12V when gear selector is in R).
Splice these into the aftermarket harness using weatherproof connectors. Seal all exposed copper with adhesive-lined heat shrink (minimum 3/8” diameter). Route wires behind the rear seat support beam to avoid pinching during fold-down operations.
For vehicles equipped with Bose amplification, an additional 6-pin orange connector (“D”) carries amplified signals. Override the 4-channel output limiter by connecting:
- D1/D2 (Black/Orange, Black/White) – Front channels (2x 25W RMS).
- D3/D4 (Black/Yellow, Black/Red) – Rear channels.
- D5 (Pink) – Remote turn-on (12V when head unit powers on).
- D6 (Grey) – Amplifier ground (dedicated, not chassis).
Use gold-plated butt connectors for these splices–standard tin contacts corrode within 18 months in humid climates. Label each connection with heat-resistant tags (P-touch PT-D600). Store excess wire in 3/4” split loom tubing secured with cable ties at 8” intervals.
Frequent Problems When Installing Third-Party Audio Systems in the Denali Variant
Incorrect harness adapters often prevent power windows and door locks from retaining factory functionality. Verify pin assignments on both the vehicle’s OEM connector and the aftermarket interface–mismatches on pins 12 (door lock), 13 (window controls), and 18 (memory seat) are primary culprits. Use a multimeter to confirm continuity before finalizing connections, as some adapter brands omit these circuits entirely.
Phantom noises originating from the amplifier turn-on lead (typically blue/white) indicate insufficient grounding. Locate the ground point beneath the left rear seat bracket–a factory spot–and scrape off paint to bare metal. Secure with a star washer and 10mm bolt; alternative grounds near the fuse box degrade signal integrity within 3–6 months. Avoid tapping into the chassis near the exhaust or fuel lines, as electromagnetic interference peaks there.
Clipping the factory navigation antenna without installing a bypass module triggers persistent “NO SIGNAL” alerts on the gauge cluster. Source a GM Class 2 data filtering module (part #12200490) and splice it between the aftermarket head unit’s serial bus and the retained OnStar wiring. Failure to address this results in erratic climate control behavior, including unprovoked fan speed fluctuations.
Factory Bose systems require a 200-ohm resistor on each speaker output to mimic the OEM amplifier’s load. Omitting these resistors causes the head unit’s internal amp to overheat, reducing bass output by 30% and triggering thermal shutdown within 20 minutes of high-volume playback. Connect resistors directly to the speaker wires before attaching to the harness–avoid soldering them to the back of the unit’s chassis, as vibrations loosen joints.
Steering wheel controls lose functionality if the resistive network isn’t properly mapped. Measure resistances for each button press (e.g., VOL+ = 820Ω, VOL− = 1.8kΩ, MODE = 4.7kΩ) and match them to the aftermarket interface’s Manual Learning Mode. Some interfaces misidentify mute as a button press, requiring a capacitor bypass (22μF/16V) on the pink/white wire to filter noise.
Subwoofer outputs default to 4V preamp on most aftermarket units, yet the Denali’s factory sub requires 8V for full excursion. Install a line driver amplifier (e.g., PAC LP7-2) between the RCA outputs and the sub’s input, or reprogram the head unit’s preamp voltage via its advanced settings–accessible only by holding the power button during ignition for 15 seconds. Low-voltage signals cause audible distortion at volumes above 28.
Retained accessory power (RAP) fails if the key-off delay circuit isn’t preserved. Tap the orange/light blue wire from the OEM harness directly to pin 3 of the aftermarket connector, not the constant 12V (yellow) wire. Interrupting this circuit disables the radio’s fade-to-mute feature and prevents retained power to USB ports or satellite tuners, leading to boot cycles exceeding 15 seconds.
