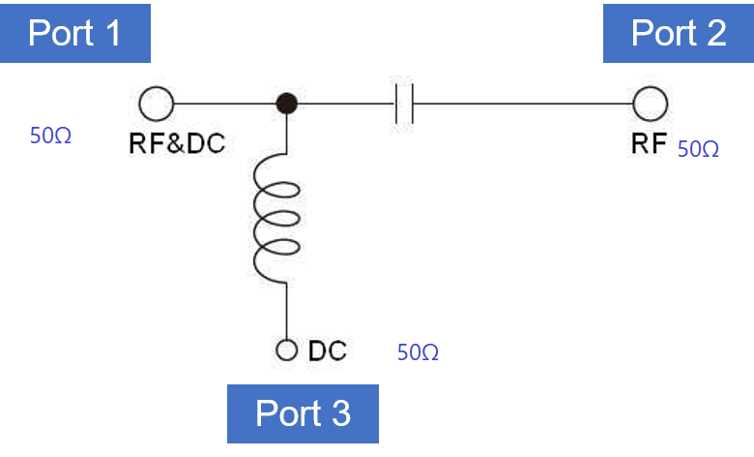

For stable amplifier operation in radio-frequency systems, add a DC feed directly into the signal path using a pair of inductors and capacitors arranged in a basic L-section. Place a 10 µH choke on the power supply side and a 100 nF capacitor on the RF line–this isolates DC from AC while maintaining low insertion loss below 0.5 dB at 2.4 GHz. Keep the choke self-resonant frequency above the target band to avoid unwanted impedance dips.

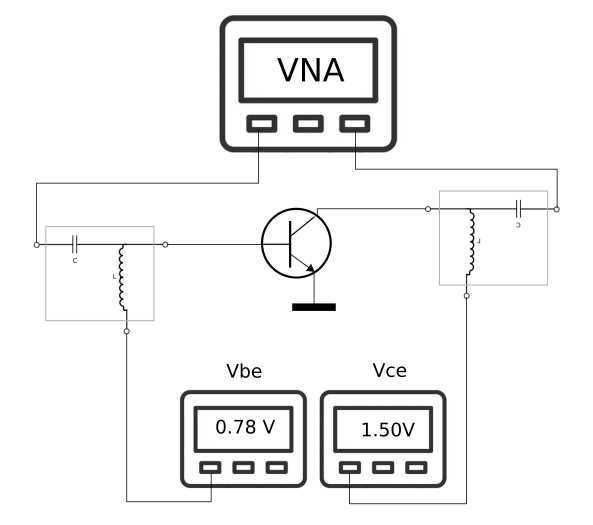

Test the setup with a vector network analyzer: measure S21 across frequency sweeps with the DC supply enabled and disabled. Look for flat response ±0.2 dB from 100 MHz to 3 GHz; deviations beyond this range indicate incorrect component selection. Use ferrite beads instead of air-core inductors if the design must suppress parasitic oscillations below 50 MHz.
PCB layout matters: route the DC feed trace perpendicular to RF lines to minimize coupling. Keep via inductance under 0.3 nH by placing multiple vias in parallel–single via solutions introduce measurable ripple at microwave frequencies. Ground the capacitor directly beneath the RF connector pad to reduce stray impedance.
Component selection guide: choose inductors rated for at least 2× the DC current draw to prevent saturation. Ceramic capacitors should be C0G or NP0 dielectric for temperature stability; X7R types drift by ±1.5% over –40°C to +85°C, affecting phase consistency. For surface-mount, use 0603 or smaller–larger packages add parasitic capacitance.
If the system requires bias sequencing, add Schottky diodes across the choke to clamp voltage transients to ±0.3 V. This protects downstream components from reverse current during power cycles. Verify clamping action with a scope under 1 µs rise-time conditions–slower diodes fail to react in time.
Power Injection Adapter Schematic for RF Systems
Integrate a DC feed into your signal path using a decoupling inductor of 100 μH paired with a 100 nF capacitor to block RF leakage into the power supply. Select an inductor with a self-resonant frequency at least 50% above your operating bandwidth to prevent phase distortion at higher frequencies.
Place the blocking capacitor as close as physically possible to the signal line junction–within 5 mm–to minimize parasitic inductance. Use a ceramic capacitor with X7R dielectric for stable performance across temperature variations, avoiding Y5V or Z5U types which exhibit capacitance drift under voltage stress.
For low-noise applications under 1 GHz, substitute the standard Schottky diode with a low-leakage PIN diode like the MPN3404, reverse-biased at 5 V to reduce rectification effects. This configuration maintains insertion loss below 0.3 dB at 2.4 GHz while allowing up to 150 mA DC injection.
When prototyping on FR-4 substrate, ensure the trace width for the power feed adheres to 2 oz copper thickness and a 50 Ω impedance. For frequencies exceeding 6 GHz, transition to Rogers RO4350B or similar low-loss material to prevent signal degradation from dielectric losses.
Component Selection for High-Power Handling
For 10 W+ RF systems, replace the standard resistor in the DC path with a 1 Ω, 1 W metal film resistor to dissipate heat efficiently. Ensure the bypass capacitor near the power input is rated for at least 25 V to handle voltage spikes during load transients.
Use a ferrite bead with an impedance of 100 Ω at 100 MHz between the DC input and the inductor to suppress high-frequency noise. The Murata BLM18PG121SN1L is an optimal choice, offering minimal DC resistance while attenuating noise by 20 dB at 1 GHz.
Layout and Grounding Considerations
Separate the RF and DC ground planes with a single-point connection at the capacitor’s ground pad to prevent ground loops. Route high-current traces away from sensitive signal paths to avoid cross-coupling, maintaining isolation better than 40 dB at 2 GHz.
For surface-mount designs, use via stitching around the DC injection point with vias spaced no more than λ/20 apart at the highest operating frequency. This reduces ground bounce and ensures consistent phase linearity across the bandwidth.
Selecting Optimal Inductor and Capacitor Values for RF Paths
For RF signal paths operating below 1 GHz, inductors with values between 1–10 μH balance low DC resistance and minimal self-resonance. Use wire-wound ferrite-core inductors (e.g., Murata LQW18A series) with Q factors ≥ 30 at 200 MHz to reduce insertion loss. Capacitors in the 10–100 nF range (e.g., TDK C0G/NP0 dielectric) minimize parasitic effects–self-resonant frequencies should exceed the operating band by ≥ 2x to avoid impedance discontinuities. For high-power applications (e.g., >1 W), select inductors with saturation currents ≥ 1.5× the DC supply current to prevent core magnetization.
Component selection must account for frequency-dependent behavior. Below 30 MHz, multilayer ceramic capacitors (X7R dielectric) introduce negligible phase shifts, but above 1 GHz, their linearity degrades–prefer film or C0G types for stability. Inductor core material impacts performance: ferrite cores suit 100 kHz–1 GHz, while air cores avoid saturation but require larger footprints. The table below lists recommended pairings based on frequency range:
| Frequency Range | Inductor (μH) | Capacitor (nF) | Example Components |
|---|---|---|---|
| 10–100 MHz | 2.2–4.7 | 47–100 | Coilcraft 0805CS-472X, KEMET C0805C104J |
| 100–500 MHz | 0.47–2.2 | 22–47 | Murata LQW15ANR22J, AVX 06035C223J |
| 500 MHz–2 GHz | 0.1–0.47 | 1–10 | Vishay IMC0603ER1N0M, KEMET C0603C102J |
Thermal stability demands attention in high-RF environments. Capacitors rated for ≥ 125°C (e.g., X7R with 1% dissipation factor) prevent drift during prolonged operation. For inductors, verify core loss data–ferrites like NiZn tolerate higher flux densities than MnZn, reducing losses at elevated temperatures. Always measure impedance across the target band with a vector network analyzer: inductors should exhibit ≤ ±5% tolerance, and capacitors ≤ ±1% deviation from nominal at the operating frequency to ensure predictable matching network behavior.
Step-by-Step Assembly of a DC Power Injector for RF Signals
Select a high-frequency choke (e.g., 100 µH for 1–100 MHz ranges) with a current rating exceeding your DC supply’s maximum load by at least 30%. Solder one end directly to the signal input pad of a non-polarized capacitor (100–1000 pF, rated for 2–3× your DC voltage). Ensure the choke’s body rests flush against the PCB to minimize parasitic inductance. For RF paths below 50 MHz, substitute the choke with a ferrite bead (e.g., Fair-Rite 2643002402), but confirm its impedance curve drops by ≤10% at your operating frequency.
Connect a low-ESR capacitor (X7R dielectric, 50 V minimum) to the DC input terminal, bypassing it to ground ≤5 mm from the choke’s output. Use a star-ground layout: route the RF signal ground and DC ground to a single via, then separate them by ≤12 mm on the opposite layer to prevent ground loops. Test insertion loss with a vector network analyzer; target ≤0.5 dB ripple across the passband. Secure all joints with 60/40 leaded solder (melting point 183°C) to avoid stress cracks under thermal cycling.
Common Pitfalls in DC Injection Network Design for Low-Noise Amplifiers
Using inductors with insufficient self-resonant frequency (SRF) causes signal degradation at higher RF bands. For example, a 100 nH choke with an SRF of 500 MHz will exhibit parasitic capacitive behavior above 1 GHz, introducing phase shifts and impedance mismatch. Always verify component datasheets–opt for inductors with SRF at least 2–3× the highest operating frequency. A 2.2 nH Murata LQW15AN2N2C00 has an SRF of 6 GHz, making it suitable for 2.4 GHz applications, whereas generic “RF chokes” often fail above 1 GHz.
Improper capacitor selection creates unintended low-frequency roll-off, particularly in wideband systems. A 100 pF coupling capacitor combined with a 1 kΩ source impedance yields a high-pass cutoff at ~1.6 MHz, attenuating low-frequency signals before they reach the amplifier. For DC-blocking in LNAs, use capacitors with low equivalent series resistance (ESR) and high voltage rating–multi-layer ceramic capacitors (MLCCs) like TDK CGA series in X5R/X7R dielectrics provide stable performance down to tens of kHz without altering RF characteristics.
Neglecting PCB trace geometry leads to uncontrolled impedance discontinuities. A 0.1 mm-wide, 1 oz copper trace on 1.6 mm FR-4 has ~100 Ω impedance, while a 50 Ω system requires ~0.2 mm width. Mismatches here generate reflections, reducing gain by up to 0.5 dB per transition. Use controlled-impedance microstrip or stripline routing, and keep DC feed paths short–no longer than λ/10 (12 mm for 2.4 GHz) to minimize reactive effects.
Ignoring DC supply noise coupling through the feed network degrades noise figure. Even a 5 mV ripple at the amplifier’s input can mix with RF signals via non-linear junctions, generating intermodulation products. Isolate the DC path with a PI-network filter (e.g., 100 Ω resistor + 2× 100 pF caps) and ensure the amplifier’s supply pin has a separate, low-impedance bypass (
Failing to account for thermal effects in passive components alters circuit behavior. A 10 nF NP0 capacitor drifts
Verifying DC Injection Network Performance for RF Stability

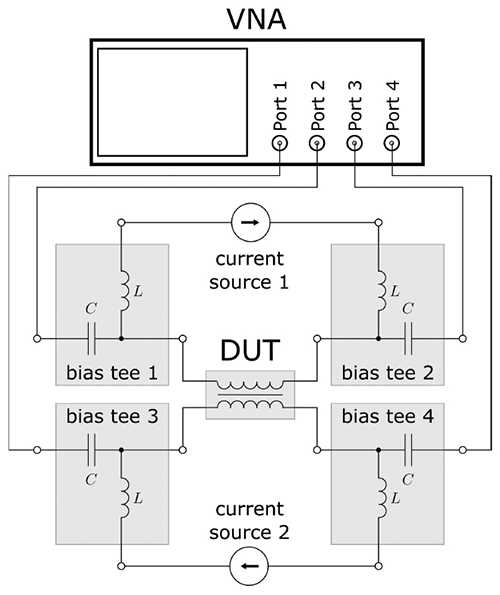

Connect a vector network analyzer (VNA) to the input and output ports with 50-ohm terminations on unused ends. Set the frequency sweep from 1 MHz to at least 1.5× the target operating band–exceeding 3 GHz for microwave applications. Look for insertion loss below 0.5 dB across the passband. If readings exceed 0.8 dB, inspect inductor Q-factor: swap for a 22 nH Coilcraft 0805CS series with Q>40 at 1 GHz.
Measure DC path isolation with a precision ohmmeter. Disconnect the RF path, then apply a stable 12 V supply through a 1 kΩ current-limiting resistor. Record voltage drop at the output–any reading above 5 mV indicates capacitor leakage. Replace multilayer ceramic capacitors with NP0 dielectric if observed; X7R types degrade above 85°C, skewing results.
- Use a 10× oscilloscope probe to check RF rectification artifacts. Inject a −10 dBm single-tone signal at the center frequency, then monitor the output for any DC offset on the ‘scope. A shift greater than 2 mV suggests diode conduction–replace schottky diodes with Avago HSMS-286x series for lower forward voltage.
- Isolate thermal drift effects by submerging the assembly in a 60°C mineral oil bath for 30 minutes. Re-run VNA sweeps while monitoring real-time S21 stability. Variations exceeding 0.1 dB mandate component screening; verify inductor temperature coefficient below 50 ppm/°C.
Perform a two-tone intermodulation test using signal generators set to 1.9 GHz and 1.901 GHz, each delivering −20 dBm. Capture the output spectrum with a spectrum analyzer set to 3 kHz RBW. Third-order intercept should exceed +30 dBm; if below +25 dBm, increase series resistor value incrementally from 47 Ω to 100 Ω while observing IMD reduction.
Conclude validation by stressing the DC feed with a 50 Hz square wave ±2 V swing. Probe both input and output nodes simultaneously–any AC coupling evidenced by waveform flattening warrants replacing the blocking capacitor with a 470 pF Johanson 500R10S series for wider voltage margin.
