Start by locating fuse panel C under the dashboard on the driver’s side–the central hub for primary circuits. Pin 30 (red/black) delivers constant 12V power from the battery, critical for memory functions. Use a multimeter to verify voltage; discrepancies here often trace to corroded connections at the positive terminal box near the strut tower.
Check relay J317 (main power supply) adjacent to the battery–this controls ignition-fed circuits. If accessories fail, remove the relay and test continuity across terminals 30 and 87. A failed test suggests either a faulty relay or a break in the harness bundle running along the firewall’s left side, where wires are prone to chafing.
For lighting systems, focus on connector T17c (black, 17-pin) behind the headlight assembly. Pin 5 (white/green) carries low-beam supply; corrosion here mimics bulb failure. Clean contacts with dielectric grease to prevent false diagnostics. Tail light issues frequently stem from ground G4 (near the rear bumper); scrape paint from the mounting point to ensure solid contact.
Airbag diagnostics require connector X1 (yellow, 16-pin) under the front seats. Never probe this circuit with power connected–static discharge risks triggering the restraint system. Use a scan tool for code B1200 (passenger seat sensor) instead of manual testing to avoid safety risks.

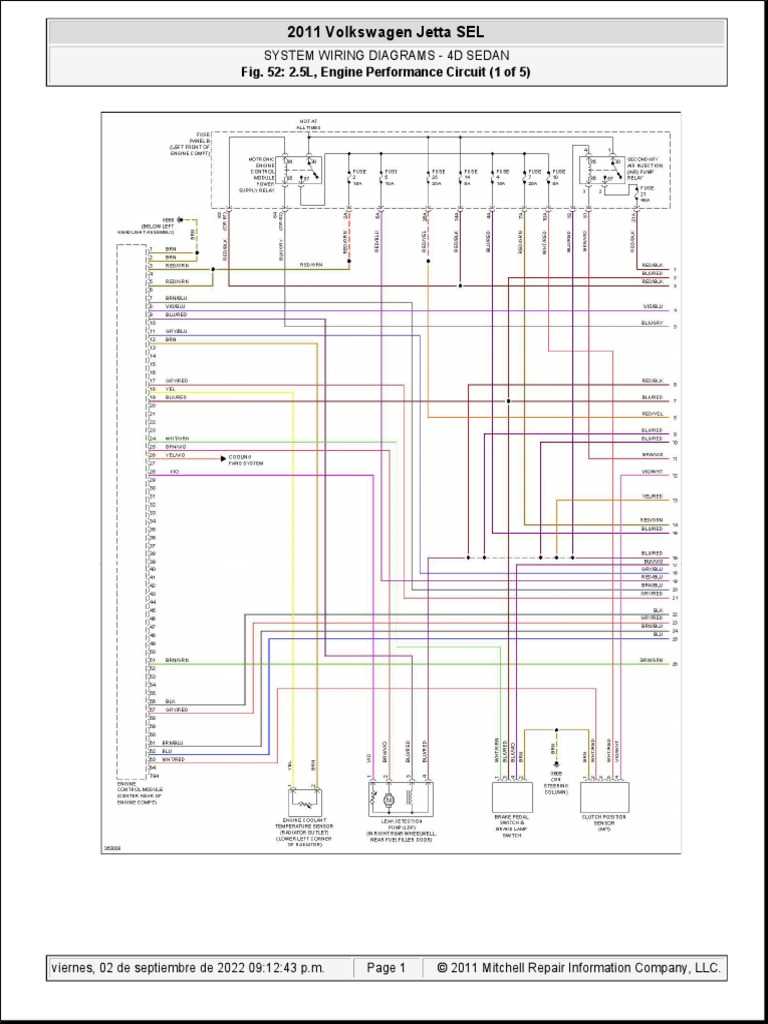

For engine wiring, inspect the engine control module connector (T80, gray) under the battery tray. Pin 58 (gray/red) carries sensor ground; intermittent issues here cause misfires. Route the harness away from the exhaust manifold; heat damage to the insulation causes short circuits mimicking coil failures.
Volkswagen’s Sedan Electrical Layout: Hands-On Solutions
Locate the fuse box under the dashboard on the driver’s side by removing the protective cover secured with two Phillips screws. Identify relay slots R1 (horn), R2 (A/C compressor), and R3 (cooling fan) for quick troubleshooting–swap suspected faulty relays with known-good spares from slots R6 or R7 to verify function before replacement.
For headlight circuit diagnostics, trace the brown/blue wire from the headlight switch terminal 5 to the front left bulb socket pin 1. Use a multimeter in continuity mode to check for breaks between the switch and socket–expected resistance should read below 0.5 ohms. If resistance exceeds this value, inspect the harness near the wheel well for chafing against the fender liner.
- Fuel pump relay testing requires activating the ignition without starting the engine. Listen for a 2-second hum from behind the rear seat upholstery–if absent, jump terminal 30 (red/black) to terminal 87 (brown/yellow) at the relay socket to bypass the control module.
- Blown 20A fuses for powertrain control modules often indicate shorted injectors. Disconnect each injector harness connector one at a time while monitoring voltage at fuse slot 30–voltage drop after disconnecting confirms the faulty injector.
- HVAC blower motor failure typically stems from corroded resistor block connectors. Apply dielectric grease to the six-pin connector after cleaning terminals with electrical contact cleaner to prevent future oxidation.

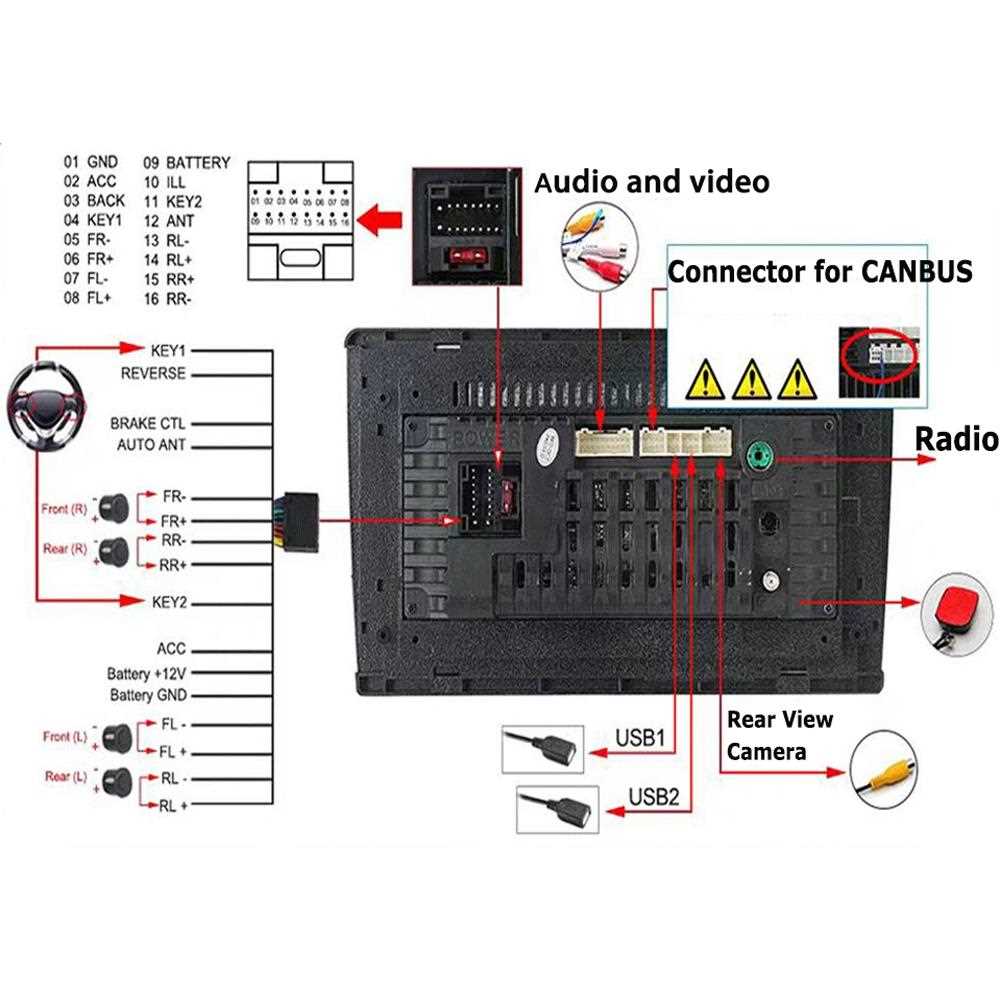

When splicing into the CAN bus for aftermarket upgrades, tap the orange/black (CAN H) and orange/brown (CAN L) wires behind the instrument cluster harness. Avoid using T-taps–solder and heat-shrink connections prevent signal degradation. Verify communication with a scan tool by checking for fault codes U0100 or U0121 post-installation.
For power window circuit repairs, ground the white/red wire at the door control module while holding the window switch in the “up” position. If the window operates, the issue lies in the switch or module–replace the switch first as it’s the more common failure point. If unresponsive, inspect the black/yellow wire from the module to the motor for breaks.
Backup camera integration involves tapping the reverse light circuit at the trunk harness connector. Connect the camera’s power wire to the black/red wire (trigger) and ground to any factory ground point near the license plate bracket. Route RCA cables through the left tail light grommet, securing with nylon zip ties to prevent pinching against the liftgate hinge.
Battery drain issues often trace to the comfort control module’s sleep mode failure. Disconnect the module’s 10-pin connector (T32a) and measure current draw across fuse S33 with a clamp meter–values above 30 mA indicate module replacement is needed. For persistent draws, systematically disconnect fuses one by one until the source is isolated, focusing on S29 (ABS), S32 (infotainment), and S7 (central locking).
Finding the Right Electrical Blueprint for Your Volkswagen Compact Sedan
Begin by identifying the exact trim level of your vehicle–Base, SE, SEL, TDI, or GLI–as each variant features distinct harness layouts. Factory schematics for the GLI differ notably in engine management circuits compared to diesel models, with additional relays for turbocharging and intercooler systems. Visit the manufacturer’s official repair portal or authorized service manual subscriptions, where variants are cataloged by production month and option packages.
Pay attention to the harness revision codes stamped on the vehicle’s main junction box. These alphanumeric identifiers correlate to specific schematic revisions issued by the automaker, reflecting mid-year electrical updates or recalls. Mismatched codes between the physical wiring and diagram can lead to tracing errors in circuit protection or sensor networks, particularly in the powertrain and infotainment modules.
For early production units (pre-March), access schematics labeled with “00A” or “00B” prefix identifiers, while post-March models use “01A” or later. The shift corresponds to a revised CAN bus topology and altered pinouts for the instrument cluster and ABS control modules. Third-party manuals often omit these nuances, so prioritize OEM documentation or verified aftermarket sources like Helm Incorporated.
Cross-Referencing Diagrams with Physical Components
Verify the schematic against the color-coded wire labels on the harness itself. German-market models use a different pallet (e.g., “RT” for red-white) than North American variants (“RD/WHT”), and misalignment here can derail diagnostics for systems like the immobilizer or even basic lighting. The main engine harness connector, often a 32-pin or 64-pin plug, will have its pin assignments printed directly on the housing–compare these numbers to the diagram.
Focus on critical sub-systems first: the fuse box layout, ground distribution points, and engine control module connections. A single misrouted ground can mimic transmission faults or fuel pump failures, while incorrect auxiliary power feeds may disable the climate control module. Use a multimeter to confirm continuity between diagram-defined endpoints, especially for modules like the body control unit, which governs door locks, interior lighting, and alarm triggers.
Sources for Accurate Schematics
Volkswagen’s official ErWin database offers downloadable PDFs segmented by system (e.g., “Body Electrical,” “Engine Management”), each with revision histories. Aftermarket alternatives like Alldata or Mitchell1 provide layered diagrams with searchable component names, though their accuracy varies for early model-year variants. For European-spec sedans, consult local importers–they often retain regional schematic variations not included in U.S. manuals.Avoid crowd-sourced forums for primary diagnostics; instead, use them to cross-check known issues like the “T14” connector corrosion in high-mileage GLIs or the common failure of the rear window defroster relay trace. When tracing faults in the comfort electronics, isolate the circuit in the schematic before disassembling trim panels–door controls, for instance, share a ground loop with the central locking system, and errors here can cascade into unrelated dash warnings.
Locating Critical Power System Elements in Volkswagen’s Compact Sedan Blueprint
Begin by tracing the fuse panel layout in the schematic–Cluster B under the driver’s side dashboard houses relays for the fuel pump (R2), ignition coils (R4), and cooling fan control (R6). Verify each relay’s pinout: terminals 85/86 for coil control, 30/87 for switched output. Use a multimeter to confirm 12V at terminal 30 with the ignition off; failure indicates a corroded bus bar or blown fuse upstream. The main power distribution box (PDB) near the battery consolidates high-amperage circuits–label each 80A fusible link before disconnecting terminals to avoid misrouting during reassembly.
Component Pinout Reference
| Control Module | Connector Code | Pin Function (Key Signals) |
|---|---|---|
| Engine Control Unit (ECU) | T60/9 | Pin 3: Crankshaft sensor (5V ref), Pin 15: Throttle position (0.5–4.5V) |
| Body Control Module (BCM) | G20/14 | Pin 7: Door lock actuator (12V pulse), Pin 12: Headlight switch (ground trigger) |
| Instrument Cluster | A10/3 | Pin 4: CAN-H (2.5V nominal), Pin 10: Fuel level (resistive 50–150Ω) |
Focus on the CAN bus topology–twisted pair wires (orange/violet, pins 6/14 on the OBD-II port) carry differential signals between modules. Probe with a scope to detect 500 kbps communication; distortions suggest a short to ground or a faulty termination resistor. For ambient lighting circuits, locate the LIN bus master (BCM) and slave (door control modules) nodes–test data lines with a LIN analyzer to validate 9.6 kbps packet integrity.
