Begin by shutting off the power at the circuit breaker to avoid electrical hazards. Use a voltage tester to confirm the wires are dead before handling them. For a single-pole setup, connect the live wire (typically black or red) to the brass screw on the switch. Attach the neutral wire (usually white) to the silver screw if required, though some setups bypass this step entirely. Ground the device by securing the bare or green wire to the green screw or metal box.
Route the switched live wire–now carrying current from the switch–to the fixture. Match the wire colors: connect black to black, white to white, and ground to ground. If the fixture lacks a ground wire, secure it to the metal junction box. Use wire nuts to secure connections, ensuring no exposed copper is visible. Wrap electrical tape around wire nuts for added stability in high-vibration areas.
Test the installation by restoring power. If the illumination fails, verify connections in this order: power source, switch, and fixture. For three-way configurations, use two traveler wires (typically red and black) between switches, with the common terminal handling the live or load wire. Label wires during disassembly to prevent miswiring. Use 14-gauge wire for 15-amp circuits and 12-gauge for 20-amp circuits to meet safety standards.
For outdoor or damp locations, use a weatherproof switch and silicone-filled wire nuts. Encase all connections in a junction box to prevent accidental contact. If extending an existing circuit, ensure the wire gauge matches the breaker’s rating. Avoid daisy-chaining more than three fixtures from a single circuit to prevent voltage drop, which dims bulbs over distance.
Check local codes for specifics–some regions require arc-fault circuit interrupters (AFCIs) for lighting circuits. If replacing an old mechanical toggle with a modern dimmer, confirm compatibility with LED bulbs. Some dimmers require a neutral wire, while others use the load wire exclusively. Always refer to the manufacturer’s guidelines for wiring specifics.
Installing a Single-Pole Electrical Control: Step-by-Step Guide
Start by turning off the circuit breaker supplying the fixture. Verify power absence using a non-contact voltage tester–place the probe near the terminal screws before proceeding. A single-pole control requires two brass screws for hot conductors: one incoming (from the power source) and one outgoing (to the lamp). Secure the black conductor from the supply cable to the bottom brass terminal, wrapping clockwise around the screw shaft. Tighten until snug; overtightening risks stripping the wire or damaging the screw.
Attach the second black wire–leading to the lighting outlet–to the upper brass screw. Ensure insulation is stripped exactly 1/2 inch; excessive bare wire invites short circuits or ground faults. White neutrals from both cables twist together with a wire nut, then tuck neatly into the junction box. Ground wires (bare or green) connect to the green grounding screw on the device or directly to the metal box if no grounding terminal exists.
Testing and Troubleshooting
Restore power at the breaker and activate the control. If the fixture fails, recheck connections: a loose hot terminal is the most common failure point. Dim illumination indicates incorrect wiring–swap the black conductors at the brass screws. Never ignore flickering; it suggests a loose neutral or poor connection inside the wire nut. Use a multimeter to measure 120V between the brass screws and ground when the device is off; readings should drop to zero when switched on.
Install a wall plate once functionality is confirmed. Choose screwless plates for modern aesthetics or traditional screws for easier future access. Avoid plastic plates near high-heat sources like halogen downlights–opt for metal instead. For multi-gang boxes, maintain consistent spacing between controls; standard centers measure 3.81 inches (96.8mm). Label circuits in the breaker panel for quick identification during maintenance.

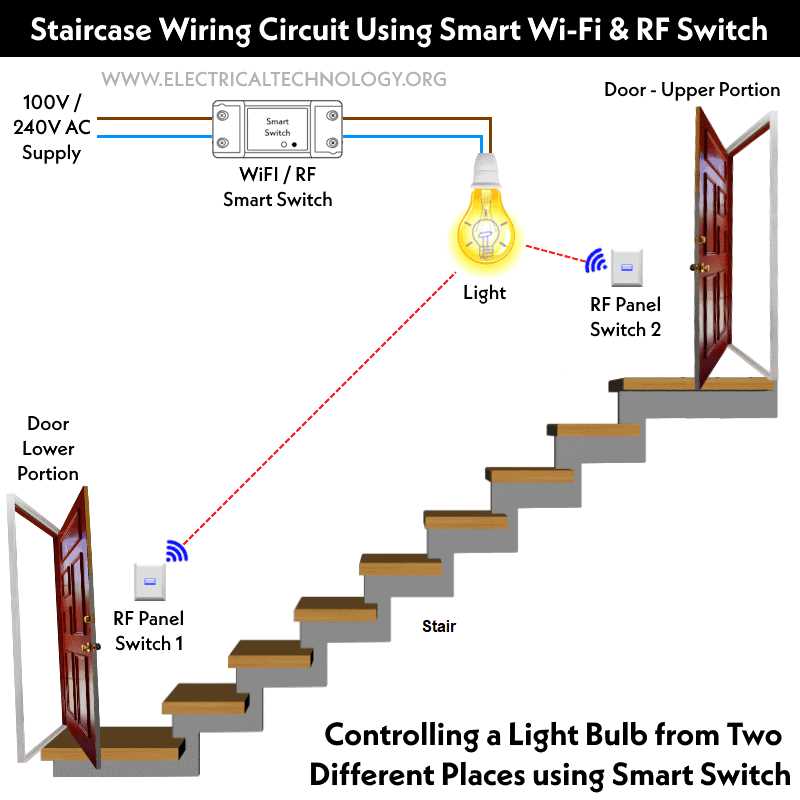

Safety note: Always cap unused wires with wire nuts, even if disconnected. Exposed conductors risk accidental contact or arcing. Replace any control showing scorch marks or melted insulation–it indicates internal failure and fire hazard. For smart variants, follow manufacturer instructions to pair wireless modules or configure timers before finalizing the installation.
Essential Equipment for Installing a Control Device
Choose a non-contact voltage tester rated for 120–240VAC to verify power shutdown–models with audible alerts (e.g., Fluke 1AC-II) reduce error risk. Pair it with insulated screwdrivers (shafts protected to 1000V) in both flat-head (3.5mm) and Phillips (#2) sizes for secure terminal tightening. Include wire strippers with 12–14 AWG notches (Klein Tools Katapult or equivalent) to remove 0.5″ of insulation without nicking conductors. Add lineman’s pliers (200mm length, serrated jaws) for twisting solid copper wires–avoid stranded wire for 15A residential circuits. A multimeter (set to continuity mode) confirms neutral-to-ground integrity; 0.5Ω or less indicates safe installation.
Additional Components
Use UL-listed electrical tape (PVC, 7-mil thickness) to insulate wire nuts after splicing–wrap clockwise, overlapping by 50%. Select wire nuts based on gauge: red for 14–12 AWG (2–4 wires), tan for 14–10 AWG (up to 3 wires). For metal junction boxes, include grounding pigtails (green, 6″ length, 12 AWG) crimped or soldered to the box; plastic boxes require bonding to the green screw only. Replace single-throw devices with decora-style plates (2-gang, polycarbonate) if standard faceplates crack under torque–tighten screws to 8 in-lbs max. Keep a torpedo level (1.5″ base) on hand to align plates; misalignment >2° creates visible gaps.
Step-by-Step Guide to Removing an Old Control Panel
Turn off the circuit breaker powering the mechanism at the electrical panel. Verify the absence of current using a non-contact voltage tester; probe both terminal screws and the grounded box. Failure to confirm de-energization risks severe electrical shock.
Remove the cover plate by unscrewing the single screw, usually centered. If painted over, score the edges with a utility knife to prevent wall damage. Set the plate aside along with the screw–commonly lost during disassembly.
Grip the switch’s edges firmly and gently pull it outward from the electrical box to expose the connected conductors. Note the wire colors and attachment points (typically brass screws for hot, silver for neutral, green/bare for ground). Photograph the configuration if reconnecting a replacement later.
Loosen the terminal screws using a screwdriver, turning counterclockwise until the wires slide free. For back-stab connections (common in push-in models), insert a small flat-head screwdriver into the release slot adjacent to the wire to disengage the spring clamp. Discard the obsolete unit or retain it for troubleshooting reference.
Identifying Live, Return, and Earth Conductors in Electrical Setup
Locate the line conductor using a non-contact voltage detector before touching any conductors. Hold the tester 1 cm from the insulation: a steady beep confirms the live wire. Neutral returns typically share the same gauge and color (white in North American systems, blue in EU/UK), but always verify with a multimeter–0V relative to earth under load.
Earth connections demand rigorous inspection. Exposed copper, green/yellow striped sheathing, or bare metal terminals identify grounding paths. In older installations, earth may splice into a metal junction box or water pipe–test continuity with a multimeter (<1Ω to known earth). Never assume color codes in pre-1980s buildings: conduit walls or armored cables often repurpose black/red as neutral.
| Conductor | Color (NA/EU/UK) | Voltage (Hot-Neutral/Ground) | Multimeter Check (AC Mode) |
|---|---|---|---|
| Line (Hot) | Black / Brown / Red | 120V / 230V (±5%) | 120–240V to neutral/earth |
| Return (Neutral) | White / Blue | 0V (±2V) | 0V to earth; matches line voltage to ground |
| Earth (Ground) | Green/Yellow stripe / Bare | 0V | <1Ω to junction box/enclosure |
Switch loops invert conventional roles: hot wires feed the device via the switch, while the neutral bypasses it. Probe terminals with power on–line-voltage reading at both switch contacts indicates a switched-hot configuration. Cap all unused conductors with wire nuts, even neutrals; stranded copper oxidizes faster than solid core, requiring abrasive cleaning before termination.
Verify earth continuity by testing between the grounding terminal and a known earth point (e.g., grounded outlet screw). Use a multimeter’s continuity mode: a single, solid tone without fluctuation confirms integrity. For split-phase systems (240V), identify the two line conductors (both hot) and one neutral–failure risks 240V across neutral if miswired.
Polarity reversals–live and neutral swapped–create fire hazards in switched appliances. After shutting off power, remove the switch cover and probe the screw terminals: line voltage on the switch’s brass screw, neutral (if present) on silver. In dimmers or smart devices, miswiring can damage control circuits; consult compliance labels for terminal designations.
Aluminum conductors require special handling. Oxidation increases resistance; apply joint compound (e.g., Noalox) before securing connections. For mixed copper-aluminum circuits, use bidirectional terminal blocks rated for both metals–dissimilar metal corrosion can elevate resistance to dangerous levels over time. Torque all connections to manufacturer specifications (typically 12–15 in-lbs for 14 AWG).
Field Checks for Problematic Installations
In conduit systems, use a fish tape with an attached neon test light to identify live conductors–glow intensity correlates to potential. For knob-and-tube setups, assume all cloth-insulated wires may be live; isolate segments one at a time. Temporary markings (e.g., colored tape flags) prevent confusion during repairs–never rely on memory for conductor assignments.
Isolation Protocols
Double-check circuit breakers with a dual-range multimeter (e.g., Fluke 17B): toggle the breaker off and verify <1V at the device. For fused panels, remove the fuse entirely–older screw-base fuses can conduct even when blown. Label all tested conductors immediately after verification; ambiguity during re-energization risks arc faults.
