Start by locating the seven-way connector under the rear bumper–standard on most modern half-ton models. The arrangement follows a strict color-coded pattern, but labels on factory harnesses often fade or smudge. Trace each wire from the plug to the vehicle’s rear junction box: yellow carries left turn/brake signal, green handles right turn/brake, brown runs running lights, white is the ground return, blue powers electric brakes, red provides 12V auxiliary, and black delivers continuous battery voltage.
Test continuity using a multimeter across each terminal and its matching harness wire before splicing. Voltage should register 12V on the red auxiliary wire with the ignition off–a deviation suggests a faulty relay or blown fuse (check under-hood fuse box, position #102). The blue brake output requires the trailer brake controller to be installed; if missing, install an aftermarket proportional controller between the driver’s seat and center console.
For splices, use marine-grade heat-shrink terminals and crimp with a ratchet tool–standard automotive terminals corrode within months under trailer loads. Route all new connections through a ½” plastic loom tied to the existing frame rail, avoiding sharp edges and suspension components. Secure the seven-way socket to the bumper bracket with stainless ¼” bolts; zinc-plated hardware rusts through after two seasons.
Before final assembly, load-test each circuit with a 5-amp trailer lamp. The aux power wire should illuminate a test light without voltage drop; if dimming occurs, inspect the battery-plus relay or upgrade to a 40-amp circuit breaker. Ground faults on the white wire create intermittent failures–attach directly to the frame with a star washer, not the exhaust heat shield.
Document the wiring sequence on waterproof label stock and affix inside the tailgate. Include fuse ratings, relay locations, and wire gauge–future troubleshooting saves hours. Avoid modifying factory harnesses unless replacing damaged segments with identically sized wire; under-sizing causes voltage drops that damage trailer controllers.
Ford Truck Trailer Connection Guide: 7-Way Plug Configuration
Begin by locating the vehicle-side connector beneath the rear bumper–commonly positioned slightly left of center. Verify the factory harness matches the standard SAE J560 layout before proceeding. Mismatched colors or missing circuits often indicate aftermarket modifications requiring manual tracing.
The central cavity carries the primary ground (black/white striped cable), mandated for all auxiliary power circuits. Test continuity between this terminal and the truck’s chassis using a multimeter; resistance above 0.5 ohms signals corrosion or loose mounting.
- Brown wire: Tail lamps–inspect bulb sockets on the trailer for moisture ingress which frequently causes intermittent failure.
- Yellow wire: Left turn/brake signal–ensure isolation from the green circuit to prevent dual activation.
- Green wire: Right turn/brake–match polarity with trailer-side bulbs; reverse wiring risks bulb burnout.
- White wire: Ground–clean connection surface with a wire brush; aluminum oxide impedes current flow.
- Blue wire: Electric brakes–test with a brake controller by engaging manual slide; voltage should reach 12V.
- Red wire: Auxiliary power–battery voltage must remain stable under load; voltage drop below 11V indicates undersized cable.
- Purple wire: Reverse lamps–verify activation only when the transmission selector is in R.
For trucks equipped with integrated brake controllers, probe the blue circuit at the controller’s output pin; factory settings typically limit current to 10A–exceeding this risks thermal damage to the wiring loom. If retrofitting a third-party controller, bypass the OEM module using a relay triggered by the red circuit to maintain CAN bus compatibility.
Corrosion prevention: Apply dielectric grease to all terminals after securing connections. Avoid silicone-based products on brake circuits; use graphite-based compounds instead to prevent signal interference. Replace any terminal exhibiting pitting or discoloration–inexpensive Molex connectors from automotive suppliers outperform generic substitutes in moisture resistance.
Trailer-side verifications include checking each function against the truck’s lighting modules. Use a 12V test lamp for non-brake circuits and a load tester for electric brakes; LED trailer lights may require a diode bypass for proper voltage detection. Document circuit colors and pin assignments before disconnecting–factory manuals often omit aftermarket wiring alterations.
Common pitfalls:
- Incorrect ground path: Never rely on the trailer frame–bond the trailer’s white circuit directly to the truck’s chassis ground.
- Voltage drop across connections: Measure at the trailer plug under full load; 0.3V drop per connection is acceptable, more indicates resistance issues.
- Brake controller misconfiguration: Calibrate according to trailer weight–ford-pickup defaults assume 2000 lbs–adjust proportional settings upward for heavier loads.
- Auxiliary circuits: Ensure fuse ratings match wire gauge; 16AWG requires a 15A fuse, 14AWG a 20A fuse.
Finding the Trailer Plug on Your Ford Truck
Locate the seven-way connector behind the rear bumper, driver’s side. It sits recessed inside a protective bracket, typically 12–18 inches from the tailgate hinge, just beneath the frame rail. Look for a black plastic cover–flip it open to reveal the socket. If obscured, remove road debris or snow buildup with compressed air or a small brush; never force tools into the ports.
Troubleshooting Hidden Connections
For trucks with factory tow packages, the harness may be pre-wired but tucked under the spare tire carrier. On XLT and Lariat trims, check for an inline fuse holder near the spare–it houses a 25A fuse critical for the circuit. Aftermarket setups often relocate the plug to the passenger side; verify by tracing the thick red cable from the battery’s power distribution box.

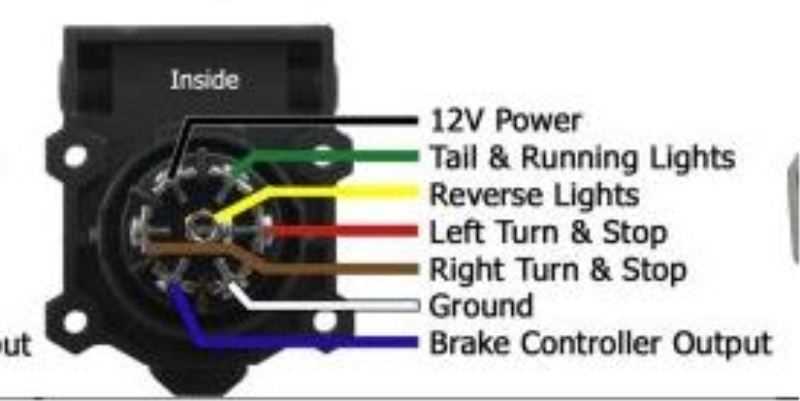

Step-by-Step Connector Color Coding Guide
Begin by identifying the harness plug on the vehicle’s trailer connector–usually a round, 7-slot variant mounted near the rear bumper. Match each slot to its corresponding wire using the reference below to avoid misconnections that can trigger electrical faults or trailer brake malfunctions.
| Slot Position | Wire Color | Primary Function | Voltage/Current |
|---|---|---|---|
| 1 (Center) | White | Ground circuit | 0V return path |
| 2 (Upper left) | Brown | Running/tail lamps | 12V when lights activated |
| 3 (Lower left) | Green | Right turn/brake signal | Pulsing 12V during activation |
| 4 (Upper right) | Yellow | Left turn/brake signal | Pulsing 12V during activation |
| 5 (Lower right) | Red | Auxiliary power (battery hot) | Continuous 12V supply |
| 6 (Upper center) | Black | Electric brake controller output | Variable 0-12V |
| 7 (Lower center) | Blue | Reverse lamps/trailer backup | 12V when gear in reverse |
Trace each colored lead from the connector to the truck’s fuse box or control module, ensuring continuity with a multimeter set to ohms. For slots carrying brake or turn signals, verify the pulsing output aligns with the corresponding dashboard indicator–steady voltage indicates a fault in the harness or trailer connection.
Secure all connections with dielectric grease to prevent corrosion, particularly the ground lead (white), which must have a clean, metal-to-metal bond to the chassis. For auxiliary circuits (slot 5), confirm the fuse rating matches the trailer’s load requirements–typically 30A for heavy-duty applications. If integrating aftermarket components, splice only into designated power sources to avoid overloading the electrical system.
Essential Equipment for Diagnosing Electrical Connections in Your Pickup
Begin with a digital multimeter set to 20V DC. Connect the black lead to a clean ground–exposed metal on the frame works–and probe each terminal while activating the corresponding circuit. A reading below 11.5V indicates resistance or a break; consistent voltage confirms continuity.
A test light with a sharp probe cuts through insulation to verify live circuits without damaging wires. Clip the ground to the battery negative and touch the probe to each connector contact while cycling the relevant switch. If the bulb fails to illuminate, suspect corrosion or a severed link in the harness.
Use a wire strippers with gauge markings to expose conductors without nicking strands. For the truck’s 14-16 AWG cables, select the matching slot and rotate gently. Damaged strands introduce resistance, so discard any wire showing more than 10% fraying.
Keep a hook-shaped terminal removal tool (1-2mm tip) to extract connectors from the plug housing. Insert the hook behind the locking tab, apply upward pressure, and pull straight out. Forcing it risks bending the pins or breaking the latch.
A non-contact voltage detector identifies energized cables before handling. Hold the sensor near the harness–it emits a beep if voltage is present. This prevents accidental shorts when probing or splicing.
For tracing circuits, a tone generator and probe set pairs with a breakout box. Clamp the generator to one end of a wire, then sweep the probe along the harness. A clear tone confirms the path; static or no signal reveals opens.
Corrosion inhibitor (electrical contact cleaner with dielectric grease) neutralizes oxidation on terminals. Spray generously after disconnecting power, let it dry, then apply grease to repel moisture. Skip this step and connections degrade within weeks in humid climates.
A heat gun (variable temp, 300-500°C) shrinks adhesive-lined tubing over splices. Position the tubing, apply heat in a circular motion until the glue melts, then cool it with compressed air to prevent damage to nearby wiring.
