Start by locating the torque converter in the hydraulic system layout–this component bridges engine power and gearset operation. Examine its three core elements: the impeller, turbine, and stator. The impeller connects directly to the crankshaft, while the turbine drives the planetary gears. Verify fluid flow paths between these parts; restricted circulation leads to slippage, reducing efficiency by up to 15%.
Trace the valve body connections next. This network routes hydraulic pressure to engage specific clutches and bands. Isolate the manual valve linkage–it dictates gear range selection. Check solenoid activation sequences; modern units rely on pulse-width modulation for precise control. Faulty solenoids cause delayed shifts or erratic gear changes, detectable through scan tool PIDs showing inconsistent duty cycles.
Analyze the planetary gear arrangement. Identify the sun gear, ring gear, and carrier assembly. The carrier holds multiple smaller gears (planets) that mesh with both sun and ring gears. Each ratio requires a unique engagement pattern–either locking the ring gear, grounding the sun gear, or holding the carrier. Failure in one clutch pack affects multiple ratios, often creating a pattern of symptoms like RPM flare during upshifts.
Inspect the pump drive mechanism. The internal gear pump draws fluid from the sump and pressurizes the system. Low line pressure–typically below 50 PSI at idle–indicates wear or leakage. Measure pressure at test ports; compare readings against factory specs (usually 120-150 PSI at wide-open throttle). Replace worn seals to prevent burnout of friction material, identifiable by metallic particles in fluid samples.
Review electrical schematics alongside hydraulics. Sensor inputs (input/turbine speed, output speed, temperature) feed the TCM for shift timing. Correlate voltage signals from these sensors–deviations over 0.5V suggest wiring faults or sensor drift. Prioritize throttle position sensor calibration; misalignment causes harsh downshifts or failed torque converter lockup.
Understanding Self-Shifting Gearbox Blueprint Layouts
Begin by identifying the torque converter’s position at the system’s input side, marked as a circular unit adjacent to the engine flexplate. Verify its three core components: impeller, turbine, and stator, arranged to multiply torque during initial acceleration. Cross-reference fluid flow paths with manufacturer specs–discrepancies here often indicate improper stall speeds or slippage.
Locate the planetary gear sets next; typically clustered in pairs or triplets with sun, ring, and carrier gears interlinked via clutches and bands. Use a multimeter to test solenoid resistance (12–25 ohms at room temp) for Shift Solenoid A/B–values outside this range suggest internal shorting. Label each gear’s engagement sequence based on hydraulic valve body passages, noting that First Gear usually engages the forward clutch while locking the rear band.
- Check hydraulic pressure ports with a scan tool while engine idles (normal: 50–80 psi); low readings point to pump wear or blocked filters.
- Inspect accumulator pistons for cracked seals–common failure on high-mileage units causing delayed shifts.
- Measure clearance between thrust washers in the bearing assembly; excessive play (>0.008″) requires replacement.
Trace fluid circuits from the valve body to cooler lines, ensuring no kinks restrict flow–restricted return paths cause overheating and clutch burnout. Probe electrical connectors for corrosion, especially at transmission range sensor pins, where oxidation mimics solenoid failures. Replace the filter if contaminated with metallic particles; reinstalling a clogged filter reduces component lifespan by 40%.
Examine the differential output shaft splines for wear; misalignment here causes driveline vibrations detectable at 45 mph. If the vehicle has all-wheel capability, note the viscous coupling’s role in torque distribution–replace coupling fluid if it fails to transfer power during differential slippage tests. For rear-wheel models, confirm propshaft yoke alignment with a dial indicator, accepting no more than 0.004″ runout.
- Disassemble the governor valve, clean its spring and weights, then reassemble with fresh ATF to restore shift timing accuracy.
- Test the inhibitor switch by verifying resistance across each gear position (P/N: infinite, R/D/2/L: 0 ohms).
- Replace the speed sensor if output exceeds ±2% of wheel speed signals–erratic readings disrupt shift scheduling.
Pay attention to throttle cable adjustments on older models–loose cables delay upshifts, tight cables cause harsh downshifts. For electronically controlled systems, recalibrate the TCM after repairs by disconnecting the battery for 10 minutes to reset adaptive learning parameters. Use OEM diagnostic software to monitor real-time shift maps; deviations from standard curves (e.g., 1-2 shift >750 ms) indicate worn friction plates or sticking spool valves.
Always perform a final road test under loaded conditions, verifying:
- Smooth engagement at stoplights without slipping.
- Consistent shift RPMs (±200 RPM tolerance).
- No flare or hesitation between gears during 30–60% throttle.
Document all pressure readings and electrical tests in a repair log to track degradation trends over time.
Key Components of an Auto-Shift Hydraulic System

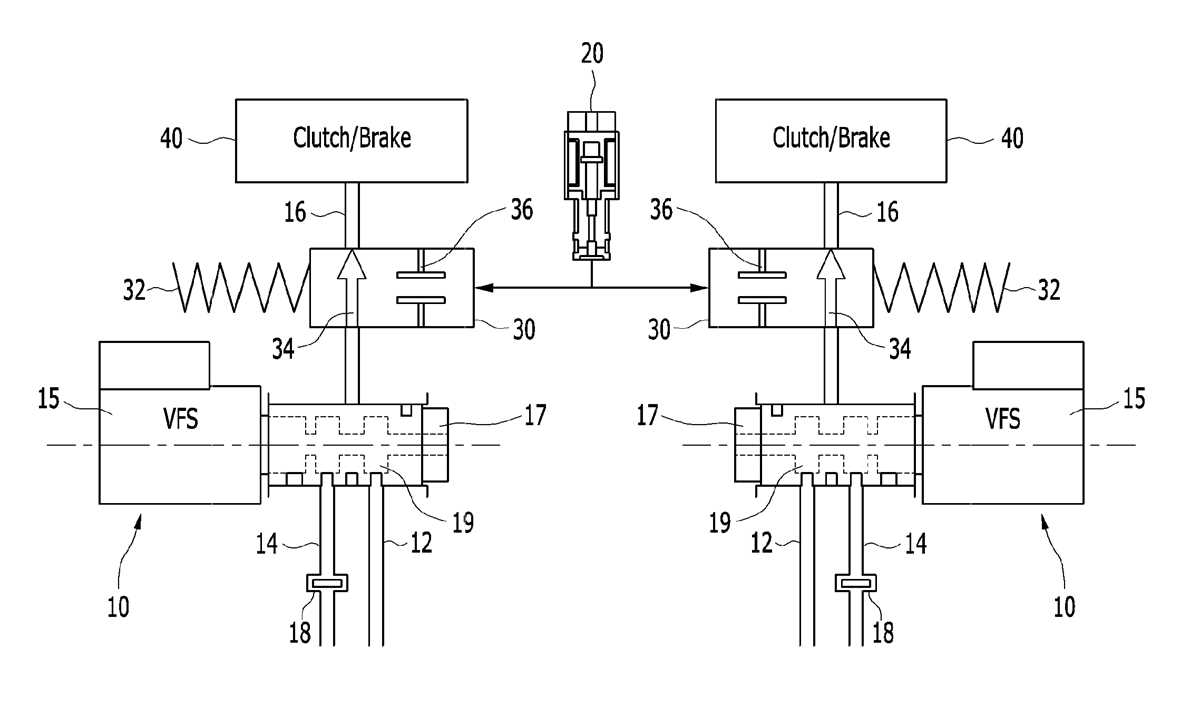

Prioritize the valve body in your hydraulic circuit design–its precision determines gear engagement speed and reliability. Use a multi-plate solenoid pack with pulsed-width modulation for smooth pressure control, targeting 5-15 psi variations during shifts to prevent torque converter shudder. The accumulator piston must have a 3:1 diameter-to-stroke ratio to absorb fluid surges without delaying clutch application. Replace OEM springs in the pressure regulator with high-carbon variants to maintain consistent line pressure under 250°F thermal loads.
Fluid Dynamics and Circuit Integrity
Install a 100-mesh stainless steel screen at the pump inlet to block debris larger than 150 microns, preventing valve spool sticking. Use JASO MA2-rated fluid with a viscosity index above 200 to ensure film strength during cold starts below -20°C. The torque converter clutch circuit should include a 0.5mm orifice to bleed air during lockup disengagement, eliminating fluid hammer. Pressure switches must trigger at ±2 psi of setpoint to detect circuit failures before clutch slip occurs.
Step-by-Step Flow of Torque Converter Operation in Visual Breakdowns
Disassemble the fluid coupler’s role by examining the pump, turbine, and stator interaction in discrete phases. Start with the impeller (pump) at engine idle–fluid circulates with minimal torque multiplication, achieving near 1:1 ratio due to low angular momentum. Measure fluid velocity at this stage: typically 2–4 m/s in a 250mm diameter unit, sufficient to maintain hydraulic lock but insufficient for propulsion.
As throttle increases, angular velocity of the impeller rises, propelling fluid outward at ~12–18 m/s. This kinetic energy impacts the turbine blades, initiating rotation. Key variables: blade angle (usually 25–35°), fluid viscosity (ATF at 6–8 cSt), and clearance (0.5–1.2mm). Use a pressure gauge between pump and turbine; expect 40–60 psi at half-load. The table below maps torque multiplication against RPM:
| Engine RPM | Impeller Speed (m/s) | Torque Ratio | Stator Effect |
|---|---|---|---|
| 800 | 3 | 1.0 | Idle |
| 1500 | 8 | 1.4 | Partial redirect |
| 2500 | 14 | 2.1 | Full stall |
| 3500 | 18 | 1.8 | Slip transition |
The stator’s one-way clutch engages when turbine speed lags impeller speed by >20%. Fluid strikes the stator blades at ~15° incidence, reversing flow direction–this redirects momenta back to the impeller, amplifying output torque up to 2.5x in stall conditions. Critical wear points emerge at the stator hub and blade tips; inspect for scoring every 50,000 km.
At coupling point (typically 60–70% of impeller speed), stator disengages, and slip reduces to
Lock-up clutch engagement eliminates slippage entirely, mechanically bonding impeller to turbine at ~1,200–1,600 RPM. Clutch apply pressure must reach 120–180 psi; use a scan tool to log solenoid duty cycle (PWM 30–70%). Failure modes: shudder at 18–25 Hz if lining material (paper-fiber or carbon) glazes or burns. Replace lining if friction coefficient drops below 0.11.
Backpressure in the torque path peaks during deceleration–stator may transiently re-engage, creating a brief torque reversal. Log pressure spikes at the inlet: normal range 80–110 psi; values above 140 psi indicate valve body restriction. Flush cooler lines annually to prevent debris buildup, which degrades flow rates below 4 L/min.
For diagnostic clarity, overlay three oscilloscope traces: impeller RPM, turbine RPM, and fluid pressure. Misalignment >3% between RPM traces at coupling point flags bearing wear or seal leakage. Use a scope with 1 kHz sampling rate to capture transient response during gear shifts–ideal waveform shows a smooth exponential decay in turbine speed over 0.3–0.5 seconds.

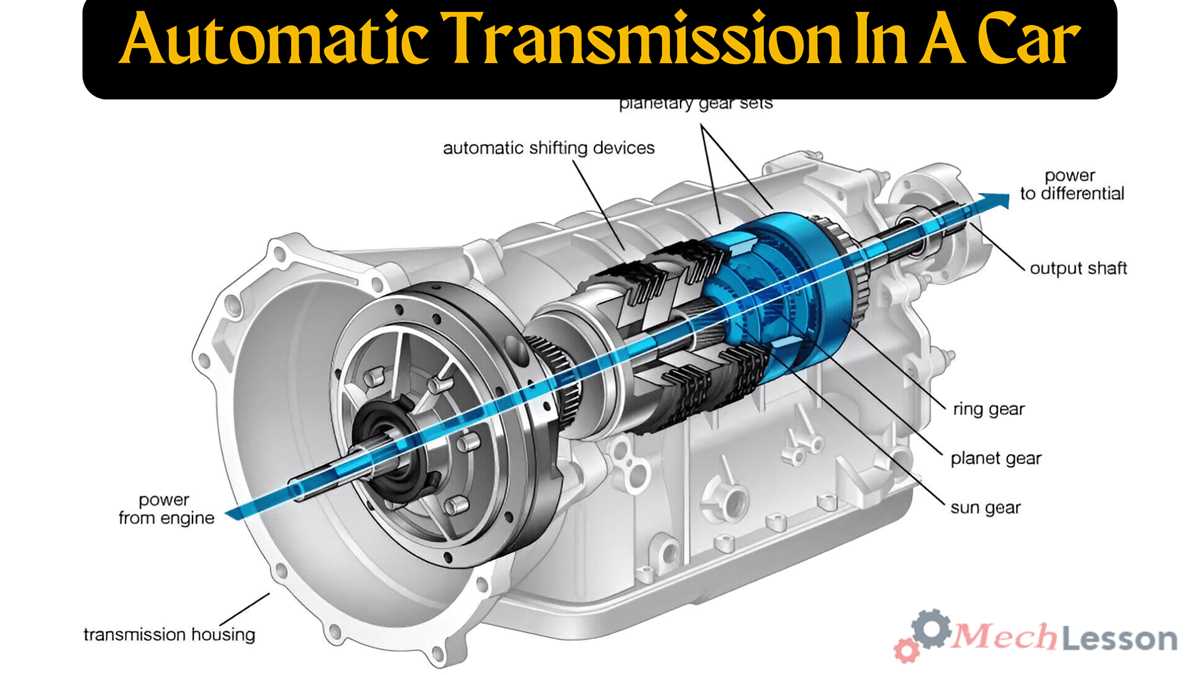

Understanding Planetary Gear Mechanics in Gearbox Layouts
Examine the sun gear’s central role–it meshes directly with the pinion gears, distributing torque at a fixed ratio unless acted upon by a brake band or clutch. For precise operation, ensure the sun gear’s tooth count is 20-35% of the ring gear’s; deviations outside this range risk uneven load distribution and premature wear.
Pinion gears (planet gears) must rotate freely on their carriers while maintaining a 0.05-0.1 mm clearance from adjacent components. Over-tightening the carrier bolts by even 0.2 mm can bind the assembly, reducing efficiency by up to 12%. Use precision-ground spacers to maintain exact tolerances during reassembly.
The ring gear locks torque input when the clutch engages, converting orbital pinion motion into output via the carrier. Inspect the ring gear’s internal teeth for pitting or glazing–surface defects exceeding 0.1 mm depth necessitate replacement to avoid gear clash at high RPM. Hardened alloy steel (e.g., AISI 8620) resists wear better than untreated steel for this component.
Direct drive occurs when two elements–like the carrier and ring gear–rotate together, bypassing torque multiplication. Verify this mode by checking for simultaneous engagement of both input clutches; asynchronous engagement indicates a faulty solenoid or fluid pressure issue at 60-80 psi levels.
Reverse gear ratios rely on locking the carrier while allowing the ring gear to rotate. For consistent performance, the brake band must apply 150-200 lbf of force evenly across the drum; uneven pressure causes slippage and overheating. Replace bands if glazing exceeds 30% of the lining surface area.
Overdrive configurations invert the standard power flow–here, the ring gear becomes the input while the carrier delivers output. This setup demands ultra-precise alignment; misalignment by 0.03 degrees reduces torque capacity by 8%. Use laser-guided tools to true the assembly during rebuilds.
Epicyclic sets fail primarily from fluid starvation or clutch burnout. Monitor fluid temperature–sustained operation above 120°C accelerates epoxy degradation in the friction material. Install an inline cooler if towing increases baseline temps by 15°C or more.
