Begin by locating relay box C351 beneath the dashboard on the driver’s side–pin layout follows a four-terminal pattern. Terminal 1 (white/blue stripe) delivers 12V from the ignition switch during cranking; terminal 2 (black/yellow stripe) grounds through chassis point G201. The control circuit completes at terminal 3 (yellow/green stripe), activating the SPDT relay coil before routing current to terminal 4 (solid green), which feeds the electrical sender unit.
Trace the power path: once primary relay engagement occurs, voltage travels through a fusible link (10A, designated F2-1) into a red/black wire–this segment often corrodes near bulkhead connector T3A. From there, 8-gauge orange wire carries high-current output directly to the in-tank assembly, terminating at the brushless motor’s positive terminal. Ground returns via a dedicated 12-gauge black wire, routed separately to avoid shared chassis resistance issues common in high-mileage units.
Verify sensor operation with a 10-ohm resistor: disconnect motor harness at connector T5, probe pins 1 and 3 with a multimeter–expect 0.3-0.5V drop across internal contacts during prime cycle. If outside tolerance, inspect the 4-pin potentiometer slide (brown/white trace) for oxidation–clean using DeoxIT D5 at 500 psi. For intermittent failures, bypass the inertial switch: splice a 6″ jumper between violet/white and solid violet wires at firewall plug C202–if pressure restores, replace the safety cutoff module (PN 37808-SP0-003).
Critical splice points: under rear seat, blue/red wire joins white/black at connector T8–this feeds the secondary pressure regulator solenoid. Use marine-grade heat shrink when repairing brittle insulation here; standard PVC tubing degrades under biofuel blends exceeding E10. For harness extensions, match original gauge (18 AWG) and twist-pair configuration (12 twists per foot) to prevent voltage sag during cold starts.
Electrical Hookup Guide for Early 90s Sedan Fuel Delivery System
Locate the primary relay beneath the dashboard on the driver’s side–it’s a small rectangular box with a 6-pin connector. Pin 1 (white/blue wire) receives ignition voltage, while pin 4 (black/yellow) supplies power to the injection system. The circuit triggering the pump runs through pin 5 (yellow/black), which connects directly to the assembly mounted inside the tank. Use a multimeter set to DC volts; probe should read 12V at pin 5 when cranking. If voltage is absent, inspect the ignition switch or main fuse labeled “FI” in the under-hood box.
Common Failure Points
- Corroded ground near the rear passenger side wheel well–clean with 80-grit sandpaper and apply dielectric grease.
- Brittle wires at the tank unit; flex gently while monitoring voltage to detect intermittent breaks.
- Faulty secondary relay (often confused with the main one) near the ECU under the passenger kick panel.
- Burnt traces on the circuit board inside the access panel above the tank; jumper with 18-gauge wire if melted.
Cut a section of wiring harness shielding near the rear subframe to expose the three critical wires. The large-gauge black/yellow carries power, pink is the sender signal, and green/white is the pump trigger line. Strip 5mm of insulation, then crimp with 14-16 AWG butt connectors–solder for longevity. Wrap each splice with adhesive-lined heat shrink tubing, ensuring no exposed copper remains. Route wires away from moving suspension components to prevent chafing.
For bench testing, attach a 10-amp fused jumper wire to the green/white lead and ground the opposite end. The unit should audibly prime for 2 seconds when power is applied. If silent, tap the tank gently with a rubber mallet–stuck impellers often free with vibration. No response indicates internal failure; replace with OEM part number 17040-SR3-A01 for exact fitment, avoiding aftermarket variants lacking pressure regulators.
Finding the Electrical Connector Points for the Injection System

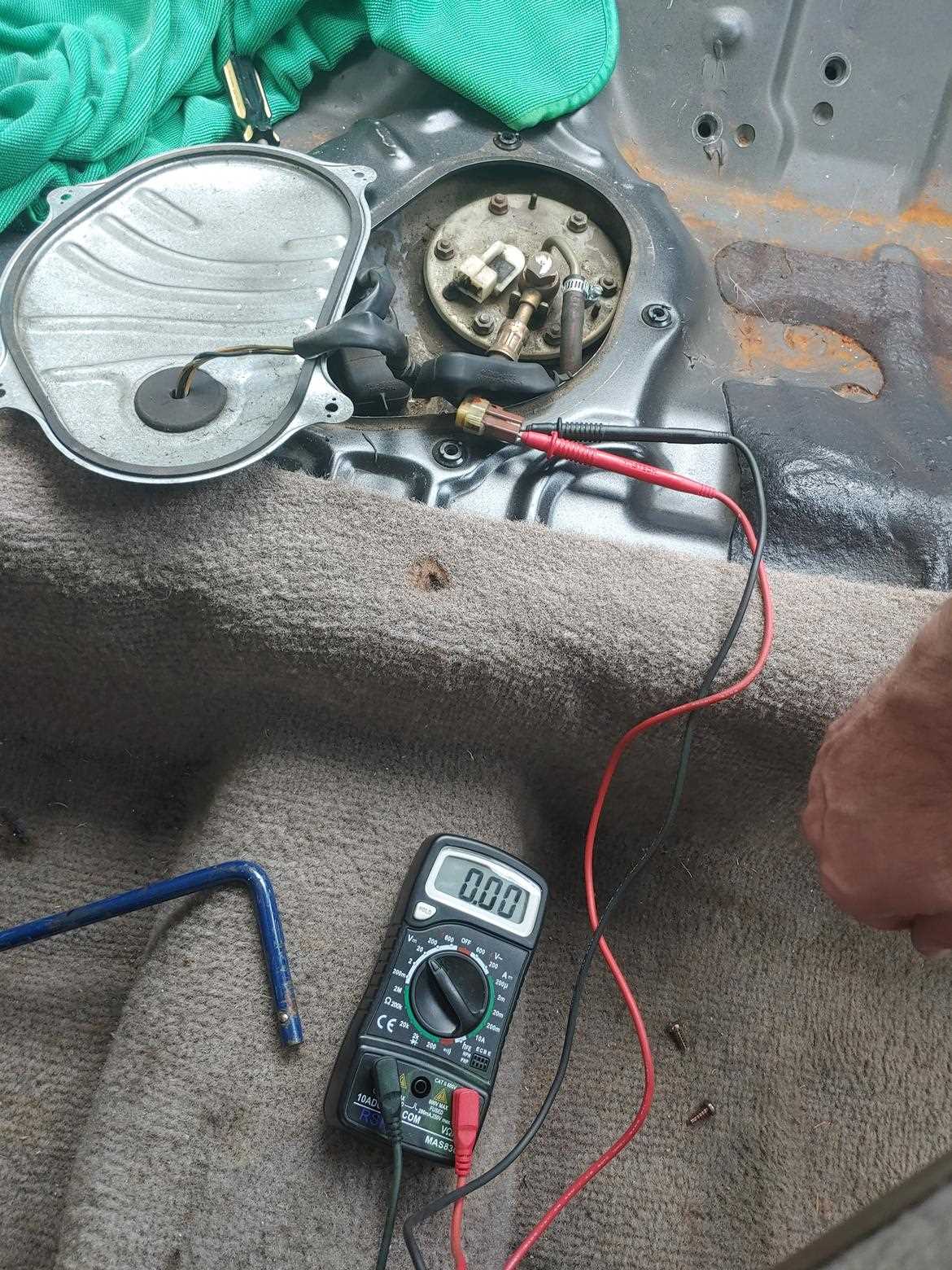

Begin by raising the rear seat cushion to expose the access panel beneath. On sedans, this panel is typically a circular or rectangular cover held by a single screw or friction clips–remove it to reveal the sender unit. The main power lead for the assembly you’re tracing terminates at a two-pin or three-pin plug secured directly to the reservoir module; follow the color codes listed in the reference table below to identify correct terminals without relying on visual memory.
| Wire color | Function | Typical pin location |
|---|---|---|
| Yellow/Black stripe | 12 V switched ignition | Left side of 2-pin connector |
| Black/Ground | Chassis return | Right side of 2-pin connector |
| Blue/Yellow stripe | Sensor signal (if applicable) | Middle pin on 3-pin connector |
Trace each conductor from the sender module backward toward the vehicle’s main harness bundle; you’ll encounter an inline coupling roughly twelve inches away from the reservoir where the conduit splits. Mark both ends of this coupling with different colored tape–one hue for the engine-bay side, another for the tank side–to prevent cross-wiring during reassembly. If the coupling shows brittle insulation or cracked plastic, replace it immediately rather than attempting repairs with electrical tape.
From the inline coupling, follow the harness toward the front of the vehicle; it merges with the main electrical trunk near the left rear shock tower. At this junction, locate the primary relay dedicated to the injection circuit–it’s usually housed in a small white or gray box adjacent to the fuse block under the dashboard. The relay actuates the high-current feed, so verify continuity between relay pin 85 (yellow/green stripe) and the sender-side ignition lead you previously marked.
Once the relay is confirmed operational, test voltage at the sender plug by probing the switched ignition wire with a multimeter set to DC volts. With the ignition key turned to the ON position but the engine off, you should read battery voltage (approximately 11–14 V); a zero reading indicates either a blown fuse (check position 15A in the under-dash fuse box), a faulty relay, or an open circuit in the conduit you’ve just traced. Replace any corroded connectors with terminal repair kits using heat-shrink crimps rather than solder alone, ensuring waterproof seals to prevent future failures.
Decoding Color Patterns in Electrical Supply Lines for Injection Systems
Locate the primary power feed by tracing the harness from the relay to the module–typically a yellow/blue stripe wire on models from this era. This conductor carries the ignition-controlled current, and its failure is a common trigger for no-start conditions. Verify continuity with a multimeter set to 20V DC, ensuring voltage drops below 0.5V under load.
Ground connections often utilize a solid black or black/white stripe cable, frequently overlooked during diagnostics. These attach to the chassis or engine block near the unit, sometimes hidden under protective sheathing. Corrosion at these points can mimic a faulty motor; clean terminals with a wire brush and apply dielectric grease to prevent recurrence.
Signal wires for fuel level sensing usually feature a pink or green/white stripe pattern. These thinner gauge lines connect to the gauge cluster via an intermediary box. Test for proper operation by bridging the sender’s output to ground–expect the dashboard indicator to swing to “Empty.” Resistance values should range between 30-300 ohms depending on tank level.
Secondary pump activation circuits may incorporate a gray/red stripe line, particularly in dual-relay configurations. This provides full-time power during cranking, bypassing ignition switch dependency. Check for 12V+ at this connector when the starter engages; if absent, inspect the relay contacts for pitting or solder fractures.
Pressure control feedback loops employ a white/red stripe conductor, transmitting a low-voltage signal (0.5-4.5V) proportional to demand. A short to ground here causes erratic operation, while an open circuit triggers failsafe modes. Probe this line with an oscilloscope during engine operation–waveforms should reflect smooth transitions corresponding to throttle changes.
Harness-to-module connectors frequently use black/blue stripe for ground returns and gray for chassis grounding. These junctions often corrode after exposure to road salts or moisture ingress. Re-seat connections using contact cleaner, and apply silicone dielectric compound to prevent future oxidation–visible green deposits indicate advanced corrosion requiring immediate attention.
Variations exist between OEM and aftermarket assemblies; always cross-reference observed colors with a factory service manual. Third-party replacements may deviate, substituting purple where orange was originally specified. Label each connection with masking tape during disassembly to avoid miswiring upon reassembly–a single misroute can damage the control module instantly.
Verifying Relay and Protective Device Locations for Optimal System Performance
Locate the control module fuse panel under the dashboard near the driver’s side kick panel. The precise position varies by trim, but reference the factory manual’s labeled diagram–common relays occupy slots 6, 8, or 12. Remove the cover and inspect each component for physical corrosion, deformation, or discoloration. A relay with a melted plastic casing or a fuse with a broken filament indicates overheating, often caused by excessive current draw from a shorted circuit or faulty load device.
Use a multimeter set to continuity mode to test relay functionality without removal. Probe the relay’s 85 and 86 pins while another person turns the ignition to the ON position–audible clicking confirms coil activation. If no click occurs, swap the relay with an identical spare from an unrelated system (such as the A/C or horn relay) to isolate the fault. Consistently failed relays suggest a deeper issue with the ECU’s ground signal or wiring integrity.
Checking Fuse Integrity Beyond Visual Inspection
Standard visual checks miss micro-fractures in fuse elements. Employ a 12V test light or digital multimeter on the lowest resistance setting (ohms) for accurate assessment. Touch probes to both fuse terminals–any reading above 0.2 ohms signals partial failure, even if the filament appears intact. Replace suspect fuses with the exact amperage rating (typically 15A or 20A for this system) to prevent false positives during subsequent diagnostics.
Trace the fuse’s power feed wire from the panel back to its source–a main junction block near the battery or alternator. Disconnect the wire at both ends and verify continuity with a multimeter, accounting for expected resistance of 0.1-0.3 ohms per meter of conductor length. Higher readings indicate internal breaks, often hidden under insulation or within connectors. Re-solder or replace damaged sections rather than bypassing, as temporary fixes compromise system protection.
Relay and Protective Device Cross-Referencing
Document the relay’s pinout assignments before testing: pin 30 receives constant power, pin 87 delivers output when activated, and pins 85/86 form the control coil. With ignition OFF, measure voltage at pin 30–it should match battery voltage (12.6V). Turn ignition ON; pin 86 should drop to 0V (grounded via ECU), triggering coil closure and voltage at pin 87. Deviations from this pattern suggest ECU signal failure, broken ground paths, or faulty relay internal contacts.
For fuses, note both input and output voltages under load. A healthy protective device shows negligible voltage drop (≤0.1V) between terminals when current flows. Use a clamp meter to measure actual amperage through the fuse during operation–elevated readings (e.g., 5A over rated capacity) point to downstream component failure or wiring shorts. Compare findings to the manufacturer’s specifications; tolerances exceeding ±10% require immediate investigation of the connected system.
Test relay sockets for proper seating and contact tension. Over time, spring-loaded terminals lose tension, causing intermittent failures. Clean corroded pins with electrical contact cleaner and a nylon brush, then apply dielectric grease to prevent future oxidation. Replace sockets exhibiting physical wear, as compromised connections generate heat and prematurely degrade components.
If diagnostics confirm intact relays and fuses despite system non-operation, focus on the control unit’s output signal. Back-probe ECU connectors with a scope or logic analyzer to verify pulsing signals during startup. Absence of activity necessitates ECU testing on a bench harness or replacement. For persistent issues, examine the harness routing near high-vibration areas (e.g., suspension mounts) for chafed insulation or pinched wires–common failure points in legacy electrical architectures.
