KiCad remains the gold standard for open-source electronics design automation. Its integrated environment handles schematic capture, PCB layout, and Gerber file generation–eliminating the need for separate tools. The built-in Eeschema module allows real-time electrical rule checks, flagging netlist inconsistencies before they propagate. Hierarchical schematics enable modular design, breaking complex systems into manageable sub-circuits. Exports to SPICE simulation formats let engineers verify functionality before prototyping.

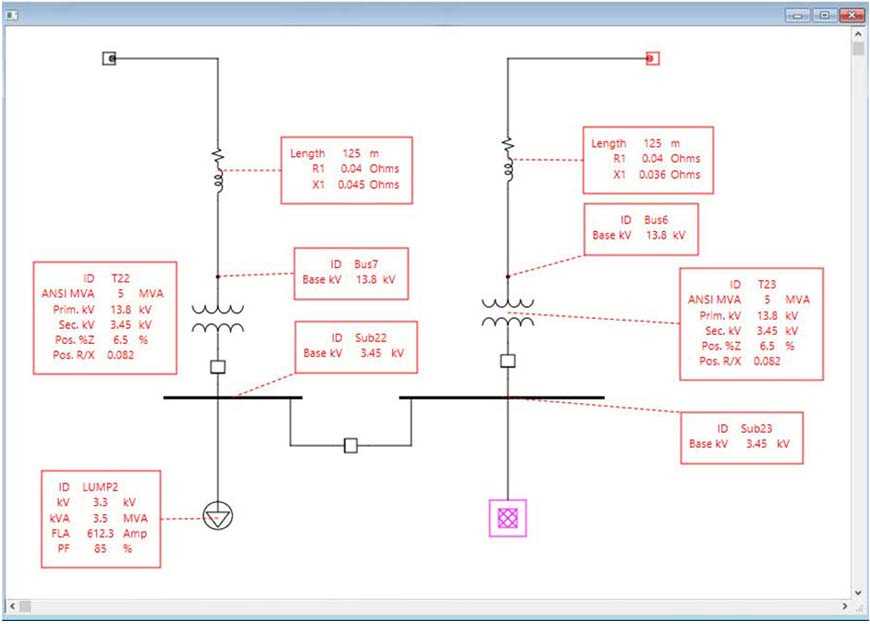

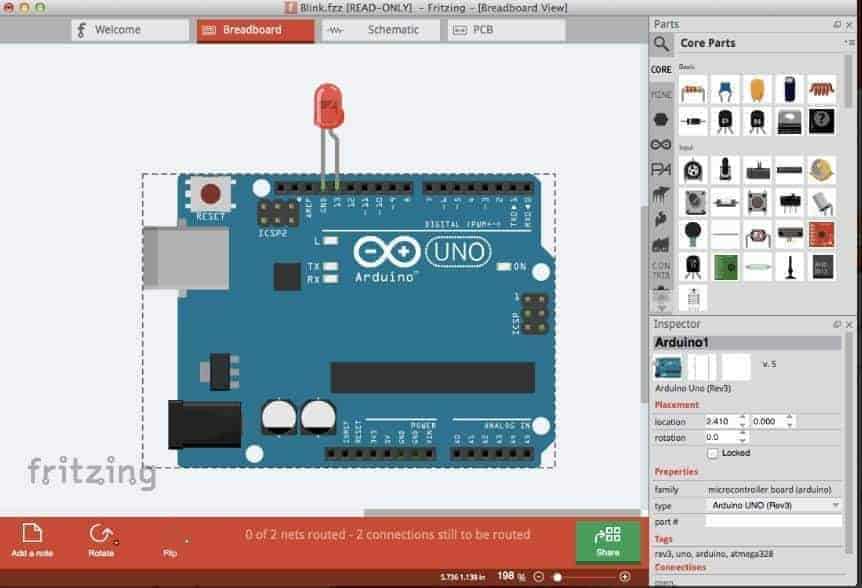

For rapid iteration, Fritzing bridges the gap between breadboard testing and formal documentation. The Parts Editor lets users define custom components with precise pin mappings, while the PCB view mirrors physical layouts down to trace widths. Fritzing files seamlessly convert to Eagle or KiCad formats, preserving design intent during transitions. Its community-driven library covers thousands of common modules, from Arduino shields to SMD sensors, accelerating capture without hand-drawing repetitive elements.

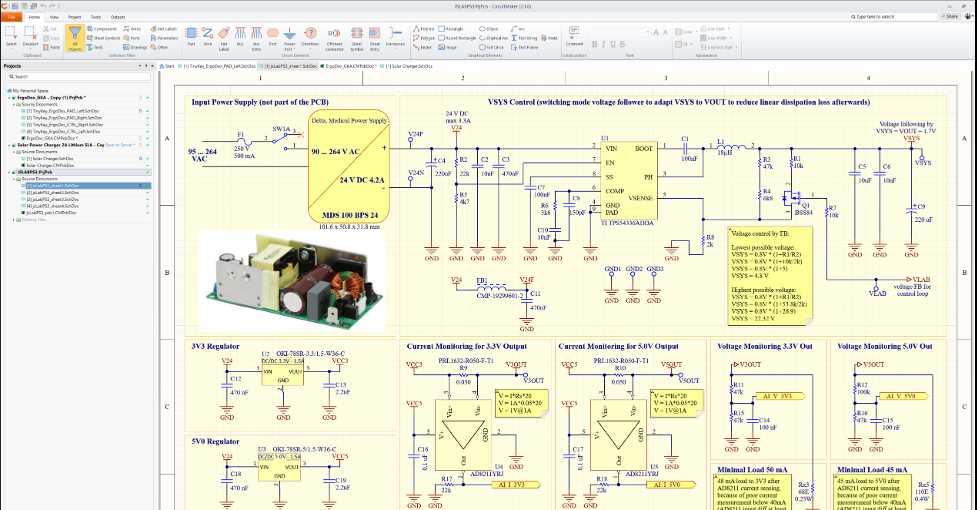

Altium Designer excels in professional workflows demanding native 3D visualization and supply-chain integration. The schematic editor links directly to manufacturer part numbers, populating BOMs with pricing, lead times, and lifecycle status–critical for production planning. Dynamic annotation precludes version conflicts, while differential pair routing in the corresponding layout editor ensures signal integrity. Multi-board projects synchronize across mechanical assemblers like SOLIDWORKS, preventing enclosure interferences.
EasyEDA strips complexity for web-based collaboration. Browser accessibility removes installation friction, with real-time co-editing mirroring Google Docs for engineering teams. Schematics integrate with LCSC’s 1.5 million-part database, offering direct order placement for passive components and ICs. The built-in simulator runs Ngspice netlists in-browser, offering transient and AC analysis without local software dependencies. Version control via Git prevents overwrites during distributed reviews.
When exporting for simulation, Qucs simulates schematics natively–no netlist conversion required. Its schematic editor doubles as a simulation front-end, plotting transient responses or S-parameters directly adjacent to circuit definitions. Parameter sweep sweeps automate tolerance analysis, revealing sensitivity to component drift before committing to hardware. For analog-heavy designs, gnetlist bridges to Spice, while digital circuits convert to Verilog for FPGA synthesis.
DipTrace offers native variant management for configurable products. A single schematic can generate multiple board revisions–ideal for IoT devices with regional certifications. The pattern editor’s 3D preview validates body clearances for tall components like electrolytic capacitors or connectors, sidestepping post-assembly mechanical clashes. Differential signal rules propagate from schematic to layout, ensuring impedance-matched traces without manual calculations.

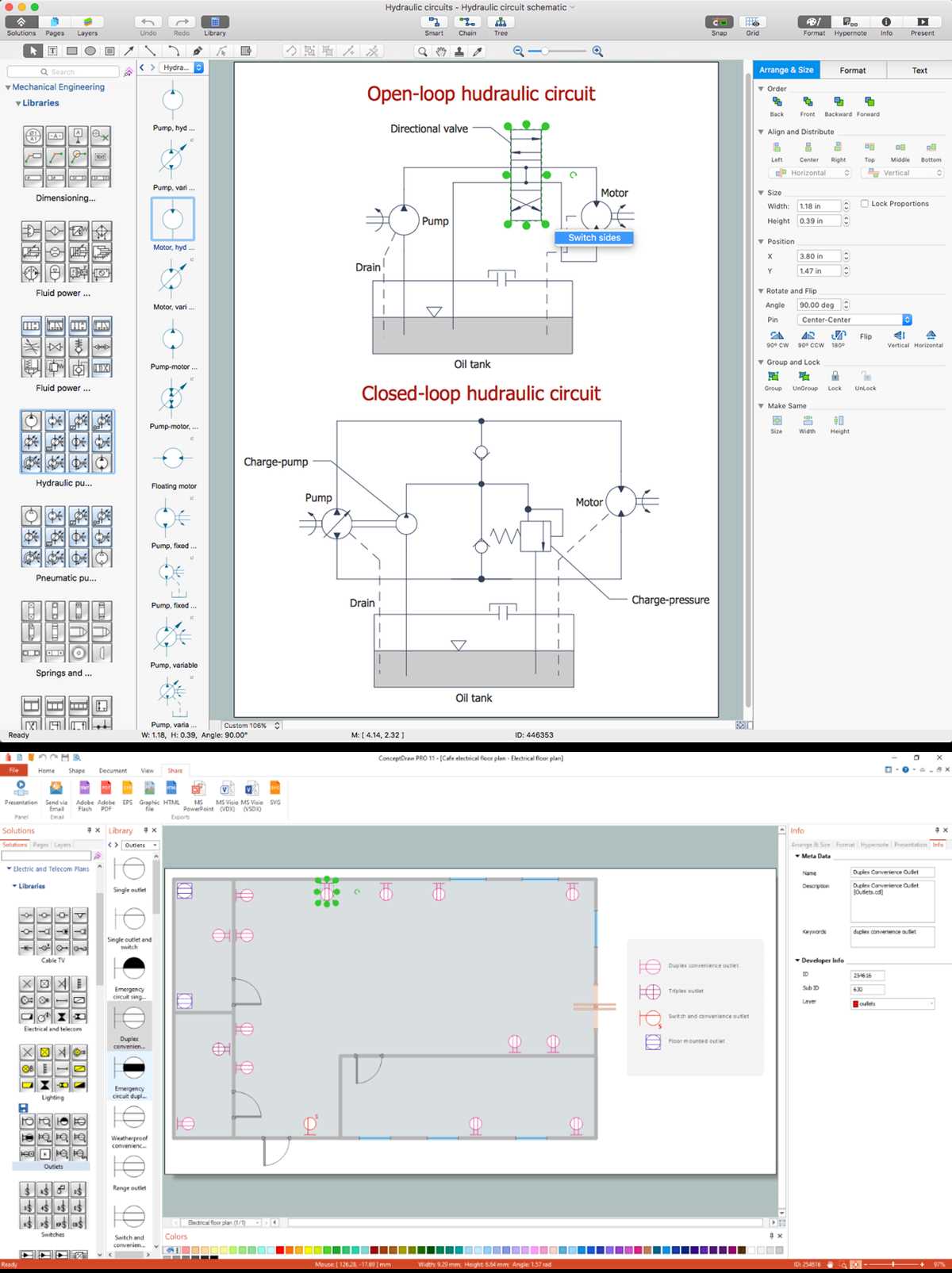

Best Tools to Sketch Electrical Schematics
KiCad stands out for open-source schematic capture with no hidden costs. Its library management includes over 10,000 symbols, with footprint editors for custom component creation. Export formats cover Gerber, DXF, and SVG, ensuring compatibility with fabrication workflows. Platform support spans Windows, macOS, and Linux–ideal for cross-team collaboration without licensing barriers.
LTspice excels in simulation-heavy projects. While primarily an analog simulator, its schematic editor integrates SPICE model placement directly into the workflow. Transient, AC, and DC sweep analyses run natively, reducing the need for separate tools. The trade-off: fewer advanced PCB layout features compared to dedicated EDA suites.
Consider EasyEDA for cloud-based editing. Its real-time collaboration mirrors Google Docs, letting teams annotate and modify designs simultaneously. Pre-loaded symbol libraries accelerate prototyping, and the tool links to JLCPCB’s manufacturing service, streamlining transitions from schematic to fabricated board. Note: free tier limits project visibility to public.
Specialized Alternatives
- Fritzing: Best for breadboard-to-schematic conversion. Exports include Arduino-compatible layouts, but lacks precision for complex designs.
- TINA: Industrial-grade with VHDL/Verilog support. Heavy on system requirements–the 1.2 GB installer includes built-in lab instruments.
- gEDA: UNIX-focused suite with separate tools for schematic entry (
gschem) and netlist generation. Command-line driven; intimidating for beginners.
For rapid ideation, DigiKey’s Scheme-it offers browser-based sketching with export to Excel/netlist formats. No installation required, but component selection skews toward DigiKey’s catalog. Pair it with a PDF annotation tool to mark up drafts before committing to detailed design.
Autodesk Eagle’s free tier allows two-layer boards up to 80 cm². Its schematic editor couples tightly with PCB routing, and the ULP scripting interface automates repetitive tasks like footprint generation. Downsides: subscription model kicks in for advanced features, and the user interface feels cluttered.
When accuracy matters, OrCAD Capture (Cadence) provides military-grade netlist validation but demands steep learning investment. The Design Rule Check flag violations like unconnected pins or power mismatches–critical for high-reliability systems. Costs scale with seat licenses; educational licenses soften the blow for students.
Workflow Integration Tips
- Standardize libraries: Keep custom symbols/footprints synchronized across tools using version control (e.g., Git).
- Hotkey shortcuts: Assign frequently used commands–e.g., KiCad’s Ctrl+E for instant component rotation–to cut mouse dependence.
- Layer discipline: Use separate schematic sheets for power, signals, and isolation zones to maintain clarity in multi-page projects.
- Test pre-layout: Simulate sub-circuits (LTspice) or verify netlists before PCB routing to catch errors early.
CircuitLab deserves mention for education and small-scale designs. Its simulator runs directly in-browser, plotting voltage/current responses interactively while editing. Exports include LaTeX-compatible schematics, useful for documentation. Limitations: proprietary format restricts integration with other EDA tools.
Key Capabilities of a Schematic Editor Worth Using
Seek a tool with native support for hierarchical schematics. This allows breaking complex designs into modular subcircuits–each with its own symbol and connectivity rules–while maintaining electrical consistency across nested blocks. Verify the editor enforces strict net naming between parent and child sheets, preventing connectivity errors during netlist generation or simulation. The best implementations preserve annotation states (e.g., reference designators) when swapping modules, critical for large-scale revisions.
- Precise component rotation with configurable snap angles (15°, 30°, 45° increments) to avoid misalignment during layout.
- Offline symbol libraries that auto-generate from S-parameter files, IBIS models, or SPICE netlists for active/passive parts.
- Bidirectional cross-probing between schematic and layout views, syncing selection highlights without manual synchronization.
- Automatic collision detection for overlapping nets, labels, or ports during interactive editing.
Integration with waveform viewers and SPICE engines should not require manual netlist exports. Look for tools that natively embed transient, AC, or DC sweep analysis without external plugins. The editor must preserve simulation directives (e.g., .tran, .ac) when duplicating subcircuits, ensuring reusability of test benches across design iterations. Advanced features like parameter sweeping or Monte Carlo analysis should be accessible via dedicated dialogs rather than command-line syntax.
Step-by-Step Guide to Crafting Your Initial Electrical Blueprint
Select a grid-based editor with snap-to alignment to prevent misplaced components. Tools like KiCad or Fritzing use 0.1-inch grids by default–match components accordingly to ensure clean connections. Avoid freehand placement; precision reduces debugging later.
Start with power sources before adding passive or active elements. Place a battery or voltage regulator at the top-left corner, then route ground (GND) downward. Labels like “VCC” or “+5V” should follow industry conventions to maintain readability across teams.
Use standardized symbols for resistors, capacitors, and ICs. A 0.25W resistor defaults to “R” with its value (e.g., “1k”), while electrolytic capacitors require polarity markers. Refer to IEEE STD 315-1975 for uncommon symbols like optocouplers or transformers.
Wire paths should follow orthogonal angles–no diagonal lines. Assign distinct colors: red for VCC, black for GND, and blue for signals. Overlapping traces need vias or bridges; most editors auto-generate these if traces collide.
Verifying Connections Before Finalizing
Enable the electrical rule check (ERC) to catch unconnected pins or shorts. KiCad’s ERC flags errors with red markers; zoom to 200% to inspect each warning. Ignore false positives for unused IC pins if intentionally left floating.
Add net labels instead of drawing wires across the schematic. For example, label a clock signal as “CLK” at both the microcontroller’s output and peripheral’s input. This reduces visual clutter and simplifies hierarchical designs.
Export the file as a PDF or SVG for review. PDFs embed vector graphics–ideal for printing or sharing–while SVG allows scalable edits. Include a bill of materials (BOM) with part numbers, values, and quantities; KiCad auto-generates this from component fields.
Test the design on a breadboard before PCB fabrication. Compare the schematic against the physical layout: a single misplaced trace can invert logic levels. Use an oscilloscope to probe critical nodes–verify signal integrity matches expectations.
