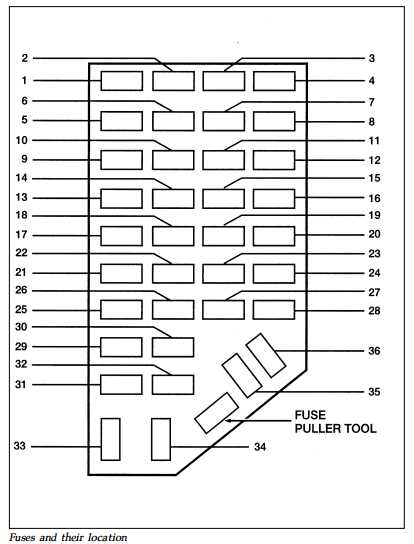

For immediate troubleshooting of a 1987–1998 model-year light-duty pickup, locate the under-hood fuse panel near the firewall on the driver’s side. Remove the plastic cover and reference the identically shaped decal adhered to its underside–this is your single-best reference for circuit layout and color-coded wire paths. Each fuse slot is cross-labeled with its amperage and protected component (headlamps, ignition relay, A/C clutch, etc.). If the decal is missing, the schematic in the owner’s workshop manual or a factory-issued PDF (available through automotive forums or AlldataDIY) will mirror its labels.
When tracing a parasitic drain, disconnect the negative battery cable first, attach a digital multimeter (set to 10A DC) in series between the cable clamp and battery post, then re-secure the clamp. Start isolating by pulling fuses one-by-one; a sudden drop below 50 milliamps pinpoints the faulty circuit. Common culprits on these models include the radio memory circuit (fuse #15, 10A), powertrain control module (PCM, fuse #25, 10A), and instrument cluster backlighting (fuse #31, 15A). Aftermarket alarms or aftermarket stereo harnesses often splice into these lines, so inspect splice connections for brittle insulation or corrosion.

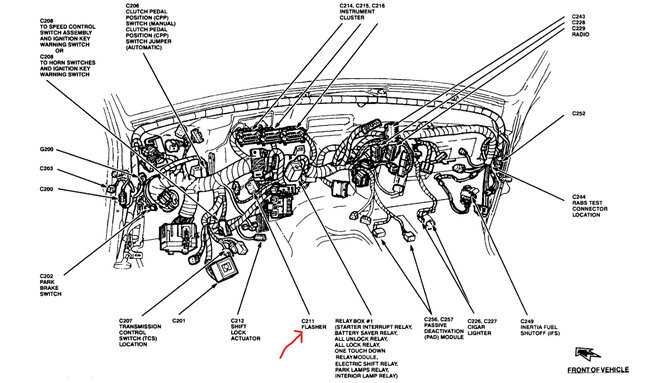

For turn signal or hazard warning failure, focus on the flasher relay mounted directly behind the dash fuse panel near the steering column. Gently pry the relay from its socket with a flat-blade screwdriver and replace it with an exact OEM match (Motorcraft part FL34 or equivalent). The wiring colors to the relay terminals are coded: dark blue/white stripe (power in), light green/black stripe (front left signal feed), yellow/red stripe (front right), brown/white (rear left), grey/red (rear right), and black (ground). If one side flashes while the other remains dark, test continuity on the affected bulb socket wires–corrosion inside the socket is rampant on these models after 25+ years.
Headlight circuits are split into low-beam (left headlamp: dark blue/yellow stripe; right: brown/orange stripe) and high-beam (left: light green/yellow stripe; right: dark green/black stripe). If one beam fails completely, check the multi-function switch (combination switch) on the steering column before assuming a bulb failure. A common failure mode is carbon buildup on the switch terminals, remedied by cleaning with electrical contact cleaner and re-seating the switch. If both beams are out, verify the fuse (#23 or 24, 15A) and the headlight relay (mounted inside the under-hood fuse panel–swap with a known-good relay like the horn relay to isolate).

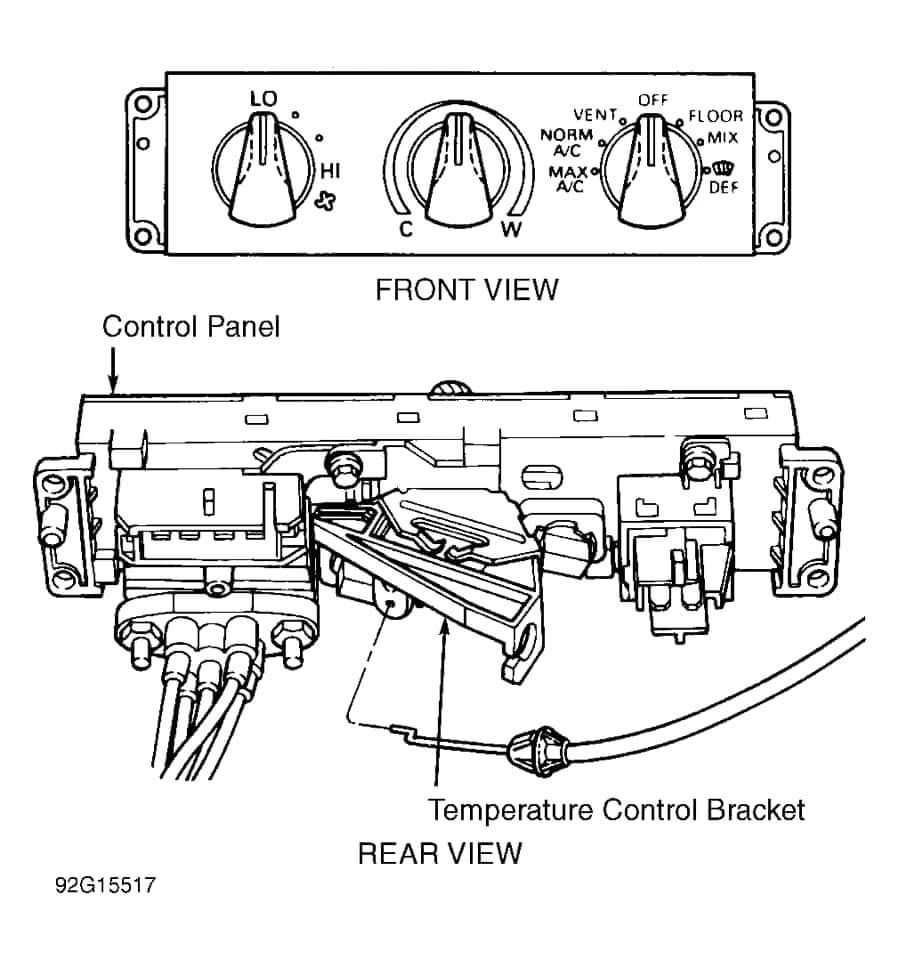

For A/C or heater blower motor failure, first confirm fuse #14 (30A) is intact. Then follow the orange/black wire from the fuse to the blower resistor (mounted on the HVAC housing firewall side). The resistor’s ceramic block often cracks, interrupting power to speeds 1–3 while leaving high-speed operational. Swap resistor assembly with OEM part F4TZ-19A706-B, ensuring the white/grey wire (ground) has a tight, corrosion-free connection to the chassis.
Understanding Your Compact Pickup’s Electrical Blueprint
Locate the fuse block under the dashboard on the driver’s side–it houses critical relays for the lighting, ignition, and fuel systems. Pinpoint fuse 15 (15A) controlling the headlamp circuit, and fuse 22 (10A) for the instrument cluster backlighting. Verify continuity with a multimeter before replacing any fuse to avoid masking underlying issues.
Trace the main engine harness from the battery positive terminal along the firewall. A Y-shaped split near the strut tower leads to the alternator (red wire, 10-gauge) and starter solenoid (yellow/black stripe, 8-gauge). Corrosion often develops at the firewall grommet; inspect for brittle insulation or greenish discoloration every 24 months.
Critical Color Codes and Their Functions
Black (BK) always indicates ground paths, but variations exist: solid black grounds components like the PCM, while black/orange stripe (BK/O) grounds the radio. Light blue (LT BLU) carries ignition-switched power to the A/C compressor clutch. Dark green/white stripe (DK GRN/W) signals the TPS input–voltage should range between 0.5V (closed throttle) and 4.5V (wide open). Deviations suggest sensor drift or harness chafing.
For the rear lighting cluster, identify two connectors: the larger 10-pin (park lamps, reverse lights) and smaller 6-pin (brake/turn signals). The brake switch wire (DK GRN/R) requires 12V input; if absent, check the stoplight fuse (fuse 21, 15A) and pedal adjustment. Reversing lights use white/black stripe (WHT/BK)–voltage appears only when the transmission is in reverse.
Aftermarket stereo installations often mistake the pink/black stripe (PNK/BK) for a constant 12V source–it’s actually ignition-switched. The true constant 12V is orange (ORG), accessed via the fuse block (fuse 6, 20A). Splicing into PNK/BK will drain the battery when the key is off. Use a relay for high-current accessories to prevent voltage drop.
Locate the OBD-II port under the dash near the steering column. Pins 4 (chassis ground) and 16 (battery positive) are critical for diagnostics. Scanners require stable voltage–fluctuations below 11V can trigger false misfire codes. If the scanner won’t communicate, probe pin 16 with a test light; dim brightness indicates a weak battery or corroded ground at G101 (passenger-side fender).
Troubleshooting Common Circuit Failures
Intermittent power windows often stem from broken wires inside the driver’s door boot. Peel back the rubber grommet to inspect the wires where they flex. Look for cracked insulation or strands showing copper–repair with solder and heat-shrink tubing. The window regulator motor draws 8–12A; anything less indicates a failing motor or corroded ground (G103, driver’s door jamb).
If the cooling fan runs continuously, check the fan relay (R15) next to the radiator support. Swap it with the A/C relay (R12) to test–symptoms should follow the relay. No change? Probe the dark blue/light green stripe (DK BLU/LT GRN) wire at the PCM connector (C2, pin 30) for 5V reference with the key on. Absence suggests a faulty PCM or open circuit in the intake air temp sensor wiring.
Finding Electrical Schematics in the Original Repair Guide for the 199X Compact Pickup
Begin with Section 14–Electrical. This section, typically spanning 50 to 60 pages, consolidates all schematic illustrations, pin assignments, and circuit descriptions for every system on the vehicle. Locate the index tab labeled “SCHEMATICS” or “WIRING CHARTS”; it will direct you to pages 14-01 through 14-60.
Distinguish between two subcategories: “SYSTEM CIRCUITS” and “COMPONENT LOCATIONS.” System circuits start at page 14-15, detailing power distribution, ground points, lighting, ignition, fuel injection, and accessory modules. Component locations follow at page 14-30, showing precise connector views, fuse block pinouts, sensor harness routes, and aftermarket retrofit points.
- Power Distribution (14-15 to 14-18) – Battery feed, ignition switch, relays, and fuse maps.
- Lighting (14-19 to 14-22) – Headlamp, marker, brake, reverse, and interior circuits.

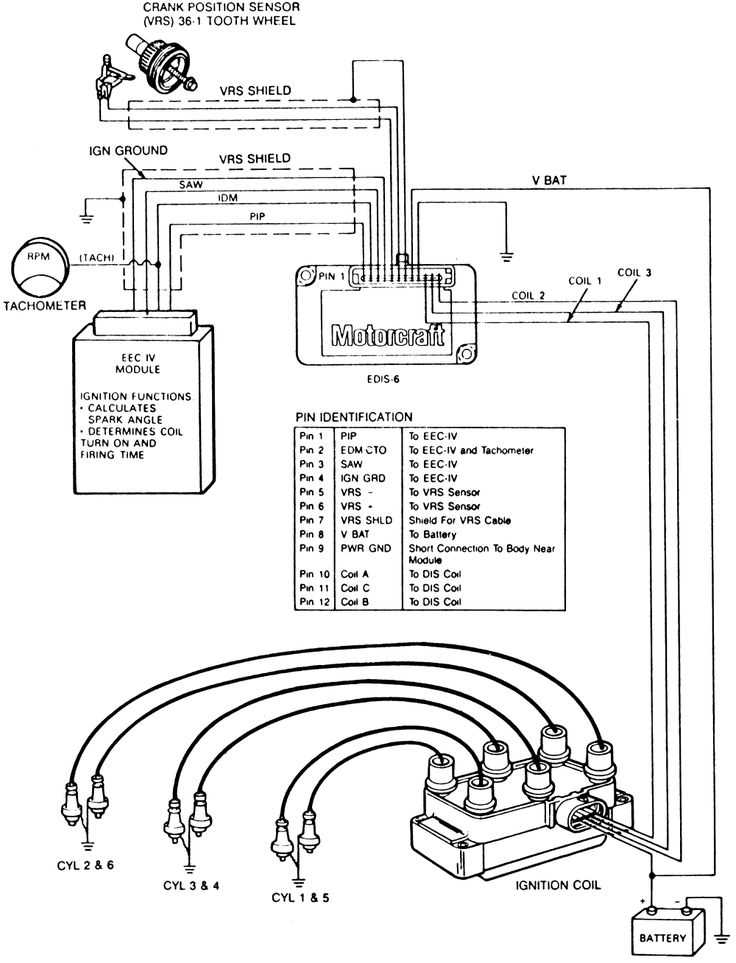

- Ignition & Fuel (14-23 to 14-25) – Coil, crank/cam sensors, throttle position, idle air control, and injection solenoid diagrams.
- Instrument Panel (14-26 to 14-28) – Gauges, warning lamps, speedometer, tachometer, and trip computer schematics.
- Accessories (14-29) – Power window motors, door locks, wiper motor, washer pump, and radio harness.
Each schematic includes a legend box at the bottom left corner. Symbols indicate relay designation (K-series), fuse amperage (10A, 15A, 20A), wire gauge (18-10 AWG), and color codes via alphanumeric labels–R/O (red-orange stripe), B/Y (black-yellow stripe), W/P (white-pink stripe). Cross-reference these labels with the harness routing illustrations on pages 14-34 to 14-45, which depict physical wire paths beneath dash, under hood, and along frame rails.
Component location charts are split into three zones: engine bay (14-34 to 14-37), passenger compartment (14-38 to 14-40), and rear chassis (14-41 to 14-43). Each zone features exploded connector views with terminal numbers and mating half identification. Engine bay charts list sensor connectors (ECT, MAP, TPS) beside their mounting brackets; cabin charts detail fuse block connections and multi-pin dash harness plugs; rear charts show trailer harness splice points and taillight sockets.
Ground distribution diagrams occupy pages 14-46 to 14-48. Look for “G” labels (G101, G102, G203) tied to chassis studs, engine block bolts, or firewall straps. Inline splice connectors (S101, S121) appear in red boxes along main harness routes, typically near radiator support or behind glove box. Use these identifiers to trace intermittent shorts or voltage drops during a multimeter diagnostic.
Concluding pages (14-49 to 14-60) hold troubleshooting charts organized by symptom–no start, misfire, ABS fault, or climate control malfunction. Each chart maps the symptom to specific schematic zones with step-by-step continuity checks across relay coils, sensor resistances, and module grounds. Match chart steps to the corresponding illustration numbers for rapid fault isolation without speculative probe testing.
