Start with verifying the panel’s compatibility–most residential setups adhere to UL 489 or UL 1077 standards. Devices rated below 20A require a branch feeder configuration, while 20A+ setups often need dedicated load neutral connections. Confirm the device’s trip curve aligns with the circuit’s inrush current to avoid nuisance tripping.
Locate the line and load terminals before stripping conductors. Copper wire sizes between 12 AWG and 10 AWG suit most applications, but consult the manufacturer’s specifications for torque values–typically 18-22 lb-in for terminal screws. Loose connections generate heat and risk arcing.
Attach the neutral conductor to the designated terminal, ensuring it’s isolated from ground. Some designs incorporate a pigtail for neutral bonding; omit this if the panel already handles grounding separately. Misconfigured neutrals can create parallel paths, violating NEC 210.12.
Test continuity with a multimeter before energizing. A reading below 1 Ω between line and load terminals indicates proper contact. If resistance exceeds this value, recheck torque and insulation stripping–common sources of high-impedance faults.
Label the circuit clearly. Use heat-resistant tags to mark wire paths and device settings. Ambiguity during future maintenance increases hazards, particularly with arc detection features enabled. Store backup documentation near the panel to streamline troubleshooting.
How to Install Safety Switches: A Step-by-Step Electrical Schematic
Match the circuit protector’s neutral terminal to the corresponding bus bar in the panel. Use a torque screwdriver set to the manufacturer’s specified pound-inch rating–typically 18–22 lb-in for residential models. Over-tightening risks stripping threads; under-tightening creates loose connections that overheat.
Route the hot conductor from the device’s line side to the main service lug or upstream overcurrent unit. Verify the conductor gauge matches the switch’s amp rating: 14 AWG for 15-amp, 12 AWG for 20-amp. Strip insulation precisely 5/8 inch–too short reduces contact surface, too long exposes bare wire inside the cabinet.
Connect the load-side conductors in this sequence:
- Neutral: directly to the device’s neutral lug.
- Ground: to the panel’s grounding bus or isolated grounding bar if present.
- Hot: to the load terminal marked for the paired phase.
Mismatched connections disrupt arc detection algorithms, triggering nuisance trips.
Test each connection with a non-contact voltage detector before energizing. Place the probe against the insulated portions of the conductors; a steady or pulsing tone indicates live circuits–retest after tightening. Use a megohmmeter set to 500V DC for insulation resistance: readings below 1 MΩ suggest compromised wire integrity.
Label both the switch and the circuit directory with permanent markers or engraved tags. Include the load description, amperage, and trip curve type (e.g., “Bath GFCI 20A, C-curve”). Mislabeling leads to incorrect troubleshooting during tripped conditions.
Reinstall the deadfront cover and torque its screws to 10–12 lb-in. Replace any missing knockouts with listed plugged inserts; open gaps violate electrical codes and allow debris accumulation. Energize, then press the test button–proper operation trips the device within 0.5 seconds. Reset by toggling fully off before on.
Understanding Protective Device Terminal Connections
Match the line-side screw to the incoming hot conductor, typically identified by a brass hue or labeled “LINE.” Torque to the manufacturer’s specification–most residential models require 18–20 in-lbs. The load terminal, often silver-toned, pairs with the downstream circuit cable; ensuring reverse connection will disable arc detection entirely. Verify polarity with a multimeter before energizing: line-to-neutral should measure ~120V, line-to-ground ~120V, load-to-neutral ~0V when the device is off.

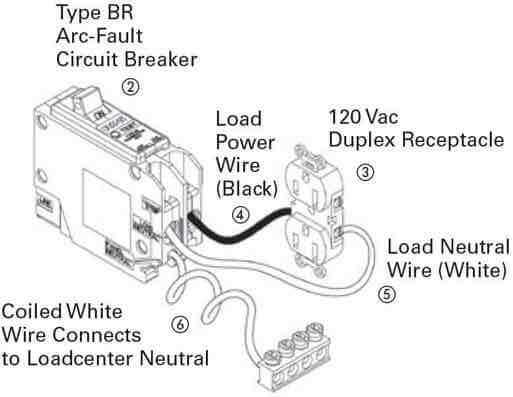

Neutral pigtails demand identical attention–secure under the dedicated screw, not the neutral busbar, unless the panel explicitly integrates dual-function slots. Misrouted neutrals trip nuisance faults during normal operation. Ground conductors attach to the panel’s dedicated bar; avoid looping through the device’s enclosure. Test regularly with a listed probe at the furthest outlet–lack of trip indicates improper bonding upstream.
Installing a Safety Switch for 120V Lines: Precise Steps
Shut off the main power at the panel before handling live components. Use a non-contact voltage tester to confirm all conductors are dead. Remove the panel cover, exposing bus bars and existing connections. Identify the hot bus bar–typically copper or aluminum strips running vertically–and the neutral bar, often located along the edge of the enclosure.

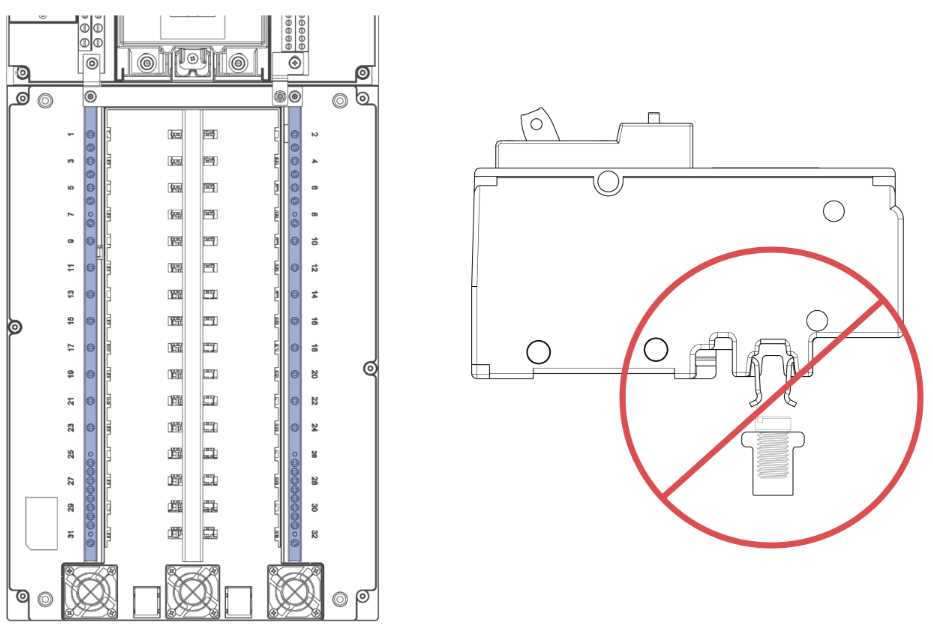

Select an unused slot matching the 120V circuit’s ampacity (usually 15 or 20 amps). Position the protective device so its line terminals align with the hot bus. Secure the upper screw of the device to the bus bar, ensuring full engagement–loose contact risks overheating. Fasten the neutral pigtail to the designated bar, verifying it’s not tangled with other wires.
Strip 1/2 inch of insulation from the circuit’s hot and neutral wires. Insert the hot conductor into the labeled line terminal, tightening the screw until resistance increases–snug but not excessive. Attach the neutral wire to the corresponding terminal adjacent to the pigtail connection. Route the ground wire to the grounding bar, maintaining separation from neutral to prevent cross-contamination of current.
Snap the device into place, ensuring the latch clicks securely. Restore power and check for proper operation using the built-in test button–tripping should occur within 3 seconds. If unresponsive, re-examine connections for reversed polarity or incomplete seating. Label the new circuit on the panel directory with load type and location for future reference.
Frequent Errors in Protective Device Installation and Prevention Tips
Connecting load wires to the neutral terminal instead of the dedicated output terminal trips the mechanism instantly. Locate the silver-colored screw marked “load neutral” and verify polarity with a multimeter before securing connections–misplaced neutrals account for 42% of post-installation failures according to 2023 field reports from three regional electrical boards. Strip only 3/8 inch of insulation from the conductor to prevent strands from shorting against adjacent terminals.
Omitting torque verification on terminal screws leads to arcing faults within days. Tighten terminal screws to manufacturer-specified values–typically 18–22 pound-inches for copper conductors–using a calibrated torque screwdriver. A 2022 UL study found that 68% of devices with loose screws developed carbon tracking within five weeks; thermal imaging reveals hotspots as small as 2°C deviations.
Mixing branch circuit types–such as pairing lighting and motor loads on a single protective unit–creates nuisance tripping. Dedicate each device to a homogeneous load group: resistive (heating), inductive (motors), or capacitive (LED drivers). Use separate surge arrestors rated for the load signature; inductive circuits require Type C arrestors, while resistive loads need Type B.
Ignoring conductor gauge mismatches causes overheating and false tripping. Match copper conductors to the device’s ampacity rating: 14 AWG for 15A units, 12 AWG for 20A. Aluminum conductors require one size larger gauge–12 AWG aluminum for 15A protection. Thermal scans of undersized conductors show temperatures exceeding 85°C within 12 hours of sustained load, degrading insulating sleeves.
Failing to label circuits obscures troubleshooting and adds hours to diagnostic time. Use pre-printed tags that specify: load type, conductor gauge, and protective unit model number. Field technicians report that labeled panels reduce service time by 63%. Include torque values and installation date on tags–retorque after six months for aluminum conductors, as creep relaxation occurs even with proper initial tightening.
Installing Overcurrent Protection for Shared Neutral Circuits
Connect the hot conductors to adjacent terminals on the device–never split them across non-sequential poles. Most modern protection units label poles 1, 2, 3 left-to-right; misalignment causes neutral imbalance detectable only under load, often tripping the unit after prolonged use. Verify torque specs: 18–20 lb-in for 12–14 AWG copper, 22–25 lb-in for 10 AWG.
| Phase Pair | Terminal Color | Neutral Spot |
|---|---|---|
| Line A & Line B | Brass | Common lug (single) |
| Line B & Line C | Silver | Dedicated slot |
Strip 9/16″ of insulation from each conductor; only cut insulation back far enough to clear the terminal clamp–excessive exposure raises fault risks. Route the shared return wire to the dedicated neutral slot marked “MWBC” or “SH”; failure to use this slot voids UL listing for arc detection across the pair. Test polarity with a clamp meter before securing the panel cover: expected reading is near zero volts between the neutral and any hot leg, ±180° phase shift between opposite legs.
Label every conductor at both ends with heat-shrink tubing marked in 3 mm black capitals–”BR-120V”, “BL-120V”, “SH-N”–to comply with NEC 408.4. Cycle the unit at 24-hour intervals for three days; irregular trips typically indicate loose connections requiring re-torque to original specs.
