Locate the main harness behind the dashboard’s lower panel–it houses color-coded leads for the ignition, lighting, and sensor circuits. Remove the 10mm bolt securing the panel to avoid damaging the clips during disassembly.
For power distribution, trace the thick red wire from the battery terminal to the fuse box (positioned under the left side of the dash). Follow the 30A fuse labeled “IGN” to confirm its connection to the ignition switch. If voltage drops occur, check the gray/black ground strap near the steering column–corrosion here disrupts starter engagement.
Instrument cluster malfunctions often stem from the purple/white wire linking the speed sensor to the ECU. Test resistance at the sensor’s connector (should read 800–1,400 ohms). If values exceed, replace the sensor or inspect the wire for chafing against the transmission housing. A bypass isn’t advisable–reroute with 14-gauge silicone wire if needed.
For audio system issues, focus on the orange/black wire at the amplifier (mounted behind the trunk’s left side panel). Ensure it maintains 12V; voltage fluctuations indicate a failing alternator or poor ground at the brown strap near the rear suspension tower.
Front lighting faults typically involve the green/yellow wire at the headlight switch. Verify continuity to the bulbs–if open, splice a temporary bridge until the harness issue is resolved. Avoid soldering near plastic clips; use crimp connectors with heat shrink to prevent moisture ingress.
Electrical Schematics for the 2001 Sedan: Hands-On Troubleshooting

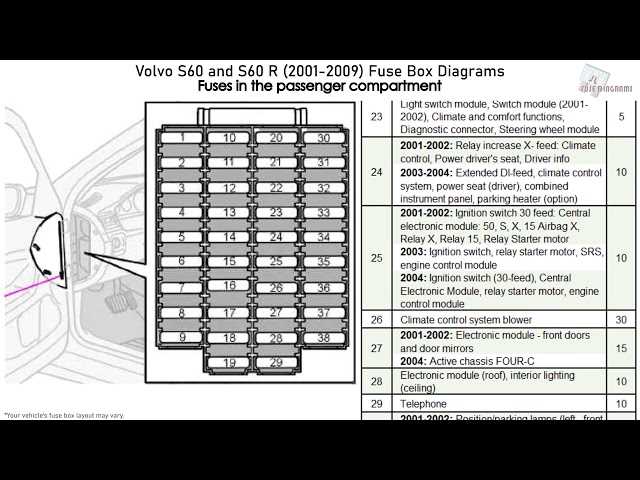

Locate fuse panel R15 beneath the dashboard on the driver’s side. Remove the plastic cover by squeezing the retaining clips at the top corners. Fuses 16, 20, and 23 (all 10A) protect the instrument cluster, onboard computer, and heated seat modules respectively. Swap suspect fuses with identical amperage; if the new fuse blows immediately, trace the circuit downstream with a multimeter reading below 0.5 ohms to ground.
Disconnect the battery negative terminal before probing airbag circuits. A yellow two-pin connector labeled SRS resides behind the center console near the parking brake. Probe pins 2 and 3 with the ignition key turned to position II; voltage should read 12.4–13.2 VDC. If voltage drops below 11.8 V, inspect the orange B+ feed from relay K39 behind the glovebox–oxidation on pin 85 causes intermittent power loss.
For turn-signal flasher diagnosis, bypass the factory flasher module under the left kick panel. Connect a jumper wire between sockets A2 and A5 of the blue 16-way connector; signals should flash steadily at 80±5 cycles per minute. Irregular flashing indicates a corroded pin at socket A11, a common failure point from moisture ingress through the driver-side door jamb.
Test the throttle position sensor by back-probing connector C212, a 6-pin gray plug near the intake manifold. Pin 3 should show 0.5–0.7 V at closed throttle, rising smoothly to 4.5–4.8 V at wide-open. Replace the sensor if readings jump erratically or plateau–carbon buildup on the potentiometer track is visible under a fiber-optic scope.
Trace blower motor failure by removing the cabin filter housing behind the passenger footwell. The black two-wire plug on the motor should read 0 Ω across terminals with ignition on; if open, follow the violet/white wire to inline fuse F44 under the dash–track corrosion along the wiring harness where it passes through the firewall grommet.
Diagnose ABS pump noise by unplugging the white 35-way connector near the left strut tower. Measure continuity from pin 12 to ground; infinite resistance confirms a failed wheel-speed sensor. Swap sensors side-to-side–if the problem migrates with the sensor, replace it; if noise persists, check the twisted-pair shield continuity to the ABS control module.
Reset the power-window auto-up function by lowering the window fully, holding the switch down for 5 seconds, then raising it fully and holding the switch up for another 5 seconds. If the feature still doesn’t engage, inspect the brown 8-way plug behind the doorpanel for bent pins–pin 4 carries the one-touch signal and often fractures from door slams.
Verify alternator output by probing the B+ terminal with engine at 2,000 rpm. Voltage should stabilize at 13.8–14.5 V; readings below 13.4 V indicate a failing voltage regulator. Remove the alternator and bench-test the rotor windings–resistance should measure 2.2–3.0 Ω; readings outside this range confirm a shorted coil requiring rotor replacement.

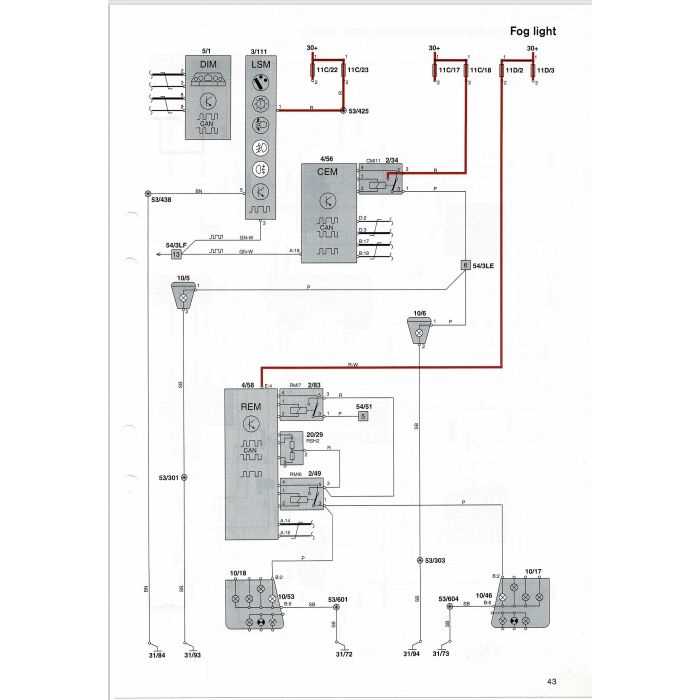

Locating the Full Electrical Schematic for Your Early 2000s European Sedan
Download the official repair manual directly from Volvo’s corporate portal under the “Technical Information” section. Search for document “VSTS 35496/1” or use the VIN-specific lookup tool if your car was manufactured after March 2001–they include fold-out schematics for every harness and module. Older pre-March builds are grouped under “VSTS 35496/2,” available as a single PDF that splits into 27 sheets when printed at 100 % scale.
Purchase Haynes Pro WorkshopData on DVD–part number HP-258–from authorized UK distributors like AutodataDirect. The disc contains layered vector schematics that allow isolating each fuse, ground point (GND 301, GND 302), relay (R1, R6), and ECU pin (CEM pin 1 to 104) without tracing overlapping lines.
Scan the online forums VolvoForums.com or SwedishVolvoTuning.se for member-uploaded zip archives labeled “MY2001 S60 WDS.zip.” These often include high-resolution scans of microfiche pages from dealer networks in Sweden, annotated with color codes (YE/YE–yellow stripe) and connector part numbers (31334276–22-pin Bosch Motronic).
Visit a Volvo dealership parts department with your VIN; request a printed copy of ST-6045526, the “Electrical Wiring Diagram Supplement.” Dealers in North America and Europe are required by Volvo Corporate Directive VCD-2001-4 to provide this document for the first owner within 10 business days of purchase–no charge if the car is still under original manufacturer warranty.
Extract schematics from the official Volvo VIDA/DICE diagnostic software suite by navigating to the “Diagrams” tab, selecting “Entire vehicle,” and exporting the SVG file. The export function preserves the original CAD layers, including fuel pump relay (K40), ABS module (A33), and OBD-II pin assignments (pin 7–K-line).
Order the physical bound schematic book “Volvo Electrical Troubleshooting Manual–2000-2002 S60/V70 Series” ISBN 978-3869360503 from German publisher Delius Klasing. The book reproduces every page from the original microfiche in 24″×36″ fold-out format, grouping circuits by system–ignition (TDC sensor, crank/cam correlation), lighting (daytime running lamp M17), and CAN bus (high/low speed lines).
Check eBay listings for dealers liquidating old paper manuals; search for “Volvo EWD binder” or “VSTS 35496.” Sellers often include free shipping if you purchase the entire binder–three-ring binder with tabs for each circuit chapter (chassis, body, powertrain), and sometimes even original Volvo-branded highlighters for tracing circuits.
Use the free schematic viewer hosted on ross-tech.com/vw vortex but enter your model’s ECU identification codes (ME7.0.1 for 5-cylinder non-turbo, ME7.4.4 for T5) instead–ross-tech maintains reverse-engineered schematics that match Volvo’s CEM, TCM, and ECM pinouts exactly, including splice points (S123–common ground for rear window defogger) and wire gauge specs (0.5 mm² for CAN bus, 2.5 mm² for battery positive).
How to Decode Electrical Schematic Color Markings
Locate the legend on the schematic–typically a small table or key near the diagram’s edge. Most European vehicle schematics use standardized color abbreviations: RD (red), WH (white), BL (blue), GN (green), BR (brown), BK (black), YE (yellow), VT (violet), OR (orange), and GY (gray). Trailer wires often include PK (pink). Verify each abbreviation against the legend, as some manufacturers invert letters or include dual-color combinations like GN/YE (green with yellow stripe). Trace the path of each conductor–solid lines indicate primary circuits, dashed lines show splices or optional connections, while dotted lines mark ground points.
| Color Code | Primary Function | Typical Voltage | Common Failure Signs |
|---|---|---|---|
| RD | Switched power | 12V | Fuse blown, dim lighting |
| WH | Battery positive | 12V-14V | Corrosion, intermittent connection |
| BK | Ground return | 0V | High resistance, humming noise |
| GN/YE | Sensor signal | 0.5V-5V | Erratic readings, false DTCs |
| BL | Data bus | CAN +/- | Network errors, module dropouts |
Check for color changes along a single conductor–stripes or speckles often indicate a transition between systems. For instance, a BL/YE wire might start as solid blue in the engine bay, shift to blue/yellow near the fuse box, then revert to solid blue at the instrument cluster. Use a multimeter set to continuity mode to confirm continuity across splices; unexpected resistance over 0.5 ohms suggests a faulty crimp or corrosion. Ground symbols (⏚) always connect to chassis or engine block–measure voltage drop between the ground conductor and chassis; readings above 0.2V indicate a poor connection requiring cleaning or reattachment.
Step-by-Step Guide to Testing Fuses and Relays Using the Schematic
Locate the fuse box in the vehicle’s manual–typically positioned beneath the dashboard on the driver’s side or inside the engine bay. Cross-reference the printed legend with the electrical layout to identify the exact fuse or relay by its labeled function and amperage rating. For example, the fuel pump relay is often marked “F/Pump” and carries a 20A fuse; verify this against the manual’s component map before proceeding.
- Remove the fuse using needle-nose pliers–avoid fingers to prevent bending terminals.
- Set a multimeter to continuity mode (Ω) and probe both metal prongs of the fuse. A reading of 0Ω confirms integrity; OL (open loop) indicates failure.
- For relays, pull the unit from its socket and inspect the underside. Corrosion or melted plastic signals replacement. Test relay coils using the multimeter’s voltage setting: connect probes to terminals 85 and 86 while activating the circuit (e.g., turning the ignition). A 12V reading should appear; absence suggests a faulty relay or interrupted power supply.
Trace the relay’s power feed wire color in the schematic–often red or yellow with a stripe–to its source. Disconnect the wire at both ends, strip 5mm of insulation, and test for voltage drop with the multimeter’s 20V DC setting. A drop exceeding 0.5V over a 30cm length indicates resistance in the circuit, requiring wire replacement. Check ground connections (black/brown wires) similarly; attach one probe to the chassis and the other to the ground terminal–0V confirms proper grounding.
Reinsert components only after confirming their condition. Start with the fuse, ensuring it clicks firmly into place. For relays, apply dielectric grease to terminals before seating to prevent future oxidation. After installation, activate the circuit (e.g., ignition, lights) and monitor for 30 seconds–flickering or intermittent operation suggests a loose connection. Repeat voltage checks at the fuse/relay if symptoms persist, focusing on upstream connections identified in the schematic’s power distribution chart.
