Start by matching the color codes for each connection: white (ground), brown (running lights), green (right turn/brake), yellow (left turn/brake), blue (electric brakes), and red (auxiliary power). Use a multimeter to verify voltage on the vehicle’s harness before attaching–running lights should show 12V continuously, while turn signals pulse at the same voltage when activated. If auxiliary power isn’t needed, cap the red wire with heat shrink to prevent shorts.
Strip 6mm of insulation from each wire, then insert into the connector’s terminals. Crimp firmly with a ratcheting tool–loose connections cause intermittent failures. For towed units with electric brakes, ensure the blue wire links directly to the brake controller output; splice with 14-gauge wire if extending beyond 1m. Ground the white wire to a clean, unpainted chassis point–corrosion here leads to flickering lights or brake malfunctions.
Test each function before finalizing: activate running lights, brake lights, and turn signals sequentially. If lights stay on dimly, check for crossed wires–alternating current polarity affects LED bulbs. For older incandescent setups, add a 3-ohm resistor in parallel if LEDs don’t illuminate properly. Avoid twisting wires together for temporary fixes; use weatherproof butt connectors with dielectric grease for long-term reliability.
Route cables away from sharp edges and moving parts, securing every 30cm with zip ties. Leave extra slack near pivot points like hitch couplers to prevent tension. For heavy-duty applications, upgrade to 12-gauge wire for the brake circuit–standard 16-gauge can overheat under repeated activation. Seal all connections with adhesive-lined heat shrink to prevent moisture ingress, especially in off-road conditions.
Standard Electrical Setup for Heavy-Duty Towing
Begin by matching the connector’s pins to these functions: left turn/brake, right turn/brake, tail/running lights, electric brakes, auxiliary power, and ground. Use a multimeter to verify pin assignments–common errors occur when 12V and brake circuits are swapped, risking module damage. For North American setups, follow SAE J2863; European configurations should adhere to ISO 1185 standards.
- Left turn/brake: Yellow or brown wire, 3-5 ohms resistance when testing brake solenoid.
- Right turn/brake: Green wire, 5-7 amps draw during activation.
- Tail lights: Brown or red wire, 1.5-2.5 amps total load for LED setups.
- Electric brakes: Blue wire, 10-12 gauge minimum to avoid voltage drop.
- Auxiliary power: Black or orange wire, fused at 20-30 amps near the battery.
- Ground: White wire, must support full circuit amperage–inspect corrosion at connection points.
For 7-way round connectors, the center pin (if present) is typically reserved for reverse lights or a secondary charging line–label it clearly to avoid misrouting. When splicing wires, use heat-shrink butt connectors instead of twist-and-tape joints; solder junctions only if waterproofing is ensured. Test each circuit with a pulse-width modulated brake controller to confirm smooth operation before attaching loads exceeding 1,000 lbs.
Replace worn connectors with die-cast metal housings if cracks or oxidized contacts are visible. Use dielectric grease on pins to prevent oxidation; reapply every 6 months in humid climates. For ABS-equipped loads, verify the blue wire supports CAN bus communication if required by the braking system–consult the manufacturer’s pinout for OEM-specific variations.

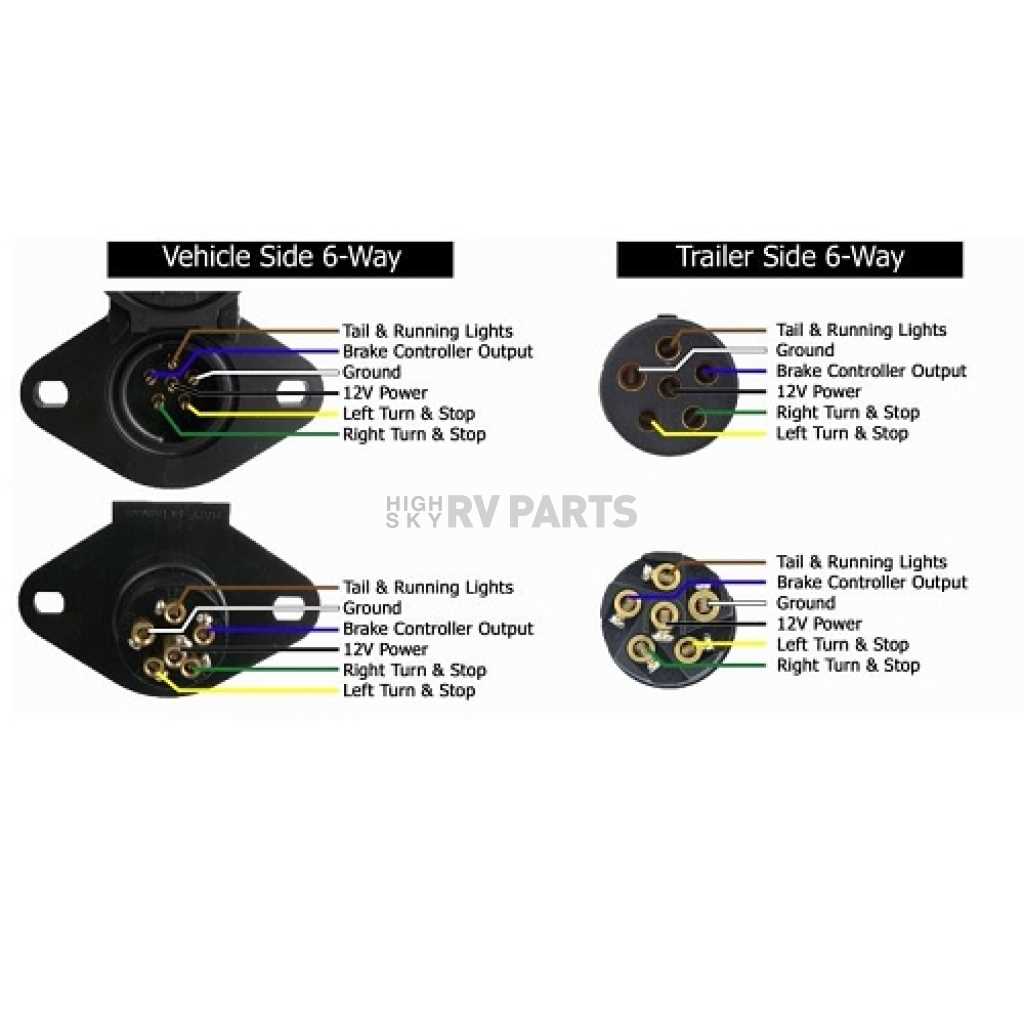

How to Identify the Correct Wires in a 6-Way Vehicle Plug
Start by locating the manufacturer’s color-coding legend–usually found in the vehicle’s handbook or on a sticker beneath the connector panel. If absent, use a multimeter set to DC voltage (20V range) to test each pin while activating the corresponding function: turn signals, brake lights, running lights, and battery feed. Ground the black probe to the chassis or the white wire, then touch the red probe to each terminal; expect 12V when the function is engaged.

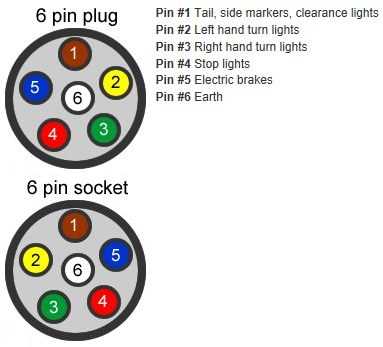

Common Color Standards for 6-Way Connectors
- White: Ground (bare or green sleeving in some older models).
- Brown: Running/tail lamps (steady 12V when headlights are on).
- Yellow: Left turn/brake (flashing 12V when left turn is active; steady 12V when brake pedal is pressed).
- Green: Right turn/brake (same behavior as yellow but for right side).
- Blue: Electric brakes or auxiliary power (varies by setup; typically 12V when brakes are applied).
- Black or Red: Battery charge line (continuous 12V for charging onboard batteries).
For aftermarket or non-standard plugs, label each wire before disconnecting. Use a small strip of masking tape wrapped around the insulation–write the function (e.g., “L Turn”) and the measured voltage during active testing. Cross-reference with a SAE J560 standard if the original colors deviate; mismatches often indicate aftermarket modifications or regional variations (e.g., European setups may swap brown and black roles).
If multiple wires share the same color (e.g., two browns), trace them back to their source. Running lamps typically originate from the headlight switch, while brake wires connect to the brake light circuit via a fused link near the rear harness. Isolate by unplugging the vehicle-side connector and probing each wire individually–only one should show voltage tied to the brake pedal or turn signal stalk.
How to Wire a 6-Way Vehicle Connector Properly
Begin by locating the vehicle’s existing electrical harness near the tow hitch. Most modern vehicles have a pre-installed connector bracket–check behind the rear bumper or inside a factory access panel. If absent, mount a new junction box using two 5/16-inch stainless steel bolts for secure attachment, ensuring it sits above the lowest exhaust pipe point to prevent heat damage.
Strip ¼ inch of insulation from each of the six leads using wire strippers. Match the colors to the standard pinout: white (ground), brown (running lights), yellow (left turn/brake), green (right turn/brake), blue (auxiliary), and black (12V power). Verify with a multimeter–set to DC voltage–pressing the probe to each exposed wire while engaging the corresponding vehicle function (e.g., brake pedal, hazard switch) to confirm correct voltage (12V ±0.5V).
Solder each connection using rosin-core solder and a 40-watt iron. Twist strands tightly before applying heat to prevent cold joints; insulate immediately with marine-grade heat-shrink tubing (minimum 3:1 shrink ratio). Avoid electrical tape–it degrades under UV exposure and road vibrations. For vehicles with aluminum chassis, use a zinc-plated ring terminal crimped to the white ground wire and bolted directly to bare metal; paint acts as an insulator and will cause failure.
Route the harness through a protective loom–split convoluted tubing works best–securing it every 12 inches with nylon zip ties. Avoid sharp edges; notch-sensitive materials like polycarbonate conduits can fracture under stress. Connect the blue auxiliary wire only if the load exceeds 5 amps; otherwise, cap it with a waterproof butt connector to prevent corrosion. For off-road use, apply dielectric grease (silicone-based) to all terminal surfaces before final assembly.
Test every circuit before finalizing the setup. Activate the running lights–brown wire should illuminate both sides simultaneously without flickering. Trigger left and right signals independently; verify they self-cancel within 3-5 flashes after steering wheel return. Press the brake pedal–both turn signals should glow steadily without dimming. If auxiliary power is needed (e.g., camper battery charging), measure current draw with a clamp meter–exceeding 20 amps risks overheating the factory fuse link.
Secure the plug housing to the vehicle frame using a 3/8-inch stainless steel safety chain. This prevents strain on the electrical connections if the plug dislodges during towing. Apply a bead of Class 3 polyurethane sealant around the mating surfaces of the plug and socket to block moisture ingress; water in the connector is the leading cause of intermittent faults within 6-8 months of installation.
Document the final setup–label each wire on both ends with a permanent marker (e.g., “BRN-RL” for brown-right running light) and photograph the configuration for future reference. Store spare fuses (7.5A, 10A, 15A) and a backup plug in the vehicle’s toolkit. Recheck all connections after 50 miles of towing; thermal cycling can reveal latent solder cracks or loose terminals.
Frequent Errors in Connector Setup and Prevention Techniques
Mismatching colors between the vehicle’s outlet and the harness ranks as the most persistent issue. Most manufacturers follow a standard color code: white for ground, yellow for left turn/brake, green for right turn/brake, brown for running lights, blue for auxiliary circuits, and red for power (battery charge). Verify each strand against this reference using a multimeter; a resistance reading above 0.5 ohms indicates corrosion or a loose crimp. Replace the terminal if the tangs show deformation–cheap stamped contacts often spread apart after two or three insertions, causing intermittent failures.
| Circuit | Expected Voltage (Key ON) | Voltage Drop Test (Load ON) |
|---|---|---|
| Running lights (brown) | 12.8–14.2 V | < 0.2 V |
| Turn signal (yellow/green) | Pulsing 12 V | < 0.3 V |
| Brake feed (red) | 13.8–14.4 V | < 0.4 V |
Skipping insulation displacement connectors (IDCs) in favor of traditional butt splices invites future corrosion. Strip only 5 mm of jacket, insert the bared conductor fully into the IDC slot, then crimp with a ratcheting tool rated for 16–10 AWG–generic pliers crush the contacts, leaving air gaps that trap moisture. Seal each joint with adhesive-lined shrink tubing; generic vinyl tape deteriorates within months, exposing copper to road spray and electrolytes. For pigtails exiting the main bundle, stagger the shrink tubes by 15 mm to prevent water wicking along the strands.
