Start by locating the factory wiring harness behind the rear bumper–pinout configurations vary, but the 7-way round connector follows a standard color code: white (ground), brown (tail lights), yellow (left turn/brake), green (right turn/brake), blue (auxiliary/electric brakes), red (12V hot lead), and black (battery charge). Verify voltage at each terminal using a multimeter; readings below 11.8V indicate corroded pins or a weak ground requiring sanding and dielectric grease application.
Critical Modifications for Reliability: Replace the OEM fusible link between the battery and relay box with 10-gauge marine-grade wire to prevent voltage drop under load. Splice 40-amp breakers into the red and black circuits–standard ATO fuses often fail under surge conditions typical of hydraulic brake controllers. For vehicles with integrated trailer brake modules, bypass the factory controller if aftermarket units exceed 1,200W; reprogram the body control module via OBD-II port with a Ford IDS interface to disable trailer brake warnings.
Adapter Plug Wiring: When converting from a 7-way round to a 4-flat connector (common for lightweight setups), omit the blue and black circuits entirely–these require dedicated relays rated for 80A minimum. Use heat-shrink butt connectors for all splices; soldering risks conductor fatigue under vibration. For frequent disconnect cycles, install a weather-pack 8-way connector in place of the factory plug to prevent pin oxidation.
Test protocol mandates activating all lighting functions simultaneously for 30 seconds while monitoring temperature at the harness junction–exceeding 60°C (140°F) signals insufficient conductor gauge. For diesel-powered configurations, route auxiliary circuits through a separate 30A relay triggered by the ignition coil signal to prevent parasitic drain during extended idling with trailer cameras or refrigeration units.
Connecting Your Heavy-Duty Hauler’s Electrical Hookup
Locate the 7-way round socket behind the rear bumper–typically recessed on the driver’s side–then verify color-coding against the standard SAE J2863 configuration: brown (running lights), yellow (left turn/brake), green (right turn/brake), white (ground), blue (electric brakes), red (auxiliary power), and black (12V hot lead). Use a multimeter to confirm voltage output: 12V across the black and white leads, pulsed 12V on yellow/green during blinker activation, and 5V-9V on blue when brakes engage. If wiring harness shows corrosion at the connector, apply dielectric grease after cleaning contacts with 400-grit sandpaper.
- For custom towing setups, splice a 40A circuit breaker into the red power lead to protect against overloads.
- Connect brake controller via the blue wire–set gain to 6.5 for 7,000 lb loads (adjust up/down 0.3 for every 1,000 lb variance).
- Test clearance lights by activating parking lamps–faulty brown wiring often indicates a broken ground, trace back to split loom near frame rail.
- OEM wiring diagrams for Canadian 4×4 models list purple as reverse light circuit; isolated on U.S. builds.
Replace factory harness if continuity drops below 2 ohms across any pin–Ford’s original wiring uses 14-gauge copper-clad aluminum; upgrade to 12-gauge pure copper for sustained 20A draw. Secure all splices with heat-shrink tubing crimped at 220°F; avoid wire nuts or electrical tape for exposed connections. When adapting fifth-wheel adapters, reroute the black power feed through a relay triggered by ignition, preventing battery drain during stationary loads.
Finding the Tow Package Electrical Link on Your Vehicle
Begin by inspecting the rear bumper’s underside, directly adjacent to the hitch receiver. The electrical link–typically a 7-pin round connector–is secured with a factory-mounted bracket and often shielded by a protective cover. If absent, trace the harness bundle from the tail lights toward the center; it merges into a single plug near the crossmember.
For models equipped with a factory tow package, the connector hides behind a removable panel on the driver’s side frame rail, approximately 12 inches forward of the rear tire. Use a flashlight to locate the small latch or screw holding the panel–removing it reveals the plug nestled in a recessed cavity. Misalignment during installation may cause wires to pinch against the frame, so ensure they’re routed clear of moving parts.
Vehicles without manufacturer-installed systems require locating the auxiliary harness. Follow the OEM tail lamp wires from the driver’s side housing toward the main wiring loom, where an unconnected 4-way or 7-way plug dangles behind the bumper. If missing, scan for aftermarket splices near the rear cross-tube–improperly tapped wires often show exposed insulation or electrical tape residues.
Check beneath the spare tire for a secondary access point if the primary connector is inaccessible. Some configurations route the harness through the spare tire carrier’s mounting plate, requiring removal of the wheel and carrier bolts to expose the plug. Look for a rubber grommet where the wires exit the frame–this entry point sometimes disguises the link under accumulated road grime.
Signal continuity tests confirm connector functionality before hookup. Probe the pins with a multimeter: yellow (left turn/stop), green (right turn/stop), brown (running lights), and white (ground) should register 12V when corresponding switches are activated. A failing signal–such as dim or intermittent output–indicates corrosion or a faulty splice, necessitating a pinout inspection with the circuit tester.
If the connector remains elusive, examine the underhood fuse box for an auxiliary relay labeled “trailer.” This often controls power distribution to the rear harness and may include a spare fuse slot marked “aux.” Fuse removal and inspection can reveal if the circuit is active; a blown fuse typically correlates with a broken connection or short in the rear assembly.
Universal Connector Pinout: Industry-Standard Color Codes

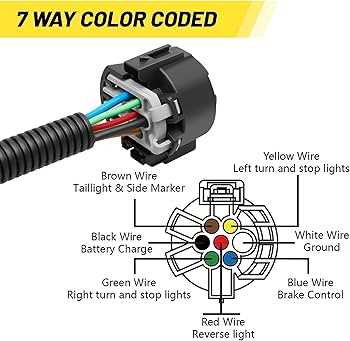

Always cross-verify the harness side with a multimeter before making permanent splices. On a standard 4-flat setup, brown leads to marker functions (right/left/license plate), yellow feeds left turn/stop combo, green handles right turn/stop, and white anchors the ground circuit. For a 5-way flat plug, blue extends the universal design by adding a dedicated electric brake output, positioned between the green and white wires. 6-pin round harnesses allocate the sixth terminal (typically purple) to reverse illumination or auxiliary power, while maintaining the conventional trailer-side color assignments across the first five. The 7-blade RV scheme follows SAE J2863: white remains chassis common return, brown stays clearance/side markers, yellow and green retain turn/stop, blue activates brake actuator, black delivers nominal +12V charge line, and red–or occasionally tan–powers auxiliary circuits or reverse lamps.
Wire gauge minimum recommendations: 14 AWG for marker and turn circuits under 15 ft, 12 AWG for brake and +12V circuits up to 30 ft, 10 AWG beyond; ground wire should match or exceed the heaviest positive conductor in cross-section to prevent voltage drop.
Step-by-Step Guide to Verifying Towing Electrical Connections with a Multimeter
Set the multimeter to the DC voltage setting (20V range). Probe the vehicle-side connector’s 7-pin plug while an assistant activates each lighting function–left turn, right turn, brake, and running lights. A steady 12-14V reading confirms the circuit is energized; fluctuating or absent voltage indicates a break or corroded contact.
Switch the multimeter to continuity mode (or low resistance) to check each pin-to-ground path. Clip one lead to the ground terminal, then touch each of the remaining six pins in sequence. A clear beep and near-zero resistance (below 1Ω) confirm intact ground continuity; silence or high resistance suggests a faulty ground or severed wire.
Inspect the harness pigtail for physical damage before testing. Peel back the insulation sleeve to expose individual wires if fraying, cuts, or melted insulation is visible. Use a razor to carefully trim damaged sections, then strip ¼ inch of insulation from each wire end for direct soldering or crimping before proceeding.
| Pin | Expected Color Code | Function | Voltage Reading (Engine Off) |
|---|---|---|---|
| 1 | Yellow | Left turn/brake | 12.5V when activated |
| 4 | Green | Right turn/brake | 12.5V when activated |
| 5 | Brown | Tail/running lights | 12.8-13.2V continuous |
| 7 | White | Ground | 0.0Ω to chassis |
Examine the under-hood fuse block for blown fuses linked to towing circuits. Locate the auxiliary power relay labeled for trailer lighting; remove and test with the multimeter set to diode check. A working relay will produce a soft click when 12V is applied to the coil terminals and show continuity across the switched contacts.
Trace each circuit from the connector back to the main harness junction, probing at 12-inch intervals with the multimeter set to 200Ω resistance. Healthy copper conductors should register below 2Ω; readings exceeding 10Ω indicate internal corrosion or partial breaks requiring wire replacement.
Clean corroded terminals with a wire brush and contact cleaner. Apply dielectric grease to pins before reseating connectors to prevent future oxidation. For modular plugs, use a small flathead screwdriver to gently lift retention clips, then wiggle each pin free for inspection and cleaning.
Resolving Intermittent Failures
Use a loaded-voltage test with a 55W bulb to simulate real-world current draw. Attach the bulb between the suspected hot wire and ground, then monitor voltage drop while activating the corresponding function. A drop exceeding 0.5V suggests high-resistance connections requiring splice reinforcement or module replacement.
