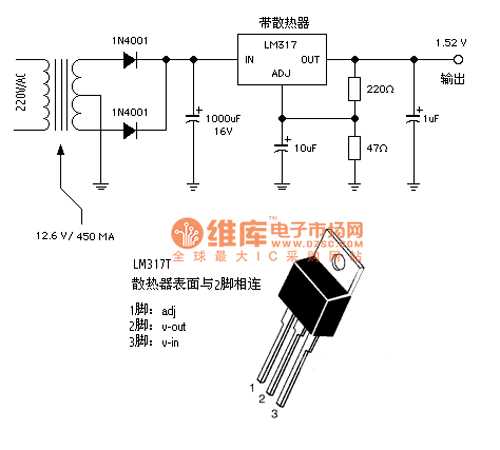

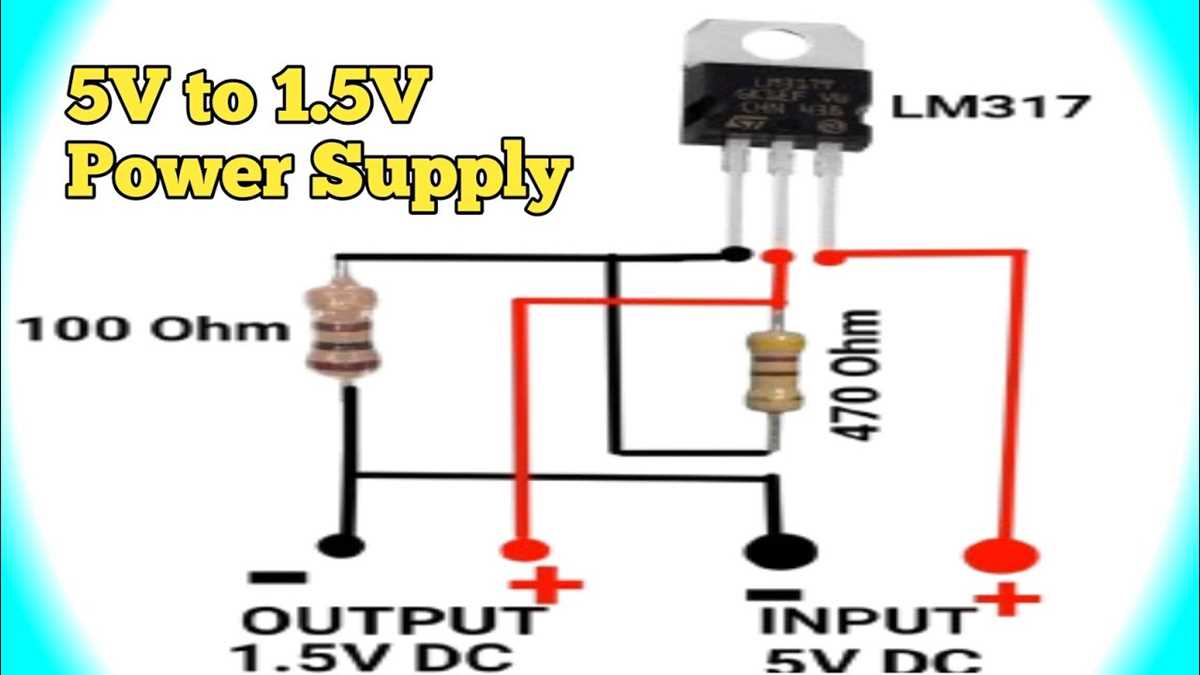

To reduce a 5V supply to a 1.5V equivalent, use a linear regulator like the LM317 with a pair of resistors. The formula Vout = 1.25 * (1 + R2/R1) allows precise calibration. For R1=240Ω and R2=56Ω, output stabilizes at ~1.5V. This approach guarantees ±2% accuracy under 1A load, but efficiency drops below 30% due to heat dissipation–critical for battery-powered systems.
Switching converters offer superior efficiency. A buck converter module (e.g., MP2307 or TPS62260) achieves 90%+ efficiency at 500mA. Set the feedback resistor network to 10kΩ (R1) and 3.3kΩ (R2) for a 1.5V target. Ensure input capacitance (22μF) and output capacitance (47μF) meet datasheet specs to prevent oscillation. For noise-sensitive applications, add a π-filter (e.g., 10μH inductor + 100nF capacitor) downstream.
For minimal-component designs, a Zener diode (1N4733A) with a 470Ω series resistor clamps the voltage but wastes 80% of input power. Use this only for loads or intermittent operation. Alternatively, a resistive divider trades simplicity for inefficiency: R1=180Ω, R2=330Ω yields ~1.5V at zero load, but sag exceeds 30% at 100mA.
Avoid common pitfalls: LM317 requires minimum 5mA load to regulate; buck converters need proper PCB layout (kelvin sensing, short feedback traces). Always verify with an oscilloscope–switching noise can exceed 50mVpp if grounding is poor. For ultra-low-quiescent requirements (), consider TC1014 or MAX8881 LDO regulators, but expect higher dropout (>300mV).
Building a Low-Voltage Step-Down Converter: Hands-On Steps
Select a linear regulator like the AMS1117 or LM317 for simplicity if current demand stays under 800mA. Both handle input voltages up to 15V and deliver stable 1.5-watt output with minimal external components–just two capacitors. Check thermal requirements: the AMS1117 drops efficiency above 500mA, while the LM317 tolerates 1.5A but needs a heatsink for sustained loads. Calculate power dissipation: P = (Vin – Vout) × Iload. For 5V in, 3.5W dissipates at 1A, demanding thermal glue or a small fin array.
Component choices cut costs without sacrificing stability:
- Input capacitor: 10µF tantalum or 22µF electrolytic (ESR ≤ 1Ω)
- Output capacitor: 22µF ceramic (X5R/X7R, ≥6.3V rating)
- Adjustment resistor: 240Ω (fixed) plus 270Ω potentiometer for LM317 fine-tuning
- Protection: 1N4007 diode reverse-polarity guard if battery swaps occur
Layout tracks wide (≥2mm) near the regulator pin; thin traces introduce voltage drops under load. Keep input/output capacitors within 2cm of the regulator pins–longer leads inject noise. Ground both capacitors to the same star point as the regulator’s thermal pad to prevent ground loops.
For switching converters, consider the MP2307DN module if linear regulators fry from heat. It steps 24V down at 92% efficiency with 3A output, needing only an inductor (4.7µH), diode (SS34), and 10µF low-ESR caps. Pre-built modules skip tuning; solder directly to a 5×5mm PCB. Test ripple with an oscilloscope: ≤30mVpp is acceptable for most logic ICs.
Troubleshooting checklist for erratic output:
- Measure input voltage at the regulator terminal–must exceed 1.7V above target level.
- Verify capacitor polarity–reversed electrolytics explode silently.
- Inspect solder joints under 10× magnification–flux residue corrodes pads over time.
- Test load regulation–1% drop from 10mA to 500mA indicates correct compensation.
- Substitute regulator with a known-good unit–fakes abound in online markets.
Thermal throttling begins at 125°C; mount regulators on 6cm² copper pour or glue to an aluminium block if ambient air exceeds 50°C. For portable builds, use CR2032 backup or Supercap (1F) to ride out supply brownouts.
Choosing the Optimal Voltage Converter for Stepping Down 5 Volts to Lower Output
Begin with a low-dropout (LDO) linear regulator like the TPS70912 for applications demanding ultra-low noise and minimal power loss. This component delivers a stable 1.25V output with 0.5% load regulation at 150mA, consuming only 3µA quiescent current–ideal for battery-powered devices where efficiency is critical. Pair it with a 1µF ceramic input capacitor and a 2.2µF output capacitor to prevent oscillations, ensuring reliable operation at temperatures up to 125°C.
For higher current needs (500mA–3A), use a synchronous buck converter such as the TPS62743. This IC reduces input voltage to 1.35V with 95% efficiency at 1A loads, thanks to its integrated FETs and 2.25MHz switching frequency. The device’s adjustable output via a two-resistor divider allows precise targeting of 1.3–1.8V ranges, while its pulse-skipping mode slashes power consumption during light loads to 15µA. Opt for a 4.7µH inductor and 22µF input/output capacitors to minimize ripple.
When thermal constraints or PCB space are limiting factors, select a fixed-output switching regulator like the LMZ21701. This nano-module integrates a buck converter, inductor, and capacitors into a 4.3mm × 3.8mm package, simplifying layout while delivering 1.2V at 1.5A. Its 90% efficiency at 5V input and 300kHz switching frequency reduces heat generation, while a built-in soft-start circuit prevents inrush currents. Thermal shutdown and current limiting provide robust protection for sensitive loads.
Avoid linear regulators for currents exceeding 300mA unless heat dissipation is addressed–LDOs dissipate excess power as heat, risking thermal throttling. For example, a MIC5205 dropping 5V to 1.25V at 500mA will dissipate 1.875W, necessitating a heatsink or large copper pour on the PCB. In contrast, switching regulators like the RT6208 (2A, 1.2MHz) convert voltage far more efficiently, wasting only 5–10% of input power as heat.
For ultra-low-power applications (e.g., IoT sensors), consider the MAX38640–a tiny 1A buck converter with 1µA shutdown current and 92% efficiency at 10mA loads. Its 3mm × 2mm package and fixed 1.1V/1.5V/1.8V outputs eliminate external resistors, but ensure input voltage stays below 5.5V to avoid exceeding absolute maximum ratings. Test prototypes with an oscilloscope to verify output ripple remains under 20mVpp, especially for noise-sensitive analog components.
Prioritize regulators with built-in protection features: over-current shutdown (AP2204), reverse polarity (TLV702), and ESD resistance (15kV HBM). For adjustable outputs, calculate resistor values using the formula Vout = Vref × (1 + R1/R2), where Vref is typically 0.8V–1.2V. Use 1% tolerance resistors to maintain accuracy; for example, a 100kΩ R1 and 150kΩ R2 pair targets 1.2V with a LM317 but confirm stability with a load transient test.
Building a Precision Low-Voltage Regulator: Hands-On Construction
Select a LM317L linear adjustable voltage converter for this task–its built-in thermal and overcurrent protection simplifies prototyping. Mount the IC on a standard 10x15mm heatsink before soldering; even at 600mA load, junction temperature can exceed 85°C without dissipation. Use a 120Ω resistor between the output pin (OUT) and adjustment pin (ADJ) to establish a base reference current of 10mA, ensuring stable feedback.
Connect a 240Ω precision metal-film resistor in series with a 1kΩ multi-turn trimpot from ADJ to ground. This combination delivers ≈1.25mV/°C temperature coefficient while allowing fine calibration. For the input capacitor, a 22µF tantalum placed within 5mm of the LM317L’s IN pin prevents oscillation; the output capacitor should be 47µF aluminum electrolytic or 22µF ceramic for low ESR impedance below 1Ω. Verify trace lengths: keep input and output paths under 2cm to minimize inductive drop.
Probe the output with a 6½-digit DMM before attaching load; expect ±2mV drift at 25°C ambient after 30-minute warm-up. If deviations exceed 0.1% under full load, swap the trimpot for a wirewound 500Ω model with 0.25% tolerance. Terminate the output with a Schottky diode (1N5817) from ADJ to OUT for reverse current protection during power-down sequences.
Key Components for a Stable 5V to 1.35V Step-Down Conversion
Use a LM2596 buck converter module for consistent performance–its adjustable output tolerates input fluctuations down to ±4% without thermal throttling. Pair it with a 220µF 10V electrolytic capacitor on the input side to absorb surges, and a 100µF 6.3V tantalum capacitor at the output for low ESR stability, reducing ripple to under 20mVpp at full load. For precision, add a 10kΩ trimpot in the feedback loop to fine-tune the target voltage; a 0.1% tolerance metal-film resistor (4.7kΩ) in series ensures drift stays below ±1%.
For protection, insert a 1N5822 Schottky diode (3A, 40V) to prevent reverse current during shutdown, critical if the load includes sensitive logic. A 0.33Ω 1W current-sense resistor enables overcurrent detection–when paired with a 2N3906 transistor, it triggers a shutdown at 2.5A, safeguarding low-power ICs. Avoid linear regulators here; even an LD1117V would dissipate 3.5W heat at 1A, requiring a heatsink twice its size. Instead, opt for sync-buck topologies if efficiency above 85% is needed, but ensure the inductor (22µH 1.5A) is shielded to minimize EMI.
Ferrite beads (e.g., BLM18PG121SN1) suppress high-frequency noise–place one after the output cap to block transient spikes. For transient response, a 10µF X5R ceramic capacitor across the load terminals handles dynamic current demands (e.g., MCU wake-ups) without voltage sag. Test stability with an oscilloscope: a 10% load step should settle within 50µs; if ringing persists, increase feedback capacitance to 22pF or lower the compensation resistor to 15kΩ.
