Locate the factory harness behind the dash near the climate controls. Toyota models from this production cycle use a 20-pin connector colored pink and white for the head unit interface. Pin 1 carries blue-white ignition feed–route it directly to your new amplifier’s remote turn-on terminal. Pins 3 and 5 supply constant 12V fused at 10A; verify with a multimeter before connecting. Speaker outputs occupy pins 6 (front left positive), 8 (front left negative), 10 (front right positive), 12 (front right negative), 14 (rear left positive), 16 (rear left negative), 18 (rear right positive), and 20 (rear right negative). Use T-harness adapters to avoid splicing.
Grounding is critical. The factory ground strap attaches to a stud behind the glove box. Scrape paint off the chassis surface to expose bare metal, then secure the new ground wire with a 12-gauge ring terminal torqued to 12Nm. For amplifier installs, drill a new hole in the trunk floor near the original battery tray–use star washers to prevent corrosion. Never daisy-chain grounds; each component needs an independent path to the chassis.
Bypass the stock amplifier circuit by removing the rear deck plastic cover. Four 2-ohm JL Audio modules hide under the carpet on the passenger side–unplug them and tape the ends with liquid electrical tape. Run new RCA cables from the head unit through the firewall grommet near the brake master cylinder; use zip ties every 6 inches to prevent rattling. For balanced signal transmission, twist RCA pairs with 3 twists per foot and sheath the bundle in braided expandable mesh.
Test speaker polarity before final connections. Switch the multimeter to continuity mode, touch probes to positive and negative wires at each door. Tap the cone gently–if it moves outward, polarity is correct. Reverse one wire if movement is inward. Label all wires immediately with colored shrink tubing; red for constant power, yellow for switched, blue for remote, green/white stripes for left speakers, violet/white for right.
Toyota Sedan Premium Sound System Electrical Guide
Begin by locating the factory harness behind the dashboard center stack–pinout configurations differ between base and amplified models. For elevated audio setups, identify the 16-pin connector (typically green or gray) with labeled wires: constant 12V (yellow), switched power (red), ground (black), and speaker outputs. Use a multimeter to verify voltages–constant power should read 12-14V regardless of ignition state, while switched power activates only when the key is turned.
Speaker connections follow a color-coded scheme:
- Front left (+): Pink
- Front left (-): Light blue
- Front right (+): Brown
- Front right (-): Dark blue
- Rear left (+): Violet
- Rear left (-): Gray
- Rear right (+): Green
- Rear right (-): Light green
Critical Installation Notes
Bypass aftermarket adapters if retaining the OEM amplifier–directly splice wires to avoid signal degradation. For vehicles with theft-deterrent systems, retain the original security module or install a bypass interface; cutting the security wire (solid white) without proper handling will trigger persistent error codes. When routing cables, avoid sharp edges near the climate control unit to prevent insulation damage.
Use soldered connections sealed with heat-shrink tubing for long-term reliability. For diagnostic purposes, note the antenna trigger (light pink) and illumination wire (dark red)–these activate automatically when headlights engage. Test functionality before final assembly by playing audio through all channels; distorted sound may indicate reversed polarity or a faulty amplifier relay.
Locating the Audio System Cable Clusters Behind the OEM Receiver

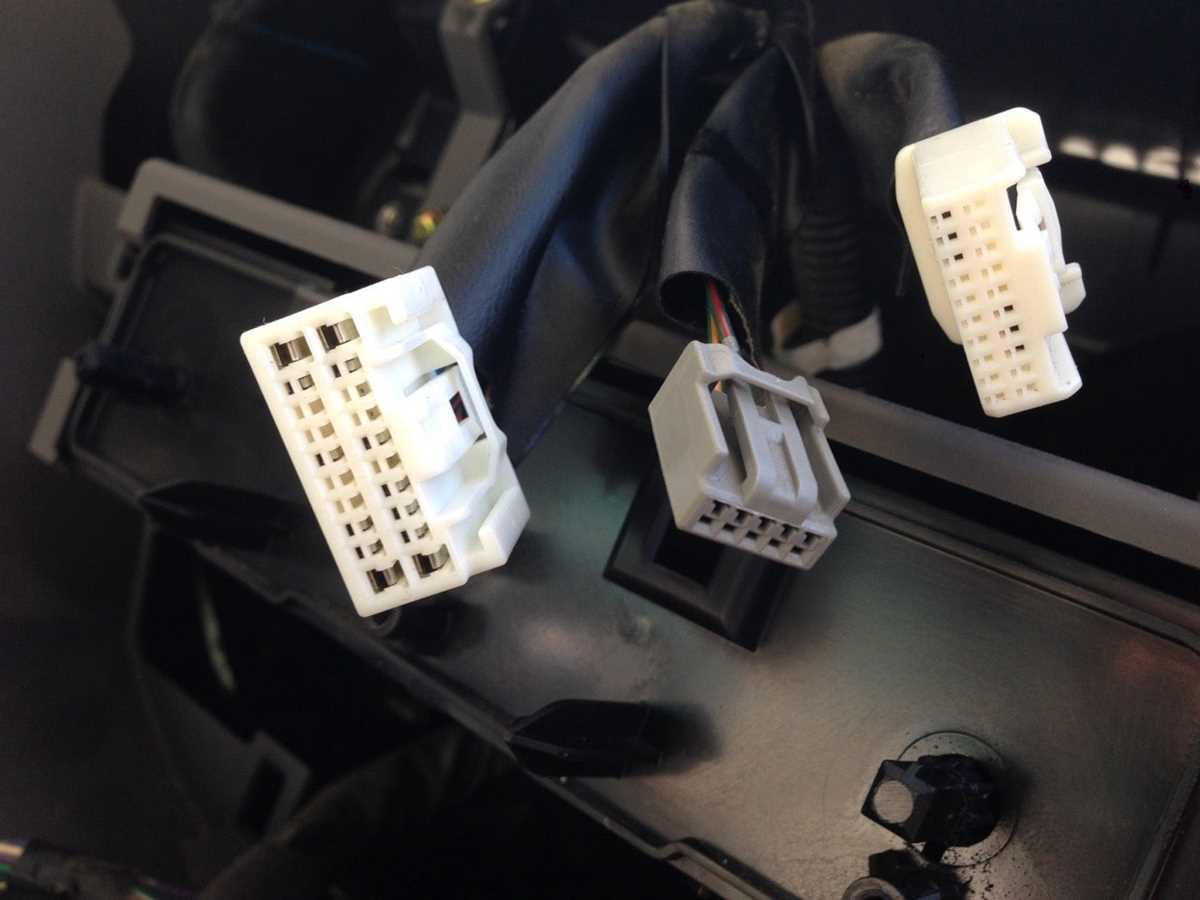

First, remove the climate control trim panel beneath the central stack by prying outward from the bottom with a plastic trim tool–two clips secure it at the top edges. Next, slide the gear lever surround straight upward to disengage its retaining clips, then set it aside. Behind these components lies a metal reinforcement bracket; unfasten its four 10mm bolts, tilting the bracket forward to reveal the factory head unit’s rear interface. The primary connector bundle (white 28-pin plug) and amplifier linkage (gray 18-pin plug) are now directly accessible–grip each firmly and depress the locking tab at a 45-degree angle to release.
Verifying Connector Pinouts Before Disconnection
Use a multimeter set to DC voltage (20V range) to test specific terminals: pins 1-4 on the white harness should register 12V with ignition on (constant power), while pins 9-12 carry speaker-level outputs–probe these for expected 4-8V AC signals during audio playback. The gray connector typically contains amplifier triggers (pin 1, 12V switched) and ground references (pins 6 and 12). Label each plug with masking tape and mark corresponding wires if splicing aftermarket adapters–avoid twisting or soldering factory leads without proper heat-shrink tubing to prevent oxidation.
Decoding Wire Hues and Roles in Premium Audio Installations
Start by locating the 12-pin harness connector behind the factory head unit. The solid yellow lead delivers constant 12V power from the battery, while its red counterpart supplies ignition-switched voltage–critical for memory retention. Ground connections typically use black or brown striped cables, often paired with bare copper strands for enhanced conductivity. Verify continuity between these points and the chassis using a multimeter set to ohms; readings above 0.5Ω indicate corrosion requiring cleaning with contact cleaner or wire brush.
| Color Pattern | Purpose | Voltage (Key ON) | Troubleshooting Steps |
|---|---|---|---|
| Blue/white stripe | Amplified turn-on signal | 12V when activated | Check for short to ground; probe at amplifier pigtail |
| Green/black stripe | Rear left speaker (+) | ~4V AC | Test with 1kHz tone; reverse polarity if phase issues arise |
| Gray | Front right speaker (-) | ~0V DC | Compare DC offset with positive lead using oscilloscope |
| Pink | Illumination dimmer input | 0-12V variable | Dimmer failures often trace to faulty rheostat; bypass test first |
For aftermarket integration, splice the purple/violet pair (rear right channel) with 18-gauge oxygen-free copper wire using proper crimping tools–avoid twist-and-tape methods. Subwoofer outputs on dedicated brown cables employ low-pass filtering (typically 80-120Hz); confirm signal presence with a subwoofer test tone at -3dB reference level. When backfeeding occurs, isolate amplifier remote circuits by disconnecting the dash-mounted fuse for 60 seconds to reset protection modes.
Step-by-Step Guide to Integrating Aftermarket Cables with Factory Connectors
Start by matching each aftermarket lead to its corresponding factory pinout using a multimeter in continuity mode. Identify power (constant +12V, ignition-switched +12V, and ground), speaker outputs (front left, front right, rear left, rear right), and illumination controls. Label each wire with heat-shrink tubing marked with a permanent marker–avoid masking tape as it degrades over time.
Strip 6mm of insulation from the factory wiring and the aftermarket harness using precision strippers, ensuring no copper strands are nicked. Twist the exposed strands lightly, then align them end-to-end. For high-current paths (e.g., constant power), use a 16-14 AWG butt connector and crimp with a ratcheting crimper, applying heat to shrink the tubing until a clear seal forms. For signal-level wires (e.g., speaker outputs), solder the connection with rosin-core solder (60/40 alloy) and a 40W iron–wrap the joint in electrical tape or use dual-wall adhesive-lined shrink tubing for moisture resistance.
Route the spliced leads away from moving components (steering column, pedals) and sharp metal edges. Secure bundles with spiral wrap or zip ties spaced every 10cm, but avoid over-tightening–leave 1-2mm slack for vibration dampening. Test each circuit with a 12V test light before reassembling trim panels; a flickering bulb indicates a poor ground or intermittent connection requiring rework.
For illumination and accessory circuits, verify polarity with a 9V battery and LED–reverse polarity risks damaging the aftermarket unit’s microcontroller. If the head unit requires a data bus (CAN/LIN), use a T-harness adapter instead of splicing into factory CAN wires, as cutting them disables critical vehicle systems like traction control or keyless entry.
Finalize the installation by wrapping all exposed splices in self-fusing silicone tape, overlapping each layer by 50%. Reconnect the battery’s negative terminal first, then positive–this prevents accidental short circuits if tools contact chassis ground. Retest all functions (audio balance, fade, equalizer presets) with the vehicle running to confirm stable voltage under load conditions.
Resolving Power Supply and Audio Signal Problems in Factory Stereo Systems
Start by verifying the ground connection if the unit fails to power on. Locate the black wire terminating at the chassis–often secured with a 10mm bolt–and ensure it’s free of corrosion, paint, or loose mounting. Clean the contact surface with a wire brush, apply dielectric grease, and retighten to 12-15 Nm. Insufficient grounding causes intermittent operation, erratic behavior, or complete silence.
Inspect the constant 12V lead (typically yellow) for proper voltage at the harness connector using a multimeter. Voltage should read 12.6V with the ignition off and match the battery reading. A drop below 12.2V indicates a weak alternator, failing battery, or parasitic draw. Trace the wire back to the fuse box–blown fuses, melted terminal clips, or loose crimps are frequent culprits.
Speaker Signal Diagnostics
Disconnect all speaker wires at the head unit and test each channel individually with a 1.5V AA battery. A faint click from the corresponding driver confirms continuity and correct polarity. Reverse the battery leads briefly; if the click weakens, one speaker wire is shorted to ground. Check for frayed insulation, pinched cables behind panels, or corroded connections at the door jambs.
Measure impedance at each speaker terminal with an ohmmeter. Factory drivers typically register 4 ohms; a reading below 2 ohms suggests a short circuit, while an open circuit (infinite resistance) indicates a broken voice coil or severed wire. Replace door speakers with matched aftermarket units–OEM membranes degrade over time, especially in high-humidity environments.
Test the amplifier turn-on lead (blue/white stripe) for 12V when the ignition is turned to ACC or ON. No voltage here prevents the amp from powering up, muting all audio. Probe the harness connector with a test light–illumination confirms signal presence. If absent, chase the wire back to the factory relay or accessory plug, where oxidation or a severed trace often disrupts the circuit.
Advanced Circuit Checks
Scan for voltage drops across power wires under load. Activate the stereo at high volume, then touch the multimeter probes to the input and output sides of the power wire terminations. A drop exceeding 0.5V signals excessive resistance–clean terminals, replace corroded connectors, or upsize the wire gauge if extending runs. For distributed amplification systems, verify the pink noise generator output in diagnostic mode to isolate amp vs. signal chain failures.
Reset the stereo’s internal circuitry by removing the constant 12V lead for 10 minutes, then reconnecting. This clears corrupted memory in digital signal processors and often resolves phantom volume control issues or preset losses. If problems persist, bypass the factory amplifier by connecting speaker leads directly to the head unit outputs–distorted audio here points to a failing preamp stage, while clean sound confirms an external amplification problem.
