Start with a 6-gauge copper cable for the neutral and ground wires and an 8-gauge for the hot leads–this ensures safety under full load. Verify the connector’s maximum capacity matches the breaker’s rating; mismatches cause overheating or tripped circuits. Use a NEMA 14-50 receptacle for 240-volt setups, securing the terminals with a torque screwdriver to 10-12 inch-pounds.
Label each wire before stripping: black and red for live terminals (X and Y), white for neutral, green or bare copper for ground. Strip ¾ inch of insulation from each conductor, then crimp ring terminals for a reliable connection. If the connector lacks a strain relief, wrap the cable entry with electrical tape to prevent moisture ingress or accidental pull-out.
Avoid backfeeding through a generator inlet–it violates NEC 551.72 and risks energizing the utility grid during an outage. Test continuity with a multimeter: probe between the hot and neutral slots should read near 120 volts, hot-to-hot around 240 volts, and ground-to-neutral should show zero resistance. Mount the box within three feet of the vehicle’s inlet to prevent voltage drop.
For RV pedestals, dig a 24-inch-deep trench and use Schedule 40 PVC conduit, burying the conduit below the frost line if applicable. Seal both ends with duct seal to block rodents and moisture. If extending to a subpanel, keep the neutral and ground separate only at the main service disconnect; bonding them elsewhere creates shock hazards.
Check local codes for GFCI requirements–some jurisdictions mandate Class A protection at 30 mA for outdoor circuits. For split-phase configurations, orient the neutral wire to the top prong of the connector to simplify polarity checks. Use waterproof junction boxes rated NEMA 3R for exposed installations, fastening all covers tightly to maintain ingress protection.
50-Unit Recreational Vehicle Connector Installation: Hands-On Manual
Before cutting cables, verify the local electrical code specifies a minimum of 6 AWG copper conductors for a 50-unit circuit. Local inspectors often require marked cables inside conduits–label both ends with permanent tags showing “Line,” “Neutral,” and “Ground” before feeding through walls.
Use a torque screwdriver set to 15 lb-in for terminal connections. Over-tightening brass lugs deforms threads; under-tightening risks arcing. After securing, tug each wire to confirm zero movement–a loose neutral causes erratic voltage readings on the RV’s panel.
Test continuity with a digital multimeter in resistance mode. Place probes on the hot side prong and its terminal block; expected reading is 0.1 ohms or less. Anything above 0.5 ohms signals corrosion–clean lugs with sandpaper rated 120-grit until bare metal shows, then apply antioxidant paste rated for 90°C environments.
| Wire Color | Terminal Pin | Function | Maximum Voltage Drop (Volts) |
|---|---|---|---|
| Black | L-shaped blade | Line 1 (120V) | 3 |
| Red | T-shaped blade | Line 2 (120V) | 3 |
| White | Round pin | Neutral return | 0 |
| Green | Half-moon pin | Equipment ground | N/A |
Seal the connector housing against moisture. Remove any factory-provided rubber gasket; replace with high-temperature silicone rated for continuous 105°C operation. Slice open a ½-inch silicone tube, wrap around the cable entry, and clamp with stainless steel hose clamps torqued to 10 lb-in.
Mount the inlet box on a non-combustible surface–cement backer board ¼-inch thick prevents heat transfer to studs. Use four #10 stainless screws; predrill holes 1/8-inch smaller to prevent thread stripping. Ensure the box face sits ¼-inch proud of any wall siding to stop water ingress during rainfall.
Field Troubleshooting Checklist
If the RV displays “Open Ground” on its surge protector, probe between the green wire terminal and the nearest cold water pipe. A reading above 0.5 ohms identifies a broken ground bond–check metal conduit clamps spaced every 6 feet. For repeated breaker trips, measure current on both legs with a clamp meter; imbalance exceeding 5 units points to a failing inverter transistor–replace with a model rated for 100-unit surge.
Understanding the 50-Ampere Recreational Vehicle Connector Pin Layout
Always verify the four-prong configuration matches the NEMA SS 2-50 standard before handling any heavy-duty electrical fitting. The upper left blade is live (120 volts to neutral), the upper right blade serves as the secondary hot lead (also 120 volts), the L-shaped prong beneath is the neutral return, and the U-shaped post is the equipment grounding pin. Trace each slot with a multimeter set to AC voltage–measurements should read approximately 240 volts between the two vertical blades and 120 volts between either hot lead and neutral.
Route supply cables through a weatherproof in-line breaker rated 50 kAIC to prevent trip delays during transient spikes. Match conductor gauges to the 60 °C column of the National Electrical Code (NEC) Table 310.16: 6 AWG copper for the hot leads, 8 AWG copper for the neutral, and 10 AWG copper or bare 8 AWG aluminum for the ground. Secure each conductor inside a listed junction box using torque-calibrated drivers set to 15–18 inch-pounds.
Label every terminal with heat-shrink tubing marked “L1,” “L2,” “N,” and “GND” to eliminate confusion during future servicing. Connect the L-shaped neutral prong to the white-insulated conductor per NEC 200.6, ensuring it is isolated from the grounding bus within the distribution panel. Cross-verification between the incoming 240-volt split-phase feed and the neutral bonding screw prevents neutral overloading in balanced circuits common to large RVs.
Install a ground-fault circuit interrupter at the inlet side of the connector assembly if the installation lies within six feet of a water source, per NEC 210.8(B)(5). The U-shaped grounding post must bond directly to a driven eight-foot copper-clad ground rod or approved building steel using irreversible crimp connectors–do not rely on paint-scraped contact points alone.
Polarity reversal is often overlooked; attach a neon tester between each hot blade and the neutral slot–illumination confirms correct orientation. Invert the connections immediately if no light appears. Double-check torque values against manufacturer specifications for Anderson, Hubbell, or Marinco receptacles–under-torqued terminals generate heat, while over-torqued ones risk thread stripping.
Use dielectric grease on the blades before inserting them into the socket, extending contact longevity under repeated mating cycles. Cycle the connection twenty times at half-rated load (25 energy units) while monitoring for temperature rise with an infrared thermometer–excessive heating (>30 °C rise) indicates loose termination or undersized conductors.
Strain-relief the cord at the connector body using a listed cord grip fitting, securing the flexible sheath with a ½-inch knockout locknut. Avoid sharp bends within twelve inches of the inlet–cable fatigue here causes premature insulation failure.
Document the installation with date-stamped photographs and NEMA configuration tag strips affixed to the pedestal and RV inlet. Include measured voltage readings, torque values, and conductor types in a maintenance log stored inside the vehicle’s electrical bay for future reference by technicians or inspectors.

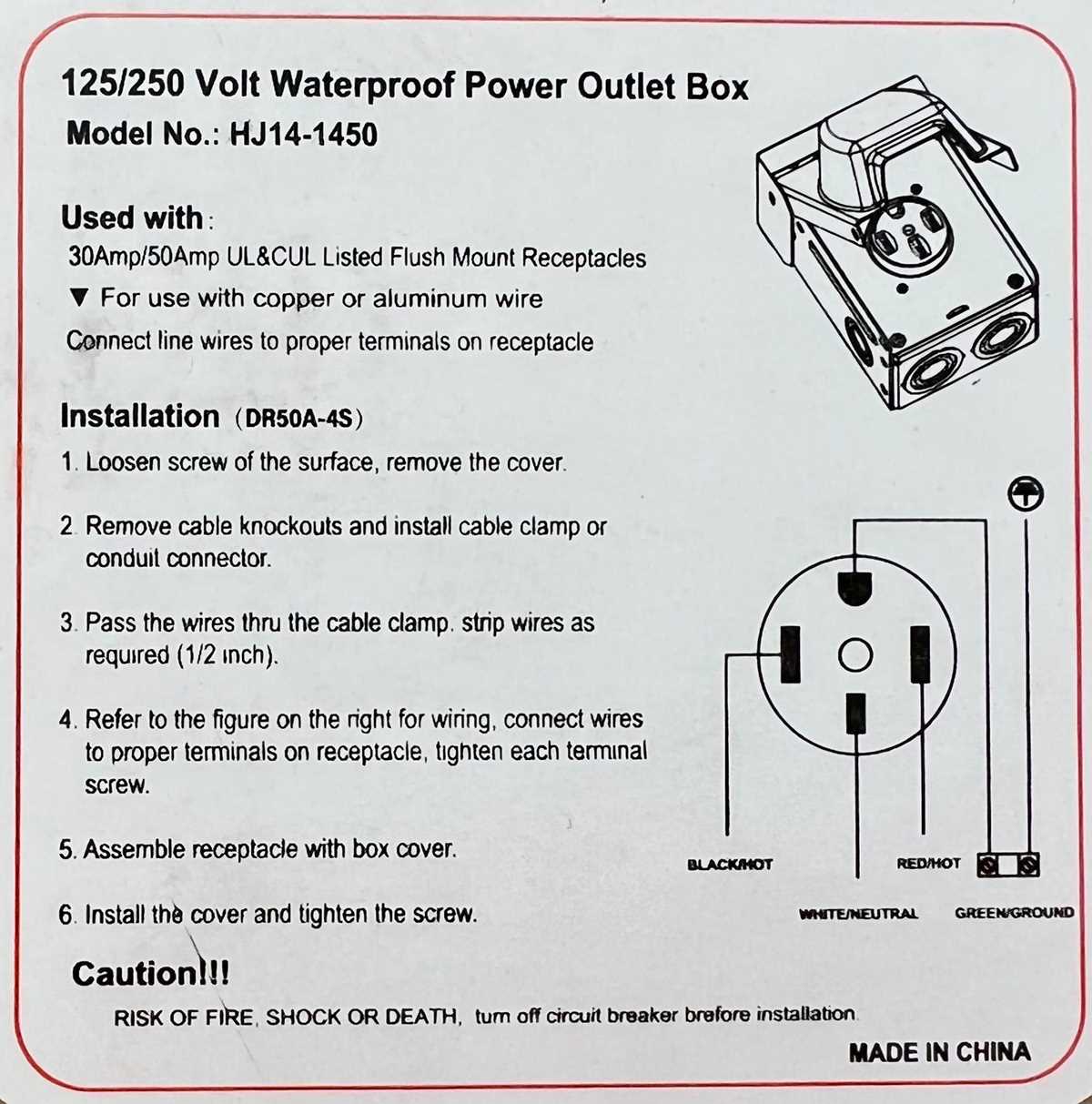

Step-by-Step Hookup Guide for a 50-A Service Recreational Vehicle Receptacle
Shut off the primary circuit breaker at the service panel before handling any conductors. Verify absence of current using a non-contact voltage detector on all terminals–hot, neutral, and ground–to prevent lethal exposure. Strip ¾ inch of insulation from the ends of the four 6 AWG copper cables (two hots, one neutral, one grounding) using wire strippers, ensuring no nicked strands. Twist strands lightly with pliers to maintain integrity.
Connect the black (L1) and red (L2) phase conductors to the brass-colored screws on the receptacle, torqued to 20 in-lbs with an insulated torque screwdriver. Fasten the white neutral lead to the silver terminal, matching torque specifications. Secure the bare or green grounding cable to the dedicated grounding lug at the base of the outlet, tightened to 25 in-lbs. Double-check all connections with a multimeter–L1 to L2 should read 240V, L1/L2 to neutral 120V, and ground to neutral 0V.
Mount the receptacle into a UL-listed NEMA 14-50R-rated weatherproof box using stainless steel screws, ensuring the device sits flush with the enclosure surface. Apply silicone dielectric grease to the terminal screws to inhibit corrosion before sealing the cover with the factory gasket. Route cables through flexible conduit (minimum ¾-inch Schedule 40 PVC) back to the panel, securing every 36 inches with conduit straps to prevent strain. Affix a permanent warning label near the breaker stating “50-A RV RECEPTACLE–DO NOT OVERLOAD.”

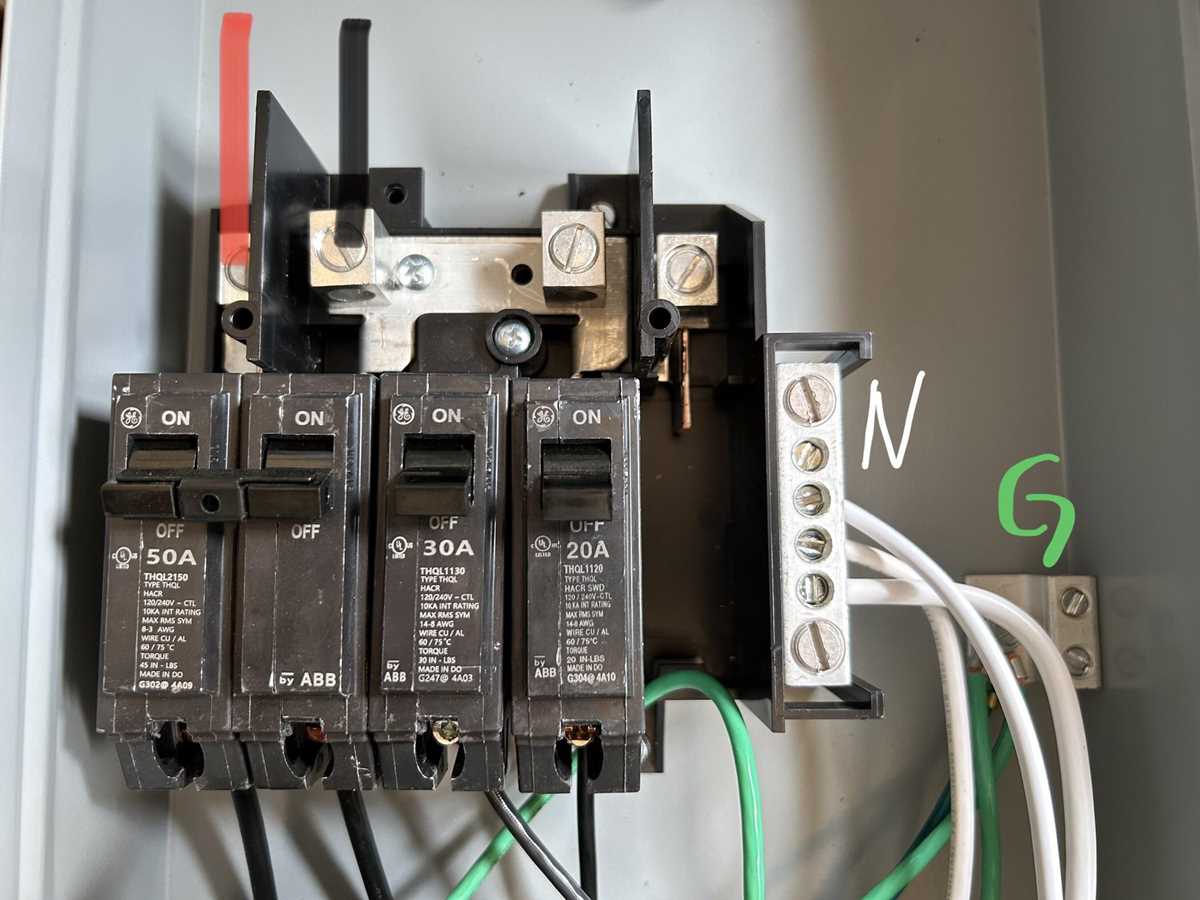

At the panel, land the hots on a dedicated two-pole 50-A breaker (Siemens QP, Eaton CH, or equivalent), sized per NEC Table 250.122 for the grounding conductor. Link neutral to the neutral busbar and ground to the grounding busbar or electrode system. Re-energize the breaker only after verifying all junction points with a torque wrench–loose connections risk arc faults. Test the installed outlet using an RV cordset and load tester: confirm 120V across both legs to neutral and 240V leg-to-leg under a 12,000W resistive load for 15 minutes, monitoring for overheating.
