Locate the full OEM electrical schematic for your mid-90s GMT330 platform pickup in the factory service manual. This document contains precise circuit paths, fuse ratings, and grounding points validated by GM engineers. Avoid aftermarket diagrams–many reverse-engineered versions omit critical splice details and mislabel connectors, leading to costly misdiagnosis.
Focus on the Body Electrical section, which maps the cab, instrument cluster, and lighting circuits. Pay special attention to the C1/C2 connector pinouts at the firewall: these 24-pin interfaces distribute power to the ECM, ABS, and transmission control modules. A single corroded pin here can trigger multiple fault codes, often misattributed to sensor failures.
For troubleshooting intermittent issues, use a high-impedance multimeter (minimum 10MΩ) to test circuits under load. Measure voltage drop across ground paths–any reading above 0.1V indicates resistance build-up, a common failure point in models with fiberglass bed conversions due to missing factory grounds.
Install a fusible link bypass kit if your ignition harness shows signs of heat damage. The original 12-gauge wiring to the starter solenoid is prone to melting near the exhaust manifold, an issue GM addressed in later model years with rerouted harnesses. Replacement wire should match the original TXL-rated insulation to withstand the engine bay’s 125°C operating temp.
Isolate the trailer harness circuits early if equipped–these share circuits with the brake lights and can backfeed voltage into the BCM during trailer disconnects. GM’s TSB #9806627 details the proper splice insulation method using heat-shrink adhesive tubing, not electrical tape, to prevent moisture intrusion.
Chevy Pickup Electrical Schematic: Hands-On Fixes
Locate the primary fuse block under the dashboard on the driver’s side–label 30A Ignition corresponds to the ECM circuit. If the engine cranks but stalls immediately, swap this fuse with a known-good 25A spare; corrosion on the blade often mimics failure. For headlight flicker, trace the brown wire (terminal 58) from the dimmer switch to the bulb socket–splice resistance should read 0.2 ohms or less, anything higher indicates frayed shielding inside the loom beneath the battery tray.
Use this reference for common wire colors and pin assignments on the 24-pin white connector at the firewall bulkhead:
| Pin | Color | Function | Voltage (KOEO) |
|---|---|---|---|
| A1 | Black/White | Ground | 0.0 V |
| C2 | Pink | Battery feed | 12.6 V |
| D3 | Dark Blue | Fuel pump relay | 12.0 V |
| B4 | Light Green | TP sensor signal | 0.5–4.5 V |
Finding Your Pickup’s Under-Hood Cable Assembly Arrangement

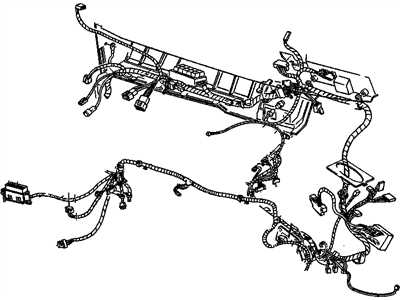

Trace the main loom from the firewall grommet toward the fuse block–this bundle carries most critical circuits. The Chevrolet pickup’s harness splits into three primary branches: the left-side injectors, the right-side sensors, and the central power distribution junction. Each branch terminates at a distinct connector: Delphi Weather-Pack for injectors, Bosch-style for oxygen probes, and a blade-type multi-pin for relay feeds. Use a multimeter continuity test between the firewall connector and each termination point to isolate specific circuits without relying on color codes alone.
Key Junction Points for Rapid Troubleshooting
Note the 12-gauge power feed near the battery tray–this supplies the ignition coil, fuel pump relay, and PCM. A secondary harness runs along the driver-side fender, containing throttle position, coolant temperature, and vehicle speed inputs. The alternator wiring bundle merges here via a 4-pin connector; corrosion often hides in this splice. Remove the air intake resonator to expose the MAF sensor’s plug-in harness–this area suffers frequent chafing against the ductwork.
Label each connector before unplugging. Photograph both sides of connectors showing terminal numbers–factory service manuals reference these identifiers for pin assignments. The EVAP purge solenoid shares a harness with the MAP sensor; look for a single ground wire (bare copper) bolted to the intake manifold. When reassembling, route all harnesses away from exhaust manifolds and moving belts using original mounting clips–the plastic ties often disintegrate after 15 years.
Tracing Ignition System Circuit Paths and Wire Color Codes
Start at the ignition switch terminal labeled “BAT” (battery)–typically a heavy-gauge orange wire–to verify constant 12V power regardless of key position. Probe with a multimeter set to DC voltage; readings below 11.8V indicate corroded connections or a failing fusible link in the main harness near the under-hood junction block.

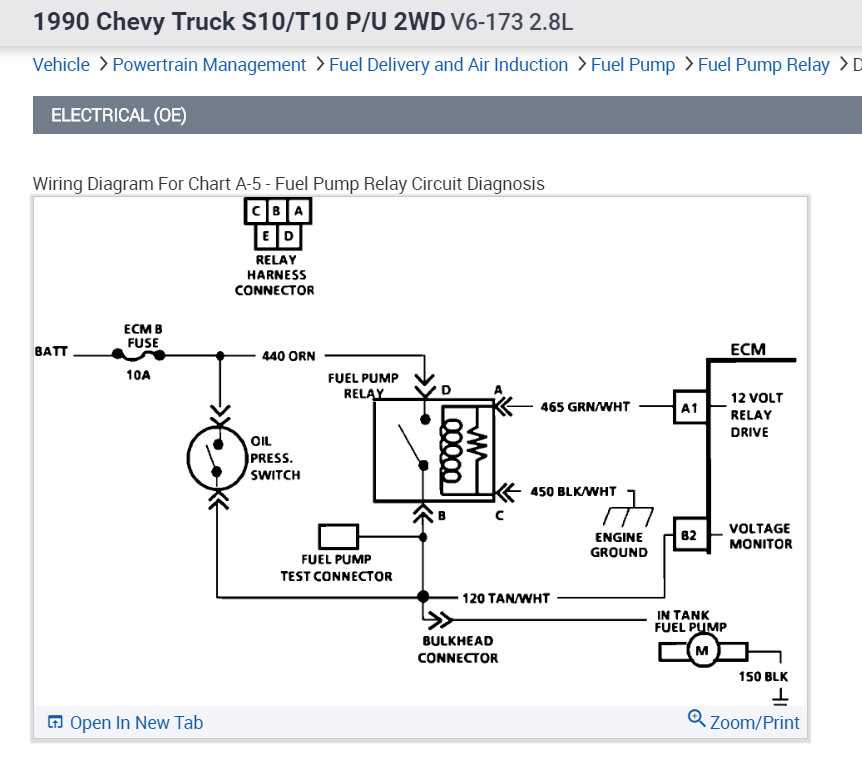

From the ignition switch’s “IGN” terminal (usually pink), trace the path to the powertrain control module (PCM). The pink wire splits at the firewall bulkhead connector–pin C3–into two branches: one routes to the ignition coil pack (red/white stripe), the other continues to the fuel pump relay (pink/black stripe). Interruptions here manifest as hard starting or stalling immediately after cranking.
- Coil pack connections: Identify the three primary wires–yellow (switching signal), dark green (tachometer reference), and red/white (power feed). Probe the yellow wire at the PCM connector C1 (pin 9) for a 5V pulse during cranking; absence suggests a faulty ignition control module or PCM driver failure.
- Crankshaft position sensor: Locate the two-wire harness (gray and black/yellow stripe) at the bellhousing. Gray carries the signal; continuity should be under 1 ohm with the sensor disconnected. Black/yellow strips over 2 ohms point to frame-ground corrosion near the starter solenoid.
At the distributor (if equipped), inspect the five-wire connector: orange (reference), blue/white (cylinder identification), dark blue (hall effect signal), and two black grounds. Backprobe the dark blue wire with an oscilloscope; a clean square wave (0-5V) confirms proper sensor alignment–amplitude below 4V often means air gap misadjustment (spec: 0.015–0.050 inches).
Critical Ground Paths
Check the ground strap from the engine block to the chassis (bare or black wire, often overlooked). Poor grounds here create intermittent no-start conditions. Scrape paint or rust from the chassis attachment points and torque to 18 ft-lbs. For vehicles with manual transmissions, the ground strap near the clutch bellcrank–usually a braided cable–is prone to fracturing; flex the cable while monitoring voltage drop during cranking.
For coil-on-plug (COP) systems, each coil has a labeled harness: yellow (trigger), red/white (power), and black (ground). Test for voltage at the red/white during cranking–readings should match battery voltage. If not, suspect a blown fuse (I/P fuse #18, 20A) or an open in the pink wire between the ignition switch and the under-dash fuse block.
- Release retainer clips on the main harness cover (driver-side inner fender) to access splice junctions.
- Trace the tan/black striped wire from the ignition switch to the automatic transmission range switch (if equipped)–corrosion here mimics a faulty starter solenoid.
- Inspect the purple wire at the security module (four-wire connector, left kick panel). Open circuit triggers a 10-minute no-start penalty; security light steady on confirms this failure mode.
Locating Ground Connections and Their Effect on Electrical System Reliability
Trace ground paths directly to the chassis or engine block using a multimeter in continuity mode. Factory-specified grounding points on compact pickup models typically cluster near the battery tray, firewall, and rear taillight housing. Verify each connection by measuring near-zero resistance–readings above 0.2 ohms indicate corrosion or loose fastening requiring immediate attention.
Corroded grounding terminals degrade circuit efficiency more than most components. Remove paint and oxidation with a wire brush, then apply dielectric grease before reattaching. Avoid relying on threaded fasteners alone–welded studs or dedicated grounding straps provide superior conductivity for high-current circuits like ignition coils and fuel pumps.
Test parasitic voltage leaks by disconnecting battery cables, then probing between the negative terminal and chassis. Readings exceeding 0.1 volts signal unintended current paths, often caused by improperly routed accessory power leads. Isolate each circuit segment by removing fuses one at a time until the voltage drop disappears.
Prioritize grounding upgrades for sensitive electronics. Relocate audio system grounds to a dedicated point away from motor-driven components like alternators to eliminate induced noise. For auxiliary lighting, run separate ground wires directly to the nearest chassis point rather than daisy-chaining through factory harnesses.
Document every grounding location using circuit schematics and physical labels. Mark coordinates in millimeters from identifiable reference points–this prevents guesswork during future diagnostics. Color-code connections using heat-shrink tubing for quick visual identification.
Ground paths shared with inductive loads (solenoids, relays) create voltage spikes that damage modules. Install a 1N4007 diode across the coil to suppress reverse EMF, then measure the ground path for transient spikes with an oscilloscope. Peak voltages above 400mV at turn-off warrant separate grounding.
Factory harness grounds often terminate at single-layer sheet metal–bolt directly to thicker structural components instead. Use star washers to ensure mechanical stability; a single loose connection can introduce intermittent faults detectable only under specific loads. Test drive over rough terrain while monitoring critical circuits for voltage irregularities.
Grounding performance degrades over time due to thermal cycling. Inspect connections annually for microfractures in solder joints or cracked paint around fasteners. Re-torque to manufacturer specifications while observing torque-angle combinations–overtightening splays threads, while undertightening compromises conductivity.
