Connect the neutral conductor to the central terminal block first–this is non-negotiable for safety and compliance. A 10-gauge copper wire is the minimum requirement for 30-amp circuits; anything thinner risks overheating under load. Ensure the grounding strap or separate green wire is fastened to the chassis ground screw before securing other connections.
Label each conductor at both ends with heat-shrink tubing or permanent marker: L1 (black/hot), L2 (red/hot), N (white/neutral), G (green/bare ground). Mislabeling leads to reversed polarity, which can damage internal components or create a fire hazard. Verify all connections with a multimeter–no voltage should exist between neutral and ground at the terminal block.
Use a torque screwdriver (set to manufacturer specifications) to tighten terminal screws. Loose connections cause arcing, which degrades wires and terminals over time. For NEMA 14-30 receptacles, confirm the outlet’s ampacity matches the appliance’s rating–240V/30A is standard for most residential installations.
Route cables through rigid conduit or armored cable (Type AC or MC) if running through unfinished spaces. Flexible cords are only permitted for appliance-side connections, not permanent installations. When using conduit, ensure the grounding conductor is continuous and properly bonded at both ends–no splices or breaks.
Test the circuit before finalizing: plug in the appliance, activate the breaker, and check voltage between L1/L2 (should read ~240V), L1/N and L2/N (should read ~120V). If readings deviate, trace the circuit for incorrect wire sizing, crossed neutrals, or faulty breakers. Do not proceed until all voltage checks pass.
For older homes with 3-wire setups, upgrade to a 4-conductor configuration–this isolates neutral and ground, eliminating shock risks from neutral faults. Code requires this upgrade during any appliance replacement or panel work. If retrofitting, install a NEMA 14-30 outlet and replace the cordset with a 4-prong version.
Electrical Connection Guide for Household Clothing Appliances
Ensure the power is completely disconnected at the breaker panel before handling any terminal connections. Modern household drying machines typically use a split-phase 240V circuit with an integrated 120V neutral path for timers and controls. Verify the incoming cable matches the appliance’s terminal block configuration–most newer models accept a four-conductor feed with two hot legs, one grounded conductor, and a separate safety ground.
Strip each conductor back exactly ½ inch, avoiding nicked strands or exposed copper beyond the terminal clamp. Securely fasten the two phase wires to the brass-colored L1 and L2 screws, tightening to 15–20 inch-pounds torque. Attach the neutral conductor (usually marked with white or gray insulation) to the central chrome screw. The bare or green ground wire must terminate at the designated green grounding screw–do not substitute this connection with the neutral terminal.
Use the following torque specifications for terminal screws to prevent overheating:
| Terminal Type | Recommended Torque (inch-pounds) |
|---|---|
| Brass screw (L1, L2) | 15–20 |
| Chrome screw (neutral) | 12–15 |
| Green grounding screw | 15–18 |
After securing all connections, slide the access cover back into position and restore power at the breaker. Immediately verify proper operation by running a short cycle–monitor the appliance for unusual humming, tripped breakers, or erratic behavior indicating potential miswiring. If the motor fails to start or exhibits buzzing, recheck the phase leg connections for reversed polarity or loose terminations.
Troubleshooting Common Installation Issues
Symptoms of incorrect phase alignment include rapid overheating, failure to spin, or dim lighting during operation. Confirm both hot conductors originate from opposite poles of a double-pole breaker to maintain proper 240V potential. Neutral wires improperly connected to grounding screws may create hazardous voltage on metal surfaces–always isolate these paths. For appliances with electronic controls, a missing ground can corrupt firmware or cause intermittent shutdowns.
After verifying all connections, perform a final insulation resistance test using a multimeter. Place one probe on each phase leg and measure at least 20 kΩ to ground; readings below 1 MΩ suggest damaged insulation requiring cable replacement. Check continuity between the neutral and ground terminals–any resistance beyond 1 Ω indicates improper bonding that must be corrected before safe use.
Understanding Terminals on a Household Appliance Receptacle
Locate the terminal block inside the power connection box–typically at the rear of the unit. The standard configuration includes two hot legs (L1 and L2), one neutral (N), and one ground (G). L1 and L2 terminals are brass-colored screws positioned on opposite sides, delivering 240V when paired. Neutral sits between them as a silver screw, while ground is green and attached to the chassis. Verify labels or embossed markings if colors appear ambiguous.
Use a multimeter to confirm voltage before handling. Set it to AC voltage (V~) and probe L1 to L2–expect 220–240V. Testing L1 or L2 to neutral should yield 110–120V. Ground must show zero volts when connected to either neutral or hot legs; any reading indicates a fault. Avoid assuming correctness based on wire colors alone–regional codes and manufacturer variations exist.
Trace each conductor from the plug to its terminal to prevent cross-wiring. The two outer wires on a NEMA 14-30 plug (flat blades at 90° angles) correspond to L1 and L2. The rounded blade with wider spacing connects to neutral, while the U-shaped grounding slot attaches to the chassis. Mismatching these risks damaging the appliance or creating a fire hazard. Always disconnect power at the circuit breaker before inspection.
Inspect for corrosion, burnt marks, or loose connections at the terminals. Corroded contacts reduce efficiency and generate heat–clean with fine-grit sandpaper or replace the terminal block if pitted. Tighten screws to 10–15 in-lbs to ensure solid contact without stripping threads. Replace frayed or brittle insulation immediately–exposure increases shock and arc risks.
Check local electrical codes for specific requirements. Some jurisdictions mandate GFCI or AFCI protection for new installations. If retrofitting an older system, consult a licensed electrician to ensure compliance with current standards. Store the unit’s manual for reference–it often includes a labeled schematic matching your model’s terminal layout.
Step-by-Step Guide to Attaching a Four-Prong Appliance Cable

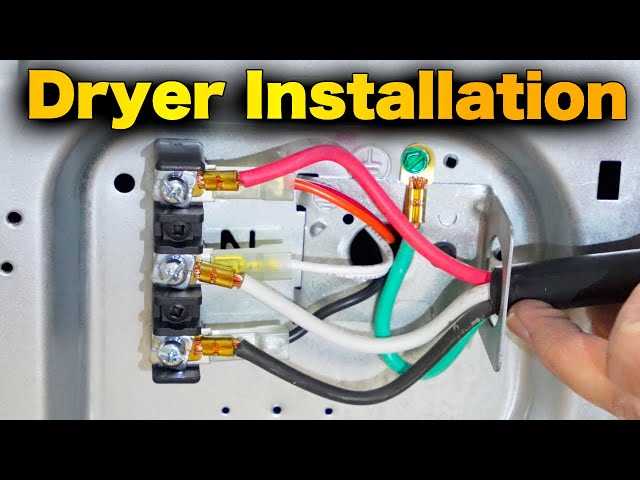

First, ensure the power is off at the circuit breaker. Expose the terminal block by removing the access panel on the back of the appliance. Identify the two outer screws (typically brass) for the hot leads, the central screw (usually silver) for neutral, and the green or bare screw for ground. Strip ¾ inch of insulation from each conductor, then loop the wires clockwise around their respective screws–left hot to the left terminal, right hot to the right terminal, neutral to the center, and ground to the designated ground post. Tighten each screw with a torque of 12–15 inch-pounds using a calibrated screwdriver; overtightening can strip threads while undertightening risks arcing.
- Verify the cable clamp secures the sheath within ¼ inch of the terminal block to prevent strain on connections.
- Reattach the access panel, ensuring no wires are pinched.
- Restore power and test with a multimeter: 240V between hot leads, 120V from each hot to neutral, and 0V from neutral to ground.
- If readings deviate, immediately power off and recheck connections for reversed or loose conductors.
Electrical Cable Color Standards and Critical Safety Measures
Always verify the 240V circuit uses 10-gauge copper conductors or thicker–never substitute with aluminum unless explicitly rated for 30-amp appliances. The green or bare copper wire is the ground path; attach it first to the appliance chassis and electrical panel bar without exception.
Connect black and red conductors to the 240V terminals–black typically links to L1, red to L2. Swapping these risks reversing polarity, which can damage electronic controls or create overheating hazards. The white or gray neutral cable must secure to the central terminal, never confused with a ground connection.
Mislabeling wires causes immediate fire risk. Use a multimeter to confirm no voltage remains before handling connections: probe between black-red (240V), black-white (120V), and red-white (120V). Readings should match expected values–deviation indicates incorrect connections or panel faults.
After securing connections, wrap each terminal with rated electrical tape–not duct tape or standard adhesive–to prevent short circuits from abrasion or vibration. Test insulation integrity with a megger set to 500V; readings below 1 MΩ require immediate cable replacement.
Handling Faulty Installations
If the appliance trips breakers during operation, disconnect immediately and inspect for loose terminals, crossed polarity, or broken strands. Loose strands on the ground path can energize the chassis, creating lethal shock hazards–trim and twist strands tightly before re-terminating.
Never splice connection cables–factory terminations exceed field repairs in durability. If extending circuits, use UL-listed pigtail connectors with strain relief; avoid sharp bends that weaken copper over time. Secure all cables with NM cable staples every 4.5 feet and within 12 inches of junction boxes–prevent chafing against metal edges.
Emergency Procedures
If smoke or burning odors emerge, immediately shut off the circuit breaker. Isolate the appliance by unplugging it–do not pull the cable if the socket shows signs of melting. Use a CO₂ extinguisher for electrical fires; water or foam exacerbates damage and shock risks.
For circuit modifications, reference NEC Article 250 for bonding requirements–ground rods must measure under 25 Ω resistance in residential settings. Store all unused conductors in approved junction boxes; never coil excess cable tightly–inductive heating can degrade insulation over time.
