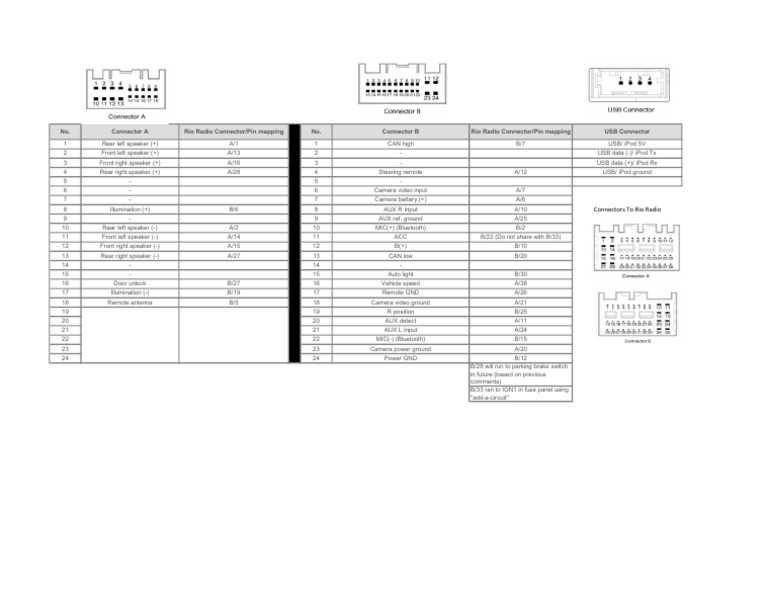

For accurate wiring connections in your vehicle’s infotainment setup, locate the harness behind the stereo unit. The primary connector (A) uses a 20-pin plug with the following pin assignments:
Pin 1-4: Front left/right speaker wires (positive/negative). Identify by thick purple/green and purple/white stripes. Pin 5: Battery constant power (solid yellow). Verified at 12V unkeyed. Pin 6: Ignition-switched power (red). Activates unit when ignition turned. Pin 7-10: Rear speaker outputs. Thin brown/white and brown/green wires. Pin 12: Ground (black). Ensure secure chassis connection.
Use a multimeter to confirm continuity before splicing. Factory harness colors match aftermarket Kenwood and Pioneer wiring adapters–particularly the Metra 70-1761 for direct compatibility. For vehicles with amplified systems, additional 16-pin connector (B) handles power antenna (blue, pin 8) and amplifier triggers (pink, pin 10).
If adapting newer units, bypass the stock rectangular connector entirely by soldering wires directly to the replacement harness. Note: Some base models omit the amplifier circuit–verify by checking for a cylindrical metal component behind the glove box. Avoid tapping into the CAN bus wires (orange/purple, pin 12 and 14) unless integrating steering wheel controls.
How to Connect Your Vehicle’s Audio System
Start by locating the harness behind the factory-installed sound unit. The main 12-pin connector splits into smaller subgroups: power, speaker outputs, and antenna control. Label each wire with masking tape before disconnecting anything–this prevents mix-ups during reinstallation.

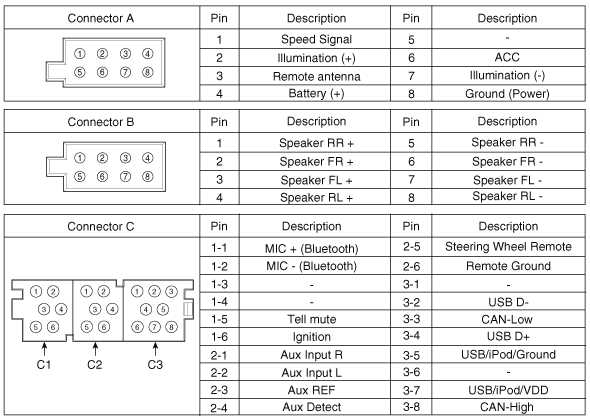

Below is the pinout for the standard ISO connector found in most base models. Verify colors against your harness, as aftermarket variations exist depending on trim levels.
| Connector Pin | Function | Wire Color (standard) |
|---|---|---|
| A1 | Constant 12V power | Yellow |
| A4 | Ignition switch | Red |
| A7 | Illumination | Orange/White |
| B2 | Front left speaker (+) | White |
| B4 | Front right speaker (+) | Gray |
| B6 | Rear left speaker (+) | Green |
| B8 | Rear right speaker (+) | Purple |
For ground, use black wires from pins A5 and A8–combine them into a single ring terminal secured directly to bare metal on the chassis. Avoid daisy-chaining grounds with other accessories; this minimizes interference.
If retaining the factory antenna, connect the blue/white wire (pin A6) to the remote turn-on lead of your new head unit. Without this, the antenna motor won’t extend when powered on.

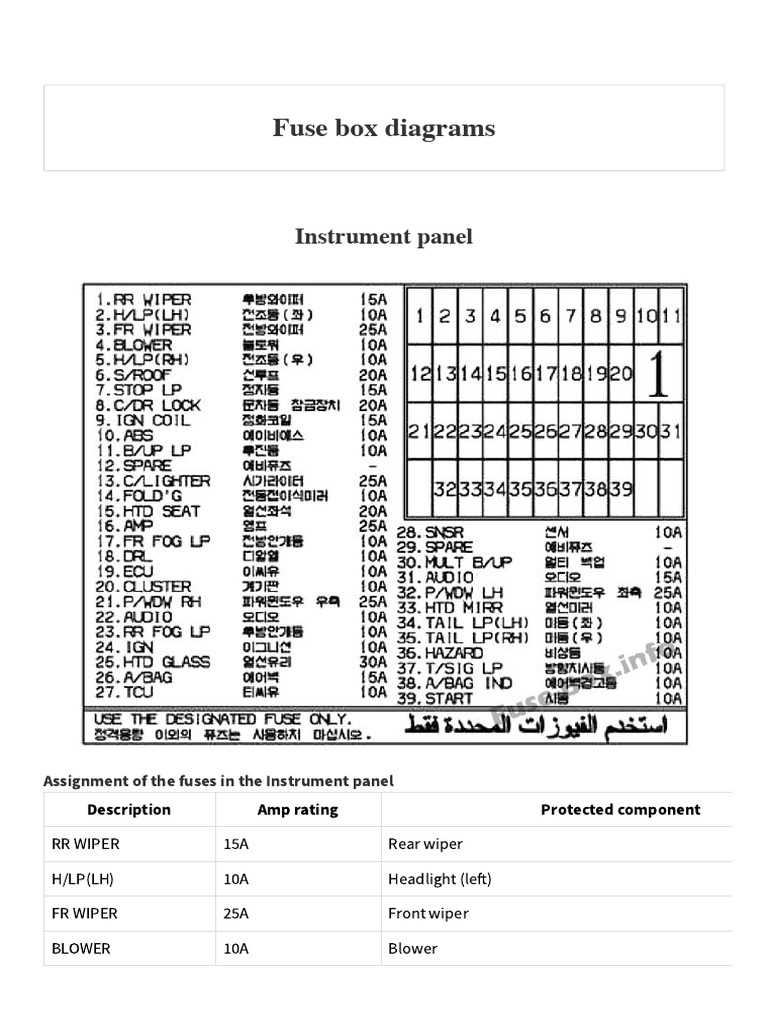

Use a digital multimeter set to DC volts to verify 12V at the yellow wire with the key off–failure here indicates a blown fuse or faulty connection upstream. Swap Fuse #13 (10A) in the interior panel if necessary.
When splicing wires, crimp connectors outperform solder for vibration resistance. Heat shrink tubing over each joint prevents corrosion. Keep wires bundled with spiral wrap away from moving parts to avoid wear.
Finding the Audio System Connector Ports in Your Compact Vehicle
Begin by removing the lower dash panel beneath the climate controls. Two screws secure this cover–one near the driver’s side kick panel and another hidden behind the central storage tray. Use a 7mm socket or flathead screwdriver to release them, then pull the panel downward with firm but controlled pressure to avoid breaking the plastic clips.
Once the panel is removed, locate the factory harness behind the head unit. The main connector is a rectangular 16-pin plug with white or gray housing, positioned vertically on the left side of the enclosure. A secondary 8-pin harness, typically brown or black, sits adjacent to it–this often handles amplifier or speaker outputs. Trace the wires carefully; some may be bundled with zip ties or wrapped in fabric shielding.
Accessing Hidden Connectors Without Full Removal
If partial access is sufficient, tilt the head unit forward after releasing the spring clips on its sides. Press inward on both edges simultaneously until the unit pops out–no tools are required for this step. The connectors will remain attached to the vehicle’s frame; gently wiggle them free by grasping the plastic housing, not the wires, to prevent damage. Note the orientation of each plug before disconnecting, as improper alignment during reassembly can cause malfunctions.
The ground wire is usually a single black or green cable terminating in a ring connector screwed into the chassis. Verify its location by following the main harness bundle–it often branches near the firewall or behind the glovebox. For vehicles with premium sound systems, an additional 4-pin plug (red or blue) may control steering wheel audio functions; this is not relevant for standard trims but should be accounted for if present.
Always test connectivity before finalizing modifications. Use a multimeter to check voltage on the constant and switched power leads (typically yellow and red wires, respectively) with the ignition in both off and accessory positions. Speaker wires follow a standard color code: solid colors for positive, striped for negative (e.g., gray for front right positive, gray/black for front right negative). Document these details or photograph the connections before proceeding.
Decoding Audio System Cable Colors for Installation
Begin by locating the harness adapter matching your vehicle’s entertainment setup. Most aftermarket units and OEM connectors follow standardized color schemes, but variations exist–always cross-check with a multimeter before making connections.
Power feeds typically include:
- Yellow – Constant 12V (memory retention).
- Red – Switched 12V (accessory power).
- Orange – Illumination or dimmer control (check voltage drop).
- White/black stripe – Rare, but may serve as secondary power in some configurations.
Ground connections are almost always black, though some harnesses use brown for auxiliary grounding. Ensure a solid metal chassis point–paint or corrosion here will cause noise or intermittent operation.
Speaker outputs use paired wires, usually:
- Front left (+) – Gray.
- Front left (-) – Gray/black stripe.
- Front right (+) – White.
- Front right (-) – White/black stripe.
- Rear left (+) – Green.
- Rear left (-) – Green/black stripe.
- Rear right (+) – Purple.
- Rear right (-) – Purple/black stripe.
Exceptions occur–some setups reverse polarity labeling, while premium audio systems may add twisted pairs with shielding (blue/white, blue/red) for subwoofer outputs.
For amplifier triggers, look for a blue or blue/white wire–this carries a low-current signal to activate external power boosters. Do not mistake it for power antenna control (often pink or light blue).
Verify each wire’s function with a continuity test or voltage reading while the ignition is on. Probe the harness against chassis ground for suspected grounds, and against the yellow (constant) wire for switched feeds. Speaker wires should show ~4-8 ohms resistance–if reading zero, suspect a short; if infinite, an open circuit.
Label wires immediately upon confirmation. Use colored tape or heat-shrink sleeves matching each function–this prevents misconnections during final installation. For complex setups, splice in relays or fuses (10A for power, 3A for signals) to protect the vehicle’s electrical integrity.
How to Verify Audio System Connections Using a Measurement Tool
Set the multimeter to DC voltage at a 20V range before probing any cables. Identify the constant power lead–typically labeled as B+ or yellow–and touch its connector with the red probe while grounding the black probe to the chassis or any bare metal surface. A reading between 11.5V and 14.5V confirms a live circuit; anything below 10V suggests a weak or dead connection.
Test ground integrity by selecting the ohmmeter setting. Probe between the ground wire (often black or brown) and the vehicle’s body. A reading near 0 ohms indicates a solid connection, while infinite resistance or values above 0.5 ohms signal corrosion, loose terminals, or a broken strand. Clean the contact point with a wire brush if resistance exceeds specifications.
Check accessory power (usually red or orange) by turning the ignition to the “ACC” position. The multimeter should display voltage matching the battery reading. If no reading appears, inspect the fuse–replace if blown–and trace the line back to the fuse box, testing at each splice for voltage drops. A drop above 0.5V between the fuse and connector indicates excessive resistance.
Verify speaker outputs by setting the multimeter to AC voltage. Play a 1kHz test tone at moderate volume and probe the speaker terminals. Each coil should read between 1V and 10V AC; unequal readings hint at phase reversal, shorted cables, or amplifier issues. Swap leads if one channel registers significantly lower–this isolates whether the problem lies in the head unit or downstream wiring.
For signal cables (RCA or fiber), use the continuity setting. Disable all power sources to avoid false positives. Probe each pin to its destination while ensuring no cross-talk exists with adjacent wires. A beep confirms a clear path; intermittent beeps or silence reveal opens, shorts, or shield termination problems. Re-terminate connectors if insulation damage is visible.
Direct Integration of Third-Party Audio Systems with OEM Connectors
Cut the factory connector from the vehicle’s harness, leaving 6 inches of wire for splicing. Strip 5mm of insulation from each lead–use a precision knife, not wire strippers, to avoid nicking copper strands. Identify functions by probing with a multimeter set to DC voltage: ignition-switched 12V reads ~12.4V when the key is in the ON position, constant 12V maintains voltage regardless of key state, and ground demonstrates continuity to chassis.
Match aftermarket unit pins to the OEM harness by:
- Yellow: constant 12V, 10A fuse mandatory
- Red: ignition-switched 12V, minimum 18-gauge wire
- Black: ground, direct chassis bolt with star washer
- Blue/white: remote turn-on, 500mA max
- Purple: subwoofer trigger, optional 2A fuse
Twist corresponding wires together tightly–no solderless connectors–then solder with 60/40 rosin-core. Heat-shrink tubing must overlap insulation by 4mm.
Speaker leads require 16-gauge minimum; factory wires may be 18-gauge–replace with equivalent or thicker. Use a 4-channel oscilloscope to verify polarity:
- Front left (+): gray with stripe
- Front left (-): gray solid
- Front right (+): white with stripe
- Front right (-): white solid
- Rear left (+): green with stripe
- Rear left (-): green solid
- Rear right (+): purple with stripe
- Rear right (-): purple solid
Channel impedance must not drop below 2 ohms per coil.
Steering wheel controls and auxiliary inputs bypass OEM data buses. Locate the CAN bus wires–typically orange with white stripe (high) and orange with green stripe (low). Tap these with 1kΩ resistors in series to prevent bus errors. If factory illumination dimming is required, splice the dimmer wire (light green with red stripe) through a 330Ω resistor to the aftermarket unit’s dimming input.
Antennas with motorized retractors need a relay triggered by the blue/white remote wire. Coax connectors demand soldered joints–crimp connectors introduce RF noise. Ground the shield at both ends but isolate from the audio ground to prevent ground loops. For satellite-ready models, maintain the teal satellite data wire uncut; solder a jumper to the aftermarket unit’s satellite module if needed.
Verify all connections before powering up. Test each channel at 10% volume, then sweep through frequencies to detect rattles or distortion. If parasitic current drain exceeds 30mA, recheck the constant 12V line for stray connections. Secure all splices with adhesive-lined heat-shrink before reinstalling trim panels–vibration wears through poorly secured joints.
Equalization presets must compensate for cabin acoustics. Measure frequency response with an SPL meter–boost 80Hz by 3dB, cut 500Hz by 2dB, and notch 2kHz to 3kHz by 4dB to counteract dashboard reflection nodes. Recalibrate these settings after each vehicle battery reset to maintain linearity.
Backup cam integration requires tapping the reverse light circuit–use a 1N4007 diode to prevent back-feeding. Route RCA cables through the firewall grommet, avoiding pinch points near pedals or steering columns. Label every splice with its function and date; tape labels face inward to prevent UV degradation.
