For a reliable 30-unit power distribution in recreational vehicles, use 10-gauge copper conductors with a minimum 75°C insulation rating. This ensures stability under continuous 24-volt loads without exceeding temperature thresholds. Combine this with a double-pole breaker rated for 35 units to provide adequate headroom while preventing nuisance trips. Ground all connections to the chassis with an 8-gauge bare wire, bonding at a single point to eliminate stray currents.
Position the main electrical panel within 1.5 meters of the primary energy source–typically lithium batteries or a shore connection–to minimize voltage drop. Use a 12-circuit subpanel for accessory loads like interior lighting, refrigeration, and low-draw devices, separating these from high-demand systems such as climate control or induction cooktops. Label each circuit with waterproof identifiers and include a schematic adjacent to the panel for troubleshooting.
Install a dedicated 30-unit surge protector inline with the shore connection to shield against transient spikes. For off-grid operation, integrate a 2000-watt inverter with pure sine wave output, wired directly to the battery bank with 4/0 welding cables. Ensure all junctions are crimped with tinned copper lugs and sealed with adhesive-lined heat shrink to resist corrosion in humid environments.
Test each connection with a calibrated multimeter before energizing the system: confirm 12.6 volts at battery terminals with no parasitic draw exceeding 50 milliamps. For dual-battery setups, employ a high-current isolator to prevent imbalanced discharge. Include a 150-Amp manual reset disconnect near the entrance for emergency shutdown, complying with NFPA 1192 safety standards.
How to Set Up a 30 Unit RV Electrical Hookup
Use a 10-gauge copper conductor for the primary feed from the pedestals to the vehicle’s power inlet. This thickness handles the current reliably while preventing overheating. Ensure all connections terminate in weatherproof junction boxes rated for outdoor use–never expose bare wire to moisture or UV degradation. Test voltage at the pedestal with a multimeter before attaching; variations beyond 5% indicate a faulty supply needing an electrician’s review.
Install a double-pole 30 unit breaker inside the distribution panel feeding the recreational hookup. Match the breaker’s rating to the cord’s capacity–mismatches create fire risks. Route the cable through a strain relief bushing where it exits the enclosure to avoid chafing. Secure every 18 inches with UV-resistant clips to prevent sagging and accidental disconnection. Label both ends of every cable with indelible markers showing destination and purpose.
Grounding and Surge Protection
Drive a copper-clad ground rod at least 8 feet into the earth near the pedestal. Connect it to the green bonding wire inside the panel using irreversible crimp connectors; soldering alone fails under vibration. Add a surge protector rated for 30 unit service–replace annually or after any electrical storm. The protector should trip before internal components reach 175% of nominal voltage to protect appliances and converters.
Verify polarity at the trailer inlet. Reverse hot-neutral connections fry appliances and create lethal chassis voltage. A simple plug-in tester confirms correct wiring in seconds. For split-phase setups, ensure the L1 and L2 conductors both measure 120 volts to neutral with less than 3 volts difference between them. Higher discrepancies destabilize sensitive electronics inside the living quarters.
Keep spare fuses, connectors, and extenders in a waterproof case. Choose twist-lock inlets for secure mating–standard plugs loosen under vibration causing arcing. Apply dielectric grease to all metal contacts to prevent corrosion. After rain, inspect pedestal compartments for standing water; drain taps at the lowest point prevent internal flooding. Check tightness of terminal screws quarterly to compensate for thermal cycling.
Key Components of a 30 Amp RV Electrical System
Install a 30-amp external power inlet as the primary interface between shore hookup and the vehicle’s internal circuitry. Choose a weather-resistant model with a locking mechanism to prevent accidental disconnection during operation. Models from reputable brands like Marinco or Hubbell include built-in surge protection, reducing risk of voltage spikes damaging sensitive electronics. Verify the inlet’s compatibility with 120V AC systems and ensure it supports the full 3600-watt load capacity.
The distribution panel acts as the nerve center, routing power to individual circuits while providing overload protection. Select a breaker panel with at least six slots to accommodate main, converter, and auxiliary circuits. Use double-pole breakers for high-draw appliances like air conditioners and single-pole for lighting and outlets. Install a 50-amp sub-panel if expanding beyond standard capacity, but never exceed the 30-amp main breaker’s rating. Label each breaker clearly to simplify troubleshooting.
| Component | Recommended Specification | Maximum Load (Watts) |
|---|---|---|
| Power Inlet | 30A, 120V, locking | 3600 |
| Breaker Panel | 6+ slots, 120V | 3600 (total) |
| Converter/Charger | 45A, 3-stage | 1000 (conversion) |
| Battery Bank | 2x 6V deep-cycle | 220Ah (combined) |
Opt for a 45-amp converter/charger with three-stage charging to maintain battery health and provide stable DC power. Avoid basic converters–they lack voltage regulation, risking damage to appliances during fluctuations. Install the unit within 10 feet of the battery bank to minimize voltage drop. Pair it with a temperature sensor probe to adjust charging rates in extreme conditions. Monitor battery fluid levels weekly if using flooded lead-acid cells.
Use 6 AWG copper wire for all connections between the inlet, panel, and converter to handle sustained 30-amp loads without overheating. Secure connections with heat-shrink terminals and dielectric grease to prevent corrosion. For runs exceeding 20 feet, upsize to 4 AWG to compensate for voltage loss (never exceed 3% loss per circuit). Ground all components to a common bus bar connected to the chassis, using 8 AWG wire minimum for safety.
Equip every high-draw circuit with a dedicated disconnect switch for maintenance. Air conditioners, microwaves, and water heaters should each have a 20-amp breaker and a manual shutoff within arm’s reach of the appliance. Test polarity at every outlet with a plug-in tester before use–reverse polarity can destroy electronics. Carry spare 15- and 20-amp breakers and a multimeter for diagnostics.
How to Connect a 30-Amp RV Electrical System Safely
Begin by shutting off the main breaker at the pedestal to eliminate power flow. Verify absence of voltage using a non-contact tester on both the hot and neutral terminals. Failure to confirm zero current risks severe shock or arc flash.
Gather these tools before proceeding:
- 12-gauge copper wire (rated for outdoor use)

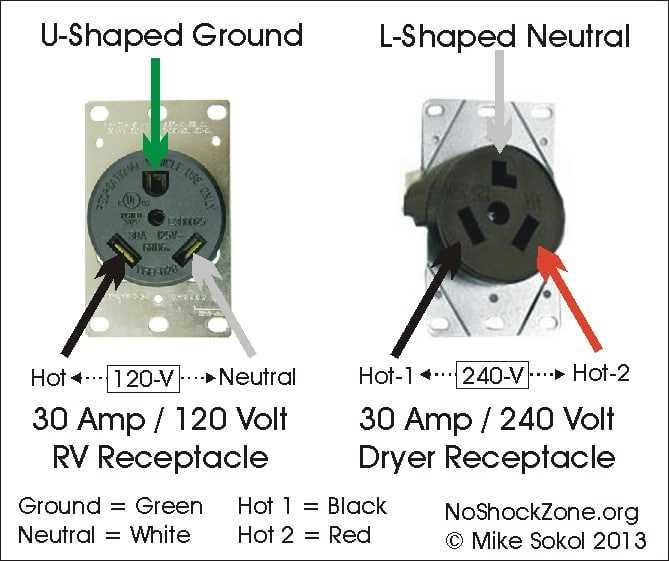

- Weatherproof twist-lock connector (NEMA TT-30R)
- Crimping tool with insulated lugs
- Wire strippers (adjusted for 12 AWG)
- Grounding rod (8-foot, copper-clad)
- Torque screwdriver (12–15 in-lbs)
Strip ¾-inch of insulation from each conductor end. Insert the hot wire (black or red) into the brass terminal of the connector, ensuring no exposed copper extends beyond the lug. Apply crimp pressure until the lug deforms securely around the wire. Repeat for the neutral (white) and ground (green or bare) wires in their respective terminals.
Attach the grounding rod 6 feet from the pedestal, driving it 7 feet into the earth. Connect the ground wire to the rod clamp using a direct burial-rated splice or irreversible compression fitting. Avoid twisting wires–mechanical connections degrade over time.
Align the connector’s locking tabs with the pedestal outlet slots before inserting. Rotate clockwise while applying firm pressure until the tabs click into place. Tug lightly to confirm engagement; a loose connection causes overheating.

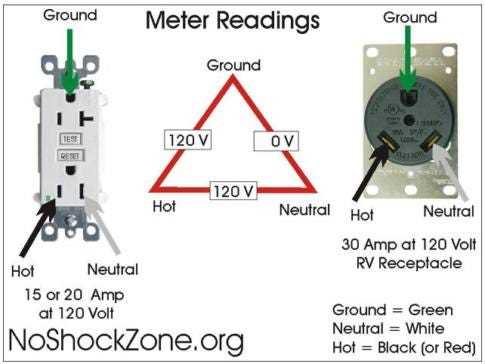

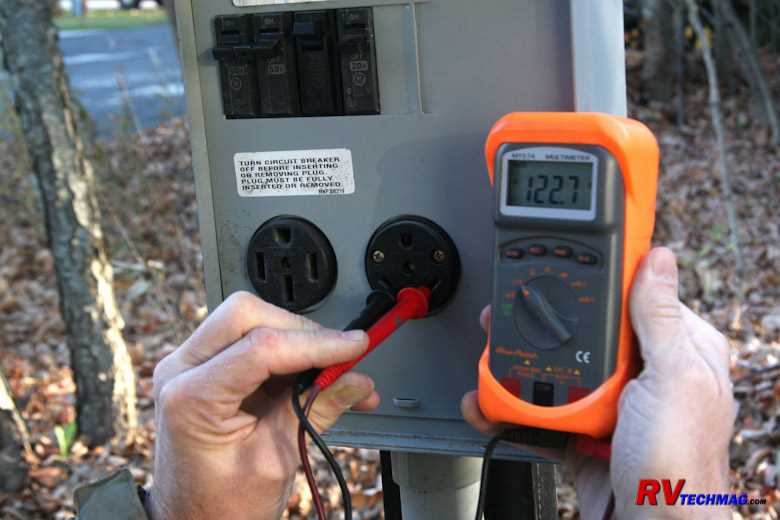

Restore power at the pedestal and test voltage with a multimeter:
- Measure between hot and neutral (120V ±5%)
- Measure hot to ground (120V ±5%)
- Measure neutral to ground (0V)
Deviations indicate faulty installation–recheck connections before use.
Seal all exposed splices with heat-shrink tubing or liquid electrical tape. Wrap the connector base with self-fusing silicone tape for moisture resistance. Exposed conductors corrode within months, creating fire hazards.
Record the installation date and test results in a maintenance log. Re-check voltage and connections every 6 months–vibration and temperature cycles loosen terminals over time.
Key Errors to Sidestep in Your 30-Amp RV Electrical Installation
Using undersized conductors guarantees overheating and potential fire hazards. The National Electrical Code (NEC) mandates 10 AWG copper wire for 30-unit outdoor circuits spanning up to 100 feet. Extending beyond this length requires upsizing to 8 AWG to compensate for voltage drop–ignoring this results in dim lights, damaged appliances, and melted insulation.
Neglecting polarity alignment during connection causes reverse current flow, frying sensitive electronics, especially inverters and battery chargers. Always confirm the hot (brass), neutral (silver), and ground (green) terminals before tightening any fasteners. A multimeter test before energizing the system saves hundreds in repairs.
Skipping a dedicated ground rod introduces stray currents that interfere with GPS, radios, and touch-sensitive panels inside mobile units. Drive an 8-foot copper-clad rod at least 6 feet from the chassis and bond it to the frame with no less than 6 AWG wire–no shortcuts or temporary clamps.
Improper strain relief on entry points invites moisture and fraying over time. Use weatherproof cable glands rated for 600 volts, not basic knockouts or zip ties. Sealant alone fails; mechanical clamping prevents vibration wear and rodent intrusion.
Overloading extension sections with daisy-chained adapters trips breakers and fries internal relays. A single 30-unit service supports a maximum continuous draw of 7,200 watts–exceeding this by running AC, microwaves, and heaters simultaneously risks catastrophic failure. Calculate wattage demands before connecting multiple high-draw devices.
Relying on twist-on wire connectors instead of crimp-type terminals leads to corrosion and intermittent faults. Tin-plated ring or fork terminals with heat-shrink tubing last indefinitely; cheap connectors corrode within months under humidity swings. Torque all fasteners to manufacturer specs–loose connections arc and carbonize terminal blocks.
Misjudging shore power cord flexibility results in cracked insulation and exposed conductors. Choose type SOOW or SJOOW cord with at least 60°C insulation for mobile use–standard Romex degrades rapidly when flexed. Store cordage on reel systems to prevent kinking and internal wire breakage.
