If your vehicle’s audio setup isn’t responding, start by checking the fuse box under the dashboard on the driver’s side. Locate fuse #29 (10A) and fuse #39 (15A)–these supply power to the head unit. Replace any blown fuses with the exact amperage rating before proceeding. Next, disconnect the negative terminal of the battery to avoid short circuits while handling the connectors.
Access the rear of the stereo by removing the trim panel around the climate controls. Press firmly on the clips securing the unit–it should release with minimal force. Once removed, identify the harness: a 16-pin rectangular connector for the factory wiring and a separate 4-pin harness for the amplifier (if equipped). The color codes are critical here–match yellow to constant 12V, red to accessory power, black to ground, and blue/white to the amplifier trigger.
For aftermarket upgrades, use a wiring adapter specific to the model year–generic harnesses may cause compatibility issues. Verify the speaker outputs: gray (front right +), gray/black (front right –), white (front left +), white/black (front left –), purple (rear right +), purple/black (rear right –), green (rear left +), and green/black (rear left –). Cross-reference these with the replacement stereo’s manual to ensure correct pairing.
Test each connection with a multimeter before reattaching the battery. Voltage at the yellow and red wires should read 12V when the key is in the accessory or on position. If the audio system still doesn’t power on, inspect the antenna lead (black coax) for continuity–damaged leads result in weak or no signal. Ground issues are common; ensure the black wire is securely fastened to bare metal, free of paint or corrosion.
For troubleshooting interference, route power and RCA cables away from the chassis harness. Twisting the speaker wires reduces noise, while shielding signal cables prevents electrical hum. If the amplifier cuts out intermittently, check the blue/white wire’s connection–this wire must maintain contact to activate the amplifier.
Guide to Aftermarket Stereo Installation for the New Beetle
Start by disconnecting the battery’s negative terminal to prevent short circuits while handling electrical connections. The factory harness on this VW model uses a 10-pin ISO connector, but aftermarket units often require an adapter unless the new system includes compatible plugs. Verify the pinout for both the vehicle’s original setup and the replacement stereo before making any splices to avoid backfeeding or incorrect power delivery.
Locate the antenna lead, typically a thin coaxial cable with a single-pin connector, usually marked in gray or black. This wire carries the FM/AM signal and must be connected directly to the corresponding input on the new head unit. Cutting or splicing this cable can degrade reception, so use the existing connector whenever possible. If the aftermarket stereo has a different plug type, secure an adapter rather than modifying the cable itself.
The power wires are critical–mix them up, and you risk frying the stereo or blowing fuses. The constant 12V (yellow) maintains memory settings like presets and clock time, while the switched 12V (red) powers the unit only when the ignition is on. A third wire (orange) often controls illumination dimming, matching the dashboard lights. Use a multimeter to confirm which wire serves which function before connecting to the new system’s harness.
- Yellow: Always-on power (constant 12V)
- Red: Switched power (ignition-controlled)
- Orange: Illumination (dimmable)
- Black: Ground (must be secure)
- Blue/White: Amplifier remote turn-on (if equipped)
Grounding issues cause more stereo problems than any other single factor. The factory ground is usually a thick black wire attached to the chassis near the stereo cavity. If the new system has its own ground, route it to the same point–but never daisy-chain grounds. A poor connection here leads to whining noises, intermittent power, or complete failure. Sand away paint or corrosion at the attachment point and use a star washer for maximum conductivity.
Speaker wires follow a standard color code, but polarity matters. The front left tweeter and woofer share a single pair (gray/gray-black for positive/negative), while the rear left uses green/green-black. The right side mirrors these colors (white/white-black for front, purple/purple-black for rear). Swap these at the connector if the stereo reverses channels, but never at the speaker–this can damage crossovers in component systems. Test each connection with a 9V battery briefly to confirm the cone moves outward before finalizing.
If the vehicle has an external amplifier, a blue/white wire from the head unit triggers it. Without this signal, the amp won’t function, leaving the stereo quiet even if power and speakers are connected. Some aftermarket stereos combine this with the antenna power lead–check the manual to avoid overloading a single wire. For systems with steering wheel controls, an additional wiring harness or interface module is needed; bypassing this step means losing volume control and track skipping via the factory buttons.
After everything is connected, reattach the battery and test all functions before securing the stereo in the dash. Check AM/FM reception, CD playback (if applicable), Bluetooth pairing, and USB charging. If static or interference occurs, reroute power wires away from RCA cables or verify the ground connection. Secure all harnesses with zip ties to prevent rattling or disconnections over time, and reattach the dash trim carefully to avoid pinching wires.
Finding the Audio System Plug on Your New Beetle

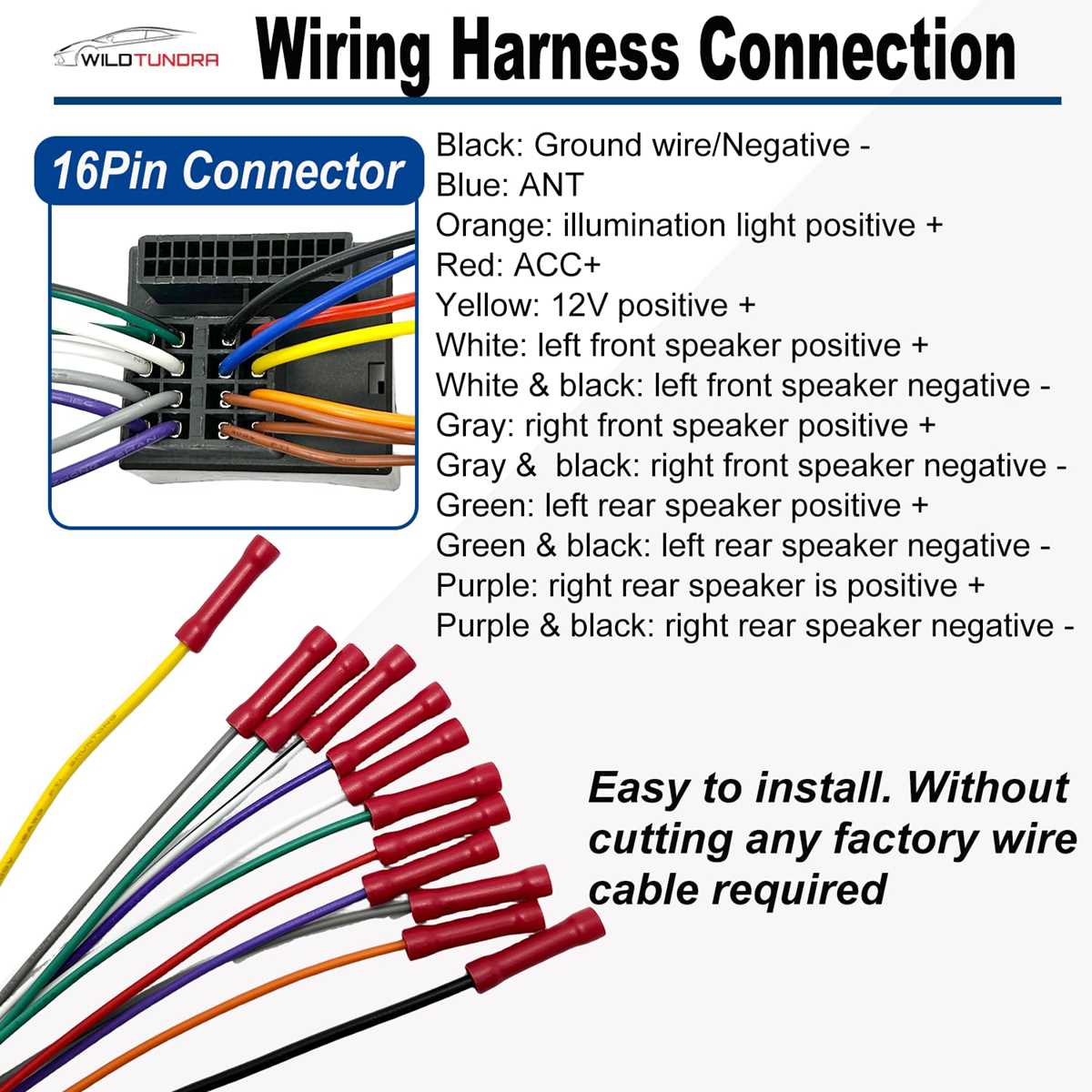

Locate the center console access panel beneath the climate controls by removing the single Phillips screw securing it. Slide the panel downward to expose the back of the factory audio unit–look for a white 16-pin rectangular plug with colored leads arranged in two offset rows. This connector will have tan, purple, grey, brown, green/black, and orange wires on the upper row; black, blue, red, yellow, and green on the lower.
Trace the harness from the plug upward behind the head unit–it routes directly into the vehicle’s main fuse box under the dash. If disconnecting, press the tab on the top of the plug while pulling straight back to avoid damaging pins.
Decoding Car Audio Harness Wire Colors for Seamless Head Unit Upgrades
Locate the constant power wire first–typically yellow in OEM harnesses–supplies uninterrupted 12V regardless of ignition state. Verify with a multimeter: voltage should remain steady when ignition is off. Failure to connect this correctly will drain the battery overnight. For safety, fuse this wire at 10A near the battery if extending beyond original length.
Critical Wire Functions and Common Color Codes
- Red (switched power) – Activates with ignition; use for memory retention features like station presets.
- Black (ground) – Must attach to factory grounding point for noise reduction; never splice into chassis paint.
- Blue/white (remote turn-on) – Triggers amplifier or powered antennas; 12V signal when head unit powers on.
- Orange/white (illumination) – Dims display in sync with dashboard lights; cut and cap if not needed.
- Gray and green (front speakers) – Right (+) and left (+); mates to respective aftermarket stereo outputs.
- Purple and white (rear speakers) – Right (+) and left (+); confirm polarity with a 1.5V AA battery–positive wire will push cone outward.
For vehicles pre-wired with premium sound systems, identify the brown (data bus) or violet/black (speed-sensitive volume) wires. These require adapters like Metra AX-TOY11 for integration; bypassing them causes erratic behavior or complete audio failure. Always disconnect the negative terminal before probing connections to avoid short circuits.
Dual-filament wiring (solid vs. striped) indicates polarity distinctions. Solid hues (yellow, red) usually denote positive leads, while striped variants (yellow/black, red/white) serve as grounds or secondary signals. Terminating a wrong pair reverses speaker phase, creating hollow sound or cancelation effects. Use a 9V battery test on speaker wires–consistent cone movement confirms correct mating before final soldering or crimping.
Step-by-Step Process for Connecting Power Leads to the Original Harness
Identify the constant 12V feed (yellow) and ignition-switched lead (red) on the OE harness connector first. Use a multimeter set to DC volts; probe the socket with the key off to locate the yellow wire, then turn the key to ACC to confirm the red lead reads system voltage. Solder these to the corresponding aftermarket unit’s power pins–yellow to the permanent input, red to the switched input–ensuring a heat-shrink sleeve covers each joint to prevent short circuits. Ground the chassis lead (black) by scraping paint from a nearby metal surface, securing it with a self-tapping screw and star washer for corrosion resistance.
| OE Connector Pin | Function | Aftermarket Match | Verification Method |
|---|---|---|---|
| Yellow | Constant power | Battery (+) input | Key off: 12V+ reading |
| Red | Switched power | Ignition input | Key in ACC: 12V+ |
| Black | Chassis return | Ground terminal | Continuity test |
Tape unused OE leads–such as illumination (orange) or amplifier triggers–to the main harness bundle using high-quality electrical tape rated for automotive temperatures, preventing stray contact. Confirm all connections with the multimeter before reassembling dash panels to avoid backtracking.
