For standard 120V household installations, connect the hot lead (black or red) to the brass terminal, the neutral conductor (white) to the silver terminal, and the grounding path (green or bare) to the green screw. This configuration ensures proper load distribution and safety compliance–deviations risk tripping breakers or overheating.
When working with split-phase systems (240V), the red and black strands carry the load, while the neutral balances current between phases. Omitting the neutral in 240V applications (e.g., dryers or ovens) requires a double-pole breaker rated for 30A or higher, depending on the appliance’s demand. Verify local codes–some regions mandate neutral inclusion for future-proofing.
Test continuity before energizing: use a multimeter to confirm zero ohms between neutral and ground at the outlet, and 120V between hot and neutral. For GFCI/AFCI protection, install the device at the first outlet in the run, connecting downstream loads to the “load” terminals. Incorrect polarity–especially swapping neutral and ground–can damage sensitive electronics.

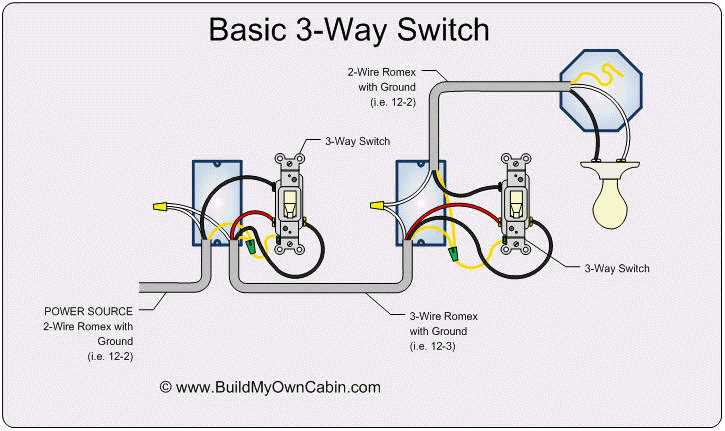

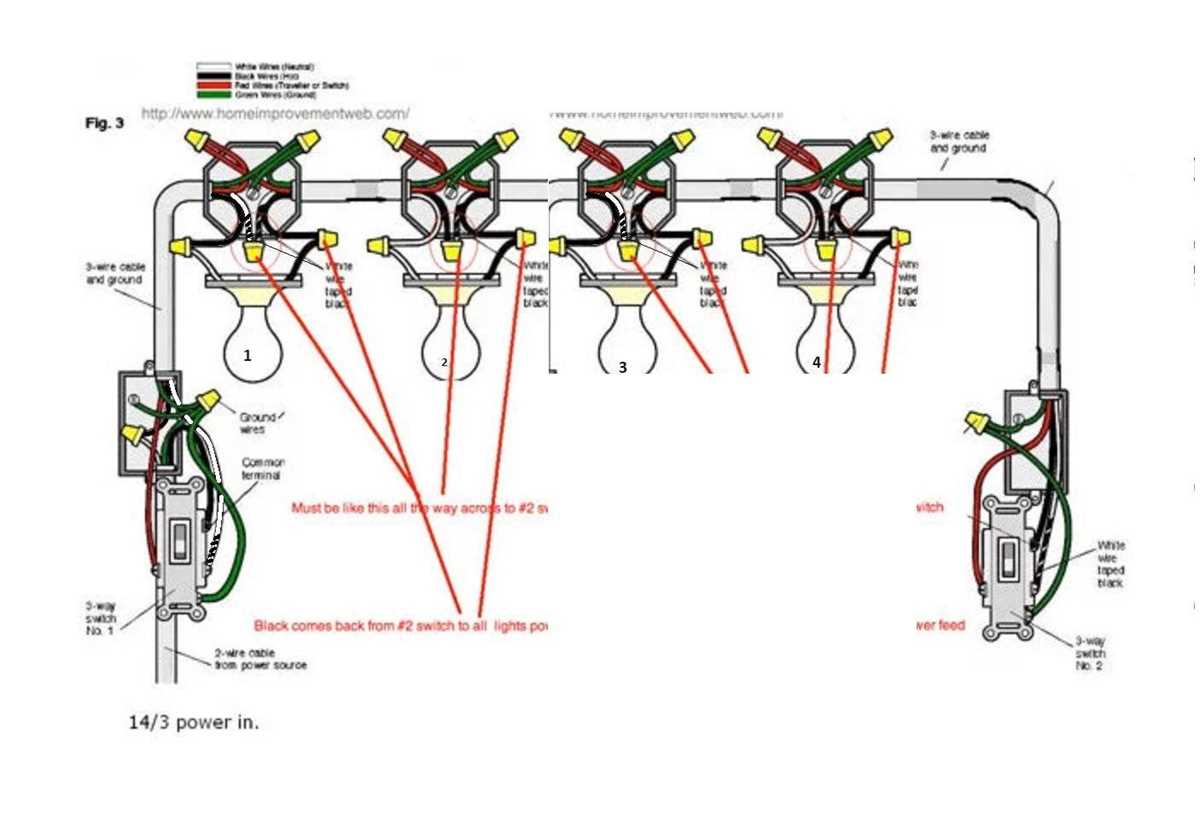

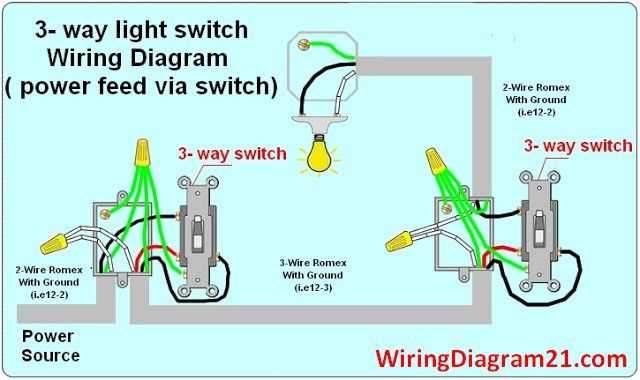

In three-way switching setups, the traveler cables (red and black) link switches, while the common terminal (black on one switch, brass on the other) handles the load. Label each conductor before disconnecting to avoid errors during reinstallation. Metal junction boxes require grounding; plastic boxes need no grounding but check local amendments if used in damp locations.
How to Connect a Three-Conductor Setup Safely
Start by identifying the hot (typically black or red), neutral (white), and ground (green or bare) leads in your circuit. Use a multimeter to verify voltage between the hot and neutral–it should read ~120V AC for standard residential installations. If working with 240V circuits, confirm the hot leads measure ~240V across both conductors, not to ground. Secure connections with UL-listed twist-on connectors, ensuring no exposed strands extend beyond the cap. For terminal blocks, loop conductors clockwise around screws to prevent loosening under load.
Always de-energize the circuit at the breaker before handling connections. Test for current with a non-contact voltage detector as an additional precaution. When routing cables through studs or joists, maintain a 1.25-inch clearance from the edge to avoid damage from drywall screws or nails. In junction boxes, leave at least 6 inches of slack to allow for future repairs. Label each conductor at both ends to avoid miswiring during troubleshooting or upgrades.
Key Elements of a Three-Conductor Setup
Begin by identifying the three core strands in the configuration: the live feed (typically black or red), the neutral return (white or gray), and the grounding path (green or bare copper). Prioritize verifying these strands match their designated terminals before energizing the loop, as mismatches risk overheating or shorting. Use a multimeter to confirm the live strand reads ~120V AC relative to the neutral when the circuit is active, while the grounding path should show negligible voltage.
Select connectors rated for the application’s load capacity–common household branches handle 15A at 120V, but dedicated appliance circuits demand heavier 20A or 30A variants. Avoid twisting strands under screw terminals; instead, form a hook to wrap clockwise around the post, tightening securely with a torque screwdriver to prevent loosening over time. For outlets, the live strand connects to the brass screw, neutral to silver, and ground to green.
Implement fuses or breakers sized precisely to the conductor’s ampacity–14-gauge strands tolerate 15A, 12-gauge handles 20A, and 10-gauge accommodates 30A. Exceeding these thresholds degrades insulation or triggers fires. When splicing, employ crimp connectors or solder with shrink tubing rather than electrical tape, ensuring no exposed metal remains. Test splices with a pull gauge to confirm mechanical strength.
- Live feed: Black or red insulation, energized at ~120V.
- Neutral return: White or gray, carries current back to the panel.
- Grounding path: Green or bare, safety discharge route.
Outlets in split configurations (e.g., duplex receptacles fed by two separate live strands) require a bridge tab removal between brass screws to isolate circuits. Label each live strand at the panel with its corresponding branch to streamline troubleshooting. For switches, the live strand enters the top terminal, while the switched live exits the bottom to the load–never reverse these.
In GFCI-protected zones (kitchens, bathrooms, outdoor), connect the load terminals exclusively to downstream outlets requiring protection. Miswiring a GFCI by reversing line and load inputs voids its protective function. Verify operation by pressing the “Test” button monthly, ensuring the “Reset” restores power. For three-way switches, travelers (red or black) must connect only to the switch terminals, not to load or neutral strands.
Step-by-Step Guide to Sketching a Three-Conductor Schematic
Begin by selecting a standardized symbol set for your layout. Use a horizontal line to represent the main power feed (live conductor), a dashed line for the return path (neutral), and a curved line for the safety ground. Ensure symbols are consistent–ANSI or IEC standards work best for clarity. Label each path immediately to avoid confusion later.
Map the circuit’s primary components first. Place the power source (e.g., breaker panel) on the left, followed by the load (e.g., switch, outlet, or fixture) on the right. The ground link should connect directly from the load to the source’s grounding terminal–never through the switch. Verify spacing: 1.5x the component’s width between elements prevents crowding.
| Conductor | Symbol | Color Code (Typical) | Terminal Marking |
|---|---|---|---|
| Live | Solid line | Red/Black | L or Line |
| Neutral | Dashed line | White/Blue | N |
| Ground | Curved line | Green/Yellow | G or Earth |
Trace the live path first. Draw a solid line from the source’s L terminal through the switch, then to the load’s positive terminal. If the switch interrupts the circuit, the line must show an open gap when off. Neutrals bypass switches–dashed lines connect directly from the source’s N terminal to the load’s common terminal.
For switches, use a T-shaped junction symbol. The horizontal top represents the incoming/outgoing live path; the vertical stem connects to the ground plane if a pilot light is present. Avoid diagonal connections–stick to 90° angles for readability. Grounds merge at a single point, typically at the source’s grounding bus.
Add annotations for amperage ratings, conductor gauge (e.g., 14 AWG for 15A circuits), and breaker size. Use arrows to indicate current flow direction–always clockwise from the source. Double-check polarity: reversals can fry equipment or create hazards. Include a legend if multiple voltages (e.g., 120V vs. 240V) share the same sketch.
Test your schematic with a highlighter. Color-code each path: red for live, blue for neutral, yellow for ground. Follow the paths–if highlighter skips a segment, the circuit’s broken. Grounds should never feed back into a switch or load; they terminate exclusively at the source or a dedicated ground rod.
Finalize with a cross-check against local codes. Ensure AFCI or GFCI devices are present if required (e.g., kitchens, outdoor setups). Save in vector format (e.g., SVG) for scalability–raster images distort on enlargement. Print at 300 DPI if hardcopy is needed.
Common Mistakes to Avoid When Setting Up a Three-Conductor Setup
Mixing phase and neutral leads is a frequent error that causes immediate short circuits or tripped breakers. Verify each conductor’s role with a multimeter before making connections–hot (typically black or red) should read ~120V against ground, neutral (white) near 0V, and ground (green/bare) must show no voltage. Labeling conductors at both ends prevents misidentification during installation.
Omitting or improperly securing grounding routing invites hazards. Ensure the green or bare conductor connects directly to the metal enclosure or grounding busbar, never to a neutral terminal. Cut strands or loose clamps increase resistance, reducing fault current paths. Use crimp lugs or approved connectors; twist-and-tape methods fail under load.
Incorrect Conductor Sizing
Undersizing conductors based on load assumptions risks overheating. Reference NEC Table 310.16: 14 AWG for 15A circuits, 12 AWG for 20A. Aluminum conductors require a size larger than copper for equivalent amperage. Thermoplastic insulation degrades at sustained temperatures above 60°C–factor ambient heat sources like motors or lighting.
Reversing polarity at outlets or switches disrupts device function and creates shock risks. Test receptacles with a plug-in tester: two yellow lights indicate correct polarity, one red signals hot/neutral swap. For switches, confirm the hot lead attaches to the brass screw, neutral to silver, and ground to green–never substitute neutral for ground even in retrofit scenarios.
Ignoring local code variations leads to failed inspections. Some jurisdictions prohibit shared neutrals in multi-wire branch circuits without handle ties; others mandate AFCI protection for bedroom circuits. Document conductor lengths for voltage drop calculations–max 3% for branch circuits, 5% total from service panel to farthest outlet.
How to Test and Troubleshoot a 3-Conductor Link
Start by verifying continuity between the hot lead and neutral with a multimeter set to the lowest resistance range. A reading near zero ohms confirms an intact path; any significant resistance indicates a break or corrosion. Check the live conductor to ground next–expected values should mirror the neutral-to-ground bond, typically under 1 Ohm in residential setups.
Inspect the insulation integrity by measuring leakage current. Set the meter to AC voltage mode (200V or higher) and probe each conductor against the grounding terminal. Any voltage above 3V suggests compromised shielding or moisture ingress; isolate and reinsulate the affected segment immediately.
Load-test the circuit with a known resistance, such as a 100W incandescent bulb. Voltage at the load should drop no more than 5% from the source–greater sag points to inadequate sizing, loose terminals, or excessive length. Compare phase-to-neutral and phase-to-ground voltages under load; discrepancies hint at faulty bonding or neutral return issues.
Check polarity by probing the live conductor to ground–expected voltage should match the system’s nominal (120V/230V). Reverse polarity, detected when the neutral reads live voltage, mandates immediate correction to prevent overheating or appliance damage. Confirm the grounding terminal carries no voltage; any potential here violates safety standards.
Use a non-contact tester to scan for inadvertent energization along the run. Sweep slowly near connectors and junction points; false positives can occur near inductive loads, so cross-validate with a multimeter. Hotspots detected this way often trace to nicked insulation or misaligned staples–mark and repair them without delay.
Measure impedance on DC circuits (if applicable) with the meter in diode test mode. A low-impedance path (under 0.5V drop) verifies proper semiconductor junctions; higher values signal failed components or open circuits. For AC systems, assess inductive reactance by connecting a small motor–excessive hum or slow startup reveals weak magnetization.
Document every measurement, noting ambient conditions (temperature, humidity). Re-test after repairs to ensure consistency; inconsistencies between readings suggest intermittent faults or overlooked defects. Replace any connector exhibiting thermal discoloration, as it indicates past overheating and degraded reliability.
