Start with a DC power supply rated for 12 volts–ensure it delivers at least 500 mA to prevent dropout during operation. Use 18 AWG stranded copper wire for the control circuit; thinner gauges increase resistance and may cause insufficient opening force. Position the actuator’s two terminals at least 10 mm apart to avoid arcing under inductive loads. Always include a flyback diode (1N4007) in antiparallel to the coil; this protects the switching transistor or relay from voltage spikes up to 1 kV. Verify polarity by checking the arrow on the diode–it must point toward the positive line.
For manual switching, a single-pole toggle rated for 3 A minimum is sufficient. If automating, drive the circuit with an NPN transistor (2N2222) or a logic-level MOSFET (IRLZ44N); gate current should be limited to 10 mA to avoid exceeding the MCU’s sink capacity. Add a 10 kΩ pull-down resistor on the gate to prevent floating states. Test continuity with a multimeter after wiring–resistance across the coil should read 25–40 Ω; higher values indicate a dry joint or damaged winding.
Ground the negative side of the supply to the engine block or chassis if the application involves fluid control in vehicles. For standalone setups, use a star-ground configuration to minimize noise. Place the diode as close to the coil terminals as possible–lead length beyond 30 mm reduces protection efficiency. If PWM control is needed, keep the switching frequency below 1 kHz to avoid eddy-current losses; above this threshold, response time degrades noticeably.

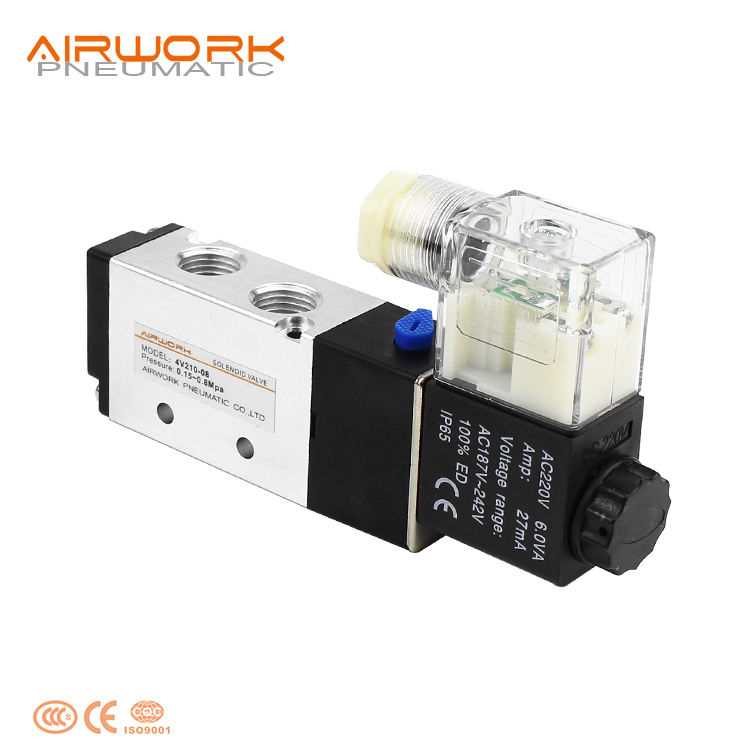

How to Connect an Electromagnetic Flow Controller in Low-Voltage Systems
Start with a dual-color cable: red for the positive lead and black for the ground. Strip 8–10 mm of insulation from each end to expose the copper strands, ensuring no frayed wires remain. Twist the strands tightly to prevent short circuits during operation. Use heat shrink tubing or electrical tape to seal the connections after crimping to terminal spade lugs.
Selecting the Right Switching Mechanism
MOSFET switches handle 10–15 amps continuous current with minimal voltage drop, making them ideal for pulsed or constant activation. For mechanical control, a single-pole single-throw relay rated at 30 amps (DC) provides isolation between the control circuit and the power source. Verify the coil resistance of the relay–typically 50–120 ohms–to ensure compatibility with your power supply’s output.
Fuse protection is non-negotiable. Place a 5-amp slow-blow fuse directly on the positive line, as close to the power source as possible. This prevents overheating in the event of a stalled actuator or short circuit. For lithium-ion or lead-acid batteries, include a diode with a 1N4007 rating to block reverse current that could damage sensitive components.
Test continuity with a multimeter before final assembly. Set the meter to resistance mode (Ω) and probe the actuator’s terminals–the reading should be between 10 and 50 ohms, depending on the model. If the value exceeds 100 ohms, the coil may be faulty. After confirming resistance, apply a brief 9–15 VDC pulse (less than 2 seconds) to verify movement–audible clicking confirms proper operation.
Common Pitfalls and Preventive Measures
Condensation inside the actuator can cause corrosion on the brass or stainless steel internals. Apply a thin layer of dielectric grease to the exposed metal parts during assembly to repel moisture. Avoid silicone-based lubricants, which degrade rubber seals over time. For outdoor installations, mount the unit vertically with the inlet at the bottom to prevent water ingress.
Voltage spikes from inductive loads (like pumps or compressors on the same circuit) can damage the switching transistor or relay. Install a flyback diode (1N4007) across the actuator’s terminals, cathode to positive, to absorb these spikes. For high-frequency switching (>5 Hz), replace the diode with a varistor (250 VDC) to handle rapid transient suppression.
Keep wiring runs under 3 meters to minimize voltage drop–use 18 AWG wire for distances up to 1 meter, 16 AWG for 1–2 meters, and 14 AWG for longer runs. For mobile applications (e.g., automotive or marine), use tinned copper wire to resist corrosion. Secure connections with crimp connectors and solder them for added reliability, especially in high-vibration environments.
How to Connect an Electromagnetic Flow Control Device to a Low-Voltage Power Source
Begin by verifying the coil’s resistance with a multimeter. Most small actuators designed for direct current operate between 10–50 ohms. Values outside this range indicate damage or incorrect specifications–replace if necessary.

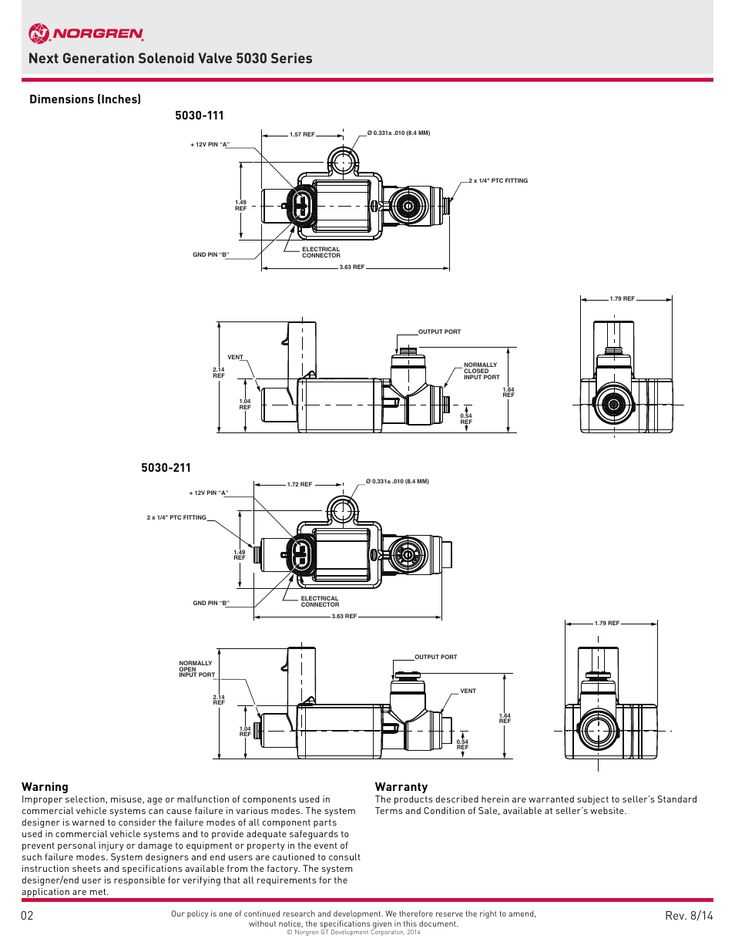

Identify the positive and negative terminals on the actuator housing. These are typically marked (+) and (–), or distinguished by different wire colors: red for live, black or blue for return. If markings are absent, consult the manufacturer’s datasheet–generic assumptions risk reverse polarity, which may reduce lifespan or prevent activation.
- Cut power to the circuit before making any connections.
- Strip 5–7 mm of insulation from each wire end.
- Twist copper strands tightly to prevent fraying.
Attach the live wire to a switch or relay capable of handling the actuator’s inrush current. Smaller units draw 0.5–1.5 amperes during pull-in, spiking briefly before stabilizing. Ensure the switch rating exceeds this value by at least 30%. Secure connections with solder or insulated crimp connectors–loose contact generates heat and unreliable operation.
Ground the return wire directly to the power supply’s negative terminal. Avoid using chassis ground unless confirmed safe for the system; some low-voltage setups suffer from voltage drop across poor chassis paths, leading to intermittent failure. For battery-powered installations, calculate total amp-hour capacity: a 5Ah battery sustains a 0.8A draw for approximately 6 hours before requiring recharge.
Testing the Assembly
- Reconnect power and activate the switch.
- Listen for a sharp click–audible confirmation of proper actuation.
- Measure voltage across the coil during activation; expect near-source values (within 0.2V) if wiring is correct.
- Check for warmth–ideal operating temperature should remain below 40°C.

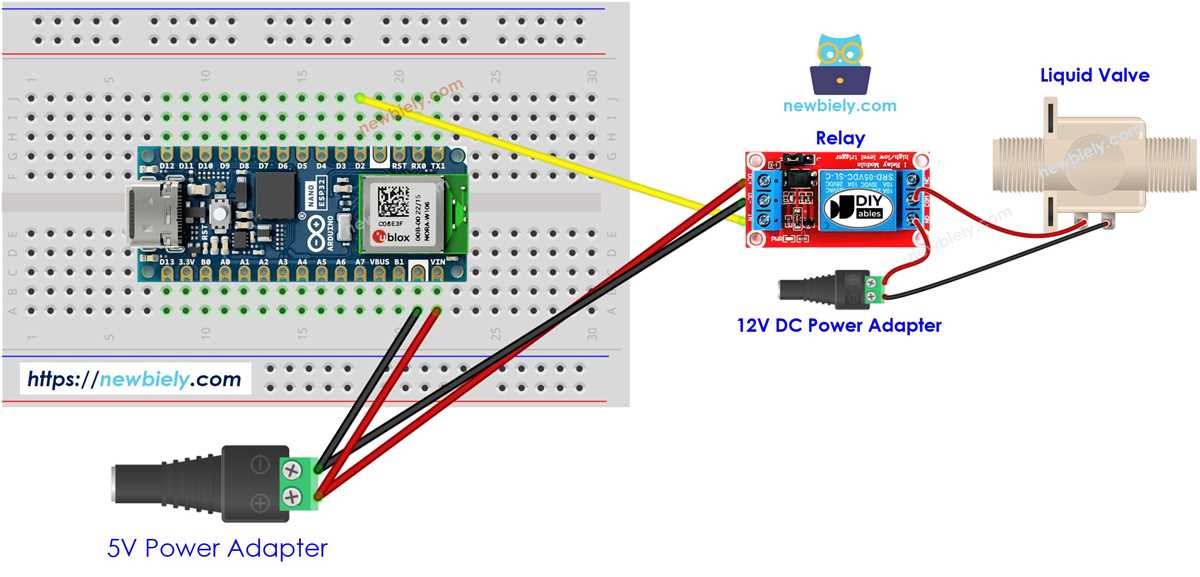

For remote or automated control, integrate a microcontroller or timer module. Use a dedicated transistor (e.g., TIP120) or MOSFET (IRF540) to handle switching; direct microcontroller outputs lack sufficient current capacity. Add a flyback diode (1N4007) across the coil terminals to absorb inductive spikes–omission risks damaging the switching device within minutes.
Common Pitfalls in Connecting an Electromagnetic Flow Control Device
Using incorrect gauge wire ranks among the most frequent errors. A 1.5mm² conductor may suffice for short runs under 2 meters, but longer distances demand at least 2.5mm² to prevent voltage drop. Verify the manufacturer’s specifications–some actuators require stranded copper cores for flexibility under vibration.
Skipping flyback diode protection guarantees premature failure. The inductive load from a coil generates a high-voltage spike when de-energized, easily exceeding 100V. Install a 1N4007 diode across the terminals, cathode to positive, to clamp transients below 1V. Reverse polarity here destroys the control unit instantly.
Misjudging power supply capacity leads to erratic operation. A 3A source seems adequate for a 2A actuator, but startup surges can draw 4-6A for 50ms. Use a supply rated for 150% of the steady-state current, or add a 2200µF electrolytic capacitor to buffer inrush current.
- Over-tightening conduit fittings crushes conductor insulation, causing shorts under pressure.
- Exposing connections to moisture without IP67-rated splices invites corrosion within weeks.
- Ignoring ambient temperature derating–conductors rated at 75°C lose 20% current capacity at 50°C.
Incorrectly mixing solid and stranded wires in terminal blocks creates loose connections. Solid cores deform under torque, while stranded cores splay, increasing resistance over time. Tin stranded ends with rosin flux to prevent oxidation and ensure uniform clamping.
Relying on relay contacts rated for resistive loads when switching an inductive actuator invites welding. Use relays with DC1 or DC3 ratings, ensuring 30% headroom on both voltage and current. For frequent cycling, solid-state relays with zero-crossing turn-off prevent arcing entirely.
Grounding both the actuator body and control circuit to the same point introduces noise. Separate the control ground (signal return) from the chassis ground, keeping them joined at a single star point. This prevents ground loops that induce 50Hz interference into sensor readings.
Assuming linearity in response time ignores thermal lag. A cold actuator may take 80ms to actuate, while a warm one responds in 40ms. For precision timing, allow a 30-minute warm-up period or implement closed-loop feedback with a Hall-effect sensor to detect actual movement.
Required Tools and Components for Electromagnetic Actuator Setup
Begin with a multimeter calibrated for DC voltage measurements between 0–20V to verify proper circuit activation before connections. Select wire strippers with a 16–22 AWG range to match the cross-section of most low-voltage control lines. Include a crimping tool for insulated terminals if splicing is required–avoid soldering near heat-sensitive components to prevent damage.
| Tool/Component | Specification | Purpose |
|---|---|---|
| Terminal connectors | Blade or ring, 16–18 AWG | Secure attachment to power source and actuator |
| Inline fuse holder | 10A, 250V | Overcurrent protection |
| Switch or relay | SPST, 15A rating | Manual or remote circuit control |
| Heat-shrink tubing | 3:1 ratio, 4mm diameter | Insulate splices and prevent shorts |
Ensure the power supply delivers a stable 13.8V output if no voltage regulator is used–fluctuations above 14.4V risk overheating coils. For remote installations, add a small junction box with IP65 rating to shield connections from moisture. Test coil resistance beforehand; typical values range between 12–25 ohms. If integrating into existing systems, confirm compatibility with pulse-width modulation signals to avoid erratic operation.
