Use a TRS (tip-ring-sleeve) connector for reliable left-right audio transmission. Ground the sleeve terminal to the shielding braid of the lead to minimize interference. Wire the tip and ring to the left and right signal conductors–polarity doesn’t affect functionality but consistent labeling prevents confusion during connections.
Measure resistance between each pin before applying voltage to confirm no shorts exist. Solder joints should be insulated with heat-shrink tubing to prevent accidental contact. A 1 kΩ resistor in series with each signal line can act as a basic overcurrent safeguard for sensitive devices.
For testing, use a multimeter in continuity mode–set probes on the tip-ring contacts and check for a clear beep on both channels. If distortion occurs, verify solder quality and shielding integrity. Avoid twisting signal wires around the ground braid, as this can induce hum under certain conditions.
Trim excess wire length to reduce capacitance effects, which can muddy high frequencies. Shielded leads exceeding 2 meters should use thicker gauge conductors (e.g., 24 AWG) to maintain signal integrity. If soldering to a PCB, ensure traces have sufficient width for current load–typically 0.5 mm for low-power audio paths.
Label each connector end clearly: “L,” “R,” and “GND.” This prevents wiring errors when adapting connections for splitters, adapters, or multi-channel setups. For temporary connections, crimp connectors offer faster assembly but soldering remains the most reliable for permanent use.
How to Connect a TRS Audio Connector Correctly

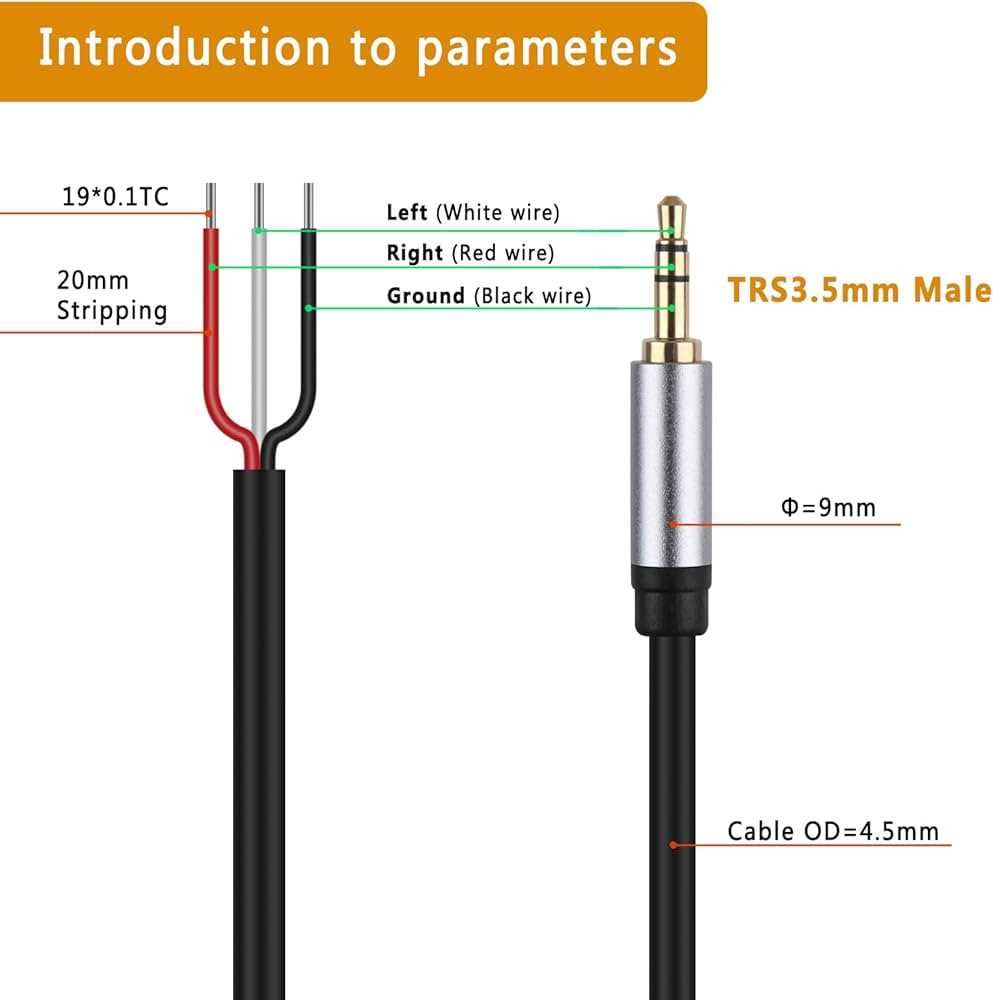

Begin by identifying the bare wires of your stereo lead: the tip (left channel), ring (right channel), and sleeve (ground). Use a multimeter in continuity mode to confirm each conductor’s function–measure between the plug’s contacts and the stripped ends. For most standard 3.5mm jacks, left is the first segment from the plug’s tip, right follows, and ground is the longest outer portion. Label them immediately with heat-shrink tubing or masking tape to avoid mistakes during soldering.
Step-by-Step Attachment Process
Secure the connector housing open, exposing the three solder points. Trim wire insulation back 3–4mm, twist strands tightly, and tin each end with solder to prevent fraying. Apply heat to the connector’s terminals first, then touch the tinned wire to bond–avoid excessive heat to prevent melting adjacent insulation. Check for shorts between channels and ground with the multimeter before closing the housing. A faulty connection often causes distorted audio or mono playback.
| Wire Color | Function | Solder Point | Testing Method |
|---|---|---|---|
| Red/White stripe | Left channel | Tip contact | Continuity to plug tip |
| White/Green stripe | Right channel | Ring contact | Continuity to plug ring |
| Unshielded bare wire | Common ground | Sleeve contact | Continuity to plug sleeve |
Insulate each joint with electrical tape or liquid insulator before reassembling the connector. If the connection feels loose after soldering, reinforce it with a small zip tie around the jacket near the strain relief. Keep the lead away from power sources during use–induction noise can introduce audible hum. Replace any connectors showing oxidation on the contacts; even slight corrosion disrupts signal integrity.
Troubleshooting Common Issues
If audio cuts out intermittently, resolder the ground connection–this is the most frequent failure point. Channels swapping sides indicates misaligned left/right wires; reheat joints and realign. No sound at all usually意味着 broken conductor, test each wire with probes touching connector and device jack simultaneously. For persistent noise, add a ferrite choke near the jack to suppress interference from nearby electronics.
How to Distinguish Conductors in a Standard TRS Audio Connection
Begin by inspecting the connector’s sleeve, tip, and ring–these correspond to ground, left, and right channels respectively. Most manufacturers color-code the internal strands: shield (bare copper or tinned) for ground, white or transparent insulation for left, and red for right. Cut back 1 cm of outer jacket to expose individual conductors if colors are unclear.
If visual inspection fails, use a multimeter in continuity mode. Touch the ground pin of the plug’s sleeve to the exposed shield braid–it should register 0 ohms. Probe the tip and ring: each should connect to a separate wire, typically showing 10-50 ohms resistance to ground through the audio source. Higher readings suggest damaged conductors or loose solder joints.
- Oxidation on copper strands can skew readings–clean conductors with fine-grit sandpaper before testing.
- Some cables invert channel assignments; verify with a known audio track before permanent installation.
- Miniature test clips avoid accidentally shorting adjacent contacts during measurement.
For cables lacking color differentiation, strip 2 mm of insulation from each wire. The one connected to the sleeve terminal will feel slightly thicker due to shield braiding. The remaining two will be similar gauge–assign left to the tip contact (closest to connector body) and right to the ring (middle section) based on standard TRS pinouts.
Field repairs demand precise identification: swap left/right assignment risks miswiring amplifiers or balanced signals. If soldering, use 60/40 rosin-core solder (0.5 mm diameter) to avoid overheating thin conductors. Apply heat no longer than 3 seconds–excessive temperature degrades copper’s tensile strength and insulation melt resistance.
Common Missteps and Solutions
- A single wire showing continuity to both tip and ring indicates a short–separate strands, re-strip, and re-test.
- No continuity on either channel suggests a severed conductor; replace the cable–repairing individual strands rarely restores full signal integrity.
- Inconsistent resistance readings (e.g., fluctuating between 5 and 50 ohms) point to intermittent connections caused by internal fraying–discard compromised cables immediately.
For unshielded variants (rare but found in proprietary designs), the ground conductor may be wrapped in a thin polyester layer instead of foil. These require amplified testing signals–use a 1 kHz sine wave generator to visually confirm waveform symmetry between channels before finalizing connections.
Essential Equipment for Constructing a Three-Conductor Audio Link
Begin with a precision soldering iron rated between 25–40 watts. Adjustable temperature models prevent heat damage to insulation or connectors; a 30-watt station with a fine conical tip ensures minimal thermal spread when attaching terminals. Pair this with rosin-core solder–60/40 tin-lead alloy or lead-free SAC305–measuring 0.5–0.8 mm in diameter to maintain accuracy without bridging contacts. Include a stand with a brass wool cleaner for removing oxidation mid-operation and a third-hand tool fitted with silicone-coated jaws to secure fragile strands during assembly.
Shielded three-strand conductor sets require specific specifications: 22–28 AWG stranded copper cores with individual PVC or Teflon jackets in color-coded pairs–red, white, and bare copper braid. Verify shield coverage exceeds 90% and tensile strength meets 10 kg minimum before committing to termination. Use a digital multimeter to confirm continuity and absence of shorts; resistance should remain below 0.1 ohms per meter for optimal signal fidelity. Pre-cut lengths to 1.5 times the intended run to accommodate stress relief loops during connector attachment.
A wire stripper calibrated for 18–28 AWG eliminates nicking strands–choose a model with v-shaped notches for clean cuts without crushing conductors. For connector termination, select nickel-plated RCA plugs with screw-on collars or gold-plated 3.5 mm TRS jacks rated for 1.2 A and 24 V continuous operation. Needle-nose pliers with serrated jaws improve grip on slippery insulation while heat-shrink tubing (polyolefin, 2:1 shrink ratio, 3 mm diameter) provides strain relief and moisture resistance post-soldering. Flux remover spray or 99% isopropyl alcohol cleans residue without corroding surfaces.
How to Assemble a Three-Conductor Audio Cord: Soldering Instructions
Strip 5mm of insulation from each end of the signal conductors and ground using a precision knife–apply light pressure to avoid nicking copper strands. Twist exposed wires tightly (10–12 turns) and coat with rosin flux before soldering; this prevents oxidation and ensures adhesion. Heat the joint with a 30W iron for 2–3 seconds before applying 0.5mm solder–excess heat weakens insulation integrity and risks shorting adjacent channels.
Connect left (typically white or blue) and right (red or yellow) channels to the corresponding 3.5mm plug terminals: left to tip, right to ring. Anchor the shield (bare or tinned copper) to the plug’s sleeve–crimp it firmly around the base before soldering to maintain strain relief. Verify continuity with a multimeter; resistance should read <1Ω for each path and >1MΩ between channels and ground. Test under 50g tensile load–faulty joints often fail here before audio signal issues appear.
Encapsulate soldered joints with heat-shrink tubing (3:1 ratio). Use a heat gun at 120°C for 15 seconds–avoid direct flame to prevent melting insulation. Coat the entire plug assembly with non-conductive epoxy resin if deploying in high-vibration environments (e.g., automotive mounts). Trim stray strands with ceramic shears–metal fragments conduct stray current and degrade signal-to-noise ratio.
