Start by identifying the common terminals on your component–these are typically marked as COM or C. Each pole will have a pair of normally open (NO) and normally closed (NC) contacts. For a standard automotive or industrial setup, connect the power source directly to the common terminals. Ensure the current rating of the contacts matches or exceeds the load; most 20A-rated variants handle up to 300W without overheating.

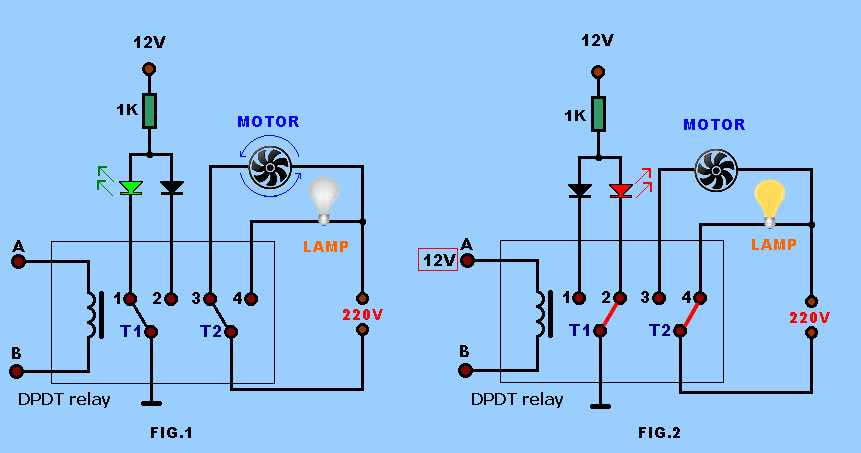

Wire the load to the NO contacts for momentary switching or to the NC contacts if the device should remain powered when the coil is de-energized. For polarity reversal–common in motor controls–attach one load terminal to the NO contact of the first pole and the other to the NC contact of the second pole. Ground the coil’s negative side to the chassis or a dedicated return path. Avoid sharing ground paths with high-current loads to prevent voltage spikes from interfering with sensitive electronics.
Use a flyback diode (1N4007) across the coil terminals, cathode to the positive side, to suppress inductive voltage spikes when the control signal cuts off. For PWM-controlled applications, add a snubber circuit (0.1µF capacitor + 100Ω resistor in series) to reduce contact arcing. Test continuity with a multimeter before applying power–miswired contacts can short the supply or leave loads permanently disconnected.

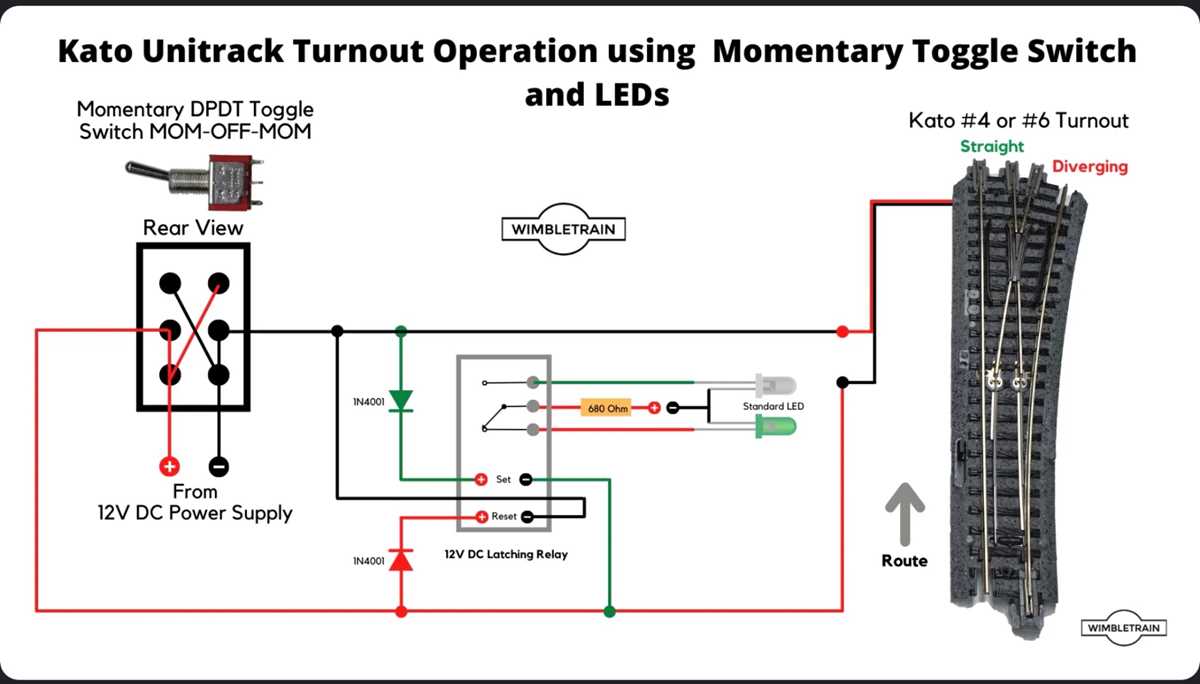

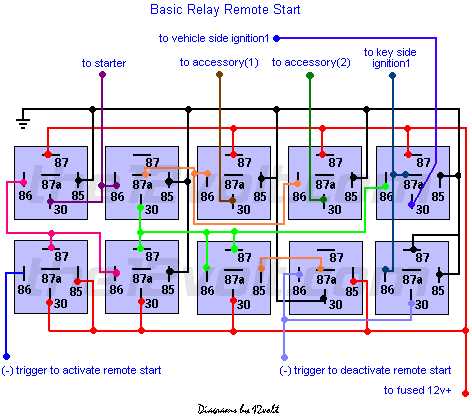

For latching configurations, combine two components: energize the first to set the state, then trigger the second to reset it. This eliminates the need for continuous coil power but requires a dual-coil design or mechanical latching type. In high-vibration environments, secure all connections with crimped spade terminals or solder and heat-shrink tubing–loose wires cause intermittent failures.
When integrating with a microcontroller, add a low-side MOSFET (e.g., IRLZ44N) or optocoupler (PC817) to isolate the control signal from the high-current circuit. A 1kΩ resistor between the control output and the gate/base prevents floating inputs. For fail-safe operation, ensure the NC contacts default to a safe state (e.g., motor off, lights on) in case of coil failure.
Dual-Pole Double-Throw Switch Installation Guide
Connect the common terminals (middle pins) of your bistable component to the primary circuit using 18-gauge stranded copper wire for currents under 10A–opt for 16-gauge if exceeding 10A but staying below 15A. Solder joints at terminals to prevent oxidation and ensure stability during voltage spikes; heat-shrink tubing provides reliable insulation. Route wires away from sharp edges and high-temperature sources (e.g., engine components, exhaust manifolds) with a minimum 10mm clearance. For grounded applications, bond the negative coil terminal directly to the chassis using a star washer to penetrate surface coatings–avoid paint or powder-coated areas, as they increase resistance.
- Polarity-sensitive loads (e.g., motors, solenoids): Double-check coil and contact orientation before energizing–reverse polarity can damage components within milliseconds.
- Inductive loads (e.g., LEDs with drivers, relays): Install a flyback diode (1N4007) across the coil leads, cathode to positive, to suppress voltage transients.
- High-frequency switching (e.g., PWM signals): Use twisted-pair wiring between the control source and coil to reduce electromagnetic interference; shielded cable is mandatory above 5kHz.
- Noisy environments (e.g., automotive, industrial): Add a 0.1µF ceramic capacitor across the coil terminals to filter noise; for severe cases, pair with a 47µF electrolytic capacitor.
- Long wire runs (over 2 meters): Increase wire gauge by one size (e.g., 18→16AWG) to compensate for voltage drop–measure at load with a multimeter to confirm less than 3% loss.
Test the assembly with a 1kΩ resistor in series before connecting live loads. Verify operation using a continuity tester: the normally open (NO) contacts should close, and normally closed (NC) contacts should open when the coil is energized. For failsafe designs, wire critical paths through NC contacts–this ensures the circuit defaults to a safe state during power loss. In dual-coil bistable variants, parallel the coils with reverse polarity diodes to prevent back-EMF damage during simultaneous activation.
Connecting a Dual-Pole Double-Throw Switch: Practical Steps
Start by identifying the eight terminals on your component: two pairs of common pins (middle) flanked by normally closed (NC) and normally open (NO) contacts on each side. Label them temporarily with masking tape–mark the common terminals as C1 and C2, the NC contacts as NC1/NC2, and the NO contacts as NO1/NO2 to avoid confusion. Use a multimeter in continuity mode to verify each pair: probe between C1-NC1 and C1-NO1 to confirm the switch’s resting state (NC should register a connection, NO should not). Pre-stripped 18-gauge wire works best for low-current applications under 10A; for higher loads, upgrade to 16-gauge or thicker, ensuring all connections are crimped with insulated spade or ring terminals.
Secure the Circuit Safely
Attach the power source (nominal voltage) to the common terminal C1–this will feed the switched circuit when activated. Route the load wire to NO1 if you want the circuit to energize only when triggered, or to NC1 for a fail-safe configuration that breaks the circuit upon activation. For coil control, connect the activation signal (e.g., a momentary pushbutton or sensor output) between the coil terminals, observing polarity if the component is polarized–some coils require a diode across their terminals to suppress voltage spikes, oriented cathode-to-positive. Always test with a temporary fuse (1A for lightweight setups) before finalizing connections, and mount the switch in an enclosed junction box if exposed to moisture or vibration.
Common Pinout Configurations for Dual-Coil Polarized Switches
Start by identifying the coil terminals–these are typically marked as 85 and 86 (or A1 and A2 in some models). Apply power to these points to energize the mechanism; reversing polarity may reverse the switching action in latching variants. Always verify voltage tolerance (e.g., 10-15VDC) to prevent coil burnout.
For standard non-latching configurations, pins 1 and 6 (common) connect internally to 3 and 4 (normally closed) when de-energized. Upon activation, commons flip to 2 and 5 (normally open). Use a multimeter in continuity mode to confirm these states before integration. Below are verified pin assignments for three common layouts:
| Manufacturer | Coil (Activate) | Common (COM) | Normally Closed (NC) | Normally Open (NO) |
|---|---|---|---|---|
| Omron G2R | B1 (+), B2 (-) | 1, 12 | 4, 9 | 2, 11 |
| TE Connectivity V23079 | 8, 16 | 1, 7 | 3, 5 | 2, 6 |
| Panasonic JS | 1, 16 | 3, 14 | 4, 13 | 2, 15 |
Latching variants require a pulse to toggle states, eliminating the need for continuous power. Pins 10 (set) and 11 (reset) are standard in some series; short pulses (50-100ms) suffice. Avoid driving loads exceeding the contact rating–common limits are 10A at 125VAC or 15A at 28VDC. Exceeding these risks welded contacts.
For high-current applications, use pins 3-4 and 5-6 for separate circuits to distribute load. Add flyback diodes (1N4007) across coils to protect drive circuits from inductive spikes. If using a microcontroller, optoisolators (e.g., PC817) isolate logic levels from switching transients.
Miswiring can invert signal paths. Double-check polarity when integrating into existing setups–reversing inputs on a motor controller could reverse rotation unexpectedly. For time-delay applications, combine with a capacitor circuit (e.g., 470μF) to create a delay-on-make function.
Always refer to the datasheet for exact pin numbering–some manufacturers reverse the sequence of NO/NC pairs. Test with a 5V supply first to verify coil responsiveness before applying full voltage. Keep switching frequency below 1kHz to prevent contact chatter.
Controlling Motor Direction with a Dual-Switch Circuit Component
Connect the power source’s positive terminal to the common pins of both switch sections–typically labeled COM or center on the device’s datasheet. The outer pins of one switch will link to the motor’s forward terminals, while the opposite switch’s outer pins handle reverse polarity; ensure polarity flips by crossing connections (e.g., pin A to terminal B, pin B to terminal A). Use an 18-22 AWG wire for secure current transfer without excessive voltage drop, accounting for motor stall current–usually 1.5x the rated continuous load.
Signal Inputs and Protection Measures
Attach control signals to the coil terminals: one side to ground, the other to a microcontroller or toggle output, keeping voltage within the coil’s ±10% tolerance to avoid overheating. Insert a flyback diode (1N4007) across the coil with the cathode at the positive input to suppress inductive spikes–failure risks permanent damage to upstream electronics. For higher reliability, place a 0.1µF ceramic capacitor within 1cm of the coil pins to filter noise from switching transients.
Test rotation direction by applying 3-5V to each coil side sequentially. Verify polarity on multimeter before motor attachment; a miswire creates short circuits that may exceed fuse ratings. Lock tight terminals with ring lugs and apply silicone compound to prevent corrosion if used in variable conditions–humidity above 60% accelerates oxidation, reducing performance within weeks.
Diagnosing Faulty Switch Configurations in a Double-Pole Double-Throw Electromagnetic Component
Start by verifying coil excitation with a multimeter set to continuity mode. Probe the control terminals–if resistance exceeds 200Ω or reads infinite, the winding may be compromised. Replace the component if readings deviate significantly, as partial shorts cause erratic operation despite apparent responsiveness.
Inspect contact alignment using a flashlight. Misaligned or pitted contact points often fail to complete circuits despite proper coil activation. Clean with fine-grit abrasive if oxidation is visible, but avoid excessive sanding that removes plating. For persistent issues, substitute the unit–contact wear is irreversible.
Check load compatibility by measuring voltage drop across output terminals during operation. A drop exceeding 0.5V under rated current indicates excessive contact resistance or undersized conductors. Upgrade wiring gauge if currents exceed 5A, as undersized leads introduce heat and degrade performance.
- Common misconnections occur when polarity is reversed on control inputs. Reverse leads temporarily to test–if behavior flips, correct the original polarity marking.
- Intermittent failures often stem from loose terminal screws. Retighten all connections with calibrated torque (typically 0.8–1.2 Nm for standard terminals).
- Shorted output pairs indicate internal bridging. Verify pin configuration against datasheet–mismatched pinouts cause cross-connection even in correct external hookups.
Test under actual load conditions, not just continuity. Some faults manifest only under current draw. Use a resistive load matching the intended application–inductive loads (motors, solenoids) may require flyback diodes to prevent arcing damage.
If the switch operates only in one direction, coil polarity may be selective. Reverse control voltage leads to confirm directional dependency. For AC-controlled variants, phase issues can cause similar symptoms–validate supply line integrity.
Isolate the circuit completely before troubleshooting. Disconnect upstream power and downstream devices to rule out parallel path interference. Reconnect incrementally, observing behavior at each stage to pinpoint the failure point.
Record observations systematically: coil activation state, contact position, voltage at input/output terminals, and load response. Cross-reference with expected truth tables–deviations reveal miswired or failed internal paths. For persistent unresolved issues, substitute a known-good unit for comparison.
