Use a 4-pole isolator as the entry point for all three current pathways plus the neutral line. Connect the incoming conductors to the top terminals–L1, L2, L3, and N–ensuring each cable matches its designated slot. Secure every connection with a torque setting of 2.4 Nm to prevent loose contacts that could trip under full load.
The protector’s bottom terminals must feed directly into the downstream breaker panel. Label each outgoing wire with heat-shrink sleeves: red for line 1, yellow for line 2, blue for line 3, and black for neutral. Position the three-line unit no further than 3 meters from the main disconnect to comply with IEC 60364-4-43.
Install a 30 mA RCD upstream of the protector if the circuit supplies sensitive equipment like variable-speed drives or medical devices. Ground the enclosure to the earth bar using a 16 mm² copper conductor–omit this step only if the entire setup runs on a TN-S system.
Test every pathway with a clamp meter: expect line-to-line voltages of 400 V ±5% and line-to-neutral voltages of 230 V ±3%. If readings deviate, recheck torque values and verify that no conductor insulation extends into the terminal clamp.
Place arc fault detection devices in final circuits exceeding 10 A. Wire these units in series with the protector’s outputs, following the manufacturer’s overlay diagram to avoid nuisance trips during inrush currents.
Setting Up a Triple-Circuit Breaker: A Field-Ready Guide

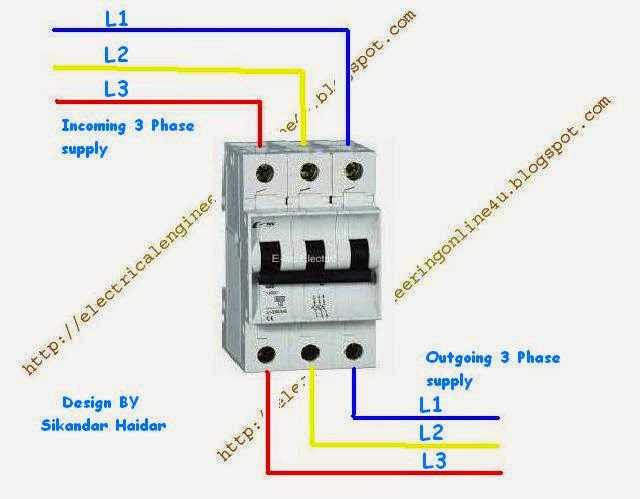

Begin by verifying the input terminals of the protective device match the supply voltage–typically 400V for industrial applications or 230V per line in dual-system setups. Connect each conductor to the corresponding breaker pole in sequence: L1 to the first, L2 to the second, and L3 to the third, ensuring no cross-connections. Use crimped ring terminals on wires 6mm² or thicker to prevent loosening under load; torque values should align with the manufacturer’s specifications (usually 2.5–3.5Nm for standard M6 screws).
Neutral handling depends on the system: in TN-S configurations, route it directly to the busbar; in TT setups, bond it to the local earth electrode via a 10mm² minimum conductor. Label each line with heat-shrink tubing or adhesive tags at both ends, noting the circuit identifier–mislabeling is a primary cause of downstream faults during maintenance. Before energizing, measure insulation resistance between each line and neutral/earth with a 500V megohmmeter; values below 1MΩ indicate compromised isolation requiring rewiring.
Overcurrent coordination requires selecting breaker ratings based on load characteristics: 16A for standard motors, 25A for resistive loads like heaters, and 63A for sub-distribution panels. Install arc fault detection (AFDD) devices upstream if the application involves sensitive electronics–ignoring this step increases fire risk in circuits exposed to transient spikes. Secure all connections in an IP4X-rated enclosure to prevent dust ingress; for outdoor use, upgrade to IP65 and apply dielectric grease to terminals to inhibit corrosion.
Critical Elements for a Three-Line Circuit Protector Setup
Select a breaker rated for 125% of the continuous load plus 100% of intermittent loads. For example, a 40A unit suits a system drawing 32A continuously, preventing nuisance trips while ensuring thermal protection. Verify the short-circuit interrupting capacity matches the fault current levels of the installation–typically 10kA for industrial settings or 6kA for commercial circuits.
Use 4-pole units for systems requiring neutral disconnection, particularly where unbalanced loads exceed 20% of line current. Neutral poles must match the conductor’s ampacity–never undersize, as overheating risks insulation failure. For earth leakage concerns, pair with a 300mA residual current device, but avoid combining both in a single enclosure unless specifically UL-listed for dual functionality.
Terminate conductors with torque values specified in the breaker’s documentation–typically 2.5Nm for 16mm² copper, 4.0Nm for 35mm². Over-tightening distorts contact plates, while under-tightening creates hotspots. Use finned lugs for aluminum conductors to mitigate creep and cold flow, replacing them every 5 years or after fault events.
Install arc fault detection if the system powers inductive loads (motors, transformers) or operates in environments with conductive dust. Test trip curves against manufacturer data: a 5x rated current should open the circuit within 0.02 seconds; deviations indicate worn contacts or miscalibration. Replace units failing this test–repairs are costlier than certified replacements.
Separate lines with independent isolation switches for maintenance, even if the protector includes a “OFF” position. Label each line clearly–”L1,” “L2,” “L3,” and neutral–using UV-resistant tags to prevent fading. For overhead installations, orient labels toward the access side to facilitate infrared scans without removing covers.
Ground the enclosure to the same busbar as the neutral, but only for TN-S systems. IT configurations require an isolated ground, with protective earth resistance below 1Ω. Verify bonding continuity with a 10A tester–readings above 0.5Ω demand immediate inspection of connections, particularly at expansion joints.
Store spare breakers in climate-controlled areas (15–25°C, 40–60% humidity) to prevent condensation inside mechanisms. Rotate stock every 3 years to avoid lubricant degradation, which increases trip times by up to 30%. Document each installation with thermal images within 48 hours of energization–baselines simplify troubleshooting later.
Step-by-Step Connection Guide for a Tri-Current Protective Device
Disconnect the main power supply before handling any conductors to prevent accidental energization. Identify the three live conductors, neutral (if applicable), and grounding wire using a multimeter–measure between each line and ground to confirm voltages match the system rating (typically 400V line-to-line for industrial setups). Label each wire with heat-shrinking tubing or color-coded tags: L1 (brown/red), L2 (black), L3 (grey/blue), N (light blue), and PE (green/yellow).
Terminal Preparation and Fixing
- Strip 10mm of insulation from each conductor using wire strippers–avoid nicking the copper strands.
- Insert the live conductors (L1, L2, L3) into the upper terminals of the protective unit, securing them with a torque screwdriver set to the manufacturer’s specified value (usually 2.0–2.5 Nm for 16–32A devices).
- Connect the neutral (if present) to its designated terminal, ensuring it’s separate from the grounding path.
- Attach the grounding wire to the PE terminal, verifying zero continuity resistance (<0.1Ω) between the grounding bar and the enclosure.
- For downstream loads, route the outgoing conductors from the lower terminals, maintaining the same phase sequence to prevent reverse rotation in motors.
After securing all connections, re-energize the system in stages. First, close the main isolator, then engage the protective device. Use a clamp meter to verify current balance across lines–deviation exceeding 10% may indicate loose connections or faulty components. Finally, perform a trip test by simulating an overload: activate the device’s test button or introduce a calibrated fault current (e.g., 1.5× rated current) and confirm disconnection within 0.2 seconds for type-C units. Document the setup with dated photographs for future reference.
Critical Errors in Three-Line Protective Device Installation
Misidentifying conductor polarity during connection leads to immediate system failure. Label L1, L2, and L3 terminals clearly before attaching cables, ensuring alignment matches the supply sequence. Swapped inputs cause equipment damage within seconds–verify polarity with a multimeter before energizing.
Underestimating short-circuit current ratings results in breaker trips at inopportune times. Calculate the prospective fault current by dividing supply voltage by total circuit impedance. Select a device with an interrupting capacity exceeding this value by at least 20%. A 10 kA breaker will fail under a 12 kA fault.
Overtightening terminal screws crushes conductor strands, increasing resistance and heat. Use a torque screwdriver set to the manufacturer’s specification–typically 2.0 Nm for 16 mm² copper. Loose connections cause arcing; tight connections exceeding 2.5 Nm deform strands.
| Conductor Size (mm²) | Recommended Torque (Nm) | Maximum Tolerance (Nm) |
|---|---|---|
| 2.5 | 1.2 | 1.5 |
| 4.0 | 1.5 | 1.8 |
| 16.0 | 2.0 | 2.5 |
| 35.0 | 3.5 | 4.2 |
Ignoring ambient temperature derates protection performance. Most devices are calibrated at 30°C. For every 5°C above, derate current capacity by 2%. Install in a ventilated enclosure or increase breaker size by one rating step if operating near 45°C.
Skipping neutral conductor connection on balanced loads risks overvoltage. Even with symmetrical currents, a floating neutral can shift voltage drastically–connect it directly to the protective device’s dedicated terminal. Unbalanced loads require a neutral sized equal to the largest active conductor.
Using incompatible cable insulation causes premature failure. PVC degrades at 70°C; XLPE withstands 90°C. Direct sunlight or proximity to heat sources demands XLPE or EPR insulation. Verify insulation type with a voltage withstand test before commissioning.
Sizing and Selecting the Correct Protective Device for Tri-Line Circuits
Begin by calculating the full-load current (FLC) of the connected load using the formula: I = P / (√3 × V × PF × η), where P is the power in watts, V is the line-to-line voltage, PF is the power factor, and η (eta) is the motor or equipment efficiency. For induction motors, refer to the nameplate data–never exceed 125% of the rated FLC for continuous loads or 100% for intermittent duty. Example: A 15 kW motor at 400 V with 0.85 PF and 90% efficiency draws 28.5 A; apply a 1.25 multiplier to size the breaker at 35 A. For non-motor loads like heaters or lighting, use the exact FLC without derating unless manufacturer specifications demand otherwise.
Accounting for Inrush Currents and Time-Current Curves
Select a protective device with a trip curve matching the load’s characteristics–Type B for resistive loads (1–3× nominal), Type C for moderate inrush (5–10×), and Type D for high-starting currents (10–20×). Motors under 30 kW typically use Type C, while larger motors (>30 kW) or transformers may require Type D to avoid nuisance tripping. Verify the device’s thermal-magnetic response: the thermal element must tolerate brief overloads (e.g., 1.5× nominal for 2 minutes), while the magnetic trip should activate at 7–10× nominal for short-circuit protection. Coordinate with upstream fuses or relays to ensure selectivity–lower-rated devices should clear faults before higher-rated ones.
For variable-frequency drives (VFDs), oversize the device by at least 1.5× the drive’s rated input current to accommodate harmonics and switching transients. Example: A 22 A drive should use a 32 A or 40 A protective unit. Check the manufacturer’s documentation for specific derating factors–some VFDs generate up to 30% additional thermal stress. In systems with mixed loads (e.g., motors + lighting), use a discrimination table to ensure the protective gear closest to the fault opens first, minimizing downtime elsewhere.
Ambient temperature affects performance–most devices are calibrated for 30°C. For higher temperatures, apply derating factors: at 40°C, reduce the nominal rating by 10%; at 50°C, by 25%. In enclosed panels, increase sizing by 15–20% to compensate for heat buildup. Copper or aluminum busbars also influence selection: standard devices assume 10 mm² copper conductors; for larger cables (>35 mm²), confirm the terminal capacity can handle the cross-section. Always test coordination with software like ETAP or DIgSILENT PowerFactory to validate settings before installation.
