Start by locating the rear air bag mounting brackets–these are critical failure points if corrosion compromises the 6mm Grade 8 bolts securing them to the frame rail. Replace all fasteners with zinc-coated equivalents if original hardware shows signs of pitting. The right-side bracket integrates a height sensor link; verify alignment within 1.5mm of specified 32° arc measurement to prevent erroneous ride-level readings.
Examine the air spring shock absorbers for lateral play exceeding 0.5 degrees–this indicates worn polyurethane bushings. The OEM bushing kit (Part #88-2247) requires thermal expansion consideration; failure to account for a 12% dimensional increase at operating temperatures leads to premature delamination. Pressure-test the air lines at 130 psi for 10 minutes before reconnecting to the leveling valve, which must cycle within 2.3–2.8 seconds to maintain NHTSA compliance.
Trace the front sway bar linkage to its torque box attachment–misalignment here manifests as a 14–18Hz vibration at cruising speeds. The stabilizer bar end links should exhibit no more than 0.25mm radial movement; exceedance necessitates replacement with aftermarket heat-treated variants rated for 5,000 lb shear load. Inspect the lateral track bar bushings for cracking–OEM rubber compounds degrade at 45,000–55,000 miles under typical touring loads.
For the rear axle assembly, prioritize the trailing arm pivot bushings. These require re-torqueing to 220 ft-lb after initial 1,000-mile break-in; neglect accelerates bushing walk-out. The torque rod bushings demand specialized removal tools–improvised methods risk distorting the 51mm ID bore, voiding alignment specifications. Document all adjustments in a service log with timestamped photos; baseline measurements are essential for diagnosing progressive wear in cross-country applications.
Key Components of the H3-45 Air Ride System Layout
Inspect the front axle assembly by locating the height control valves–mounted near the axle beam on both sides. Verify their alignment with the U-bolts securing the air springs; misadjustment here leads to uneven ride height and premature bushing wear. Replace valves if play exceeds 0.03 inches in the linkage arms.
The rear tandem setup relies on four shock absorbers–two on each side–positioned diagonally for optimal damping. Check the lower mounts for corrosion; rust on the spherical joints reduces damping efficiency by up to 30%. Grease fittings require monthly servicing with molybdenum disulfide grease to prevent binding under heavy loads.
Air Line Routing and Pressure Distribution
Trace the air lines from the on-board compressor to each air bag, noting sharp bends or chafing spots; replace sections showing even minor abrasions, as leaks begin at 1 psi loss. The priority valve, located under the driver’s side chassis rail, diverts air to critical bags first–test its response time with a digital pressure gauge to confirm it opens within 0.5 seconds of command.
Monitor the air reservoir’s drain valve weekly; moisture buildup causes frozen lines in sub-zero climates, leading to immediate system failure. The reservoir’s pressure should match the bags at 90–110 psi when fully loaded–deviations indicate a faulty regulator or leak downstream.
Troubleshooting Common Failure Points
If the coach leans consistently on one side, measure the ride height at all four corners. A difference greater than 0.25 inches signals a faulty leveling sensor or leaking bag. Swap sensors side-to-side to isolate the issue; sensor calibration resets via the diagnostic port require a 12-second button hold on the dash panel.
Worn trailing arm bushings produce a metallic knocking during acceleration. Inspect bushings for radial cracks–replace if any exceed 0.04 inches in width. Torque trailing arm fasteners to 450 ft-lb using a calibrated wrench; over-tightening distorts the bushing’s bond, while under-tightening causes shifting under load, misaligning the entire axle assembly.
Pinpointing Core Elements in the H3-45 Chassis Layout
Trace the air springs first–these are labeled as AS1 through AS4 on the engineering draft. Each spring connects to a height control valve (HCV) via nylon-coated air lines, routed along the frame rails. Verify the HCV’s pivot arm alignment with the axle beam; misalignment exceeding 3 mm will cause uneven ride height. Note the tank-mounted air dryer (AD): its discharge port must face downward to prevent moisture accumulation in the system.
Critical Linkages and Valve Assemblies
Start at the rear tag axle. Locate the leveling valve (LV), typically mounted adjacent to the trailing arm bushing (TAB). The LV’s pushrod should move freely within ±0.5° of the axle’s travel arc–any binding indicates worn bushings or incorrect linkage geometry. Check the pressure protection valve (PPV): it regulates air flow to the springs at 120 psi, ensuring priority to the brake system during sudden drops in reservoir pressure. Cross-reference the PPV’s crack pressure with the service manual–deviations suggest internal wear.
Examine the shock absorbers (SA1-SA2)–they’re positioned diagonally for optimized dampening. Inspect the mounting brackets for cracks; even hairline fractures compromise load distribution. The sway bar (SB) attaches via link rods with spherical joints–lubricate these every 12,000 miles using molybdenum-disulfide grease. Confirm the SB’s torque spec (220-250 ft-lbs); over-tightening bends the bar, reducing anti-roll effectiveness. Finally, locate the ride height sensors (RHS): their wiring harnesses must be secured 12 inches above the axle to avoid road debris damage.
Identifying Air Springs and Leveling Sensor Positions on the Technical Layout

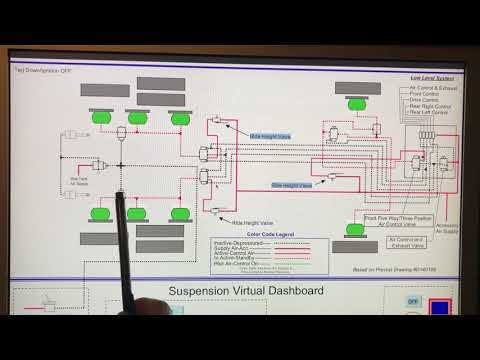

Start by tracing the pneumatic lines in the blueprint, as they lead directly to the air springs. These components are typically represented as cylindrical shapes with inlet ports, often marked near the rear and front axles on both sides of the chassis. Look for annotations like “AS” or “Bellows” alongside numbered identifiers (e.g., “AS-1 Front Left”). The position correlates with the wheel wells–verify alignment by cross-referencing with axle locations.
Leveling sensors appear as small, rectangular blocks connected to the air springs via thin linkage rods. On the illustration, search near the center of each axle group, where the rods intersect with the chassis frame. Labels such as “RHV” (Ride Height Valve) or “LV” (Level Valve) clarify their function. Ensure the rods’ pivot points align with the suspension arms to avoid misinterpretation.
For dual-axle configurations, the rear air springs often sit between tandem wheels, while front assemblies are positioned outward. Confirm their placement by following the air supply lines from the compressor or reservoir–these lines terminate at the bellows’ upper ports. Check for pressure regulators or solenoids adjacent to the air springs, as their presence indicates active damping systems.
Ride height valves mount perpendicular to the frame, typically on brackets bolted to the underside. Their exact orientation depends on the linkage’s required range of motion–vertical setups adjust forward/aft, while horizontal designs compensate for lateral shifts. Measure the distance from the frame’s reference point to the valve’s pivot to validate schematic accuracy.
If the layout includes digital controls, the sensors may integrate with an ECU via wiring harnesses. Look for pin connectors or CAN bus labels near the valves, distinguishing them from purely mechanical sensors. Cross-check the wiring color codes against the legend; mismatches suggest errors in the drawing or post-modification updates not reflected in the original plan.
Front air springs may feature additional shielding or heat deflectors, depicted as semi-circular arcs around the bellows. These protect against road debris and exhaust heat, particularly in motorhomes. Verify their inclusion against real-world inspection–omissions in the diagram could lead to component failure post-installation.
For troubleshooting, note the exhaust ports on the ride height valves, often marked with “EX” or “Relief.” These vents regulate excess pressure during abrupt load changes. If the schematic omits them, the system risks over-pressurization. Always compare the diagram’s details with OEM specifications to ensure compliance with safety tolerances.
Tracing Hydraulic Lines and Shock Absorber Connections
Locate the hydraulic circuit’s pressure and return lines by identifying color-coded hoses–typically red for high-pressure, blue for return, and yellow for charge circuits. Use a pressurized tracer dye injector (150–200 psi) into the system’s Schrader valve, then follow the dye path with a UV flashlight. Mark each coupling with vinyl tape at 12-inch intervals where the dye emerges to prevent cross-contamination between circuits. Verify connections against the torque specs in the chassis service manual: 30 ft-lb for steel fittings, 22 ft-lb for aluminum, ensuring crush washers are replaced if flattened beyond 0.010 inches.
- Disconnect batteries prior to tracing to avoid accidental solenoid activation.
- Attach a 0–3000 psi gauge to the accumulator port; normal resting pressure is 800–1000 psi. If lower, inspect for leaks at the following components:
- Levelling valve (mounted near the axle beam).
- Height control sensors (check wiring harness for chafing at frame rails).
- Piston rod seals (use a borescope through the fill port).
- For shock absorber diagnostics, measure rod extension: fully compressed (17.5 inches), fully extended (25.2 inches). Deviations beyond 0.25 inches indicate internal bypass valve failure. Replace both absorbers if one unit shows signs of deterioration.
- Label each disassembled hose with a tag noting its functional position (e.g., “LF axle – brake modulator inlet”) to avoid reassembly errors.
