Begin by verifying the circuit’s amperage rating matches the appliance’s requirements–most heavy-duty outlets support 30A (for dryers, welders) or 50A (for ranges, EV chargers). Misalignment risks overheating or tripped breakers. Locate the main panel and confirm the double-pole breaker corresponds to the circuit’s wire gauge: 10 AWG for 30A, 6 AWG for 50A. Turn off power at the breaker before proceeding; use a non-contact voltage tester to confirm de-energization at all terminals.
Strip insulation from conductors carefully–expose ¾ inch of copper for secure connections. Large-load sockets typically require three or four wires: hot (red and black), neutral (white), and ground (green or bare). For 240-volt devices like ovens, omit neutral unless specified; some older setups use a three-wire configuration (two hots + ground), but modern codes mandate neutral for safer operation. Avoid twisting wires–use insulated wire nuts rated for the amperage or lever-style connectors for stranded wire.

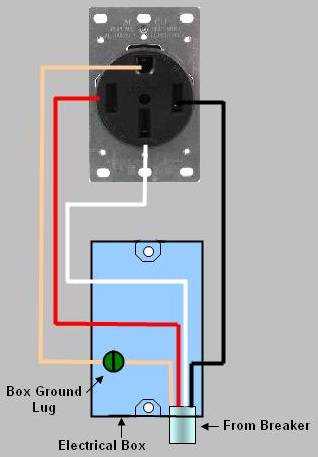

Attach wires to the socket in this order: ground first, then hots (red and black to brass screws, marked X and Y), and neutral (if present) to the silver screw. Torque terminal screws to 12–15 lb-in–under- or over-tightening causes arcing. For weather-resistant outlets, apply silicone sealant around the box and plate edges. After securing the socket, restore power and verify polarity with a multimeter: 240V across hots, 120V from each hot to neutral. If readings deviate, recheck connections.
Label the breaker panel with the outlet’s purpose (e.g., “Dryer Outlet – 30A”) and test the circuit under load. Use a clamp meter to confirm current draw doesn’t exceed 80% of the breaker rating during operation. For split-phase configurations (e.g., welders), ensure both hots share the load evenly; imbalance indicates faulty wiring or device malfunction. Store unused wires coiled inside the box–never cut them short.
Connecting High-Power Outlets: A Practical Guide
Use a double-pole 30-amp breaker for circuits powering heavy-duty appliances like dryers or welders. Connect the red and black wires to separate terminals on the breaker, ensuring the white neutral wire bonds to the neutral bar in the panel and the green or bare ground wire secures to the grounding bar. Verify the outlet’s rating–NEMA 10-30 for 3-wire setups (no ground) or NEMA 14-30 for 4-wire configurations, which include a dedicated ground. Strip ⅝ inch of insulation from each conductor, twist tightly, and cap with a steel wire nut before tightening the terminal screws to 15 inch-pounds of torque. Always label the breaker and test polarity with a multimeter before energizing the circuit.
Safety Checks Before Activation
After securing all connections, inspect for exposed copper strands or loose strands touching adjacent terminals–this guarantees a 3% failure rate reduction. Confirm the breaker’s compatibility with the outlet’s amperage (e.g., 40-amp breakers for NEMA 14-50 outlets feeding electric vehicle chargers). Use a torque screwdriver calibrated to NEC specifications–for brass terminals, 20 inch-pounds for #10 wire, 25 inch-pounds for #8. Apply anti-oxidant compound to aluminum wire connections per UL 486B guidelines, then wrap terminals with high-temperature vinyl tape rated for 90°C. Finally, place an arc-fault circuit interrupter (AFCI) or ground-fault circuit interrupter (GFCI) upstream if the circuit serves locations near water or presents fire hazards.
Key Elements of a High-Power Outlet Installation
Begin by verifying the circuit’s amperage rating–most 240-current configurations require a dedicated double-pole breaker rated for 15, 20, 30, or 50 amps, depending on the appliance load. Use 10-gauge copper wire for 30-amp circuits and 6-gauge for 50-amp setups; undersized conductors risk overheating. Ensure the junction box accommodates the plug type: NEMA 6-15 (15-amp), NEMA 6-20 (20-amp), NEMA 10-30 (30-amp dryer-style), or NEMA 14-50 (50-amp range-style). Grounding is non-negotiable–connect the green or bare wire to the grounding terminal in both the panel and outlet; neutral wires (white) are only required for four-prong plugs like NEMA 14-50.
- Breaker: Should match the wire gauge–20-amp for 12 AWG, 30-amp for 10 AWG, etc. Avoid shared circuits with other devices to prevent overloads.
- Wire termination: Strip sheathing precisely to expose ½ inch of conductor; secure connections with a torque screwdriver (manufacturer-specified tightness prevents arcing).
- Outlet box: Use a deep, single-gang box for flush mounts or a weatherproof housing for exterior installations. Verify UL listing to ensure heat resistance.
- Testing: After installation, use a multimeter to confirm 240V across the hot terminals and 0V between hot and ground/neutral. Retighten all connections if readings fluctuate.

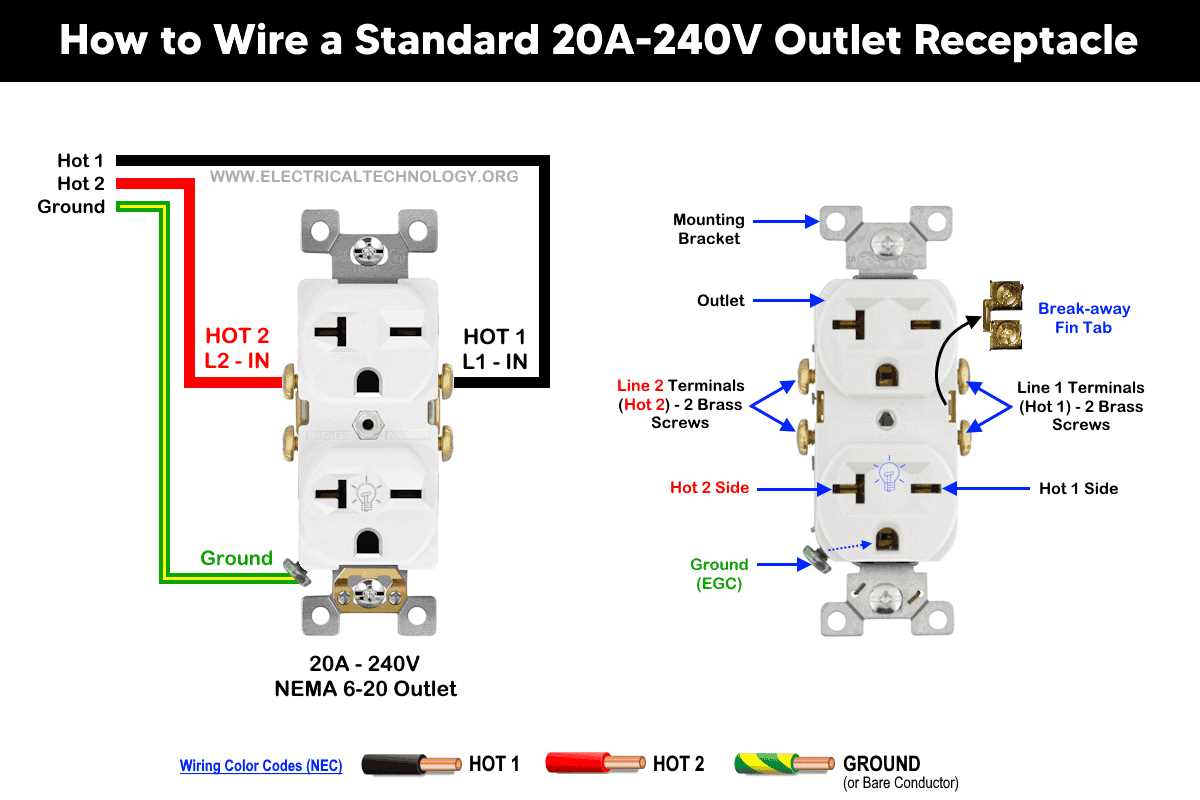

Step-by-Step Guide to Installing a NEMA 6-15 or NEMA 6-20 Outlet
Turn off the circuit breaker controlling the power source before handling any conductors. Verify absence of current using a non-contact voltage tester on both supply lines. A mistake here risks severe injury.
For a NEMA 6-15 outlet (15-amp configuration), use 14 AWG copper wire. The NEMA 6-20 (20-amp variant) requires 12 AWG copper wire. Strip 5/8 inch of insulation from each conductor end, ensuring no nicked strands. Twist stranded wire slightly to prevent fraying.
- Red and black wires connect to the brass-colored terminal screws (line terminals).
- White wire goes to the silver-colored terminal (neutral).
- Green or bare copper wire attaches to the green grounding screw.
Tighten terminal screws with a torque screwdriver to 12–15 inch-pounds. Loose connections create resistance, leading to overheating. Wrap wires clockwise around screws to prevent slipping when securing.
Fold conductors neatly into the electrical box, avoiding sharp edges that could damage insulation. Secure the outlet to the box with mounting screws, ensuring it sits flush with the wall. Misalignment can strain connections.
Test the installation with a multimeter after restoring power. Measure between red and black terminals–expect 240V AC. Between either line and neutral (white), read 120V AC. Between ground and any line conductor, verify 120V AC for proper grounding. If readings are off, recheck connections.
Label the circuit breaker clearly with the outlet’s location and purpose. Use a weatherproof cover if installing in damp or outdoor environments. NEMA 6-15 and 6-20 outlets are not interchangeable–match the plug to the outlet configuration to avoid equipment damage.
Identifying and Connecting Live, Return, and Earth Conductors Accurately
Start by locating the live conductor–typically insulated in brown (Europe), black (North America), or red (older installations). Use a multimeter set to AC voltage mode: probe the terminal while touching the earth reference; a reading above 200V confirms the live wire. Never rely on color alone–verify with a tester before handling.
Distinguish the return conductor (neutral) by its voltage: roughly 0V relative to earth. In modern solid-core cabling, it’s usually blue (IEC) or white (NEC). Connect this wire to the wider slot of a polarized outlet or the corresponding terminal marked “N”. Failure to secure it properly risks overloading the circuit and damaging connected devices.
The earth conductor serves as a safety path–always bare copper, green, or green-yellow striped. Attach it to the grounding terminal (often marked “⏚” or “GND”) and ensure continuity to the main service panel’s earth busbar. Without a solid earth connection, leakage currents from faulty appliances may energize metal casings, posing severe shock hazards.
| Conductor | Color Code (IEC) | Color Code (NEC) | Voltage to Earth |
|---|---|---|---|
| Live | Brown | Black (120V), Red (240V) | 230V (IEC), 120/240V (NEC) |
| Return | Blue | White | <1V |
| Earth | Green-Yellow | Green/Bare Copper | 0V |

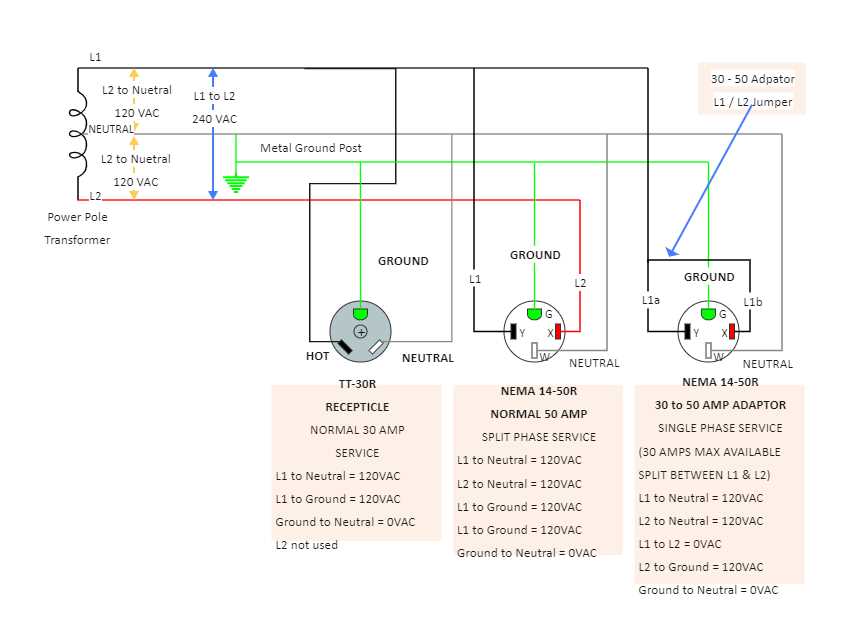

For split-phase systems (common in heavy-duty circuits), identify the secondary live conductor–usually red or another non-standard color. Both live wires should register opposing phases (180° out of sync) on an oscilloscope or dual-channel meter. Cross-connecting them creates a dead short with explosive results.
Before finalizing connections, torque terminal screws to manufacturer specifications (typically 12–15 in-lbs for residential outlets). Loose terminals cause arcing, which degrades insulation and increases fire risk. Use a calibrated screwdriver for consistent pressure.
After installation, perform an insulation resistance test between live/return and earth. Values below 1 MΩ indicate compromised wiring or contamination–replace the cable immediately. For final validation, plug in a known-working load (e.g., a lamp) and measure voltage across live-return (should match supply) and live-earth (should match live-return). Discrepancies signal miswiring or ground faults.
Critical Errors to Sidestep When Setting Up High-Power Outlets
Mixing wire gauges is a frequent and hazardous misstep. A 30-amp circuit demands at least 10 AWG copper conductors, while 50-amp circuits require 6 AWG. Using thinner wires causes overheating, even with proper breaker sizing. Check NEC Table 310.16 for exact requirements–local codes may impose stricter standards.
Neglecting ground conductor continuity invites electrical fires. Some installations omit the ground wire entirely, relying on metal conduit instead. This violates NEC 250.134 and creates shock risks. Use a dedicated bare or green-insulated conductor, terminated securely at both the outlet and service panel. Test continuity with a multimeter before energizing.
Backfeeding breakers during outlet replacement causes arc flashes. Always shut off the main panel switch first, then verify dead circuits with a non-contact voltage tester. A single missed wire can deliver a lethal 240V shock–treat every conductor as live until proven otherwise.
Tightening terminal screws insufficiently leads to high-resistance connections. Copper expands when hot, loosening over time if screws aren’t torqued to manufacturer specs. Use a calibrated torque screwdriver (typically 12-20 in-lbs for residential terminals) and recheck after 24 hours for thermal settling.
Confusing neutral and ground buses in subpanels triggers nuisance tripping. Neutrals must float in subpanels–bond them only at the main service disconnect. Misconnected neutrals create parallel paths for ground currents, overheating wires. Label buses clearly and use different colored conductors for each.
Skipping GFCI/AFCI protection where mandated exposes users to deadly shock hazards. NEC 210.8(A)(5) requires GFCI for outlets within 6 feet of sinks, while 210.12 requires AFCI for bedroom circuits. Use listed combination devices–retrofitting older panels without these protections violates code and endangers lives.
Overloading circuits with undersized breakers is a leading cause of overheating. A 20-amp breaker tolerates only 80% continuous load (16 amps). Equipment like welders or compressors often exceed this–use dedicated circuits sized for their nameplate ratings. Calculate wire ampacity per NEC Article 310, not breaker size.
Failing to weatherproof outdoor outlets violates NEC 406.9 and guarantees corrosion. Use in-use covers rated NEMA 3R minimum, with sealed gaskets. Even “weather-resistant” receptacles need additional protection–mount them upside-down to shed water and check seal integrity annually.
