Locate the 12-pin harness behind the factory radio–the connector is white, rectangular, and labeled “C200” on most trim levels. The following wires control power, signal, and ground:
Constant 12V (Battery): Yellow or dark yellow (pin 6) – Thicker gauge than others, fused at 10A.
Switched 12V (Ignition): Red or orange-red (pin 12) – Powers on with key position; verify continuity with a multimeter before tapping.
Ground: Black (pin 4) – Connects directly to chassis ground; scrape paint at attachment point for reliable contact.
Speaker outputs use separate color stripes for each channel. Left Front +: Light green (pin 1), Left Front –: Grey-light green stripe (pin 3). Right Front +: Dark blue (pin 2), Right Front –: Violet-dark blue stripe (pin 5). Avoid bridging positive and negative leads; permanent 4-ohm damage occurs within minutes.
Amplifier control (if equipped) uses a single pink wire (pin 10)–activate with 5V when connecting external amplifiers. Factory antenna triggers via light blue (pin 7); splice into this line only if retaining auto-retract functionality.
Use micro crimp connectors or solder joints; avoid twist-and-tape methods. Heat shrink each connection immediately after testing. Verify no stray wires contact exposed metal before reinserting trim panels.
Vehicle Audio System Connection Guide for the 2007 Saturn Model
Begin by locating the factory harness behind the dashboard near the driver’s side kick panel. The primary connector consists of 12 pins, divided into four color-coded sections: power, ground, speaker outputs, and accessory controls. Match these to your aftermarket receiver’s wiring harness using a multimeter to confirm functionality before splicing.
Key wire assignments include:
- Yellow (Battery): Constant 12V supply–connect directly to maintain memory settings.
- Red (Ignition): Switched 12V–activates with key turn to ACC or ON.
- Black (Chassis Ground): Attach to metal body point within 18 inches of the harness.
- Orange/White (Dimmer): Adjusts head unit brightness–optional for most setups.
Speaker wires follow a standard polarity pattern: solid-colored wires (e.g., gray, white) are positive; same colors with a stripe (e.g., gray/black, white/black) are negative. Verify each pair with a 9-volt battery–positive speaker movement indicates correct polarity. Factory amplifiers may require bypassing; check for a separate amp harness near the glove box.
For steering wheel controls, purchase an adapter compatible with the Class 2 serial data bus (e.g., Metra ASWC-1). Connect its harness to the vehicle’s data port–typically behind the fuse panel or under the dash–then link the adapter’s output to the radio’s SWC input. Program buttons via the adapter’s manual or app.
Troubleshooting Common Issues
If audio cuts out or volume fluctuates:
- Inspect ground connections–ensure no corrosion or loose terminals.
- Test fuses #17 (10A) and #29 (15A) in the interior fuse box.
- Check antenna amplifier (located near the rear quarter panel) for +12V on the pink wire.
Static or distortion often stems from poor shielding. Route RCA cables away from power wires, using ferrite beads if necessary. Factory-equipped OnStar or XM modules may interfere–disconnect these at the harness if unused. For vehicles with a factory EQ, retain the original amp or install a line-output converter.
When installing a subwoofer, tap into the rear speaker wires at the harness rather than the head unit for stronger signal integrity. Use 16-gauge or thicker wire for power and ground, fused within 18 inches of the battery. For premium systems, verify the factory amp’s max wattage (typically 20W RMS per channel) to avoid overloading.
Final Checks Before Testing
- Reconnect the negative battery terminal.
- Verify all connections with a continuity test.
- Power on the vehicle and test each speaker individually.
- Ensure dimmer settings, parking brake safety circuits, and USB/AUX inputs function as intended.
Locating the Right Audio System Interface Plugs for Your Vehicle Model

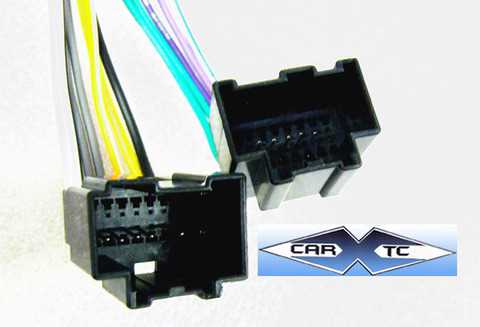

Begin by examining the existing harness behind the factory radio. The primary connectors for this automobile are labeled C1 (12-pin rectangular) and C2 (8-pin rectangular), typically color-coded in white and gray respectively. These match the OEM receiver’s power, speaker, and antenna inputs–verify each pinout against the aftermarket unit’s manual before proceeding. Do not rely on visual inspection alone; cross-reference with the documentation to avoid mismatched outputs.
For vehicles equipped with premium audio systems, an additional 4-pin harness (often black) handles the amplified signal feed. This plug integrates with the onboard amplifier–disconnecting it without proper bypass methods will result in no sound from the front or rear channels. Use a multimeter to test continuity between the pins and the corresponding speaker wires if the aftermarket head unit lacks an internal amp. Below is a pinout reference for standard configurations:
| Connector | Pin Number | Function | Wire Color (OEM) |
|---|---|---|---|
| C1 (12-pin) | 1 | Battery (+12V) | Yellow |
| 2 | Illumination | Light Blue | |
| 3 | Left Front (+) | Dark Gray | |
| 4 | Right Front (+) | Purple/White | |
| C2 (8-pin) | 1 | Ground | Black |
| 2 | Accessory | Red | |
| 3 | Left Rear (+) | Brown | |
| 4 | Right Rear (+) | Pink |

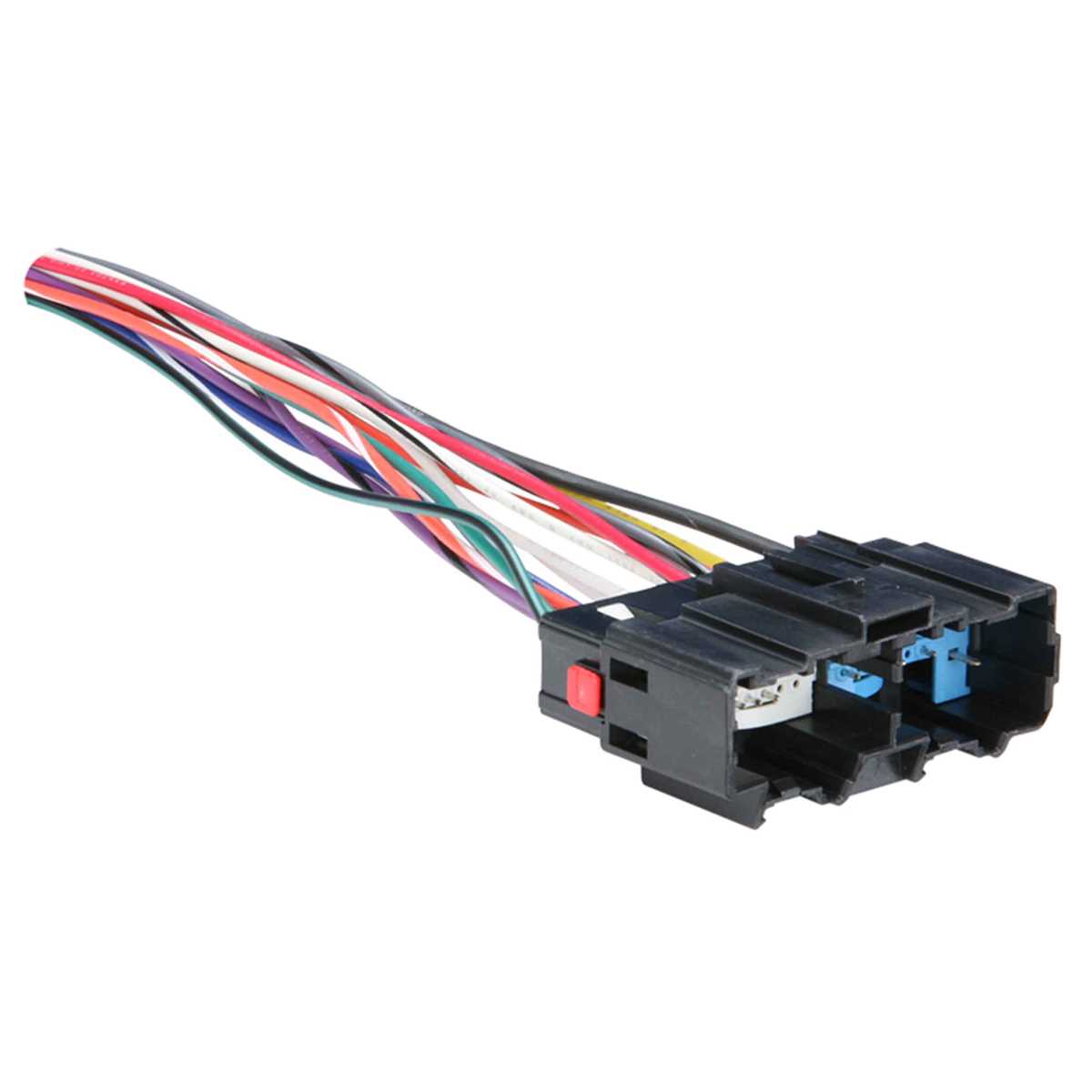

Aftermarket harness adapters simplify integration but frequently omit critical connections like the vehicle speed sensor (VSS) or parking brake wire. If your new unit supports steering wheel controls or rearview camera activation, an additional interface module will be required–metra ASWC-1 or PAC RP4-GM11 are compatible with this model’s data bus. Never splice directly into the CAN bus wires; use a dedicated adapter to prevent ECU errors.
For systems with OnStar or satellite radio, a separate 10-pin connector (gray or beige) carries the satellite feed and OnStar microphone signals. These should be rerouted to the new unit’s auxiliary input if retaining those features–most adapters include labeled extensions for this purpose. If the microphone is discarded, cap the wires individually to prevent short circuits. Test all connections with the key in the ACC position before final reassembly to confirm power, ground, and speaker outputs.
Factory tweeters often use a separate inline crossover network, connected via a 2-pin plug near the door panels. If the aftermarket unit lacks high-pass filters, these must be retained or replaced with external crossovers–removing them will distort sound quality in the higher frequencies. Check the impedance ratings (typically 2-4 ohms) to ensure compatibility with the new amplifier. Mismatched values may trigger thermal shutdowns.
When dealing with unresponsive channels, probe the harness connectors for voltage drops–corroded pins are common in older installations. Clean contacts with electrical contact cleaner and apply dielectric grease to prevent oxidation. If the amplifier is retained, ensure the remote turn-on wire (blue/white) from the new unit supplies a consistent 12V trigger signal; otherwise, the amp won’t engage. For vehicles with subwoofers, locate the dedicated RCA outputs (if available) or tap into the rear preamp wires using a line-level converter.
How to Identify Factory Audio Connector Wire Colors in Your Vehicle
Disconnect the negative battery terminal before handling any electrical components to prevent shorts or damage. Remove the center dash trim panel by prying gently along the edges with a plastic trim tool–start near the climate controls and work outward to release the clips without breaking them. Once exposed, locate the back of the factory head unit and trace its main harness; the 12-pin connector is typically on the right side, secured by a white locking tab. Release the tab by pressing it inward while pulling the connector free. Use a multimeter set to DC voltage (20V range) to probe the wires while a helper turns the ignition to accessory mode–constant 12V (battery) will show on power leads, while switched 12V only activates when the key is in ACC or ON.
Verifying Critical Wire Functions
Identify the ground (black or dark green), illumination (light green with white stripe), and antenna trigger (pink) first–these are consistent across most models. For speaker outputs, resistance-tap a 9V battery to the front left positive (gray) and negative (gray with black stripe); a faint pop confirms correct wiring. The rear right (purple and purple with black stripe) and rear left (green and green with black stripe) follow the same polarity rule. IfDim lights or no sound persists, recheck connections with a 1kHz test tone CD–faulty channels often reveal themselves as distorted or muted outputs. Label each wire with masking tape as you confirm its function to avoid retraces.
How to Safely Disconnect the Factory Head Unit Without Wire Harm
Disconnect the battery’s negative terminal first to eliminate voltage risks. Use a 10mm socket to loosen the clamp on the terminal–this prevents accidental short circuits while working near the dashboard. Wait at least 10 minutes after disconnecting to allow capacitors in the system to discharge fully. Failure to do this can result in blown fuses or damaged modules.
Remove trim panels in the correct sequence to avoid cracking clips. Start with the center console bezel using a plastic pry tool, sliding it between the panel and dashboard at a 30-degree angle. Work slowly to release hidden tabs, typically located at 2-inch intervals along the edges. For door-based controls, detach the pocket or storage tray first, then unclip the lower dash panel before accessing the head unit’s mounting screws. Apply outward pressure near each tab, not upward, to prevent breaking plastic anchors.
Trace each connector back to its harness before unplugging. Labels like “AMP,” “ANT,” or “ILLUM” on the factory plugs correspond to amplifier power, antenna, and illumination wires–note their positions to prevent miswiring replacements. Squeeze release tabs firmly while pulling connectors straight out, avoiding twisting motions. If resistance is felt, check for secondary locks or retaining clips before forcing separation. For stubborn connectors, apply dielectric grease to the pins after disconnection to prevent oxidation.
