Start by locating the main harness connector under the left rear quarter panel. Pin 1 (white wire) carries ground; pins 2–4 (pink, yellow, and brown wires) handle left lamp power for running, brake, and turn signals respectively. Verify voltage at each terminal with a multimeter while cycling the corresponding switch–any drop below 11.8V indicates corrosion or a broken splice near the frame rail branch.
For the right side, mirror the sequence: ground (black wire, pin 5) and power wires (pins 6–8, gray, dark green, light blue) follow the same color-code logic. Replace any degraded butt connectors at the trailer harness T-joint; heat-shrink tubing over fresh splices prevents future moisture ingress. OEM terminals are sealed, but aftermarket replacements often omit this–choose Delphi Weather-Pack parts for direct fit.
Trace the auxiliary harness before removing the bed: it feeds the cargo lamp and bed rail lighting. Disconnect the battery first; the circuit remains powered through the body control module even when ignition is off. Label each wire with masking tape–confusing brake (yellow) and turn (brown) signals risks activating the wrong filament or triggering a short that trips the BCM’s lamp-out code.
If LEDs flicker, swap resistors inline on the brake signal wire (20 Ω, 50 W) to mimic filament load–alternatively, flash the BCM to accept LED load parameters using an OBD-II tool with GM-specific software. Skip generic “bulb-out” error resets; they often fail to address the underlying voltage mismatch.
Inspect the tailgate latch switch–it shares a ground with the rear lamps. Corrosion here manifests as intermittent operation, mimicking a wiring fault. Clean the contact surfaces with dielectric grease and tighten the 10 mm bolt torque to 12 ft-lbs. Reassemble in reverse, ensuring grommets around rear bumper cutouts are intact to prevent chafing against the frame.
Understanding Your Rear Illumination Electrical Layout for the 2015-2017 Heavy-Duty Pickup
Locate the vehicle’s fuse box under the driver-side dashboard to identify the rear illumination circuits. Connect a multimeter to terminals 30A RUN/ACC (pink) and 10A TAIL (brown) to verify 12V supply. If readings deviate, inspect the fuse for corrosion or replacement needs.
Trace the brown wire from the fuse panel to the trailer connector, typically found near the rear bumper. This wire splits into two branches: one leading to the left assembly (pin 7 on the trailer plug) and another to the right (pin 6). Use a wire stripper to expose 5mm of conductor for testing continuity.
Key Connection Points and Voltage Verification
Check the gray wire (pin 2 on the trailer harness) for reverse light functionality. Apply 12V from a test light to this wire while engaging reverse gear–if no signal appears, examine the transmission range sensor or wiring harness for damage.
The license plate circuit (white wire, pin 1) draws power from the brown tail circuit. Confirm this connection by probing the wire at the rear lamp socket–expected voltage is 12V with the headlight switch activated. If absent, inspect the ground connection near the vehicle’s frame rail.
Diagnosing Common Issues
If flickering occurs, focus on ground points (black wires) near each lamp housing. Remove the mounting bolts, clean the contact surfaces with sandpaper, and re-secure with dielectric grease. For intermittent failures, bypass the trailer module by jumping the brown wire directly to the trailer plug pin 5.
For auxiliary lighting additions, splice into the purple wire (pin 4) for auxiliary brake signals. Ensure the splice uses a waterproof crimp connector and heat shrink tubing. Always disconnect the battery before modifying circuits to prevent shorts.
How to Select the Right Electrical Connector for Your Pickup’s Rear Illumination

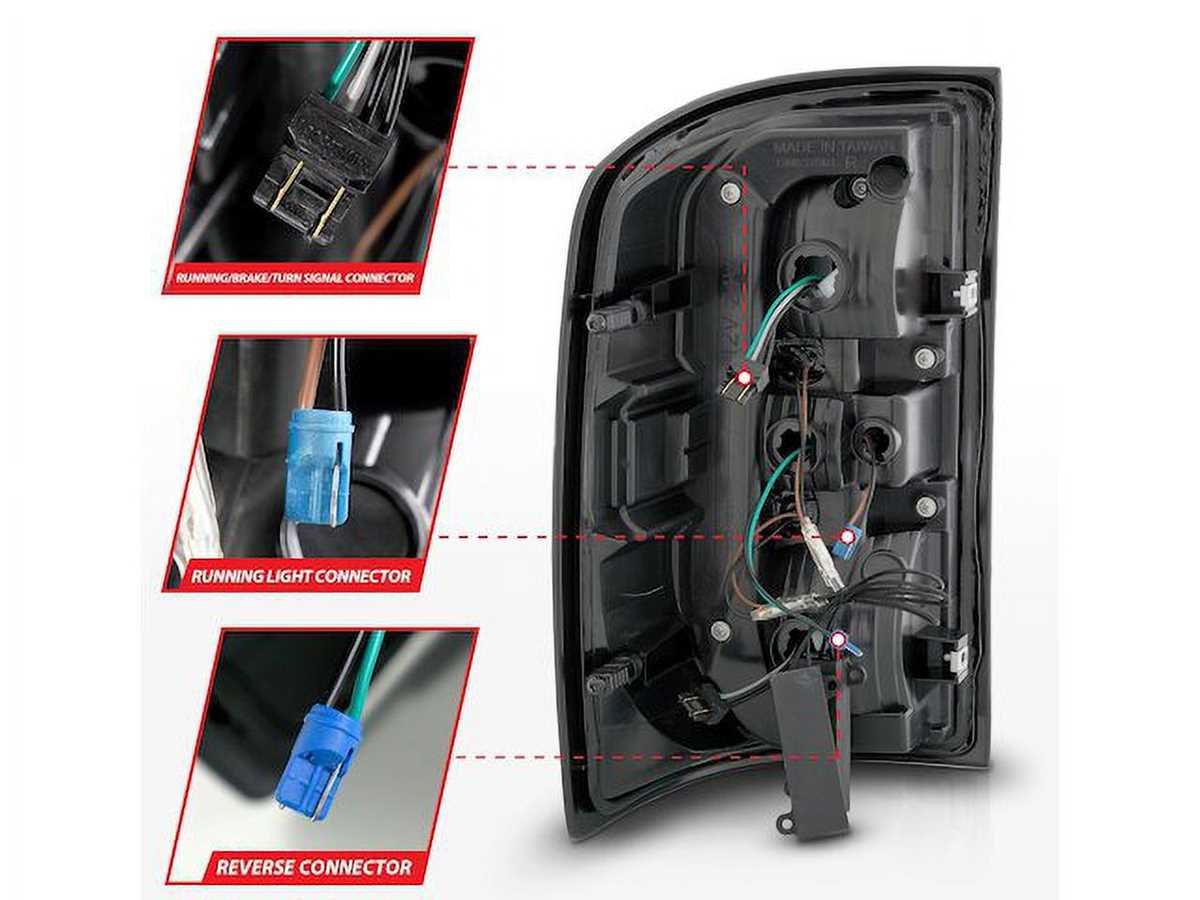

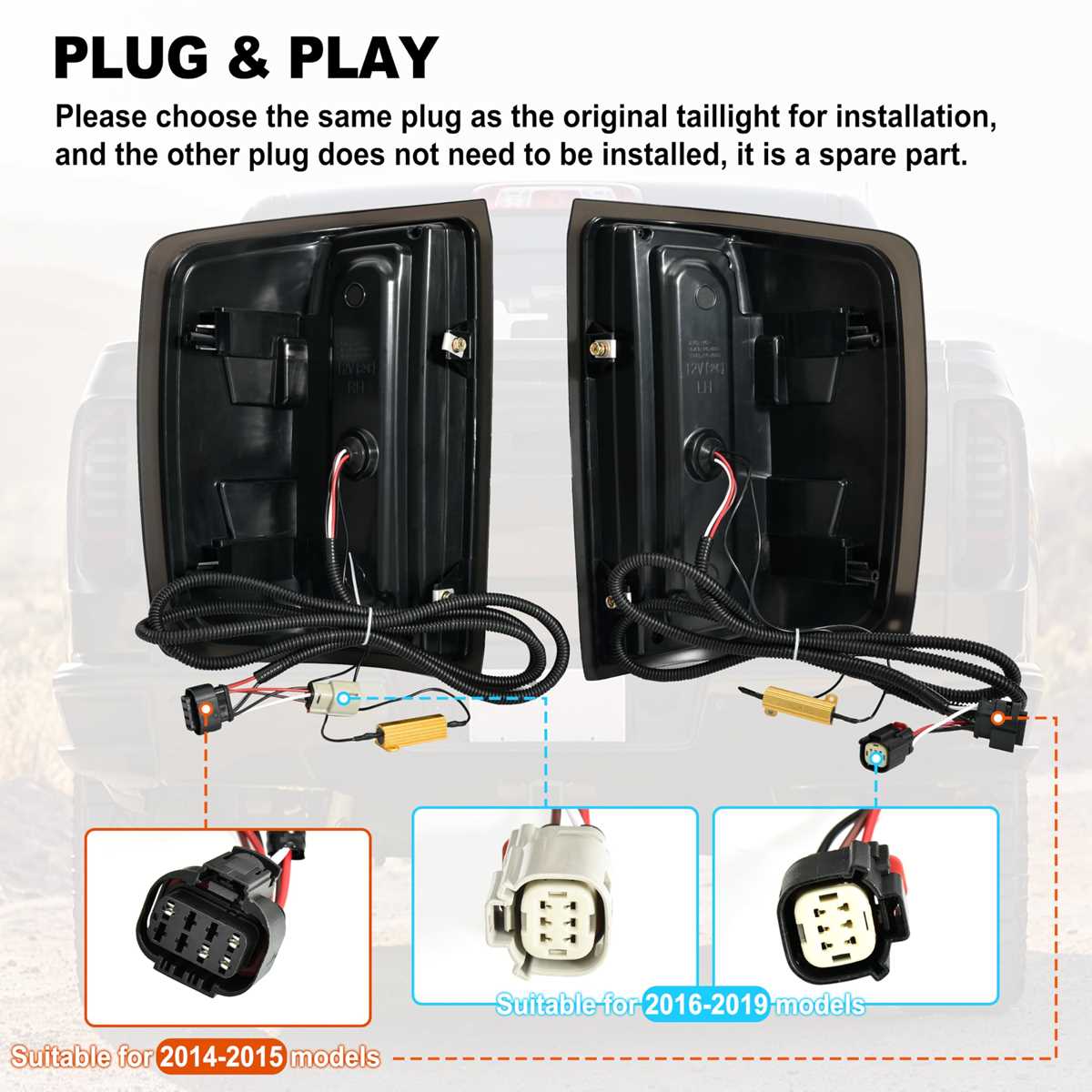

Start by locating the original plug behind the rear lamp assembly–it’s a 6-pin rectangular unit labeled GM# 84159330. This is the OEM harness link; any aftermarket adapter should mimic its pin configuration exactly to prevent signal interference with the vehicle’s computer.
For LED upgrades, verify the replacement harness includes load resistors–standard bulbs draw ~2.1 amps per filament, while LEDs pull
Check the wire colors against factory specs: dark green (left turn/brake), yellow (right turn/brake), brown (running lamps), and gray (ground). Aftermarket harnesses often mislabel or omit critical grounds, leading to flickering or total failure.
If splicing into the existing loom, use heat-shrink butt connectors rated for 18-20 AWG. Crimp twice–once for mechanical hold, once for electrical continuity–then seal with adhesive-lined shrink tubing to prevent corrosive moisture intrusion.
For towing applications, ensure the harness incorporates a dedicated trailer light output. The OEM setup splits signals via a T-connector (GM# 84164316), but cheaper alternatives may overload the circuit, causing rear bulbs to burn hotter than the 60-watt stock rating.
Test connections with a multimeter in diode-check mode before final assembly. Probe each pin while operating the relevant switch–turn signals should register ~12V pulsed, brakes ~12V steady, and running lamps ~7-10V.
Avoid universal harnesses claiming “plug-and-play” compatibility. Measure the male-female spacing–the factory connector uses a 4.8mm pitch, while generic options often deviate to 4.2mm, requiring forceful (and damaging) insertion.
For auxiliary lighting (reverse lamps, bed cargo lights), tap into the red/tan wire (12V hot in reverse) behind the cabin fuse block. Use a 30-amp relay to isolate the circuit from the main lamp harness–direct splicing risks voltage drop and premature burnout.
How to Access Rear Illumination Connections on Your Truck: A Practical Walkthrough
Disconnect the negative battery terminal first to eliminate any electrical hazards. Use a 10mm socket to loosen the clamp securing it to the post, then slide the cable off and set it aside. This prevents accidental shorts while working near the harness.
Remove the interior trim panel behind the rear seat on the driver’s side to reach the main junction block. Two plastic clips at the bottom and three along the top edge hold it in place–pry them outward with a flat-head screwdriver, starting at the lowest point. Once released, lift the panel away to expose the white-and-black connector bundle feeding the rear assembly.
Locate the gray five-pin plug beneath the junction block, labeled C3. Depress the locking tab with thumb pressure and wiggle the connector side to side while pulling steadily. Use a small flat-blade tool if corrosion is present, but avoid excessive force to prevent damaging the terminal pins.
| Pin | Color | Function | Voltage (Key On) |
|---|---|---|---|
| A | Yellow w/ Black stripe | Brake signal | 12.3–13.5 V |
| B | Red | Running lamps | 12.0–13.4 V |
| C | Brown | Ground | 0 V |
| D | Dark Green | Reverse lamps | 0 V (unless engaged) |
| E | Light Green | Turn signal | 12.3–13.8 V (pulsing) |
Trace the wiring loom from the connector toward the lamp housing. Gently peel back the gray adhesive tape wrapping the harness bundle to inspect for frayed insulation or corrosion. Check continuity between each conductor and its corresponding ground point using a multimeter set to 200 Ω–readings should stay below 0.5 Ω.
Reinstall components in reverse order: snap the C3 plug back into place until it clicks, reattach the trim panel by aligning top clips first, then press the bottom clips until they seat, and finally reconnect the battery terminal. Test all functions–running lamps, brake lights, turn signals, and reverse lamps–before securing the tailgate panel.
Troubleshooting Intermittent Failures
If a single function fails sporadically, probe the specific pin with a non-powered test lamp while cycling the switch. A flickering bulb indicates a loose terminal; remove the connector, clean the pin with electrical contact cleaner, and verify corrosion resistance before reseating.
Factory Rear Illumination Connector Pinout by Wire Hue
Match each conductor to its precise terminal on the OEM harness using this direct decode for the truck’s back end signal cluster:
- Red stripe – brake activation (+12V when pedal depressed)
- Brown solid – running marker (+12V constant)
- Yellow stripe – reverse trigger (+12V during gear engagement)
- White stripe – ground (chassis return)
- Pink solid – turn/stop shared (+12V for both blinker and stop)
- Dark green stripe – right side blinker (+12V alternating)
- Light blue stripe – left side blinker (+12V alternating)
Critical Splice Locations
Identify these junctions on the main loom before re-terminating:
- Behind rear fascia near driver-side frame rail – integrates brake and running signals
- Passenger rear quarter panel – houses reverse and ground splice
- Tailgate harness split – combines turn/stop and marker feeds
Strip insulation no more than 5 mm at each joint and crimp with red 22-16 AWG butt connectors; solder then heat-shrink all repairs to prevent moisture ingress.
Voltage Verification Matrix
Test each circuit with key on + engine off using this baseline:
| Wire Color | Expected Reading | Permissible Deviation |
|---|---|---|
| Red stripe | 0V (12V when pedal applied) | ±0.5V |
| Brown solid | 12V steady | ±0.3V |
| Yellow stripe | 0V (12V in reverse) | ±0.4V |
| White stripe | ≤0.1V (chassis reference) | N/A |
Use a 10 MΩ impedance meter; readings outside tolerance indicate corroded terminals or chafed insulation requiring tape wrap or conduit replacement.
