Locate the C2 connector behind the factory head unit–it’s a 20-pin harness with three distinct sections: power, speaker outputs, and illumination. Pin A7 (orange) delivers constant 12V, while A4 (dark green/red stripe) carries the ignition-switched feed. Ground connects to A6 (black). Avoid tapping the yellow memory wire (A10, gray/black) unless integrating a retention interface–direct splices corrupt OEM settings.
Speaker outputs follow this sequence: front left (+) C8 (light green), (-) C4 (white/black); front right (+) C2 (dark green), (-) C1 (violet/white; rear left (+) C7 (gray), (-) C6 (gray/white); rear right (+) C5 (red), (-) C3 (brown). Verify continuity with a multimeter before connecting aftermarket amplifiers–the factory harness uses 2-ohm impedance, incompatible with most 4-ohm units without load resistors.
For illumination control, splice D1 (light blue/white) to the dimmer circuit, but isolate it from the headlight switch if adding LED components–factory PWM signals disrupt solid-state displays. Retain D2 (black/white) for chime module integration; cutting it disables parking brake alerts.
Use AWG 16-gauge wire for all power feeds and tinned copper solder for joins–factory crimps degrade over time, causing intermittent failures. Route new cables through the firewall driver-side grommet and secure them with spiral wrap to prevent abrasion against the transmission tunnel.

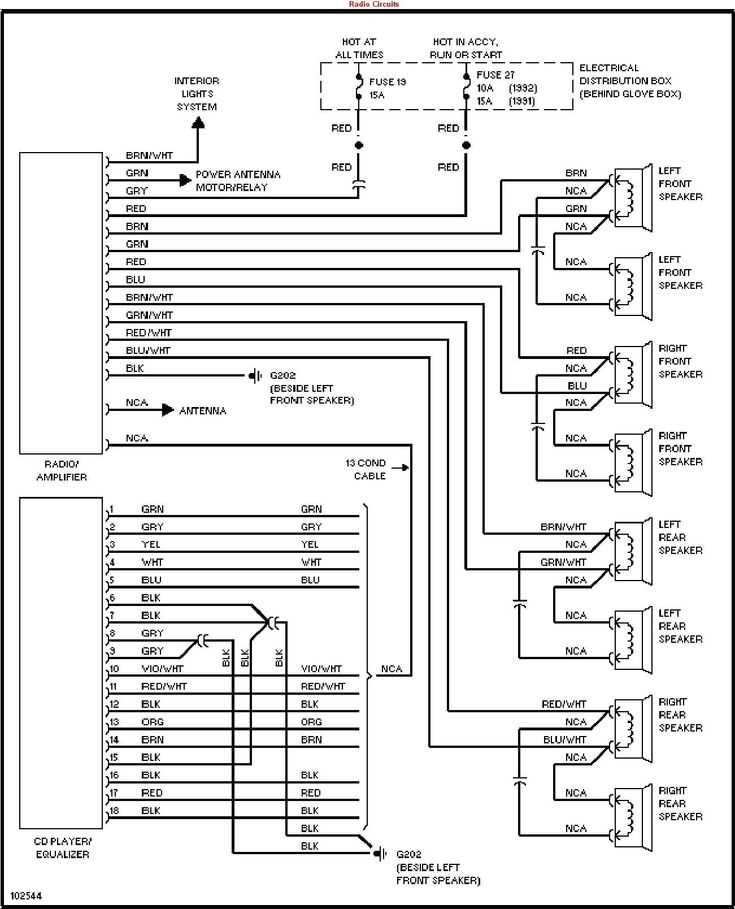

Complete Audio System Electrical Layout for Your 2001 Model SUV
Connect the aftermarket head unit by locating the constant 12V yellow wire behind the factory harness–it supplies power regardless of ignition state. The red accessory wire, triggered by turning the key, should merge with this line if retaining memory functions like presets. Ground the black cable directly to the chassis near the mounting bracket; sand away paint for a clean contact point.
Speaker outputs follow a color-coded pattern: front left positive (gray), front left negative (gray/black stripe), rear right positive (purple), and rear right negative (purple/black stripe). Avoid short circuits by testing continuity before final connection–use a multimeter set to Ω resistance mode to confirm each wire’s path to the door panels or rear tailgate.
Amplifier integration requires splicing into the retained power and ground circuits while connecting RCA harnesses to the head unit’s preamp outputs. Factory systems often include a built-in amp near the subwoofer enclosure; bypass it by disconnecting the pink/light green wires unless adding an external amplifier. For OEM sub retention, bridge the gray/white and dark green/light blue wires to maintain low-frequency output.
Illumination control (orange) adjusts dashboard light dimming with the vehicle’s rheostat–connect this to the aftermarket unit’s dimmer input to sync brightness. The blue/white remote turn-on wire activates external devices like amplifiers; ensure it carries 12V only when the system is powered to prevent parasitic battery drain.
Fuse protection is critical–install a 15-amp inline fuse on the constant power wire within six inches of the battery terminal. For vehicles with premium audio (e.g., Infinity system), retain the fiber-optic RCA outputs if upgrading to a digital signal processor by matching impedance (typically 2-8Ω).
Troubleshooting Common Issues
Static or no sound often stems from poor ground connections–clean the mounting surface with a wire brush and re-secure the ground wire. Distorted audio at high volumes indicates insufficient power supply; upgrade the ground wire gauge to 8 or 4AWG for systems exceeding 200W RMS. Check for blown fuses if the unit powers on but fails to function–inspect the fuse box behind the lower dash panel (left side) for continuity.
Advanced Modifications
For rear-seat entertainment, tap into the purple/white video signal wire and pair it with an auxiliary input adapter. Reverse camera integration uses the light green/pink wires–route these to the head unit’s dedicated camera input, ensuring proper polarity to avoid image distortion. Always disconnect the negative battery terminal before making electrical modifications to prevent accidental shorts.
Finding the Original Audio System Harness in Your 2001 SUV

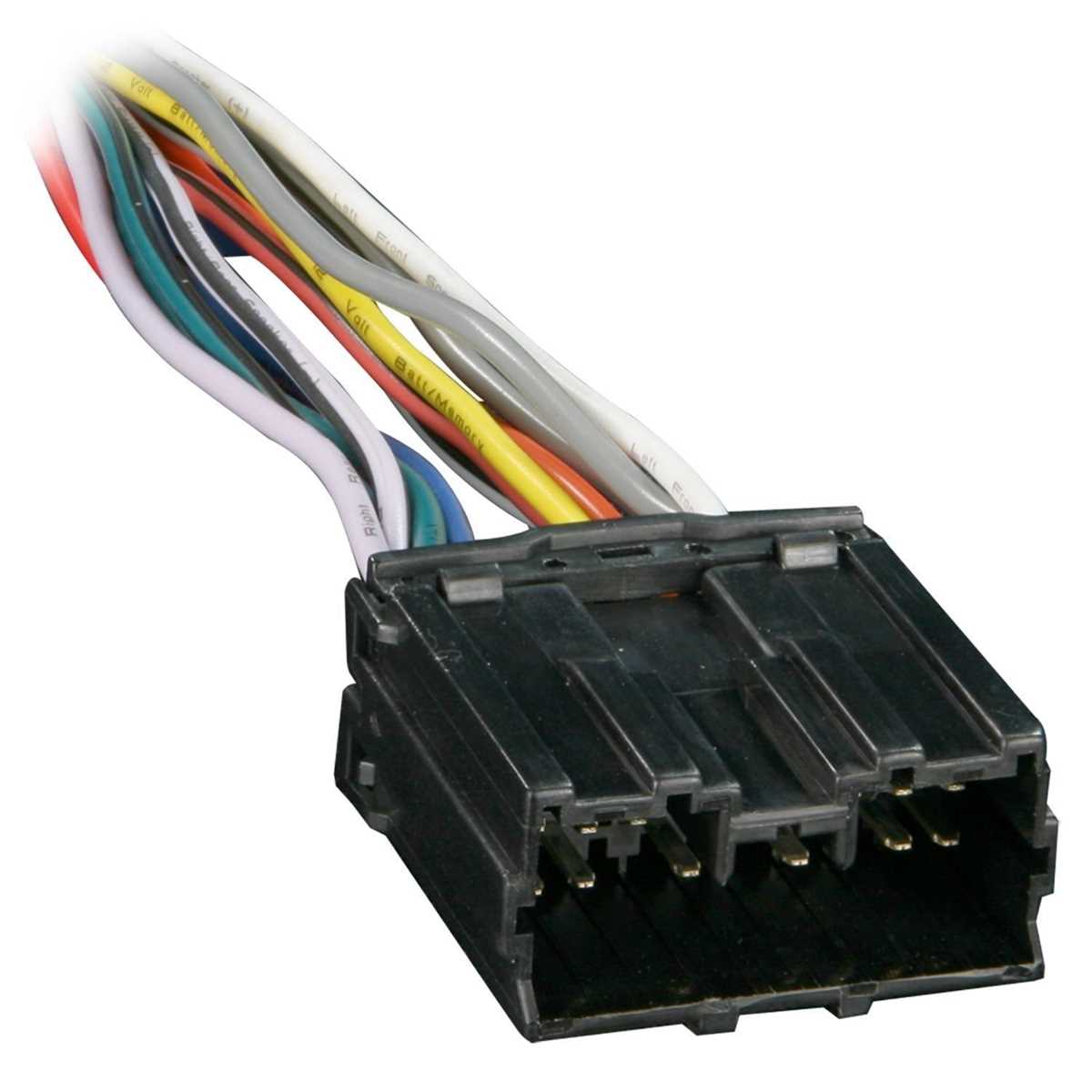

Start behind the dash cluster on the driver’s side–remove the lower trim panel secured by three 7mm screws and two clips near the kick panel. The main harness exits the firewall through a black rubber grommet, typically located directly above the pedal assembly. Trace the bundle upward: the factory audio connector is a 16-pin rectangular plug (Delphi part #1483889) with a distinctive tan or gray housing, paired with a smaller 8-pin auxiliary connector for power antenna or amplified systems. Use a trim removal tool to avoid damaging retaining clips, as the harness runs along the left A-pillar behind the fuse box.
- Check behind the glovebox: drop the box by squeezing the side tabs and lowering it fully; a secondary harness branch may supply rear speakers or subwoofer outputs.
- Inspect under the center console: the harness passes through a channel beneath the shifter, often bundled with climate control lines. Route new cables carefully to prevent interference with parking brake mechanisms.
- Verify ground connections: the main chassis ground is a bolted ring terminal on the driver’s side firewall, marked GND or with a “-10” label. Clean the surface with 220-grit sandpaper and apply dielectric grease before reattaching.
Decoding Factory Audio Harness Wire Colors
Locate the 12-pin rectangular connector behind the original head unit–its lower row houses the power and speaker leads in precise sequence. The yellow (battery constant) and red (ignition-switched) wires sit at pins 3 and 4; reversing these feeds will drain the vehicle’s electrical system overnight. Ensure both are secured with 18-gauge crimp connectors rated for 15 amperes to prevent voltage drop during bass-heavy playback.
Speaker outputs follow a strict chromatic order: left front (gray/light gray stripe), right front (white/white stripe), left rear (green/green stripe), right rear (purple/purple stripe). Test each pair using a 9-volt battery–brief contact should produce an audible pop from the corresponding driver, confirming polarity. Swap any reversed leads to avoid phase cancellation, which dulls midrange and weakens stereo imaging.
The black/orange stripe wire at pin 12 is the ground; attach it directly to the chassis near the mounting bracket with a star washer to guarantee a solid return path. Avoid daisy-chaining this to other components–poor grounding introduces hiss and interferes with Bluetooth signal stability. For aftermarket amplifications, splice the dark blue/white stripe (amplifier trigger) into the remote turn-on lead of the external unit to synchronize power-up cycles.
Verify illumination control via the orange/black stripe wire; it should brighten dashboard LEDs in sync with headlights. If retrofitting a dimmable screen, ensure this circuit handles 250 mA–exceeding this draw risks burning the instrument cluster fuse. Cross-reference all color codes with a multimeter set to continuity mode before final connections; even slight deviations between model years can invalidate published schematics.
Step-by-Step Aftermarket Audio System Integration
Disconnect the vehicle’s battery terminal before handling any harness connections to prevent short circuits or damage to the electrical system. Use a multimeter set to DC voltage mode to verify power sources–locate the constant 12V (yellow), accessory 12V (red), and ground (black) wires from the factory harness. Confirm readings of 12-14V on live wires and 0 ohms between ground and chassis.

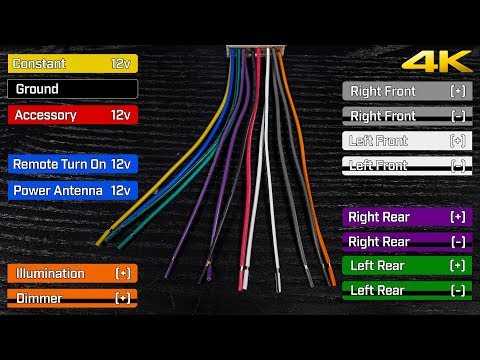

Identify the speaker wiring pairs by color coding: front left (gray/light gray), front right (white/white-black), rear left (green/green-black), and rear right (purple/purple-black). Strip ¼ inch of insulation from each wire and attach corresponding RCA adapters or crimp connectors. Avoid twisting wires together–use heat-shrink tubing for insulation to prevent corrosion.
Mount the new receiver into the dash kit, securing it firmly to avoid vibration-induced disconnections. Route the dashboard harness through the back of the unit, aligning the labeled connectors with the aftermarket interface. Push until an audible click confirms full insertion; tug lightly to verify.
- Connect the constant power wire (yellow) to the battery’s positive terminal via a 15A fuse holder–position the fuse within 7 inches of the battery.
- Attach the ground wire (black) to a clean, unpainted metal surface on the vehicle’s frame, sanding away rust or paint if necessary.
- Link the accessory wire (red) to the ignition-switched 12V source to ensure the unit powers on/off with the key.
Test each speaker wire pair by briefly touching them to a 1.5V AA battery–listen for a click or pop from the corresponding speaker. Reverse polarity if no sound is detected. For amplified systems, connect the blue/white remote turn-on wire to the amplifier’s trigger input to sync power states.
- If installing a subwoofer, route the low-level RCA cables away from power wires to minimize interference–cross at 90-degree angles if unavoidable.
- Secure all loose wires with zip ties or wire loom, avoiding sharp edges or moving components.
- Reconnect the battery terminal and power on the system–verify all functions (FM/AM, media inputs, steering controls) before finalizing the dash panel.
Program the unit’s settings for optimal tuning: adjust bass/treble levels to 0dB, set fader/balance to center, and enable any built-in crossovers if required. Use an oscilloscope or audio analyzer to fine-tune output signals, ensuring no clipping at high volumes. Recheck all connections after 24 hours of use to confirm stability.
