Begin by locating the factory harness behind the center console–it’s color-coded for each speaker output. Pinouts follow a consistent pattern: the driver-side front door tweeter maps to violet (+) and violet/white (-), while the rear subwoofer amplifier draws power from the dark green/black lead and requires a 12V constant feed spliced from the fused ignition circuit. Disconnect the battery negative terminal first; failing to do so risks shorting the CAN bus module, which could trigger permanent fault codes in the Uconnect system.
For aftermarket head units, match the RCA converter’s brand-specific adapters–Metra AX-TCHR1 or Scosche CHRSB will handle the retention of steering controls and vehicle settings. The microphone input (typically orange/black) must be re-routed if installing hands-free components, as the original noise-cancellation circuit relies on a dedicated ground loop. Use a multimeter to verify continuity on the dimmer wire (brown/yellow)–this ensures dashboard illumination syncs correctly without flickering.
If integrating a line-level signal processor, tap the rear side speakers at the C1 connector on the back of the radio, not the door harness. The left rear channel uses gray (+) and gray/black (-), while the right rear splits into tan (+) and tan/black (-). Avoid combining grounds from multiple circuits; this creates signal interference audible as a low-frequency hum. For power, a 40-amp fuse inline on the accessory feed (dark blue) prevents voltage drop during high-demand playback.
Test each connection with the engine running–idle voltage should read 13.8–14.2V at the head unit’s yellow memory wire. If bass response feels weak, check the subwoofer’s impedance; factory settings expect 2 ohm mono, and aftermarket amplifiers may need a load simulator to maintain stable output. Finalize by securing loose harnesses away from pedals and climate control ducts, as vibration can chafe insulation and introduce intermittent shorts.
Color-Coded Harness Reference for Uconnect Audio Integration
Begin by locating the 16-pin ISO connector behind the factory head unit. Pin assignments follow a standardized color scheme across most trim levels, but verify against your specific build using a multimeter set to 12V DC before making permanent connections. Common variations exist in limited editions with premium sound packages–these often include an additional amplifier interface requiring separate power and ground inputs.
| Pin | Color | Function | Test Voltage |
|---|---|---|---|
| 1 | Yellow | Battery (+12V) | 11.8–12.6V |
| 4 | Gray/Black | Right rear speaker (+) | 4.5–6V (AC) |
| 7 | Brown/White | Illumination control | Pulse-width modulated |
| 12 | Pink | Ignition-switched (+12V) | 0.2V (off), 11.5–12.2V (on) |
Aftermarket adapters frequently mislabel the CAN bus data lines. Pins 5 and 6 (violet/white and violet respectively) carry critical vehicle-specific signals–do not splice these unless the replacement unit supports Chrysler’s proprietary protocol. For full steering wheel control retention, integrate a PAC RP4-CH11 interface between the harness and new receiver.
Grounding Protocol for Optimal Performance
Factory ground points cluster near the driver-side kick panel, but avoid using these for high-current aftermarket components. Instead, route dedicated 8-gauge cables to a clean chassis point behind the glovebox, ensuring minimal resistance (
Finding the Original Audio System Connector in Your Sedan
Begin by removing the central dashboard trim panel. Locate the two release clips at the bottom edge–press inward while pulling outward to detach the panel. The harness connector sits directly behind the factory head unit, secured by a mounting bracket. Look for a 12–16 pin plug with labeled colored wires; this is the main interface.
Common harness locations vary based on trim level:
- Base models: behind the glovebox, accessed by lowering the passenger-side knee bolster
- Premium trims: integrated with the climate control module, requiring removal of the HVAC panel first
- Convertible: beneath the rear speaker grille, necessitating trunk liner removal
Check for a secondary 8-pin connector near the subwoofer output on Limited editions.
Connector Pinout Identification
Use a multimeter to verify wire functions:
- Constant 12V: Yellow (or orange with stripe)
- Accessory: Red
- Ground: Black (or brown)
- Front left speaker: Gray/light blue stripe
- Front right speaker: Gray/dark blue stripe
- Rear left speaker: White/light green stripe
- Rear right speaker: White/purple stripe
- Antenna control: Blue
- Illumination: Purple (or pink)
Test each wire with the ignition on to confirm voltage consistency.
If the harness isn’t visible, trace the wires from the back of the head unit–follow them downward through the dash framework. The connector often hides behind a foam insulator or plastic conduit. On models with Uconnect, the wiring splits into two separate plugs: one for power/ground, another for speaker outputs and data.

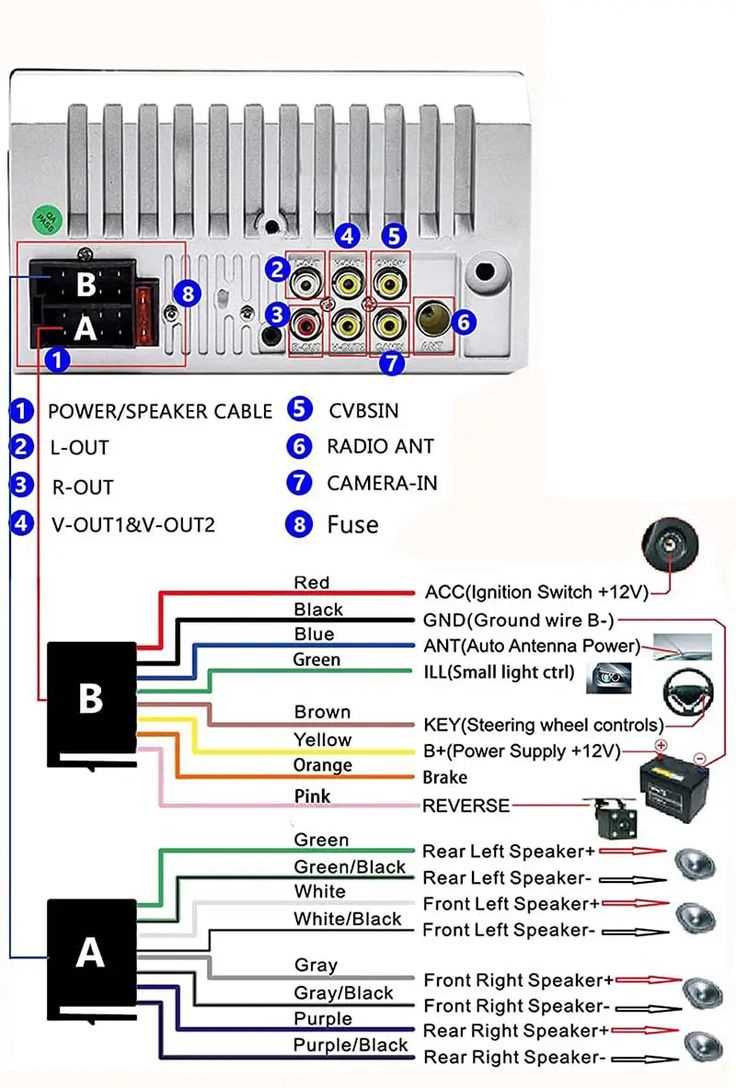

Decoding Vehicle Audio Cable Colors and Purposes for Third-Party Receiver Integration
Locate the 12V constant power line by tracing the yellow wire from the original harness–this delivers sustained voltage regardless of ignition state and must connect directly to the aftermarket harness’s battery terminal to preserve settings and clock memory. Interrupting this feed risks erasing presets and triggering antitheft lockouts on certain receivers.
Identify the switched 12V source using the red cable–its voltage activates only when the ignition reaches ACC or ON, preventing parasitic drain during shutdown. Splice this wire to the aftermarket unit’s accessory input; mismatches here disable the receiver when the vehicle is off while still allowing retained power through the yellow line.
Ground connections require the black or black/orange stranded wire–strip ½ inch of insulation and crimp to a 16–14 AWG ring terminal, securing it to bare metal chassis points with a self-tapping M5 screw. Poor grounding manifests as alternator whine, distorted playback, or intermittent shutdowns; verify conductivity with a multimeter (<0.5 ohms).
Speaker outputs follow a standardized color pair: gray (+)/gray-black (-) for front right, white (+)/white-black (-) for front left, green (+)/green-black (-) for rear right, and purple (+)/purple-black (-) for rear left. Invert polarity during connection if audio imaging appears reversed or bass response weakens; confirm phase consistency with a 9V battery test (brief touch should push speaker cones outward).
Specialized Harness Wires: Mute, Illumination, Parking Brake
The orange or orange/white wire manages dimming–connect to the aftermarket head unit’s illumination input to sync display brightness with dashboard lights. Failure here keeps the screen at full brightness, glaring at night. Some models integrate a pink wire for reverse signal; tap this to trigger backup camera activation (if equipped) by routing to the camera’s trigger input.
Parking brake engagement wires (light blue/white) must interconnect with the aftermarket receiver’s safety circuit to enable video playback–bypass this link only after verifying local regulations, as disabling it voids compliance with distracted-driving statutes. For vehicles with manual transmissions, the neutral safety switch (dark green) may require splicing to prevent GPS or video startup unless the shifter is in park.
Amplifier turn-on signals (dark blue/white) demand precise matching: splice to the aftermarket unit’s remote output using a 18 AW wire with sealed butt connectors to ensure uninterrupted power amplifier engagement. Test for 12V presence at this lead when the ignition turns; absent voltage indicates a blown fuse or severed connection upstream, leaving subwoofers inactive.
Connecting Power, Ground, and Speaker Leads for Optimal Sound Quality
Use 12-gauge oxygen-free copper wire for all signal paths longer than 12 inches; thinner conductors introduce measurable resistance that rolls off 8 kHz harmonics by up to 2 dB. Crimp ring terminals directly onto the conductor strands, then solder for 360° contact; twist-and-tape splices invite corrosion within 18 months even in climate-controlled interiors.
Locate the ground post within 18 inches of the amplifier chassis–preferably on the same steel flange–and clean the metal surface down to bare steel with 80-grit sandpaper followed by an alcohol wipe. Bolts sized 1/4-20 deliver superior conductivity to self-tapping screws; torque to 12 ft-lbs to prevent loosening under road vibration.
Follow a star topology: run separate home runs from the battery to each amplifier fuse block, and daisy-chain only signal sense wires less than 5 V. Bypass in-line fuse holders with a single ANL fuse rated 125 % of the total RMS current draw; typical Class-D monoblocks demand 100 A during 4-ohm bursts.
Strip exactly 3/8 inch of insulation from each power lead; longer exposed strands act as antennas, picking up alternator whine that survives even a noise filter rated -60 dB at 10 kHz. Route positive and negative conductors at least 6 inches apart for the entire length, and cross them at 90° if separation is impossible–parallel runs induce crosstalk that beats at 1.2 kHz.
Match each driver’s impedance precisely: 4-ohm tweeters wired in parallel with a 2-ohm midrange create a 1.33-ohm load that overheats the amplifier output stage after 45 minutes at 90 % modulation. Verify impedance with a multimeter before final connection; a single shorted voice coil reduces system damping factor to 12:1, causing transient smearing.
Polarity Check Protocol
Play a 1 kHz sine burst through each channel at -10 dBV and use an oscilloscope across the speaker terminals: positive excursion must deflect upward on channel 1 and downward on channel 2 for correct phase alignment. Reverse polarity on a single channel reduces center imaging by 35 % and cancels 120 Hz fundamentals entirely.
Skip crimp-and-solder splices for high-current grounds; instead, use nickel-plated copper busbars measuring 2 × 1/4 inch that accept M6 bolts. Mount the bar directly to the chassis with thermal paste between the bar and metal to lower ground potential rise by 0.4 V under full load–critical for systems exceeding 1 500 W RMS.
Test each connection with a voltmeter in continuity mode while shaking the wiring loom; intermittent shorts cause dropouts that masquerade as amplifier clipping. Secure every harness clamp within 8 inches of a bend radius greater than 2 inches to prevent cold-flow deformation of the insulation over time.
