For a 1988–1993 GMC/ Chevrolet compact pickup, the stock stereo harness follows a standardized 10-pin connector layout. Pin assignments break down as follows:
Pin 1: Ignition (+12V, orange wire) – powers the unit when the key is in the “ACC” or “RUN” position. Pin 2: Ground (black) – connects directly to the chassis near the mounting bracket. Pin 3: Illumination (+12V, gray) – dims with the dash lights. Pins 4–7: Front left/right (+/-) speaker wires (light green/light blue–gray/red stripes). Pins 8–10: Rear left/right (+/-) (tan–light brown/dark blue–purple stripes).
Verify each wire with a multimeter before soldering or crimping. The 4-speaker base model omits the rear amplifier circuit; later LS or SS trims include an 8-pin expansion plug for power antenna or subwoofer output (dark green/white stripe).
If retrofitting an aftermarket head unit, splice into the factory harness using ISO-to-Metra adapter #70-1817. Avoid cutting original wires–t-tap connectors risk corrosion on stranded copper. For resistance testing, aim for 4Ω ± 0.5Ω across speaker terminals.
Common faults include corroded ground near the shift lever or intermittent illumination caused by a faulty rheostat. A 6-amp inline fuse must be added within 18 inches of the battery positive connection when installing high-power amplifiers.
Understanding Your Compact Pickup Audio System Connections
Begin by locating the power wires: the constant 12V line (orange) connects directly to the battery, while the switched 12V (yellow) links to the ignition switch. The ground (black) must be secured to bare metal–avoid painted or coated surfaces to prevent signal loss. Speaker outputs follow a consistent color scheme: front-left (light green), front-right (gray), rear-left (brown), and rear-right (dark blue). Verify these connections with a multimeter before finalizing to prevent shorts or reversed polarity.
Adapter Harness Compatibility

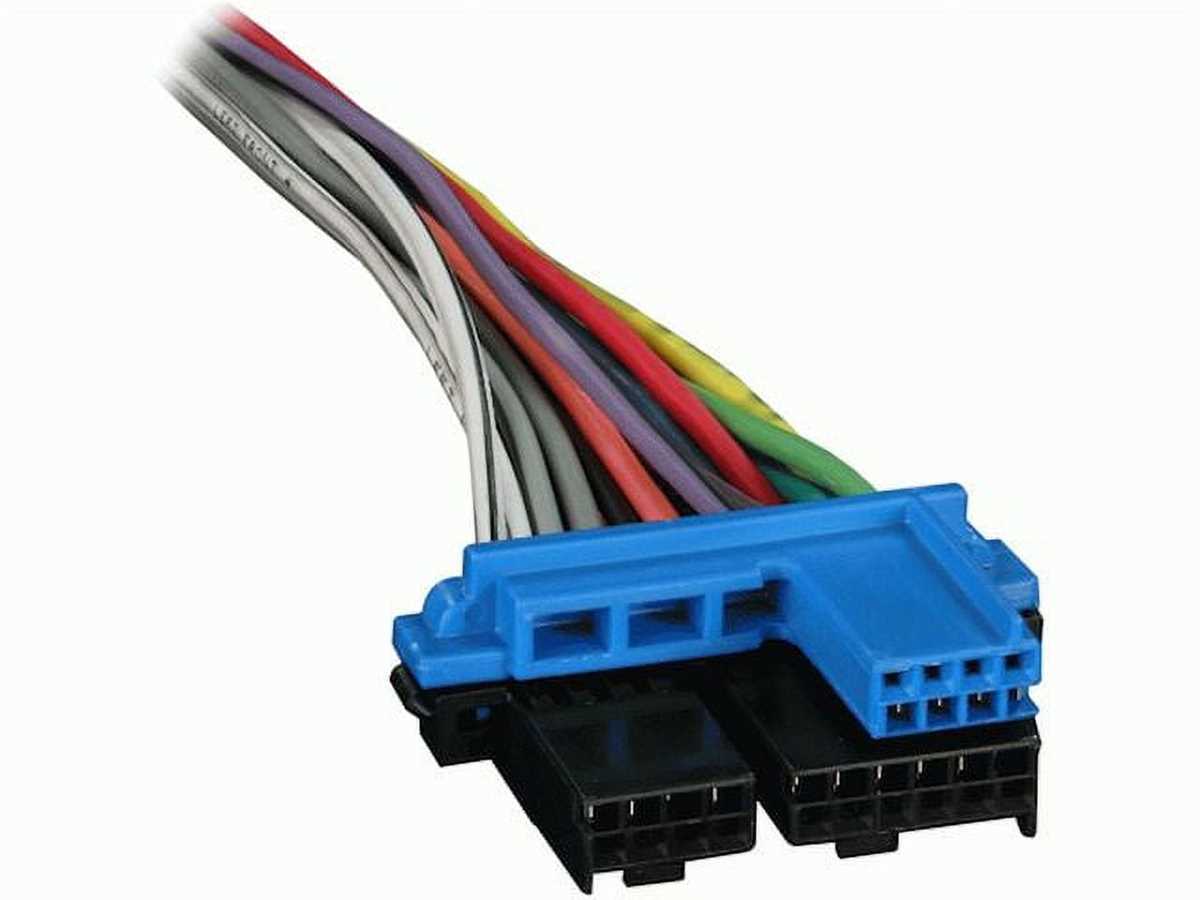

If integrating aftermarket units, use a Metra 70-1001 or Scosche GM01B harness adapter. These match the factory plug’s pin configuration without cutting original wires. For vehicles with premium audio, the amplifier trigger (pink/black stripe) activates external amplifiers–connect this to the new head unit’s amp turn-on lead. Failure to link this wire may result in no sound output despite functional speakers.
Inspect the antenna connector: the coax cable (light blue) carries the FM/AM signal. Ensure it’s free of corrosion and fully seated. If reception issues persist, test the antenna’s continuity with an ohmmeter–broken antennas often register infinite resistance. For vehicles equipped with rear-window defrosters, the antenna may share wiring with the defroster grid; trace connections carefully to avoid disabling either system.
Finding the Original Audio System Plug Connection Point
Begin by removing the lower dashboard panel beneath the climate controls. Use a 7mm socket to loosen the two bolts securing the trim, then gently pull the panel outward–plastic clips will release with minimal resistance. The connector lies directly behind this section, attached to a bundled harness routed toward the firewall.
Trace the primary harness from the back of the head unit toward the firewall. The factory plug is typically a 12-pin rectangular connector (black or gray) with locking tabs on each side. If obscured by insulation or tape, peel back the covering–older models may have additional aftermarket splices that need bypassing.
Key Identifiers for the Stock Plug
Look for wire colors matching the following sequence in the main harness: solid yellow (constant 12V), red with a black stripe (switched 12V), solid black (ground), blue with a white stripe (antenna trigger), and orange with a white stripe (illumination). Any deviation suggests interference from prior modifications.
If the connector is missing, inspect the vehicle’s main fuse block harness–some trim levels routed power through this area. A multimeter set to DC voltage (20V range) will confirm active circuits when probing the exposed wires; test with the ignition in the ACC position.
Alternative Connection Points
Should the original harness be severed, locate the splice joint near the steering column. The bundle often ties into a larger loom feeding the instrument cluster and warning chimes. Strip insulation carefully–older tape-wrapped wires may fray if disturbed aggressively.
For non-standard installations, the plug may reside behind the glove box. Remove the glove box door by releasing the two screws at the base (Phillips #2) and squeeze the side hinges to detach the assembly. The remaining harness should hang freely, accessible once the climate control ducting is shifted aside.
Always verify circuit functionality before reconnecting aftermarket components. Use a test light or multimeter to check for voltage drops, especially on the yellow and red leads–corrosion in the fuse panel often mimics a dead connection.
Document any mismatches in wire colors or connector shapes. Photograph the original setup if splicing is unavoidable; older OE plugs degrade over time, and replacement pigtails may require soldered joints for reliability.
Identifying Wire Colors and Their Roles in Circuit Schematics
Begin by locating the power feed line, typically coded in bright yellow. This conductor supplies constant voltage and must connect directly to the ignition switch’s “ACC” or “ON” terminal to ensure consistent operation. Verify voltage with a multimeter at the harness side before proceeding–readings should match the vehicle’s nominal system voltage.
Ground connections appear in black or black-striped variants. These terminate at chassis points or metal body panels with secure mounting bolts. Inadequate grounding causes erratic behavior; ensure no corrosion exists at attachment sites and scrape paint if necessary to maintain conductivity.
The illumination circuit, often a light gray or gray-striped wire, activates dashboard lighting when headlights engage. Test functionality by toggling headlight switches–brightness should adjust in sync with dash dimmer controls. A misconnection here results in non-responsive or permanently bright displays.
- Orange wires frequently denote memory retention inputs. These require uninterrupted power even when the ignition is off. Connect to fused sources only, avoiding circuits shared with high-draw components.
- Speaker outputs are paired: front left (+) solid, (–) stripe; front right (+) solid, (–) stripe; rear follows the same pattern. Polarity swaps distort audio–confirm with a tone generator before finalizing connections.
- Dim blue or violet leads handle accessory triggers. These activate remote amplifiers or steering wheel controls. Check manufacturer specs for compatibility before splicing into existing vehicle harnesses.
For antenna motor control, look for a pink or pink-striped wire. This powers automatic antenna retraction when switching sources or powering down. Malfunctions here often stem from broken motor gears–inspect before troubleshooting the electrical path.
Troubleshooting Mismatched Color Codes
If encountering non-standard hues, cross-reference with factory service manuals or aftermarket component documentation. Aftermarket units sometimes deviate from OEM specs. Document every connection with labeled photos to prevent errors during reassembly.
Bypass splices whenever possible. Use soldered joints with heat-shrink tubing for durability, or opt for reliable crimp connectors with silicone seals. Exposed wiring invites corrosion, especially in under-dash environments where moisture accumulates.
- Trace each lead back to its origin point using a continuity tester.
- Isolate circuits one at a time to identify shorts or parasitic draws.
- Label both ends of every wire with masking tape during disassembly.
Final Verification Steps
Recheck all connections against a printed schematic before applying power. A single misrouted wire can damage equipment–confirm polarity, voltage, and secure attachment for every terminal. Use dielectric grease on outdoor or exposed connectors to prevent oxidation.
Step-by-Step Guide to Removing the Factory Audio Unit
Disconnect the vehicle’s negative battery terminal first to prevent electrical shorts. Use a 10mm socket to loosen the clamp on the terminal and slide it off the post. Secure the cable away from the battery to avoid accidental reconnection.
Locate the retainer screws securing the dashboard trim panel around the audio system. On this model, two screws are positioned at the bottom corners of the unit, beneath a thin plastic cover–pry this gently with a flathead screwdriver. Two additional screws may be hidden behind the climate control knobs if equipped; remove the knobs by pulling them straight outward.
| Tool Required | Location/Use |
|---|---|
| 10mm socket | Battery terminal removal |
| Flathead screwdriver | Trim panel prying, screw cover removal |
| Phillips #2 screwdriver | Retainer screw removal |
| Panel removal tool (plastic pry bar) | Dashboard trim separation |
Once screws are removed, insert a plastic pry tool between the trim and dashboard. Start at one corner and work systematically around the panel to release the clips–apply steady pressure to avoid breaking them. Set the trim aside carefully to prevent scratching.
Behind the panel, the audio unit is held by a metal mounting bracket. Remove the four screws fastening the bracket to the chassis; two are visible at the top, while the lower screws may require tilting the unit forward to access. Disconnect the antenna cable at the rear–press the tab on the plug and pull firmly.
Unplug the wiring harness by squeezing the release tab on the connector and pulling it directly away from the unit. If the vehicle has a separate amplifier or chime module, label these connectors before removal to simplify reinstallation. The wiring harness may include power (red/yellow), ground (black), speaker outputs (multi-colored pairs), and illumination (orange).
Slide the unit out through the front of the dashboard. If resistance is felt, check for hidden screws or unplugged connectors–some models have a theft-deterrent bar that must be disengaged before full removal. Store the factory unit in its original packaging if it will be reinstalled later.
