Locate pin C2 (14401) on the main fuse panel under the dash. Connect a 18-gauge wire with red/orange tracer to terminal 58L–this feeds the left-side assembly. Verify voltage at the harness plug using a multimeter; readings below 11.8V indicate a corroded ground near the spare tire mount. Clean contact points with 600-grit sandpaper or replace stud G305 if pitting exceeds 0.5mm.
For the right assembly: splice into wire 22 (light green/black) at the trailer connector module. Route through rear crossmember grommet, avoiding sharp edges–zip-tie every 8 inches to prevent chafing against the frame. Label each segment with heat-shrink tubing; green dot for brake circuits, yellow for marker lamps. Confirm continuity with a probe before securing connections with weatherproof butt splices rated for 12-18AWG.
Replace bulbs with LED units only if the existing socket measures less than 1 ohm resistance. Aftermarket multi-function assemblies often reverse polarity–test with a 9V battery before final installation. Document each step; photograph harness paths for future diagnostics.
Ground straps from the rear valence must attach directly to the frame rail, not to body panels. Use star washers to penetrate paint and apply dielectric grease to prevent oxidation. Recheck all connections after 48 hours–thermal cycling can reveal loose crimps.

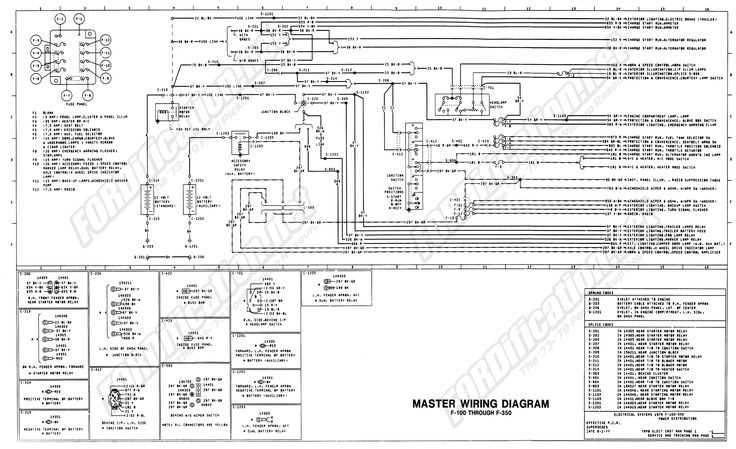

Ford Super Duty Rear Lamp Circuit Guide
Begin by identifying the color-coded wires in the harness connected to the vehicle’s rear assembly. The standard configuration for the 6.7L diesel includes:
- Brown wire: running lamp circuit (constant 12V when lights activated)
- Dark green/yellow stripe: stop lamp signal (12V during brake application)
- White/light blue stripe: turn signal (flashes 12V during activation)
- Black wire: ground connection (attach securely to unpainted chassis point)
Use a multimeter set to DC voltage to verify each wire’s function before making connections–test the running lamps with the headlight switch on, brake circuit with pedal depressed, and turn signals while observing the dashboard indicators.
For trailer plug integration, splice the corresponding wires from the truck’s harness to the 7-way connector following this pinout:
- Ground: attach to trailer frame for all circuits
- Left turn/brake: yellow wire
- Right turn/brake: green wire
- Tail lamps: brown wire
- Reverse lamps (if equipped): purple wire
- Auxiliary power: black/red wire (12V fused, max 30A)
- Electric brake: blue wire (requires brake controller)
Decoding Rear Lamp Circuit Colors and Purposes
Locate the brown wire first–it delivers constant 12V power to the running lamps on the truck’s rear assembly. Verify continuity with a multimeter set to DC voltage; readings should match battery voltage (±0.5V) when the headlamp switch is activated. If absent, inspect the fuse labeled RT HDLP (15A) under the dashboard panel near the steering column.
Trace the yellow striped cable next–this conductor carries the brake signal. Confirm functionality by pressing the pedal while observing voltage: expect a clean spike from near 0V to 12V. No response indicates a failed stop-lamp switch or corroded connectors at the pedal bracket. Replace the switch if resistance exceeds 2 ohms.
- White wire with black stripe: ground path–ensure secure attachment to chassis; rust or paint can disrupt contact.
- Dark green with orange stripe: turn indicator–flashes synchronous with front amber signals.
- Red with white stripe: reverse lamps–activates when shifting into reverse gear.
- Light blue: trailer tow auxiliary feed–requires separate fuse if unused.
Test each circuit with a load resistor (3Ω, 25W) before connecting new fixtures to prevent overload. Isolate faulty segments by back-probing the harness connector at the junction box behind the left quarter panel. Label every wire with masking tape and markings to avoid cross-connection errors during reassembly.
Use heat shrink tubing sized 1/4″ diameter over splices to seal against moisture. For circuits exposed to road debris, apply dielectric grease sparingly to pin terminals–avoid globs that attract dirt. Recheck all connections after 20 miles of driving at highway speeds to detect intermittent faults.
Step-by-Step Guide to Locating the Rear Signal Electrical Port
Begin by removing the interior trim panel on the driver’s side rear quarter. Use a trim removal tool to pry the panel gently, starting at the bottom edge near the latch mechanism. The connector bundle is secured behind a black plastic clip–press the release tab inward while pulling the plug outward. If corrosion is present, apply dielectric grease to the contacts before reattachment.
Alternative Access Points
Under the bed: For dual-rear-wheel models, the harness routes through a rubber grommet near the frame rail. Trace the wires from the rear compartment toward the bumper–look for a white or gray connector tethered to the chassis with zip ties. Pro tip: Label each wire with masking tape before disconnecting to avoid confusion during reassembly.
Tracing Circuit Paths for Brake, Turn, and Reverse Signals

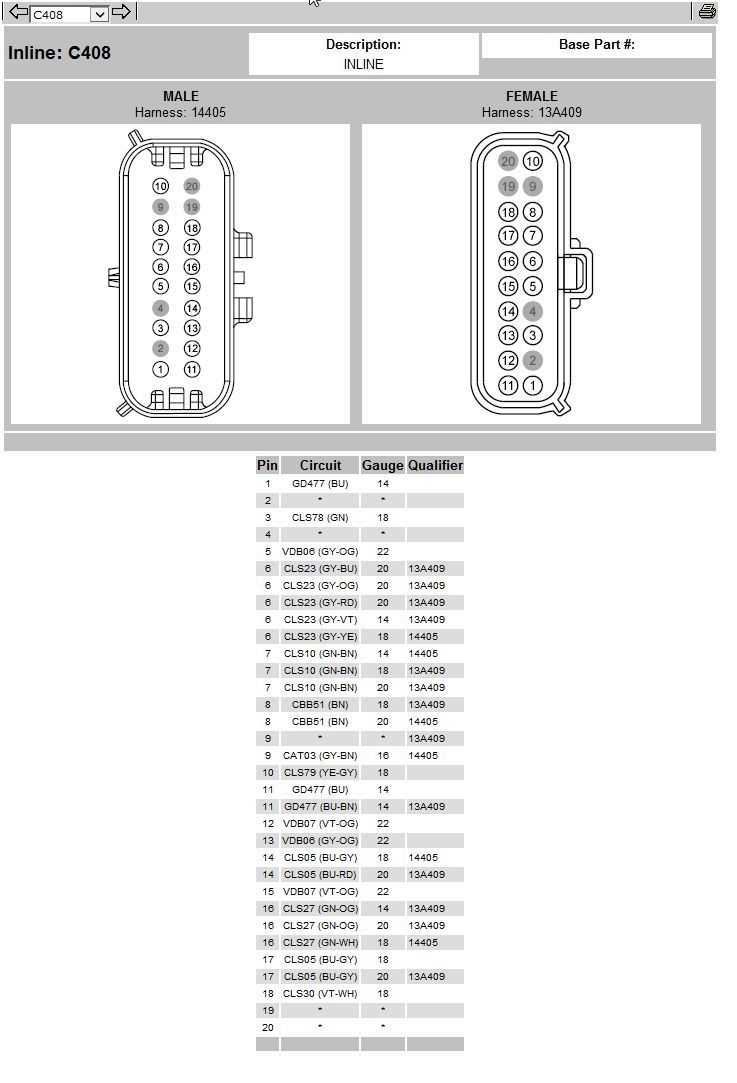

Locate the rear harness connector near the vehicle’s junction box–typically a 14-pin plug with color-coded terminals. Pin 1 (white/orange stripe) carries the stop lamp feed, activating both steady brake illumination and the central high-mount stop indicator. Probe this line with a multimeter set to 12V DC; voltage should spike to system level only when the pedal depresses.
Turn signal routing splits at the flasher relay. Left-side blinkers follow a yellow/black tracer wire, right-side uses light green/black. These dual-function circuits also handle parking and marker duties, merging into a single violet conductor before terminating at the lamp assemblies. Test pulse consistency by connecting a test light–rapid blinking confirms proper relay timing; erratic flashing indicates corroded grounds or faulty bulbs.
Reverse signal isolation starts at the backup switch, triggered by transmission engagement. A single brown/pink stripe wire runs directly to the rear housings, bypassing other circuits. Verify switch integrity by jacking the rear axle–voltage should read zero in park/neutral and 12V+ when shifted to reverse. Common failures occur at switch contacts or chassis grounds near the rear axle mounts.
| Signal Type | Primary Conductor | Secondary Path | Voltage Trigger | Failure Symptoms |
|---|---|---|---|---|
| Brake | White/orange stripe | Red (ground return) | Pedal depression | Flickering, dim output |
| Left Turn | Yellow/black | Chassis ground | Lever activation | Rapid pulsing, no illumination |
| Right Turn | Light green/black | Chassis ground | Lever activation | Intermittent signal |
| Reverse | Brown/pink stripe | Black (ground) | Gear shift | No voltage at lamp base |
Ground connections cluster near the frame rail gusset, bundled under factory tape. Scrape corrosion from mounting points before re-securing–use star washers to prevent loosening. For trailer towing applications, a dedicated dark blue wire taps into the main brake circuit, requiring a separate relay to handle increased load.
Relay sockets often develop resistance at terminal connections. Clean male/female contacts with electrical cleaner, then apply dielectric grease before reinserting. If turn signals fail to cancel after lane changes, inspect the cancel cam mechanism within the steering column–broken plastic tabs prevent proper reset.
Harness abrasion occurs at suspension links and drive shaft tunnel entries. Route vulnerable sections through split loom tubing, securing with UV-resistant zip ties every 18 inches. For aftermarket additions, maintain a minimum 3-inch separation from hot exhaust components to prevent insulation melting. Always disconnect battery negative terminal before probing live circuits–avoids shorting fused circuits and damaging control modules.
Common Electrical Problems and Voltage Testing Techniques
Start by probing the connector pins with a multimeter set to DC voltage. For rear illumination circuits, expect 12V at the power pin when the switch is activated. If voltage is absent, trace the line backward–check fuses (labelled “lamps” or “lighting” on the fuse box) first, then relay contacts if equipped. Corrosion at connectors often mimics wiring faults; spray electrical cleaner into the socket and reconnect three times to dislodge debris before retesting.
Ground-side failures are frequent but overlooked. Place one multimeter lead on the battery positive terminal and the other on the lamp housing’s ground screw. Voltage above 0.1V indicates resistance; clean the mounting surface to bare metal and refasten. For inline grounds, splice a temporary wire from the harness directly to the chassis–if the issue resolves, the original path is compromised. Heat-shrink the splice after confirming.
Shorts to ground drain batteries overnight. With all switches off, disconnect the positive battery terminal and insert an ammeter between the post and cable. Current draw over 50mA suggests a parasitic drain–remove fuses one by one until the meter stabilizes. Once identified, follow the hot wire visually or with a tone generator; insulation chafing against sharp edges is a common culprit. Repair with liquid electrical tape and loom.
Intermittent faults often hide in flex points. Wiggle the harness while monitoring voltage–drops point to broken strands inside the wire. Expose the suspected section by carefully slitting the outer jacket, then strip individual conductors to inspect for green oxidation or snapped copper. Reflow solder joints with rosin flux, then seal with adhesive-lined heat shrink to prevent future corrosion.
