Installing a replacement stereo in models like the 2002–2005 MK4 variant requires direct access to the OEM harness behind the dash fascia. Cut the factory connectors only after verifying pin assignments with a multimeter–mismatched power leads risk fusing the unit’s internal circuits. The constant 12V line is typically red, while the switched ignition wire is often yellow, but some trims reverse these colors. Ground is a solid black lead, normally bolted to chassis metal near the glove box.
Locate the vehicle’s fuse box beneath the steering column. The radio circuit usually draws from fuse position #32 (10A) or #15 (15A), depending on whether the car includes factory amp integration. If tapping into these slots, bypass the inline fuse holder included in aftermarket wiring kits–stock circuits are already protected at the fuse panel. Use crimp connectors instead of solder for connections exposed to vibration; twist-and-tape joints corrode within 18 months under temperature swings.
Factory mute wires–identifiable by their thin gauge and purple or pink insulation–must not be ignored. These wires trigger door chimes, warning tones, and navigation prompts. Permanently splicing them into the new harness prevents error codes that illuminate the instrument cluster. Auxiliary entertainment systems also rely on CAN bus signals; if retrofitting Bluetooth, confirm the kit includes a CAN interrupt module that translates steering-wheel controls to standard 12V pulses.
Anticipate ground loop interference on RCA outputs. Separate the head unit’s ground from the amp’s ground by routing separate leads to distinct chassis points. Use oxygen-free copper wire for signal paths; cheaper CCA cables introduce resistance, degrading bass response below 80Hz. Shielding tape wrapped around exposed lengths near spark plugs reduces ambient static–aluminum foil works temporarily but corrodes within 6 months in humid climates.
Electrical Guide for MK4 Sedan Audio System Integration

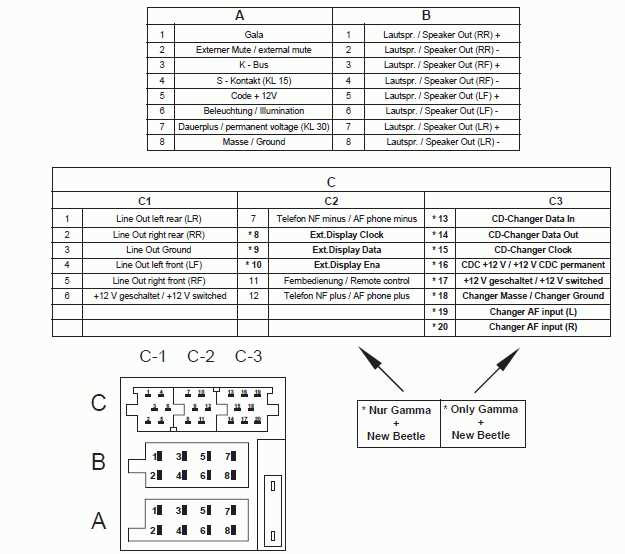

Locate the central ISO connector behind the factory head unit–it splits into two 8-pin plugs labeled A (upper) and B (lower). Pinouts follow: A1 (red, constant 12V), A4 (yellow, ignition-switched), A5 (blue, antenna trigger), A7 (white/black, front left +), A8 (gray/black, rear left +). Ground wires cluster at B3 (brown) and B4 (brown/black). Ensure soldered joints and heat-shrink insulation; crimped connectors risk intermittent failures under vibration.
For aftermarket amplifiers, tap B6 (violet) and B8 (green) for rear speaker signals–both carry 4V preamp output from the stock unit. Bridge these to RCA adapters using 22-gauge shielded cable; avoid running parallel to power wires to suppress alternator whine. Verify polarity before connection: left rear (+) is violet/white, right rear (+) is green/white. Factory fader controls operate via resistor networks; bypass by wiring directly to speaker leads if needed.
Test circuits with a multimeter before reassembly–probe between ground and each power lead to confirm 12V availability. Illumination wire (A6, orange) dims with dashboard lights; pair it to the dimmer control on third-party radios using a 1KΩ resistor in series if flickering occurs. For steering wheel controls, procure a 32-pin adapter (euro-connector) to map signals to CAN bus protocols–check pin B2 (brown/yellow) for data input.
Finding the OEM Audio Connector Behind the Instrument Panel
Begin by removing the upper trim panel directly beneath the climate controls. This segment snaps off with moderate force–use a plastic pry tool to avoid marring the surface. Once released, the lower dash cover becomes accessible; unclip it by pulling downward at both corners. Behind this cover, the factory harness connector will be visible, secured to a metal bracket with a single 10mm bolt.

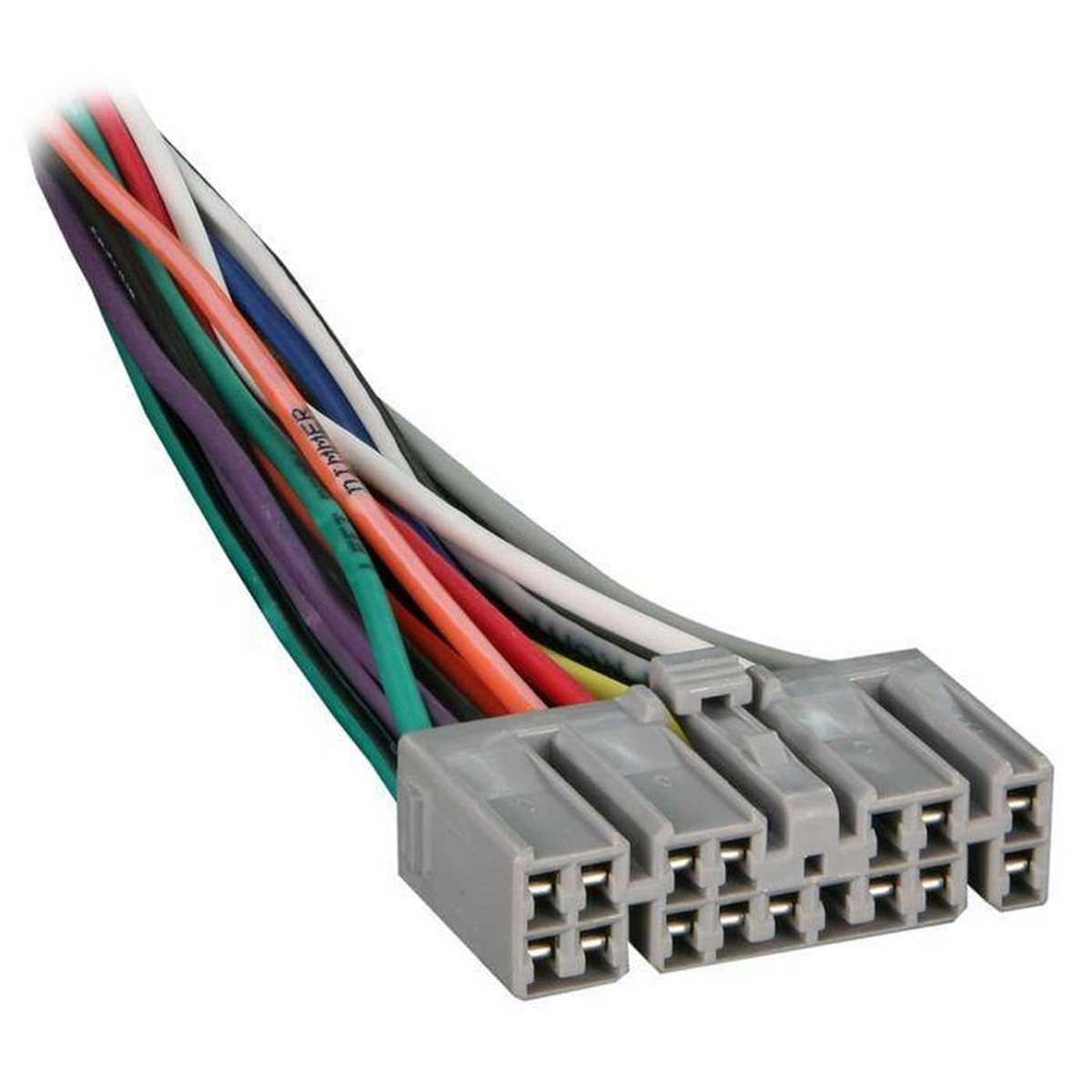

Trace the bundled cables from the head unit toward the driver’s side kick panel. The harness typically splits into two connectors: a 16-pin plug for power, speakers, and amplified signals, and an 8-pin plug for illumination and antenna control. Both connectors are keyed to prevent incorrect insertion, so note their orientation before detaching. Red wires indicate constant 12V power, yellow supplies memory retention, and orange connects to the illumination circuit.
For vehicles equipped with premium sound systems, an additional ground wire runs separately from the main harness. This thick black cable terminates near the firewall and must remain connected to avoid interference. If replacing the audio unit, secure this ground to the new system’s chassis using a crimp connector–never rely on solder alone, as vibrations can cause failure over time.
Before handling the connectors, disconnect the negative terminal of the battery to prevent short circuits. The harness may include integration leads for steering wheel controls; these are often spliced into the main loom and require careful reconnection if modifications are planned. Label each wire with masking tape if retaining the original setup, as color codes can vary in aftermarket installations.
If the connectors do not release easily, check for a locking tab pressed by a small lever on the harness side. Apply firm upward pressure while sliding the release mechanism–do not force the plug, as damaged pins will disrupt signal integrity. Once separated, inspect the terminals for corrosion; clean with electrical contact spray if necessary before reconnecting any components.
Decoding Factory Harness Colors and Roles in Vehicle Audio Schematics
Locate the constant 12V supply line first–typically marked in solid yellow on original schematics. This wire delivers uninterrupted power for memory functions and clock retention. Verify with a multimeter set to DC voltage; it should read approximately 12.6V regardless of ignition state. Avoid mistaking it for the orange illumination wire, which activates only when headlights engage. Confusing these leads risks draining the battery or disabling preset stations after shutdown.
Switched Power and Ground Pathways
The red switched power conductor energizes the system when the ignition is turned to “ACC” or “ON.” Splice testing reveals 0V when the key is off, confirming its dependency on the ignition circuit. Ground connections appear in unshielded black or brown, often terminating at chassis points near the unit’s mounting bracket. Clean oxidation from these points before securing; poor grounding generates buzzing, station drift, or intermittent shutdowns. Use star washers for maximum conductivity if reattaching.
Speaker outputs pair colors oppositely: front-left positive typically arranges in grey/red stripes, while its negative counterpart shows grey/black. Rear-right channels reverse the pattern–blue/red for positive, blue/black for negative. Check continuity with a tone generator; resistance should measure below 4 ohms per driver. Swapping polarity distorts audio imaging and weakens bass response.
Dimmer-controlled illumination lines, usually orange or orange/white, adjust display brightness in sync with dash lights. Probe these traces during nighttime testing to confirm proportional voltage attenuation. Fused leads–distinctively violet–protect accessory circuits; always match existing fuse ratings when replacing blown segments. Miswired dimmer inputs risk overload or display failures under low-light conditions.
Integrating Third-Party Audio Drivers with the Sedan’s Factory Harness
Begin by identifying the speaker output wires on the original head unit connector. Pinouts for most models include:
- Front left (+): Green/Black
- Front left (-): Green/Yellow
- Front right (+): Purple/Black
- Front right (-): Purple/Yellow
- Rear left (+): Brown/Black
- Rear left (-): Brown/Yellow
- Rear right (+): White/Black
- Rear right (-): White/Yellow
Mismatched colors indicate aftermarket modifications–verify with a multimeter set to 12V DC before proceeding.

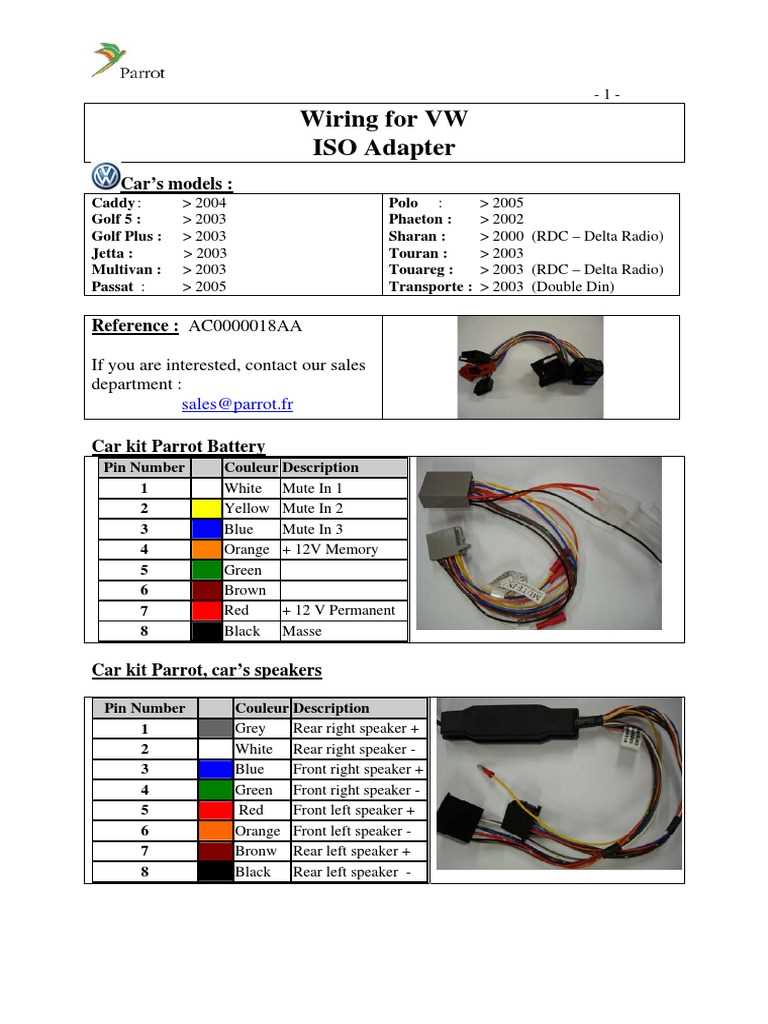

Use a wiring harness adapter matching the OEM connector to avoid cutting factory cables. Adapters like Metra 70-9003 or Scosche VW03 provide labeled outputs for seamless integration. Connect corresponding amplifier leads only if the new system includes a built-in amp; otherwise, bypass by splicing directly to speaker wires.
Check impedance compatibility: factory drivers typically operate at 4Ω, while aftermarket units may require 2Ω or 8Ω. Impedance mismatches cause distortion or amplifier damage. Confirm specifications in the replacement unit’s manual before connecting.
Secure connections with solder and heat-shrink tubing–or use crimp connectors with dielectric grease for moisture resistance. Avoid twist-and-tape methods in door panels or undercarriage areas prone to vibration.
Test each channel individually before final assembly. Play a 1kHz sine wave at moderate volume–distorted sound suggests reversed polarity or shorted wires. Swap (+) and (-) leads if phase issues occur, ensuring consistent left/right staging.
For systems with separate tweeters, use a passive crossover network (6dB/octave minimum) to prevent midrange drivers from reproducing high frequencies. Capacitors (1–4.7µF non-polarized) in series with tweeters protect from damage while maintaining clarity.
Ground the new unit directly to chassis metal–preferably near factory ground points. Avoid daisy-chaining to other components, as this introduces noise. Use 10–12 AWG wire for ground leads to ensure stable current flow.
Testing Voltage and Ground Connections Before Final Installation
First, set your multimeter to DC 20V range and probe the harness-side plug terminals with the ignition off. Pin 4 (constant 12V) should read 12.6–13.2V against chassis ground; pin 7 (switched 12V) must drop to 0.5V or lower. If readings deviate, trace the circuit back to the fuse box–check fuse positions 12 and 5 on the driver-side panel. Replace any fuse showing resistance above 0.2Ω.
| Terminal | Expected Voltage (Ignition Off) | Expected Voltage (Accessory/Ignition On) | Tolerance |
|---|---|---|---|
| 3 (Illumination) | 0V | 11.5–12.5V | ±0.3V |
| 5 (Ground) | 0V | 0V | |
| 10 (Antenna Trigger) | 0V | 11.8–13.0V | ±0.2V |
For ground integrity, clamp a jumper wire between terminal 5 and the nearest bare chassis point. If the device powers on but cuts out when the jumper is removed, clean the ground contact with a wire brush and re-secure with a star washer–torque to 8Nm. On vehicles with gloss-coated frames, scratch through the paint to bare metal before attaching; corrosion here creates intermittent faults that mimic amplifier failure.
