Start by locating the main fuse box beneath the left side cover–typically secured by two 10mm bolts. The 30-amp fuse protects the entire system; verify its integrity with a multimeter set to continuity before proceeding. Trace the red wire from the battery’s positive terminal to the ignition switch, ensuring no corrosion at the connection points–clean with 600-grit sandpaper if resistance exceeds 0.2 ohms.
Inspect the stator’s three-phase wiring harness where it exits the engine casing. Each yellow wire corresponds to an output coil; use a load tester to confirm 14-18 volts AC at idle. If readings drop below 12 volts, check the regulator/rectifier’s ground–bolted to the frame near the rear shock–for paint interference or loose threads. Replace the unit if forward voltage exceeds 0.6V at 10 amps.
Identify the lighting circuit’s brown/white stripe wires, which feed the headlamp assembly. Splice into these at the handlebar switch cluster for aftermarket modifications, but maintain wire gauge–18 AWG for stock configurations. The turn signal flasher relay, mounted behind the instrument cluster, operates at 85-115 flashes per minute; adjust by replacing the relay with a solid-state equivalent rated for 30 watts per bulb.
For diagnostic purposes, disconnect the CDI unit’s 8-pin connector and map each terminal using the factory service manual’s pinout data: white/black for ignition pulse, red/white for 12V supply, and green for ground. Test the ignition coils individually by measuring primary resistance (0.2-0.8 ohms) and secondary resistance (6,000-12,000 ohms). Replace coils if readings deviate by more than 10%.
Secure all ground connections with star washers to prevent voltage drops under load. Route wiring harnesses away from sharp edges and moving components–use nylon loom tubing for exposed sections near the swingarm pivot. Label each connection with heat-shrink tubing marked in permanent ink for future reference.

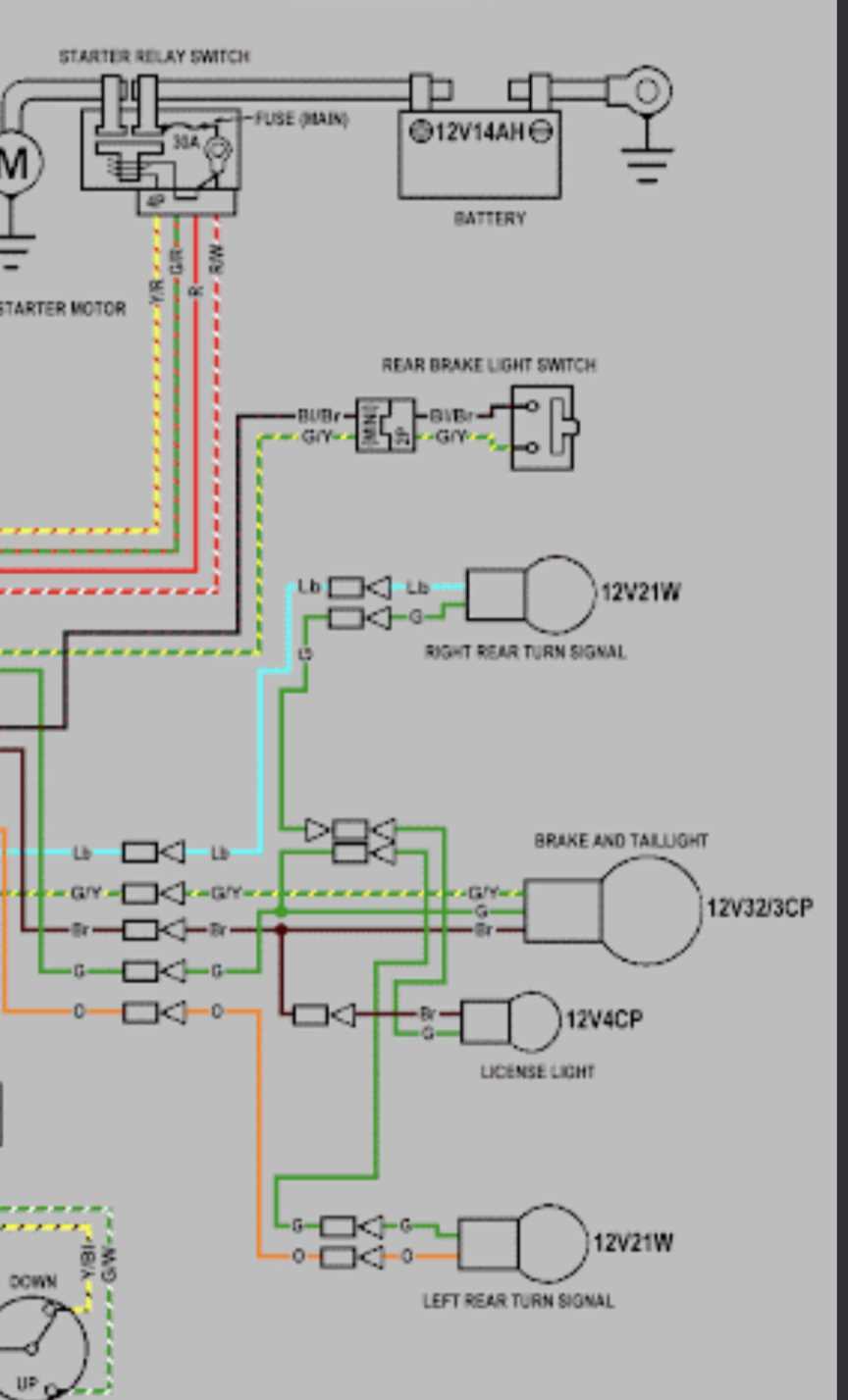

Electrical Schematic for VT750C Model Circuit Analysis
Start troubleshooting by isolating the charging system: disconnect the 3-pin connector from the stator to the regulator-rectifier. Using a multimeter set to ohms (Ω), probe the yellow stator leads–readings between 0.1–1.0 Ω confirm coil integrity. If readings exceed 5 Ω or display OL, replace the stator immediately. Verify ground continuity by checking the black/green wire from the regulator-rectifier to the engine casing; corrosion here mimics alternator failure.
- Ignition circuit: Test the kill switch by probing the black/white wire at the 4-pin connector while toggling the switch–voltage should drop to 0V when engaged.
- Lighting system: Fused 10A circuits (headlight, taillight) often fail at the bullet connectors–reflow solder joints with 60/40 rosin-core solder to prevent voltage drop.
- ECU signals: The gray/yellow wire carries throttle position data; if idling erratically, backprobe the ECU connector pin #12 with a T-pin to read 0.5–4.5V across throttle range.
For fuel injection models, the main harness’ green/orange wire carries critical sensor ground–ensure it’s clamped securely under the ECU mount bracket. Common failure points include the 18-pin white connector behind the right side cover; use dielectric grease during reassembly to prevent oxidation on terminals. When replacing fuses, match amperage exactly–aftermarket fuses often melt due to undersized conductors.
Finding Key Electrical Bundle Hookups on Your VT750 Model
Start beneath the seat–remove the rear panel by loosening the two 10mm bolts at the corners. The primary electrical bundle splits here into three branches: the regulator-rectifier plug (white 3-pin), the ignition module harness (black 6-pin), and the lighting cluster pigtail (gray 4-pin). Each connector locks with a squeeze tab–release them firmly to prevent splitting the terminals.
- White 3-pin – integrates battery charging line and ground
- Black 6-pin – carries ignition coil pulses and sensor feeds
- Gray 4-pin – manages front/rear lamp circuits
Trace each branch toward its mating point: the white leads to the left frame rail, the black dives under the fuel tank, and the gray snakes along the subframe stay.
Inspect the tank-adjacent mount for a hidden T-connector; it bridges the main harness to the fuel pump relay. This junction wears an orange 2-pin plug–mistaking it for turn signal feed risks frying the ECU.
Behind the instrument cluster, another splice serves the speedometer, neutral indicator, and high-beam relay. A brown 5-pin connector secures here–label wires prior to unplugging, as mismatched reinstallation dims the console or kills the headlight entirely.
Identifying Critical Parts in the Bike’s Circuit Layout
Locate the ignition switch cluster first–it’s usually positioned near the steering stem, connected via a 6-pin plug with color-coded leads: red (constant 12V), yellow (ignition feed), black/white (ground), and two smaller wires for accessories. Verify the rectifier-regulator, a finned aluminum unit mounted near the radiator or frame; it converts AC from the stator to DC and clamps voltage at 14.4V–failure here causes battery drain or blown bulbs. Check the stator’s three-phase output wires (thick yellow) emerging from the engine casing; each should read ~20V AC at 3,000 RPM when probed with a multimeter.
Trace the fuse block beneath the seat–it houses 10A, 15A, and 20A fuses for lighting, fuel pump, and ECU circuits, respectively. The ECU itself is a small black module near the airbox; its 8-pin connector carries signals from the crank sensor (blue/white wire), MAP sensor (green/white), and throttle position sensor (orange). For lighting, confirm the headlight relay–triggered by the white/red wire from the ignition–sends 12V to the high/low beam filaments via blue (high) and red (low) wires.
Step-by-Step Guide to Tracing the Ignition Circuit Wires
Locate the bike’s primary ignition coil near the engine block–its two thick cables (typically black/yellow and green) connect directly to the spark plugs via rubber boots. Disconnect the battery’s negative terminal first to prevent accidental shorts. Using a multimeter set to continuity mode, probe the black/yellow wire at the coil’s input side while tracing it backward to the ignition switch; expect a reading under 0.5 ohms if the path is intact. If resistance spikes, inspect connectors for corrosion or frayed insulation at common failure points: behind the instrument cluster and near the steering head.
Follow the green wire from the coil’s secondary side to its ground point–usually a bolt on the frame near the cylinder head. Scrape paint from the contact surface if corroded; a solid ground is critical for proper spark delivery. For the switch-side circuit, trace the black/white wire from the ignition module to the key barrel–intermittent failures here often stem from worn contacts inside the switch housing. Test by wiggling the harness while observing voltage (12V expected when key is ON); fluctuations indicate internal wear.
Check the kill switch’s influence by probing its black output wire–when active, it should drop voltage to 0V. If the engine stalls unpredictably, bypass the switch temporarily by jumpering its input/output terminals (label wires first). For advanced diagnostics, back-probe the ECM connector at pin A12 (purple/orange stripe) while cranking; steady 5V pulses confirm signal integrity to the ignition control module. Replace any compromised fuses (10A, marked IGN) with exact amperage–upgrades risk module damage.
Testing and Troubleshooting the Charging System Electrical Layout
Begin by verifying the alternator’s output directly at the stator terminals using a multimeter set to AC voltage. With the engine running at 3,000 RPM, you should measure between 30–60V AC across each pair of the three stator wires. Readings outside this range indicate a faulty stator or a shorted diode trio, demanding immediate inspection of the winding continuity–resistance should fall between 0.1–1.0 ohms per phase. Disconnect the regulator-rectifier connector first to eliminate load interference.
Check the regulator-rectifier’s DC output at the battery terminals while maintaining 3,000 RPM–expect 13.8–14.5V DC with no parasitic loads (lights, ignition) active. A voltage below 13.2V suggests diode failure or insufficient stator output; above 15.0V points to regulator malfunction. Probe each of the five regulator-rectifier pins with the ignition off–pin A (common ground) to B/C/D/E should show infinite resistance, while B-C, B-D, and C-E pairs must measure 0.5–1.5 ohms. Deviations confirm internal component breakdown.
Inspect the battery-to-starter relay cable for voltage drop using a voltmeter’s DC scale. With the ignition on, the relay’s input terminal should match the battery voltage (±0.1V), while the output terminal should show ≤0.3V drop under cranking load. Excessive drop (>0.5V) necessitates cleaning corrosion from the relay contacts or replacing the 10-gauge cable, which should exhibit
| Component | Test Point | Expected Value | Fault Indication |
|---|---|---|---|
| Stator (AC) | Phase-phase (3k RPM) | 30–60V AC | 70V |
| Regulator-Rectifier (DC) | Battery terminals (3k RPM) | 13.8–14.5V DC | 15.0V |
| Ground Circuit | Frame to battery (-) | >0.5 ohms | |
| Fusible Link | Input vs. output (ignition on) | >0.3V drop |
Trace the charging circuit ground path to the engine block, ensuring ≤0.2 ohms resistance between the battery negative terminal and any unpainted metal surface. Oxidized mounting bolts or loose connections at the rear cylinder head often introduce resistance, manifesting as dimmed headlights or erratic gauge behavior. Replace the 6mm ground strap if its insulation is frayed or the copper strands show green patina–clean contact surfaces with a wire brush and apply dielectric grease before reassembly.
For intermittent faults, apply a thermal camera or non-contact thermometer to the regulator-rectifier’s aluminum fins after 10 minutes of engine runtime. Heat spots (>120°F) localized near the diode plate signal impending failure, whereas uniform temperatures across the housing confirm proper dissipation. Swap the unit if temperature gradients exceed 20°F between adjacent fins, as this indicates uneven load distribution or internal shorts.
Voltage Drop Diagnostic Procedure
Connect a multimeter in voltmeter mode between the battery positive terminal and the regulator-rectifier’s red input wire while cranking the engine. A reading >0.5V signals excessive resistance in the positive lead–inspect the fusible link (14-gauge, 30A) and ignition switch contacts for oxidation. Repeat the test on the ground side between the battery negative terminal and the engine block; readings >0.3V mandate cleaning the battery tray-to-frame connection and verifying the ground strap’s integrity.
