For immediate reference, locate the central fuse box beneath the dashboard on the driver’s side–this is the neural hub for the sedan’s electrical flow. Pinpoint relay positions using the color-coded labels molded into the plastic casing: red corresponds to ignition-switched circuits, yellow to constant power, and blue to lighting systems. Avoid guessing wire routes; splice points often corrode where moisture collects near the firewall or rear tailights.

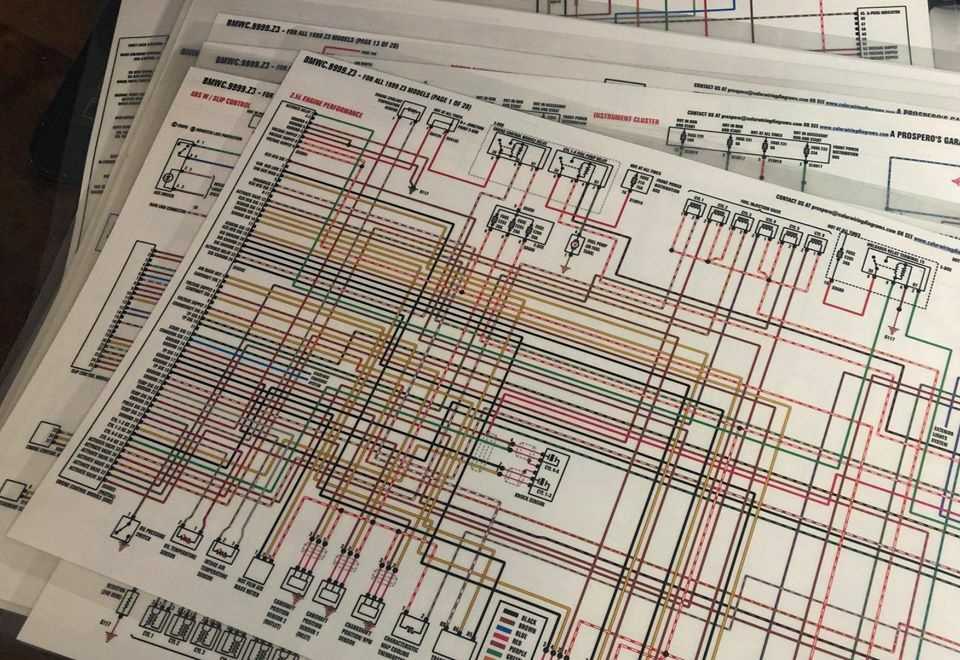

Download the schematic from the manufacturer’s archive section for vintage models, filtering for “B230F engine variant” to ensure accuracy. Print it in landscape orientation, then highlight the starter solenoid (black wire, 10-gauge) and alternator charging circuit (brown/red stripe, 16-gauge) with a yellow marker. Cross-reference with the physical harness: the main loom splits at the A-pillar, with one branch routing under the carpet to the rear and another feeding the instrument cluster.
Use a multimeter set to continuity mode before probing; test leads should register under 0.5 ohms across intact copper strands. Typical failure points include the turn-signal flasher relay (mounted behind the glovebox) and the dimmer switch connector (green/black wires, prone to brittle plastic). Always disconnect the battery ground terminal before handling any circuit branches tied to the engine computer (labeled “LH 2.4” on early variants).
Repair kits containing heat-shrink tubing, dielectric grease, and crimp connectors are stocked under part numbers ending in “-550” (for ABS-equipped chassis) and “-600” (base models). Store a spare 30-amp fuse in the glove compartment–blown fuses often indicate shorted window motors on the passenger door harness (purple/white wires, 18-gauge). Label each wire end with masking tape before splicing to prevent misconnection.
Classic Swedish Sedan Electrical Schematic Reference
Start by locating the main fuse box under the dashboard on the driver’s side. Label F-1 through F-19 correspond to circuits controlling lighting, ignition, and auxiliary systems; cross-reference with a color-coded legend where red denotes constant power, yellow ignition-switched, and green grounds. For instance, the front fog lamps (circuit F-14) receive 12V via a yellow/blue tracer–verify continuity with a multimeter before replacing bulbs or relays.
Common Component Testing Values
| Component | Test Point | Expected Reading | Faulty Indication |
|---|---|---|---|
| Alternator | B+ terminal to ground | 13.8–14.4V at 2000 RPM | <13.2V or >14.8V |
| Temperature sender | Resistance at 20°C | 2.2–2.8 kΩ | Open circuit or <100Ω |
| Fuel pump relay coil | Terminal 85 to 86 | 70–90Ω | Infinite resistance |
| Ignition coil | Primary resistance | 0.6–0.8Ω | >1.0Ω |
Trace the instrument cluster harness behind the speedometer–three connectors (A, B, C) carry signals for the tachometer, fuel level, and warning lamps. Connector A (16-pin) pinout: 1 (tach signal, white/red), 4 (fuel sender, yellow/black), 12 (oil pressure warning, green/white). If the fuel gauge reads erratically, measure sender resistance (empty: 190–210Ω, full: 10–15Ω). Corrosion at the tank unit frequently causes failures; clean terminals with 400-grit sandpaper and apply dielectric grease.
Finding Critical Electrical Pathways in a Classic Swedish Sedan
Begin beneath the dashboard on the driver’s side, where the main harness splits into three primary bundles. The largest cluster–encased in black convoluted tubing–routes toward the fuse box under the left kick panel. Trace this bundle carefully; tugging too hard may dislodge the 12-pin white connector powering the instrument cluster and ignition system. Use a small flathead screwdriver to release the locking tab before separating connectors.
- Remove the lower dashboard panel (held by four 8mm screws) to expose the firewall bulkhead connector.
- The bulkhead connector houses 26 color-coded terminals–verify each wire against a pinout reference before probing.
- Look for brittle insulation on red/blue (constant 12V), yellow/black (ignition-switched), and black/white (ground) leads.
A secondary harness exits the firewall near the brake master cylinder, feeding the engine bay. Follow the rigid plastic conduit; it terminates at the starter solenoid and alternator. The solenoid’s thick red cable connects directly to the battery positive–ensure continuity with a multimeter if slow cranking occurs. The alternator’s two-wire plug (red/yellow and brown) attaches to the voltage regulator; corrosion here causes charging issues.
Behind the glovebox, another branch services the lighting and accessories. The turn signal stalk and hazard flashers link via a six-way gray connector. For headlight problems, check the multi-pin plug behind the headlight switch–specifically the green/white wire for low beams and blue/white for high beams. If the radio cuts out intermittently, inspect the brown two-pin connector under the center console, which handles power and speaker grounds.

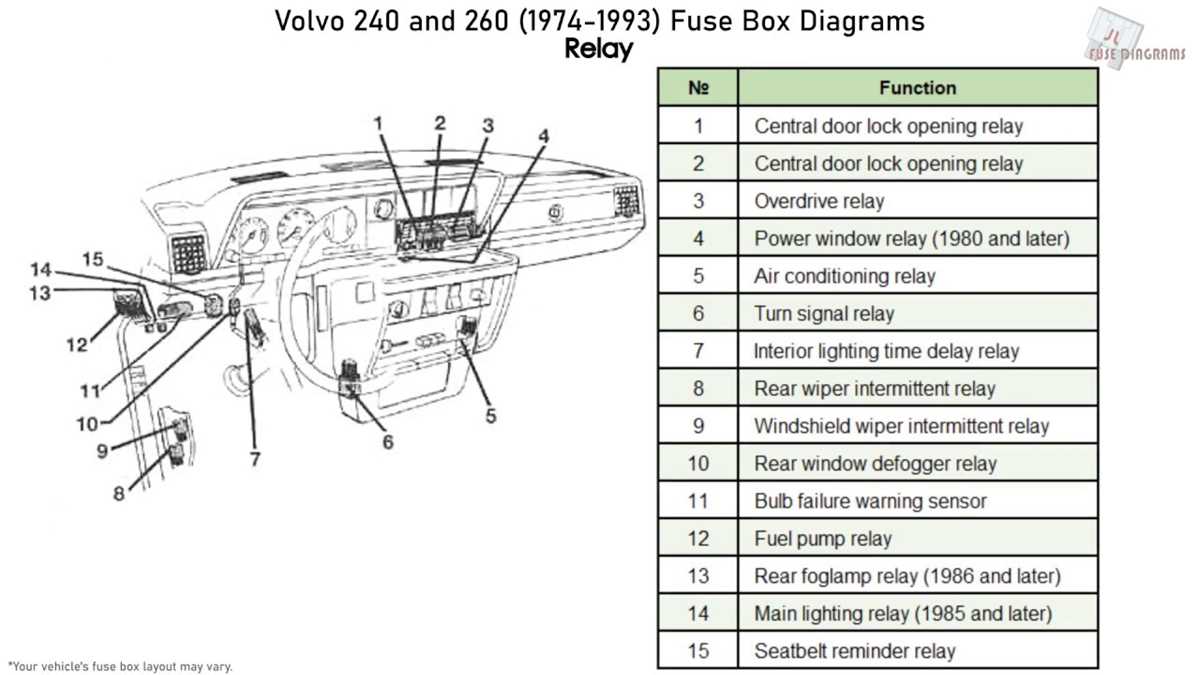

Step-by-Step Guide to Interpreting the Classic Sedan Fuse Panel Layout
Locate the fuse box beneath the dashboard on the driver’s side–the cover snaps off by pulling downward near its top edge. Inside, you’ll find a printed legend on the underside, listing each slot’s assigned function alongside its amp rating. Match the fuses to this guide by cross-referencing the numbered cavities with their descriptions, noting that cavities 5, 12, and 16 typically control lighting circuits while 8 and 20 handle fuel injection and ignition.
Identifying Fuses by Visual Inspection
Each fuse has a transparent center exposing the metal strip–if broken or discolored (often blackened), the fuse requires replacement. Use needle-nose pliers to grip the fuse firmly at its plastic base, rocking it slightly side-to-side to release it from the socket. Always replace with an identical amp rating; for example, the 15-amp fuse in slot 2 powers the brake lights–swapping in a 20-amp fuse risks damaging the circuit.
Trace the wiring harness from the fuse box to verify connections if a system remains non-functional after fuse replacement. Blue wires often correspond to lighting systems, while red or yellow typically carry higher current for engine components. Probe the sockets with a multimeter set to 12V DC: a missing voltage reading indicates either a blown fuse upstream or a disconnected wire in the harness.
Label each fuse cavity temporarily with masking tape if the printed legend is faded, ensuring accurate reinsertion. For persistent electrical issues, consult the vehicle’s electrical schematics to isolate whether the problem lies in the fuse panel, relay, or a downstream sensor, as the sedan’s climate control and turn signals share grounds that can complicate diagnostics.
How to Trace Ignition Circuit Paths in a Classic Swedish Sedan
Locate the ignition coil on the firewall’s right side; its terminals are marked “+” and “-” for battery and distributor connections. Follow the heavy-gauge red cable from the “+” terminal to the main fusible link near the battery tray–this is the primary power feed. Verify continuity with a multimeter set to 200 ohms; readings above 0.5 ohms indicate corrosion or fraying.
Trace the thinner white-with-black-stripe wire from the coil’s “-” terminal to the ignition control module beneath the distributor cap. Remove the cap by releasing the two retaining clips to expose the rotor. The module’s four-pin connector links to the pickup coil; probe each pin with a noid light while cranking the engine to confirm pulsed signals.
Examine the distributor’s internal wiring: the pickup coil’s two wires (green and blue) attach to the module, while the third (orange) leads to the tachometer. Use a wiring schematic printed on A4 tracing paper to cross-reference colors–factory manuals label this as “circuit 15” for ignition triggering. Disconnect the battery before probing to avoid shorting ECU pins.
Check the ground path at the engine block near the oil dipstick tube; a 10mm bolt secures the ignition system’s main grounding strap. Scrape paint and corrosion from the mounting surface to ensure less than 0.2 volts drop under load. If voltage drop exceeds this, replace the strap with 8-gauge braided copper wire.
Inspect the neutral safety switch on the transmission bellhousing; the purple wire should show 12 volts when the key is in “start” position. Jumper this wire to the starter solenoid’s “S” terminal if cranking fails–failed switches often cause intermittent no-start conditions. Measure resistance across the switch’s contacts; infinite resistance confirms internal breakage.
Use a tone generator on the ignition switch’s yellow-with-red-stripe output wire to track its path through the firewall grommet into the cabin. This wire terminates at the ignition switch’s “15” terminal; probe it with a test light while turning the key to confirm power flow before proceeding to accessory circuits.
Replace any brittle insulation immediately–original PVC coating degrades after 30 years, especially near heat sources. Solder all repairs with 60/40 rosin-core solder and heat-shrink tubing to prevent oxidation. Label each repaired segment with adhesive sleeves matching the factory color-coding: yellow for power, green for sensors, and blue for grounds.

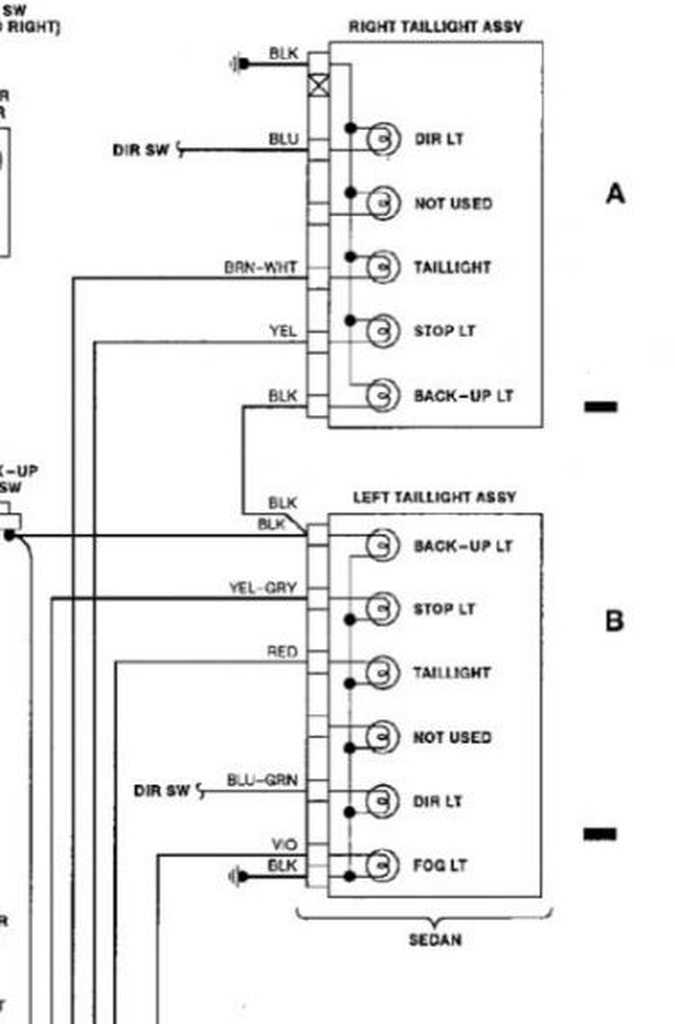

Identifying and Testing Lighting Circuit Conductors in Classic Sedans
Start by locating the main fuse box beneath the dashboard on the driver’s side–this houses protection devices for exterior illumination. Use a multimeter set to continuity mode (200Ω range) to probe terminals after removing the relevant fuse: left front parking/signal (15A, position 5), right front (15A, position 7), tail/license plate (10A, position 12), and brake/reverse lights (10A, position 14). A dead circuit will register OL; a healthy path shows <1Ω. For the headlamp low/high beams, access the relay panel behind the left kick panel–test relay sockets 30 (battery feed) and 87 (output) with the switch activated. If voltage is absent at 30, trace the orange-striped conductor back to the battery junction box behind the air filter housing.
- Strip 5mm of insulation from suspect conductors using a precision blade–avoid nicking strands.
- For turn signals: verify the flasher unit (4-pin rectangular connector under dash) pulses at 65-120 cycles/minute when enabled. Probe pin 49 (feed) with ignition ON–should fluctuate between 0V and 12.6V.
- Brake lights: engage pedal while measuring at the dual-filament bulb sockets–rear center (red/black) carries 12V switched; outer sockets (red/white) activate with gear in reverse.
- Dashboard illumination: rheostat-controlled dimming (pink/black, fuse 9) delivers 2-8V depending on knob position–verify span at instrument cluster connector C111, pin 17.
- Fog lamps: green/white feed originates at auxiliary switch (left of steering column)–test for 12V when engaged; yellow/red carries output to front harness.
- Wire gauges: primary circuits (headlamps, brake lights) use 1.0-1.5mm²; secondary (parking, instrument lights) 0.5-0.75mm²–match replacements exactly.
