Start by locating harness connector C behind the stereo head unit–its 24-pin layout splits into three distinct clusters: power (red, yellow, orange), speaker outputs (green, purple, gray, white), and ground (black). Wire gauge 18 AWG is standard for speaker leads, while power and illumination use 16 AWG. Check fuse #10 (10A) in the instrument panel junction box before touching terminals; bypassing this step risks blowing the memory keep-alive circuit.
Ground distribution follows a star configuration: the main chassis bolt (near the driver’s kick panel) connects to a single 12-gauge braided strap, which branches into four secondary grounds for the amplifier, head unit, antenna motor, and rear defroster relay. Mistakes here cause whining noise at idle or intermittent power loss. Use dielectric grease on each connection to prevent oxidation–especially critical for the orange/white illumination wire, which carries both voltage and pulse-width signals for dimming.
Aftermarket adapters often omit the data bus pin (#13 on connector C), leading to erratic chime behavior or climate control glitches. Replace generic plugs with OEM pigtails (part 86120-22090) to retain factory integration. If splicing, avoid solderless connectors; crimp with gold-plated butt splices and heat-shrink tubing, then verify resistance across each joint (target: ).
Test each channel using a 1 kHz sine wave at 4V RMS: front left (white/black) should yield 4 ohms at the speaker terminals, rear right (gray/red) 8 ohms. Anything outside ±0.5 ohms indicates a short or open load. For amplified systems, confirm the blue/white remote turn-on wire triggers at 12V when the key enters the ON position–failure here disables the amp entirely.
Electrical Connection Guide for Factory Audio System in Compact Hatchback Models
Begin by locating the aftermarket harness adapter compatible with your vehicle’s OEM stereo connector. Standard 16-pin ISO harnesses for this generation include color-coded wires: solid yellow (constant 12V+), red (switched 12V+), black (ground), blue/white (power antenna/amplifier lead), and purple (illumination). Verify each wire’s function with a multimeter before connecting–misidentifying the yellow and red sources will drain the battery if improperly fused.
Connect the ground wire directly to the vehicle’s chassis using a dedicated bolt near the stereo cavity. Avoid daisy-chaining grounds to other components; resistance from poor grounding causes static, whining noises, or intermittent power loss. For amplifier-equipped models, the blue/white remote turn-on wire must trigger the external unit–failure to connect it properly results in no sound output despite power being present.
Color Code Reference and Pinout Specifics
Front speaker outputs follow this standard: gray (+) and gray/black (-) for left, white (+) and white/black (-) for right. Rear outputs use green (+) and green/black (-) (left), purple (+) and purple/black (-) (right). Polarity reversals cause phase cancellation, reducing audio clarity. For parking brake integration, the pink wire in the harness requires connection to the brake circuit–skipping this step disables DVD playback or navigation functions.
For steering wheel control retention, use a dedicated interface module (ASWC-1 or equivalent). The module connects between the factory control wires (typically pink/white data wire) and the new stereo’s SWC input. Without it, track skipping, volume adjustment, and voice commands will not function. Always solder and heat-shrink connections–crimping alone risks corrosion and signal degradation over time.
Troubleshooting Common Issues
No power indicates a blown fuse (10A or 15A, located in the instrument panel fuse box) or a reversed yellow/red connection. Static or distorted audio often stems from poor grounding or interference from the alternator–route RCA cables away from the power wires. If the display dims inconsistently, verify the purple illumination wire’s connection matches the vehicle’s dimmer circuit. Factory anti-theft systems may require reactivation via the key-off sequence–consult the owner’s manual for the correct procedure.
Finding the Electrical Connector Behind the Original Head Unit

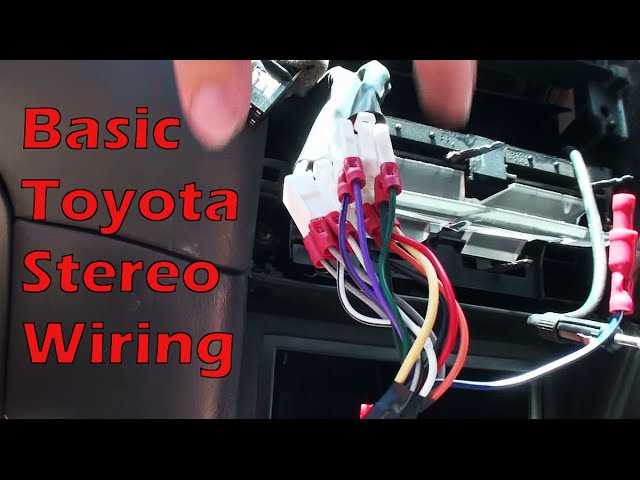

Disconnect the negative battery terminal before beginning. The main interface bundle sits directly behind the audio system’s rear panel–pry off the climate control trim below first, then remove the two 10mm bolts securing the head unit. Gently pull the stereo outward; the factory harness plugs into its back via a 24-pin white connector (labeled “A”) and an 8-pin gray connector (“B”). The smaller gray plug typically carries amplified speaker feeds, while the larger white one handles power, ground, and accessory signals.
| Connector | Pin Count | Primary Function |
|---|---|---|
| White (A) | 24 | Constant power, ignition, illumination, antenna trigger, data bus |
| Gray (B) | 8 | Front/rear speaker outputs, subwoofer control |
Release the harness lock tabs before unplugging–press inward on both sides of each connector while pulling straight back. Reinstallation requires firm seating; listen for an audible click to confirm engagement. Misaligned connectors risk shorting circuits or triggering error codes on the instrument cluster.
Decoding Connector Pinouts by Color Codes
Locate the 16-pin harness plug–black for aftermarket units, gray for OEM–then match each strand:
- Yellow (constant 12V): Powers memory, splicing required if bypassing ignition relay.
- Red (switched 12V): Activates on key turn; fuse link must remain under 10A.
- Black (ground): Terminate directly to chassis screw behind dash cluster, not factory sheet metal.
- Blue/white (antenna trigger): Sends 12V pulse to power motorized mast; omit for static aerials.
- Orange (illumination): Dimmer-controlled; wire gauge must match existing taillight circuit.
- Gray (front right speaker +): Typically paired with violet (–); impedance mismatch risks clipping.
- White (front left speaker +): Green (–) counterpart; twist pair at least 3 turns per foot.
- Green (rear right speaker +): Blue (–) completes; seal splices with adhesive-lined heat shrink.
- Purple (rear left speaker +): Brown (–) loop; verify polarity with 1kHz test tone first.
Strip wire insulation in 5 mm increments; crimp terminals rated for 20-22 AWG only. Verify continuity with a multimeter before final connections–open circuits in yellow or black strands cause intermittent faults. Shielded pairs (blue/white, orange) require foil-side grounding at the head unit’s metal cage; braid drain must not contact signal wires.
Step-by-Step Removal of the Dashboard Trim for Head Unit Access
Disconnect the negative terminal of the vehicle’s battery to prevent electrical shorts or airbag deployment during disassembly. Use a 10mm socket to loosen the terminal clamp, then set the cable aside in a safe location.
Locate the hidden screws securing the center console trim–one beneath the climate control knobs and another behind the ashtray or storage compartment. Remove these screws with a Phillips #2 screwdriver, ensuring not to strip the heads. Pull the ashtray or compartment outward gently to expose the retaining clip, then press the clip inward to release it.
Insert a trim removal tool or flathead screwdriver wrapped in masking tape into the seam between the upper dash panel and the instrument cluster bezel. Pry upward with controlled force to unclip the plastic retainers along the top edge. Work methodically from one side to the other to avoid breaking brittle clips, which are prone to snapping if rushed.
Tilt the climate control assembly forward to access the electrical connector at its base. Press the tab on the connector and pull straight out to detach it. Repeat for any auxiliary connectors, such as those for hazard lights or lighting controls, noting their positions for reassembly.
Slide the entire trim panel toward the driver’s side to disengage the remaining hooks near the steering column. Lift the panel away, revealing the head unit’s mounting brackets. Remove the four 10mm bolts securing the unit, then pull it out slowly to disconnect the antenna and wiring harness at the rear.
Integrating Third-Party Audio System Cables with the Vehicle’s Harness
Locate the factory connector behind the dash–it’s a 20-pin plug with a distinctive trapezoidal shape. Pin 1 (black) handles ground; connect this directly to the aftermarket head unit’s chassis wire to prevent electrical noise. Pins 10 and 11 (red and yellow) deliver constant and switched power; these must attach to the corresponding 12V wires on the new stereo to retain preset memory and power-on functionality.
For speaker connections, match the following color codes to the replacement unit’s harness: Pin 4 (gray/black) to front right negative, Pin 5 (gray) to front right positive, Pin 6 (white/black) to front left negative, Pin 7 (white) to front left positive. Rear channels follow similarly–Pin 14 (green/black) and Pin 15 (green) for right, Pin 16 (violet/black) and Pin 17 (violet) for left. Omitting or reversing polarity here introduces phase cancellation, degrading audio clarity.
If the new system lacks an amplifier, bypass the factory amp by splicing Pin 18 (dark blue) to the remote turn-on lead of the head unit–this activates the external device when the ignition switches on. Absence of this link results in low volume or complete silence. Ensure all splices use solder and heat-shrink tubing; twist-and-tape methods corrode over time, causing intermittent failures.
Addressing Dimmer and Illumination Signals
Pin 9 (light green) carries the dimmer signal. Route this to the new unit’s illumination wire if dimming functionality is desired. Failure to connect leaves dashboard lights either overly bright or unresponsive to headlight activation. Verify compatibility–some aftermarket stereos expect a positive trigger, while the original harness delivers a negative one. An inline diode or relay may be required to resolve polarity conflicts.
Check for accessory power on Pin 2 (pink). This line remains live during accessory or ignition-on states and should feed the new stereo’s memory backup if the yellow wire isn’t a viable option. Ignoring this risks draining the vehicle’s battery when the engine is off. Confirm voltage stability–fluctuations above 14V can damage sensitive electronics in third-party units.
Test each connection with a multimeter before finalizing. Probe the speaker wires while playing a 1kHz test tone to ensure no shorts or open circuits exist. Static or distortion indicates a miswired ground or phase issue. Secure all cables with loom tape to prevent rattling or abrasion against metal edges–this preserves signal integrity over time and reduces the risk of future electrical shorts.
