Start by locating the color-coded harness behind the dashboard unit. The 12-pin connector on GM OEM systems from this model year follows a standardized layout: yellow (constant power, 12V), red (switched ignition, 12V), black (ground), and orange (illumination dimmer). Verify these connections with a multimeter before proceeding–factory schematics occasionally mislabel brown as pink for the antenna trigger wire.
For aftermarket integration, splice the harness adapter into the following circuits: front left speaker (dark green/white), front right (gray/black), rear left (white/light blue), and rear right (green/orange). Note that the 2006 sedan’s Bose premium option reverses the phase on rear channels–ignore this if your replacement lacks an amplifier. Use crimp connectors rated for 20 AWG; solder provides marginal improvement but risks brittle joins under dash vibrations.
Disconnect the negative battery terminal before handling exposed terminals. The data bus wire (tan/white) carries low-voltage signals for steering wheel controls–preserve it unless interfacing a compatible add-on module. If removing the factory unit leaves empty dash space, trim panel inserts from a junkyard donor (part #22798597) fit without modification.
Fuse protection should match original ratings: 10A for constant power, 15A for ignition-switched circuits. Replace any corroded ground connections with a dedicated #10 AWG wire to the chassis near the driver’s side kick panel–avoid common grounding points shared with HVAC motors. Test all functions sequentially: power, audio output, seek tuning, and CD changer commands if equipped.
1966 Chevy Audio System Connection Reference
Begin by locating the main harness behind the receiver housing. The factory setup includes four primary leads: power (red, 12V constant), accessory (yellow, switched 12V), ground (black, chassis), and illumination (brown, dimmer-controlled). Confirm each wire’s function with a multimeter before attaching new components–factory colors may vary in custom or repainted assemblies. Use crimp connectors rated for at least 20 AWG to prevent voltage drop over time.
For aftermarket units, splice the red and yellow wires to a fused circuit (10A) to maintain memory settings during engine-off periods. The black lead must terminate directly to bare metal, not painted surfaces–sand a small area if necessary. Antenna feed (pink, typically) connects to a coax-style plug; retain the original matching transformer if retrofitting modern FM capabilities, as the 1966 model lacks built-in impedance matching.
Speaker outputs follow an unconventional polarity: front left (+) white, (-) blue; front right (+) green, (-) violet. Verify phase by briefly touching both leads to a 9V battery–the cone should push outward. Replace stock cones with 4-ohm aftermarket units, but avoid exceeding 20 watts RMS per channel to prevent damaging the OEM amplifier circuit, if equipped. Heat-shrink tubing is mandatory for all splices to prevent moisture ingress.
Retain the original dial lamp circuit by connecting the brown wire to the dimmer switch–this preserves authentic illumination behavior. For installations with electronic gauges, isolate the yellow wire from voltage spikes using a 1N4001 diode in line. Test all connections with the engine running to ensure stability under charging-system variations.
Finding the Proper Electrical Connector for a 1966 Chevy Classic Audio System
Begin by identifying the exact model variant of your vehicle’s sound unit–early production runs of the 1966 Chevy full-size sedan may use a four-pin connector, while later builds often incorporate a six-pin plug. Factory originals frequently follow GM’s standard color coding: yellow for constant power, red for switched ignition, black for chassis ground, and brown or purple for speaker leads. Aftermarket harnesses, however, sometimes deviate; verify compatibility by cross-referencing the pinout with a 1966 service manual or verified online schematics specific to the Delco push-button setup.
Reproduction electrical connectors tailored for vintage Chevrolet sound systems can be sourced from specialty suppliers like Classic Industries, American Autowire, or wrecking yards specializing in mid-’60s GM vehicles. Measure the existing plug’s pin spacing–typically 0.187-inch centers–to ensure the replacement mates correctly. Avoid universal adapters unless they explicitly list the 1966 Chevy model, as generic wiring often lacks the correct fuse rating or terminal gauge for the original amplifier circuit.
If the factory harness is damaged, splice repairs should use 18-gauge stranded copper wire and heat-shrink tubing for insulation; avoid solderless connectors, which can corrode under the dashboard’s environmental conditions. For aftermarket stereo installations, select an adapter harness with built-in noise suppression to prevent interference with the vehicle’s solid-state voltage regulator, common in the 1966 model’s electrical system.
Step-by-Step Factory Harness Color Code Guide for 2006 Chevrolet Audio System

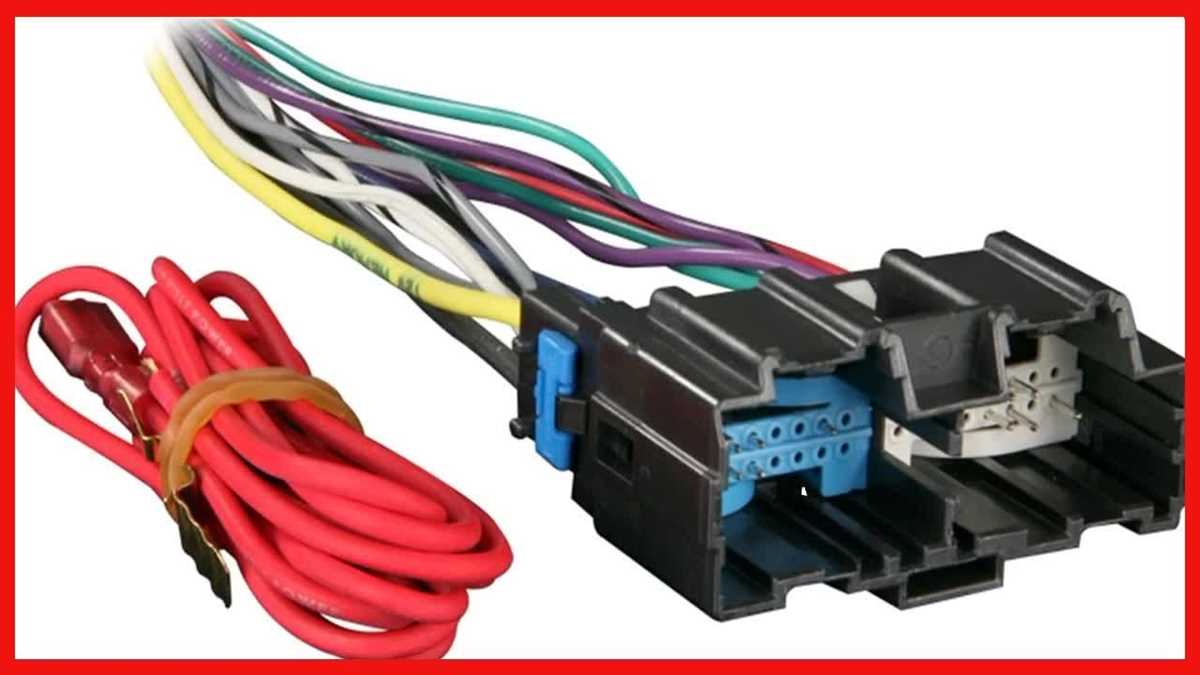

Begin by disconnecting the vehicle’s negative battery terminal to prevent short circuits. Locate the OEM connector behind the dashboard–typically a 12-pin or 16-pin plug with a snap-lock tab. Identify the wires by their solid or striped colors, matching them to this reference:
- Light blue (solid) – Power antenna or amplifier trigger (12V when system is on).
- Orange (solid) – Constant 12V feed for memory retention (backed by fuse).
- Yellow (solid) – Switched 12V (activates with ignition in ACC/ON).
- Gray (solid) – Front left speaker (+), often paired with gray/black (-).
- Light green (solid) – Front right speaker (+), matched with light green/black (-).
- Dark green (solid) – Rear left speaker (+), striped variant is ground.
- Purple (solid) – Rear right speaker (+), purple/black is negative.
- Black (solid) – Chassis ground (connects to vehicle frame).
- Pink (solid) – Illumination lead (dimmed 12V for backlight).
- Brown (solid/tracer) – Mute signal or speed-sensitive volume (varies by trim).
For aftermarket upgrades, splice wires using solder and heat-shrink tubing–avoid twist-and-tape methods, which corrode over time. Test connections with a multimeter set to DC voltage: probe the constant power (orange) should read 12V regardless of ignition state; switched power (yellow) must drop to 0V when the key is off. Speaker wires require an ohmmeter test–each pair should show 4-8 ohms resistance when disconnected from the harness.
Note trim-level variations: LT models may include a separate tan (solid) wire for OnStar integration, while LS trims often omit the light blue amplifier trigger. Double-check the factory service manual for your specific build, as color schemes occasionally deviate in late-production models. Secure all splices with loom tubing and zip ties to prevent vibration-induced shorts behind the dash assembly.
How to Test and Confirm Each Audio System Connector Before Fitting
Use a multimeter set to continuity mode to check each pin on the harness adapter. Probe the corresponding terminal on the vehicle plug and rear of the unit simultaneously. A beep confirms a valid path; silence or resistance above 0.5 ohms signals a break or misroute.
Separate power feeds–constant 12 V, ignition-controlled, and illumination–must be measured under load. Clip the multimeter’s positive lead to the wire end and ground the negative to the chassis. With ignition off, constant power should read 12.0-12.8 V. Rotate the key to ACC and RUN; ignition line voltage must match the battery level within 0.2 V. Dimmer circuit should drop to 8-10 V at full dash brightness.
| Wire Color | Expected Voltage | Key Position |
|---|---|---|
| Yellow | 12.0–12.8 V | OFF/ACC/RUN |
| Red | 0 V OFF ↑ to 12.2 V ACC/RUN |
OFF → ACC/RUN |
| Orange | 8.0–10.0 V | RUN + Dimmer ON |
Ground paths demand zero ohms between the harness eyelet and chassis metal. Remove paint or rust with a stainless brush if resistance exceeds 0.3 ohms. Test the main chassis ground and antenna mount ground independently; intermittent hissing during playback often traces back to a single poor connection.
Speaker outputs require an 8-ohm load resistor or the original door actuator connected. Inject a 1 kHz sine at 0.5 V RMS into each channel pair; listen for equal volume on both channels. Channel reversal flips the phase, canceling bass. Reverse clip leads on one coil of a dual-voice coil subwoofer to verify polarity after testing.
Use a scope or tone generator to validate the data bus. CAN high (green/white) and CAN low (green/black) should show 2.5 V differential with ignition ON. A flat line or spikes above 3.5 V indicates a short to power or an open termination resistor. Check both ends of the harness sleeve; chafed wires near the firewall splice are frequent culprits.
Verify antenna trigger by measuring current draw on the blue/white lead. A fully extended mast pulls 150–250 mA at 12 V; zero current suggests a failed relay or broken coaxial core. If the mast stalls mid-travel, shunt 10 A through the lead while it cycles to reset the internal motor safety switch.
Heat-shrink every crimp joint after confirmation. Slide adhesive-lined tubes over each splice, apply heat evenly until the seals melt, then cool under slight tension. Peel-back insulation reveals clean solder connections; excess flux attracts corrosion that amplifies resistance over time. Label every joint with Tesa 51608 tape to prevent confusion during final routing.
Re-run voltage, continuity, and resistance checks after shrink-wrapping to catch any nicks or fused strands. Record all readings on a yellow legal pad; discrepancies between pre- and post-wrap numbers often expose marginal connections that fail under vibration or thermal cycling.
