Locate the factory harness behind the stereo unit–it consists of 12 wires in standard colors: yellow (constant 12V), red (switched 12V), black (ground), four speaker outputs (gray/white, gray/black, purple/white, purple/black), and two antenna triggers (blue and blue/white). Cutting into these without verification risks blowing fuses or damaging the fuse box, located under the dashboard on the driver’s side beside the steering column. Check voltage with a multimeter before splicing; yellow should read 12V with the key off, red only when the ignition is on.

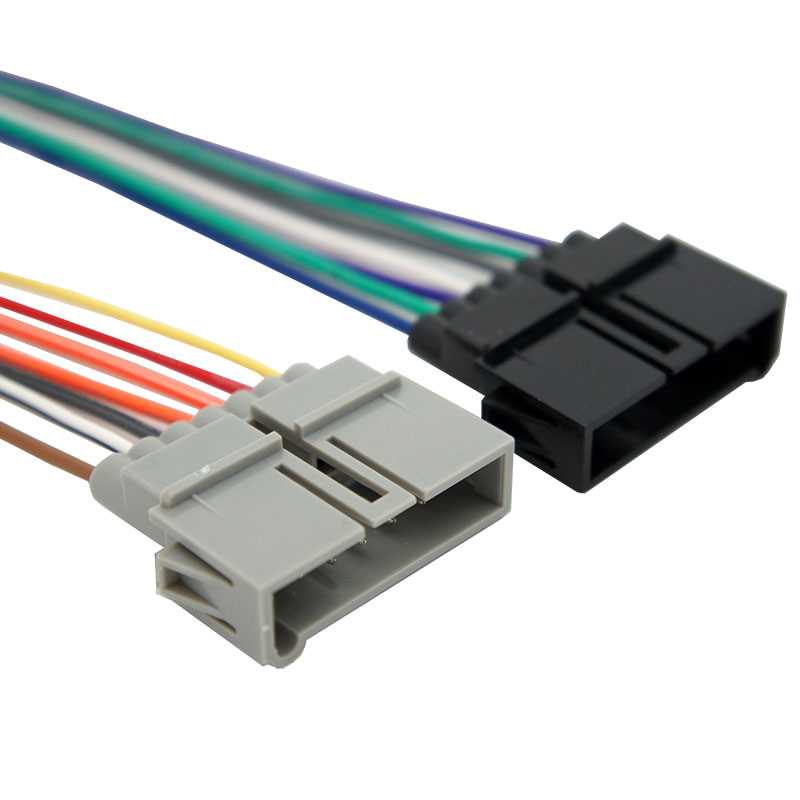

Aftermarket harness adapters like Metra 70-1002 simplify installation by converting factory connectors to ISO standards. If using bare wires, solder each connection and insulate with heat-shrink tubing–electrical tape degrades over time and causes intermittent shorts, particularly in high-vibration off-road conditions. Speaker wires follow +/– polarity; reversed polarity weakens sound quality and distorts bass response, measurable with an oscilloscope or even a smartphone tone generator app.

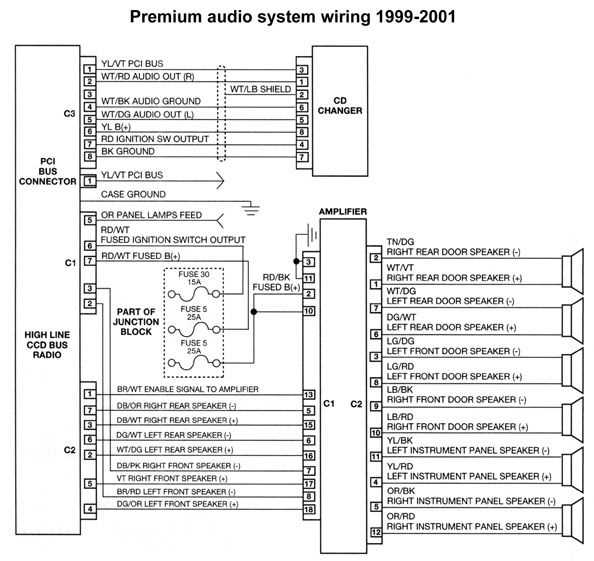

Factory amplifiers, present in premium sound packages, require an additional harness (Metra AX-105) to retain functionality. Without it, rear speakers may remain silent or subwoofers will output distorted signals. Verify amplifier triggers (usually blue and blue/white) with a test light before final assembly; incorrect connections drain the battery in under 24 hours. For hands-free integration, use a PAC C2R-CHY1 to retain steering-wheel controls while adding Bluetooth–factory buttons require resistive loads that aftermarket head units often omit.
Grounding issues manifest as alternator whine or static during engine revs. Eliminate them by sanding the grounding point down to bare metal, removing paint or corrosion, and securing with a star washer. The TJ’s frame near the passenger kick panel serves as an ideal grounding location–alternatively, use a dedicated 8-gauge cable routed directly to the negative battery terminal to reduce resistance. Complete the installation by securing all wiring with zip ties to prevent chafing against sharp metal edges behind the dashboard, a common failure point after prolonged trail use.
Full Schematic for Your Off-Road Vehicle’s Audio System Installation
Locate the factory harness behind the dashboard’s lower panel on the driver’s side–it’s a 14-pin connector labeled with color codes matching the service manual’s ISO standards. For the basic setup, splice the yellow (constant 12V), red (switched 12V), black (ground), and green/white (illumination) wires directly to the aftermarket head unit’s corresponding pins. Use crimp connectors rated for 20-gauge wire; soldering introduces corrosion risks in high-vibration environments. If integrating an amplifier, tap the dark green/orange (left rear speaker +) and gray/orange (right rear speaker +) wires–these carry pre-out signals at 4V RMS. Avoid the purple/white and tan/orange wires; they’re tied to the vehicle’s safety module and will trigger error codes if disrupted.
Troubleshooting Uncommon Configurations
If the factory infinity sound system is present, bypass the built-in amp by cutting the brown/yellow and brown/purple wires–these feed into the stock amplifier and will cause impedance mismatches with aftermarket components. For steering wheel controls, use a PAC RP4-CH11 interface; its plug-and-play harness maps the TJ’s 8-button stalk to modern protocols without requiring resistor networks. In dual-fuel setups (e.g., E85 conversions), separate the audio grounds from the fuel pump relay circuit–shared grounding induces alternator whine at 1.2kHz detectable on an oscilloscope.
Finding the Stock Audio Connector in a TJ Model
Start by removing the lower dashboard trim panel beneath the receiver unit. Use a trim removal tool to pry off the plastic cover–gently work around the edges starting at the driver’s side. The factory harness bundle is clipped to the metal frame behind the climate control module; follow the thickest cable group downward until you locate a 12-pin rectangular plug wrapped in gray tape.
- Color codes for crucial connections:
- Dark green/light green–left front speaker positive
- Brown/red–right front speaker positive
- Yellow/black–constant 12V power
- Gray/orange–switched accessory voltage
- Black–ground
Slide the steering column forward and tilt it toward the pedals to gain better access. The harness routes behind the fuse box bracket; pull it free from Velcro ties if necessary. Avoid yanking–gentle tugs while twisting the bundle slightly release trapped wires without breaking clips.
Decoding Factory Harness Colors for TJ Audio System Installation
Locate the 12-pin connector behind the dash interface–two distinct plugs labeled A (gray) and B (black) will be visible. Plug A carries power and speaker feeds, while Plug B handles ground and illumination. Use a 12V test light to verify live circuits before handling wires; yellow (constant 12V), red (accessory), and orange/yellow (dimmer) must show voltage when the key is in ACC or ON. For speaker outputs, trace violet (+) and violet/black (-) to the rear left channel, gray (+) and gray/black (-) to the front right, white (+) and white/black (-) to the front left, and finally, green (+) paired with green/black (-) for the rear right. Strip 5mm of insulation, twist strands clockwise, and crimp using 18-22 AWG butt connectors; soldering is optional but recommended for long-term reliability.
| Plug Pin | Color Combination | Function | Voltage Reference |
|---|---|---|---|
| A8 | Yellow | Battery hot at all times | 12V constant |
| A7 | Red | Ignition-switched power | 12V in ACC/ON |
| A5 | Pink/white stripe | Headlamp sensor switch | 5V logic reference |
| B1 | Black | Ground | 0V chassis |
Essential Equipment for Safe Aftermarket Sound System Handling
Begin by acquiring a voltage tester with a non-contact feature to detect live circuits in the dashboard harness. Models like the Fluke 1AC II or Klein NCVT-3 detect AC currents down to 50V, ensuring hidden wires don’t pose risks during disassembly. Avoid cheaper units that only alert at 120V – they won’t register the 12V automotive systems.
- Wire strippers with built-in crimping jaws (e.g., Klein Tools Katapult or Ideal 45-121)
- Precision screwdriver set containing Torx T15 and T20 bits for dashboard panels
- Heat-shrink tubing assortment (3mm to 8mm diameter) with adhesive lining
- Soldering iron rated 30-60W with temperature control
Use a digital multimeter with a min/max recording function to verify voltage stability before and after installation. Set the range to 20V DC to catch fluctuations in the audio unit’s power feed. A reading below 11.8V indicates battery or alternator issues that could damage sensitive electronics.
A fiberglass pen or small brass brush cleans corrosion from connector pins without damaging gold-plated contacts. Never use steel wool or abrasive pads – they cause micro-scratches that accelerate oxidation. Apply dielectric grease sparingly to reconnected terminals to prevent moisture ingress.
- Disconnect the vehicle’s negative battery terminal using a 10mm wrench
- Wait 10 minutes for capacitors in the sound system to discharge fully
- Label each harness connector with masking tape noting wire colors
- Release retaining clips with a flat-blade screwdriver wrapped in electrical tape
Store removed components in anti-static bags to prevent ESD damage to integrated circuits. Fabric softener dryer sheets placed inside the bags absorb moisture during extended storage. For aftermarket upgrades, use butt connectors with tin-plated copper cores instead of aluminum – they offer superior conductivity and corrosion resistance.
Common Troubleshooting Issues with Off-Road Audio System Integration
Check the fuse for the audio head unit if the display remains dark despite power being supplied. A blown 15-amp fuse in the internal relay panel–often labeled as “RADIO” or “ACC”–is a frequent culprit in TJ models. Use a multimeter to verify continuity; replace with an identical rating if damaged. Avoid higher-rated fuses, as they risk overheating the harness.
Intermittent sound or sudden volume spikes usually stem from corroded ground connections. Locate the ground wire, typically a black or dark-colored lead bolted to the chassis near the firewall or kick panel. Scrub the connection point with a wire brush, apply dielectric grease, and ensure the bolt is torqued to 8-12 in-lbs. Loose grounds create resistance, manifesting as static or erratic behavior.
Speaker Phase and Impedance Mismatches
Reverse polarity in speaker wires–red/black or white/green leads–can cause weak bass or cancellation effects. Use a 9-volt battery to test each speaker: a concave cone movement indicates correct polarity, while convex signals reversed leads. Swap wires at the head unit or speaker terminals to resolve. Additionally, verify impedance; aftermarket components rated below 4 ohms may overload the factory amplifier, leading to shutdowns.
Harness Adapter Compatibility Issues
Third-party harness adapters sometimes omit essential connections, particularly for retained accessory power (RAP) or dimmer circuits. Compare the adapter’s pinout with the vehicle’s OEM plug–pin 12 (purple with white stripe) on the TJ’s harness controls illumination. If missing, splice directly from the instrument cluster harness to restore dash light synchronization. For steering wheel controls, confirm the adapter includes a data bus interface; aftermarket units lacking this feature require a separate module like the Metra ASWC-1.
