Begin by isolating the main breaker before proceeding–failure to do so risks lethal shock or fire. Use a 30-amp double-pole switch rated for your system’s maximum load, typically 7,200 watts for residential backup setups. Copper conductors sized at 10 AWG handle currents up to 30 amps safely; undersized wires overheat.
Ground the frame of your power unit directly to a buried electrode or grounding rod. Omit this step, and stray current may energize metal surfaces or damage connected equipment. Verify neutral-to-ground bonding at the transfer switch–bonded neutrals prevent voltage surges from frying appliances.
Label each conductor at both ends: black for L1, red for L2, white for neutral, green for ground. Reversing L1 and L2 reverses motor rotation in compressors and pumps, causing mechanical failure. Test continuity with a multimeter before energizing–open circuits indicate broken connections or faulty terminals.
Connect the load side of the switch to a subpanel if powering multiple circuits. Distribute heavy loads (ovens, well pumps) across both phases to prevent imbalance. Overloading one phase trips breakers; balance loads within 10% of total capacity for stable operation.

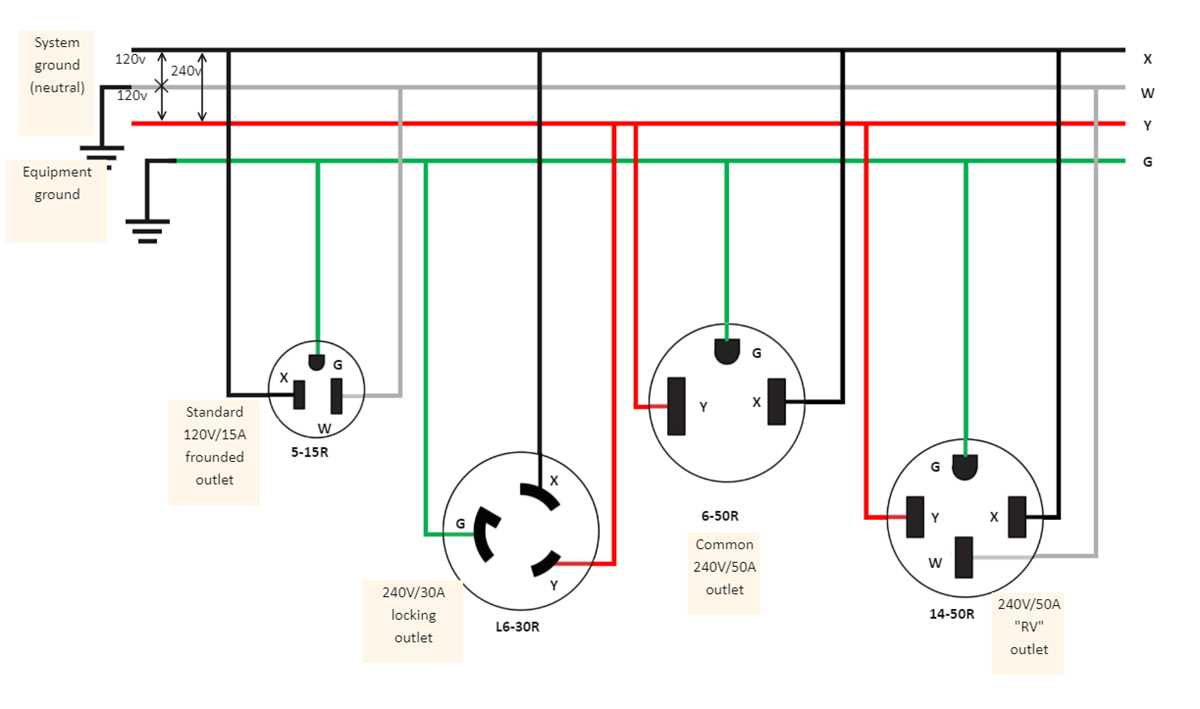

Avoid backfeeding the utility grid–install a manual or automatic transfer switch. Backfeeding violates electrical codes and endangers line workers. Ensure all plugs and outlets match the configuration (NEMA L14-30 for 30-amp service, NEMA 6-50 for welders/air compressors).
Inspect terminals for torque specs: loose connections arc and melt. Use a torque screwdriver–8.8 lb-in for 10 AWG. Seal outdoor connections with heat-shrink tubing or waterproof junction boxes to prevent corrosion in humid conditions.
Electrical Connection Guide for High-Power Alternators
Install double-pole breakers rated for 30 amps when connecting a 4-prong outlet to avoid overloading the system. Use 10 AWG copper conductors for runs under 50 feet; upgrade to 8 AWG for longer distances to prevent voltage drop. Label each wire with heat-shrink tubing: red for hot 1, black for hot 2, white for neutral, and green for ground. Never bond neutral to ground in the transfer switch–this violates NEC code and creates safety hazards.
Position the inlet box within 10 feet of the fuel source but at least 5 feet from windows or vents to meet OSHA ventilation standards. Connect the neutral wire to the floating bus bar in the subpanel, not the main ground bar, to maintain a separately derived system. Test continuity between the ground rod and inlet box ground terminal; resistance should not exceed 25 ohms. If readings are higher, drive an additional 8-foot copper-clad rod and bond it to the existing ground with a listed clamp.
Use twist-lock plugs (NEMA L14-30) for 3-phase compatibility and secure connections. Wire the plug with hot terminals on opposite sides (L1/L2) to balance the load and reduce electromagnetic interference. Apply anti-oxidant paste to aluminum conductors before terminating in lugs to prevent corrosion. Check torque specifications for terminal screws–typically 20 inch-pounds for residential setups–and retighten after 100 hours of operation as conductors relax.
Install a surge protector upstream of sensitive electronics, clamping at 400V with a response time under 1 nanosecond. Verify phase rotation with a voltmeter before powering motors–incorrect sequencing can cause clockwise equipment to run backward. Store spare fuses (time-delay type) near the disconnect switch; replace them immediately if they show signs of thermal stress like discoloration or pitting.
Choosing Power Sources for Dual-Phase 120/240V Setups
Prioritize units with dual-phase output capabilities rated for at least 1.5 times your load requirements. For heavy-duty equipment like welders or large compressors, select machines delivering 7,500W continuous power minimum–models below this threshold risk voltage sag under sustained demand. Verify surge capacity separately; transient loads may require 2-3x the rated wattage during startup.
Assess fuel efficiency alongside runtime needs. Diesel engines provide superior energy density (typically 3.5-4.2 kWh per gallon) compared to gasoline (2.8-3.3 kWh/gal), critical for extended operations. Propane offers cleaner combustion but lower energy content (2.5-3 kWh/gal), making it better suited for intermittent use. Compare fuel consumption rates at 50% and 100% load to avoid underestimating operational costs.
Key Specifications Comparison
| Power Range | Fuel Type | Runtime (50% Load) | THD (Total Harmonic Distortion) |
|---|---|---|---|
| 5,000-7,000W | Gasoline | 8-12 hours | <5% |
| 7,500-10,000W | Diesel | 14-18 hours | <3% |
| 6,000-9,000W | Propane | 6-9 hours | <7% |
Inspect transfer switch compatibility before purchase. Manual switches suffice for portable setups, but automatic variants prevent power gaps during utility failures. Ensure the unit supports NEMA L14-30 or L6-30 plugs if connecting to hardwired systems. Verify grounding requirements; improper bonding can induce phantom loads in sensitive electronics.
Noise levels and portability often conflict–units above 8,000W typically exceed 75 dB at 7 meters. For noise-sensitive environments, opt for inverter-based models or sound-attenuated enclosures. Weigh the unit against your mobility needs; diesel models above 9,000W frequently exceed 250 lbs, requiring wheeled frames or forklift access.
Understanding Double-Pole Breakers in High-Power Circuits
Install a double-pole breaker for any appliance requiring 20 amperes or more to ensure proper overload protection and fault isolation across both hot legs. These breakers occupy two adjacent slots in the panel and interrupt current simultaneously on both live conductors, preventing dangerous backfeed or single-phase imbalances.
Match the breaker’s ampere rating to the wire gauge and load demands. For 30-ampere circuits, use 10 AWG copper conductors; 40-ampere circuits require 8 AWG, while 50-ampere or higher loads need 6 AWG or thicker. Verify local electrical codes–some jurisdictions mandate larger wire sizes for continuous loads like compressors or welders.
- 15-ampere breaker: 14 AWG (copper)
- 20-ampere breaker: 12 AWG
- 30-ampere breaker: 10 AWG
- 40-ampere breaker: 8 AWG
- 50-ampere breaker: 6 AWG
Double-pole units differ from tandem breakers, which fit two single-pole devices into one slot but lack the coordinated trip mechanism. Never substitute a tandem for a double-pole when dealing with split-phase systems–this violates safety standards and risks equipment damage.
Connect the breaker by inserting the handles into the panel’s bus bars, ensuring both jaws engage fully. Tighten the terminal screws to 14-18 inch-pounds for standard breakers; use a torque screwdriver for precision. Misaligned connections cause arcing and overheating, potentially tripping the breaker prematurely.
Test the installation with a multimeter set to AC voltage. Place probes on the breaker’s output terminals; readings should match the system’s nominal value (e.g., 220-250 between legs). If voltage deviates by more than 5%, investigate for loose connections, damaged wires, or panel defects before energizing the circuit.
Label the breaker clearly with its connected load (e.g., “Oven Circuit” or “HVAC”). Include the date of installation and wire gauge in the panel directory to simplify future inspections or troubleshooting. Use permanent markers or engraved tags–sticky notes peel off and pose a fire hazard near live components.
For alternative power sources, confirm the breaker’s compatibility with the transfer switch or interlock. Some panels require specific breaker types (e.g., Square D QO vs. HOM) to maintain UL listing. Avoid mixing brands–using a Siemens breaker in a GE panel voids warranties and creates safety hazards.
How to Safely Integrate Power Supply Equipment with a Dual-Phase Electrical System
Select a transfer switch rated for at least 125% of the connected load’s maximum current draw. For example, if the total demand reaches 40 amperes, install a 50-ampere manual or automatic transfer switch to comply with NEC 220.10 and avoid overheating terminals.
Label every circuit breaker in the service panel with exact amperage and wire gauge. Use 8 AWG copper for 40-ampere circuits or 6 AWG for 50-ampere connections, ensuring conductors are stranded for flexibility and terminated with ring or spade lugs torqued to manufacturer specifications–typically 18–22 inch-pounds for 6 AWG.
Mount the transfer switch within 3 feet of the main panel to minimize voltage drop. Connect the incoming power source’s hot legs (L1 and L2) to the transfer switch’s upper terminals, matching polarity–black to brass, red to silver. Ground the neutral bus bar separately if the system lacks a bonded neutral; failure to isolate can create stray current paths during isolation.
Test continuity between the power source’s frame and the service panel’s grounding electrode with a multimeter set to ohms. Resistance should read below 0.1 ohms; higher values indicate corroded clamps or loose connections requiring immediate correction per NEC 250.122.
Install an interlock kit if using a breaker-style transfer method. The kit must prevent simultaneous closure of the main breaker and power source breaker, eliminating backfeed risk. Verify interlock operation by engaging the main breaker–power source breaker should refuse engagement–and reverse the test.
Run conduit between the transfer switch and power source if outdoor routing is necessary. Use Schedule 40 PVC for burial depths below 18 inches, or rigid metal conduit for exposed runs, securing every 4.5 feet with straps spaced per NEC 352.30. Seal conduit ends with duct seal compound to exclude moisture and prevent condensation buildup inside enclosures.
Program automatic transfer switches to delay startup by 30 seconds after utility power loss to avoid surges. Set the retransfer delay to 5 minutes after utility restoration to stabilize voltage. Confirm delay settings match the connected load’s sensitivity–for example, motor-driven equipment requires slower transitions to prevent inrush current damage.
Enclose all connections in weatherproof NEMA 3R boxes if installed outdoors. Apply antioxidant paste to aluminum conductors before terminating, and cover exposed terminals with heat-shrink tubing or insulating tape rated for 600V. Periodically inspect terminations using an infrared thermometer; temperatures exceeding 140°F signal loose connections needing retightening.
