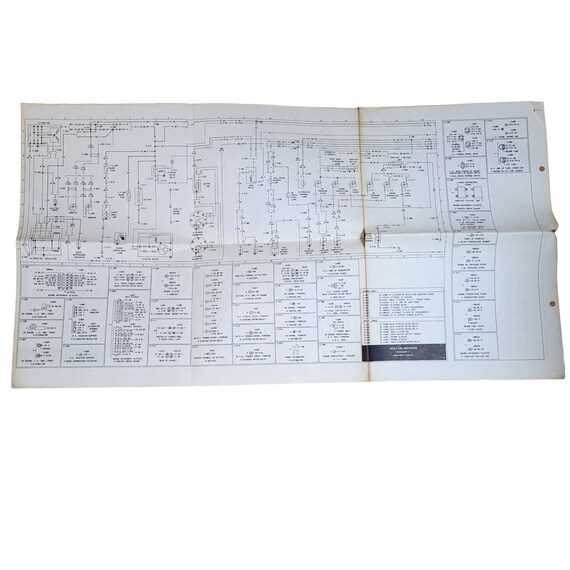

For owners of vintage heavy-duty pickups, locating an accurate electrical schematic ensures repairs stay efficient. The original schematics for this 2.5-ton model from the early 70s are divided into four key sections: lighting, ignition, charging, and accessory circuits. Start with a multimeter–test resistance on the headlight switch (rated at 10 ohms) before replacing bulbs. If dimming persists, inspect the voltage regulator, a common failure point with 0.2–0.5 ohms reading indicating corrosion.
Trace the ignition wiring through the firewall connector, pin B-12 (red/white stripe) carries 12V to the coil. A faulty ballast resistor (gray wire) often causes hard starting; bypassing it temporarily confirms the diagnosis. Fuse links–thin wires inside a fabric sleeve–protect the charging circuit; splice in new 14-gauge wire if melted. The alternator’s “field” terminal (blue wire) must show continuity to the voltage regulator for proper charging; expect 13.8–14.2V at idle.
Use a test light for the brake light circuit: connect one probe to the brake switch output (white/violet) and the other to a ground. No illumination means either a bad bulb socket or corroded ground near the rear axle. For turn signals, the flasher relay (mounted under the dash) clicks at 60–120 cycles per minute; silence indicates a replacement is needed. Avoid guessing–consult the factory color codes where red/white controls the backup lamps, and yellow/black marks the right-side park lights.
When soldering new connections, use heat shrink tubing instead of electrical tape to prevent moisture intrusion. For dashboard repairs, remove the bezel carefully–plastic clips snap easily. The printed circuit behind the gauge cluster often develops cracks; a conductive ink pen restores these traces reliably. Always disconnect the battery before working on any live circuits to prevent shorts.
Restoring Electrical Blueprints for Classic Heavy-Duty Trucks: Hands-On Approach
Begin by tracing the main harness from the battery terminal to the fuse block under the dashboard–this path dictates the entire vehicle’s circuit integrity. Identify the thick red cable running straight from the positive terminal; it splits near the starter solenoid into two branches: one feeds the alternator, the other merges with the fusible link before reaching the fuse panel. Verify the fusible link’s condition; corrosion here mimics a dead battery. Replace it if resistance exceeds 0.2 ohms or if insulation feels brittle.
Locate the ignition switch harness connector behind the instrument cluster. It contains six wires:
- White (accessory)
- Black/yellow (starter)
- Red (ignition on)
- Pink (fuel pump)
- Brown (tail lights)
- Green (turn signals)
Test continuity for each wire using a multimeter set to 200 ohms; readings above 5 ohms indicate internal oxidation requiring replacement. Label each wire before disconnecting to prevent misalignment during reassembly.
Lighting Circuit Diagnosis
Examine the headlight wiring by removing the grille–bulkhead connectors often corrode. The beam selector relay sits near the radiator support; its two 12-gauge wires (white for high beam, light green for low) must show voltage only when the stalk is engaged. Probe the connector’s pins with a test light: if high beam activates but low beam doesn’t, the relay’s internal contacts are pitted. Replace it rather than cleaning–cost is under $15.
Tail light circuits route through the driver-side kick panel. Remove the trim panel to access the wiring; eight wires converge here:
- Red (brake lights)
- Yellow (parking lights)
- Brown (tail lights)
- Blue (turn signals)
- Green/white (reverse lights)
- Black (ground)
- Orange (license plate)
- Purple (courtesy lights)
Inspect each wire for fraying where it passes through the chassis grommet–this is a frequent failure point. Solder any exposed strands and seal with heat-shrink tubing to prevent moisture ingress.
For gauge cluster issues, focus on the sender unit wires behind the dashboard. The fuel level sender uses a gray wire; voltage should range from 0.5V (empty) to 4.5V (full). If the gauge reads erratically, replace the sender–aftermarket units often fail at 8,000-mile intervals. The temperature gauge sender’s black wire typically reads 2.3V at 180°F; deviations over 0.3V suggest a faulty sender or grounded wire. Always use dielectric grease when reconnecting senders to prevent premature corrosion.
Identifying Key Electrical System Segments and Their Pathways
Trace the main power feed from the battery terminal through the ammeter cluster. Disconnect the positive cable at the solenoid and follow the heavy-gauge red lead entering the firewall grommet. Inside the cab, this splits into two branches: a thicker line heading toward the fuse block and a thinner one routing to the ignition switch. Mark both junctions with colored tape before proceeding.
Inspect the fuse panel’s rear for burned solder joints–common failure points in vintage rigs. Each spade connector corresponds to a specific circuit: the upper row handles lighting (headlamps, taillights), while the lower sequence manages auxiliary functions (blower motor, turn signals, wipers). Test continuity between each fuse slot and its relay with a multimeter set to low ohms.
Locate the voltage regulator beneath the hood, mounted near the radiator support. Three wires emerge: a field lead (green/red stripe), a battery sense line (yellow), and a ground strap (bare copper). Verify these against the firewall bulkhead connector’s matching terminals–corrosion here mimics charging system failures. Sandpaper the connections if visual discoloration appears.

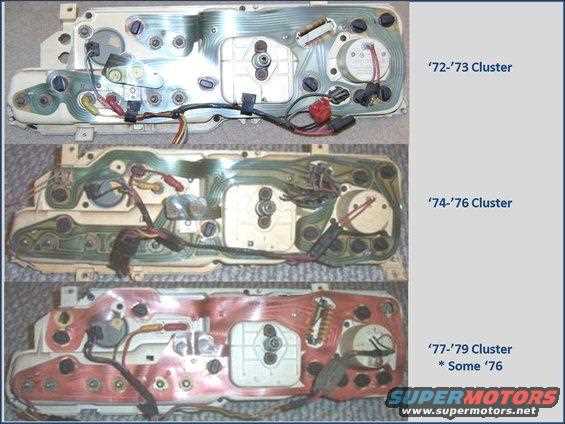

The instrument cluster harness hides behind the speedometer housing. Four connectors snake through a rectangular cutout in the dash: a 12-pin plug for gauges, an eight-slot for warning lights, two single wires (oil pressure sender, temperature sender). Label each before detaching–factory colors (orange/black tracer = oil, white/red = temp) don’t always match aftermarket replacements.
Examine the taillight pigtails for cracked insulation near the frame flex points. The left side carries stop/turn signals via a brown/green wire, while the right uses brown/yellow. Both share a common white ground return. Probe the harness where it exits the rear crossmember–tension from trailer hitches often frays these strands internally.
Find the wiper motor under the cowl panel, accessed by removing four torque screws. Two heavy black leads feed power; a smaller purple wire toggles low/high speed, and a blue one controls park mode. Test by jumping the purple to battery positive–if the wipers sweep, the problem lies upstream in the switch or delay module.
The heater blower resistor block sits beneath the passenger-side glovebox. Three wires descend from the switch: purple (high), pink (medium), yellow (low). Each taps into progressively fewer resistor coils before terminating at the motor’s single violet lead. Check for heat degradation on the ceramic resistors–melted plastic indicates a shorted switch.
Verify ground locations before assuming component failure. The primary chassis ground straps attach behind the driver’s side headlight bucket. Engine grounds cluster near the starter solenoid and thermostat housing. Sand the mounting surfaces to bare metal–paint or corrosion here creates phantom electrical gremlins.
Pinpointing Electrical Faults and Quick Repairs for Classic Heavy-Duty Trucks
Start with the fusible links–brittle insulation on inline connectors near the battery or alternator often mimics dead circuits. Strip back the casing ¼” beyond visible cracks, solder new 10-gauge wire, and seal with heat-shrink tubing rather than electrical tape. This restores continuity without introducing corrosion-prone junctions. For intermittent dash lights, replace the voltage regulator’s ground strap; the original thickness (.032″) degrades under thermal cycling. Use .050″ tinned copper braid soldered directly to the firewall stud, bypassing the factory crimp.
Common Symptoms and Immediate Remedies
| Symptom | Root Cause | Fix (Less Than 30 Minutes) | Tools Needed |
|---|---|---|---|
| Headlights flicker at idle | Loose alternator pivot bolt | Tighten to 35 ft-lbs, upgrade washer to SAE Grade 8 | 7/16″ socket, torque wrench |
| Turn signals flash rapidly | 1157 bulb socket oxidation | Remove bulbs, clean contacts with 220-grit emery cloth, apply dielectric grease | Phillips screwdriver, cloth |
| Starter cranks slowly | Ground cable terminal corrosion | Disconnect cable, wire-brush both terminals, reconnect with star washers | 1/2″ wrench, wire brush |
For persistent brake light failure, trace the harness along the frame rail–chafing occurs where it passes through the rear crossmember. Splice in 14-gauge cross-linked polyethylene wire (rated to 125°C) and route through split loom tubing anchored with nylon zip ties every 12″. Replace the flasher relay if signals oscillate irregularly; the original bimetallic unit drifts with age. A $12 electronic relay swaps directly into the fuse block’s third slot from the left, eliminating adjustment ambiguity.
Step-by-Step Color Coding of the Heavy-Duty Truck Electrical Layout
Begin by identifying the main harness entering the engine bay–locate the thick red cable (10 AWG) responsible for battery positive feed. This line branches into the ignition circuit and must be traced back to the starter solenoid before proceeding. Verify its continuity with a multimeter set to 20V DC; readings below 12.4V indicate corrosion at the terminal connections or a failing alternator output.
The pale yellow stripe wire routes from the voltage regulator to the alternator field terminal–do not confuse it with the solid yellow line, which handles the dash charge indicator. If voltage drops below 1.5V at the field post under load, check the regulator’s internal diodes for breakdown. Replace the regulator if resistance exceeds 2 ohms between the “I” and “F” terminals.
Trace the brown wire with a white tracer next; this is the key to the lighting circuit. It splits into three subgroups: front park, instrument cluster illumination, and tail lights. Test each branch by activating the switch–bulbs should draw 1.8A at 12.6V. If current exceeds 2.2A, inspect for shorted filaments or chafed insulation near the rear crossmember where the harness bends sharply over the frame rail.
The dark green line with an orange stripe carries switched power from the fuse block to the ignition coil positive terminal. Measure voltage at the coil connector–readings should match battery voltage when the key is in the “ON” position. A drop below 11.5V suggests a corroded fusible link at the bulkhead connector or a faulty ignition switch. Bypass the switch temporarily to isolate the issue.
Locate the light blue wire with a red stripe running from the turn signal flasher to the steering column switch. This line also feeds the hazard warning relay. Use a test light to confirm pulses at the flasher output–steady illumination indicates a defective relay. If pulses are irregular, inspect the cancelling cam in the column for wear; replacement requires removing the steering wheel and snap ring.
Examine the tan wire with a black stripe, which delivers power to the dome light and courtesy switches. This circuit shares a ground with the door jamb sensors–test continuity between the door switch and the chassis with a 12V bulb held to ground. No illumination means an open circuit in the door harness, most commonly broken at the hinge pivot where flexing occurs.
The orange cable with a green stripe handles the backup lights and neutral safety switch. Probe the reverse light socket while shifting into reverse–voltage should rise to 12.4V. If absent, crawl under the transmission to inspect the switch continuity; corrosion at the pigtail connector is the usual culprit. Clean terminals with electrical contact spray and tighten screws to 18 in-lb torque.
Finally, follow the purple wire with a white stripe, which activates the electric choke on carbureted models. Test voltage at the choke heater terminal–it should rise from 1.5V to 12V within 30 seconds of startup. Slow warm-up indicates a failing choke bi-metallic spring; replace the choke housing if resistance across the heater posts exceeds 4 ohms after engine heat-soak.
