Begin by routing a 14-gauge (or heavier) supply conductor from the circuit breaker to the first junction enclosure. Terminate it with a 10-ampere double-pole breaker–verify the panel’s labeling matches the intended amperage before securing connections. From this enclosure, split the live feed: attach a red-marked conductor to the feed side of the initial control device and a black-marked conductor to the feed side of the adjacent unit.
Neutral and ground must run parallel but never intersect–bundle neutrals in a twist-on cap rated for 600V within each box, leaving room for tightening with pliers. Ground conductors should be crimped with a green-coded ring terminal and fastened to the enclosure’s designated bonding stud. Avoid back-wrapping grounds around screw terminals; vibration can loosen them over time.
For switching logic, employ three-way traveler pairs: run a yellow-marked conductor between the traveler terminals of both units. On the initial switch, connect the load conductor (typically blue or purple) to the common terminal–ensure it exits the enclosure and terminates at the first fixture’s hot lug. Repeat this for the second control, directing its load conductor to the second luminous source.
Test continuity before energizing: toggle each control in sequence, verifying the corresponding luminaire cycles on/off without anomalous flickering. If either unit fails to toggle the expected device, confirm traveler polarity–misordered conductors will invert the control relationship. Secure all enclosures with thread-locking fasteners to prevent loosening from repeated actuation.

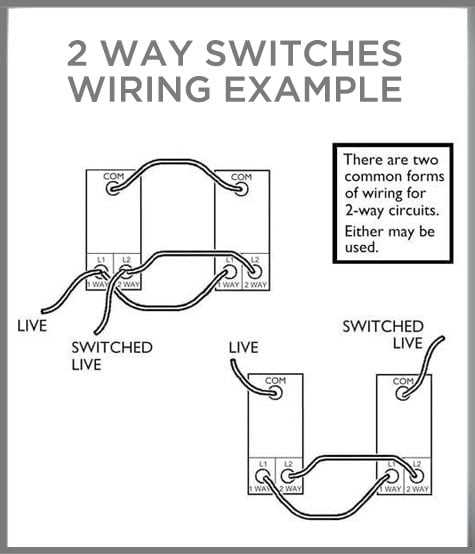

Connecting Dual Control Points for Illumination
Install a three-way circuit using 14/3 or 12/3 NM cable between the primary and secondary switch locations. Run standard 14/2 or 12/2 NM cable from each switch to the fixture box. Ensure the neutral (white) conductor remains continuous from source to luminaire without interruption at either control point.
| Color | Primary Switch | Secondary Switch | Luminaire |
|---|---|---|---|
| Black | Common | Traveler | – |
| Red | Traveler | Traveler | – |
| White | Neutral | Neutral | Return |
| Bare/Green | Ground | Ground | Ground |
At the power-source switch, connect the incoming line hot (black) to the common terminal marked “COM” or darker brass. Attach the red and black travelers to the remaining brass terminals. At the distant switch, link the travelers to the matching brass terminals, then fasten the returning hot conductor (usually black) to its common terminal. Always cap unused neutrals with wire nuts inside each device box.
Verify continuity with a multimeter before energizing: toggle both control points through all positions while measuring voltage between common and neutral. The circuit should alternate between 0 V (off) and 120 V (on) regardless of which switch is manipulated. Label every conductor at both ends with tape to prevent misidentification during future maintenance or troubleshooting.
Essential Equipment and Supplies for Installing Dual Control Panels
Begin with a non-contact voltage detector to confirm power is off before handling any connections. Choose a model rated for both residential and commercial use, such as the Klein Tools NCVT-3 or Fluke 1AC-II, which detects AC voltage from 50V to 1000V without direct contact. This step eliminates guesswork and prevents accidental shocks.
Select insulated screwdrivers with magnetic tips to secure terminal screws effortlessly. A 4-in-1 set with flathead and Phillips drivers in #1 and #2 sizes covers most electrical box requirements. Ensure handles are rated for 1000V AC to provide an extra safety barrier during adjustments.
- Wire strippers with built-in cutters simplify preparation of 14- or 12-gauge conductors. Look for strippers with color-coded notches for common wire sizes, like the Klein Tools 11055 or Ideal T-Stripper.
- A multimeter or clamp meter measures continuity, voltage, and current to troubleshoot miswired circuits. Fluke 117 or Southwire 21010T are reliable choices with auto-ranging functions.
- Fish tape or glow rods guide new cables through walls and conduits. Opt for a fiberglass or nylon model, such as Gardner Bender fish tape, to avoid kinking during pulls.
Use Romex or THHN cables according to local code requirements. For 15-amp circuits, 14-gauge copper wire is standard; for 20-amp, upgrade to 12-gauge. Verify cable sheathing is intact and marked for moisture resistance if needed (e.g., NM-B or UF-B).
Install deep single-gang or double-gang electrical boxes to accommodate multiple conductors and devices. Plastic boxes with built-in clamps, like Carlon Blue, simplify cable anchoring. For retrofit installations, low-profile boxes such as TayMac MM400B fit tight spaces without drywall modification.
- Choose toggle or rocker-style control panels from trusted brands like Leviton, Lutron, or Eaton. Decora-style plates provide uniform gaps between devices, reducing dust accumulation.
- Grounding pigtails should be pre-cut to 6-inch lengths with green insulated connectors. Use UL-listed wire nuts (e.g., Ideal Twister) for secure splices in junction boxes.
- Cable staples or straps secure conductors within 12 inches of boxes and every 4.5 feet along studs. Use insulated staples for stapled runs to prevent sheathing damage.
Keep a voltage tester pen within reach to double-check live circuits before closing the panel. A headlamp with adjustable brightness ensures hands-free visibility in dim workspaces. Store tools in a pouch or belt to maintain organization during multi-step tasks.
Verify all equipment meets NEC or local electrical standards before beginning. Discard damaged tools immediately–frayed insulation or cracked handles pose serious hazards. Label each conductor with heat-shrink tubing or color-coded wraps for clarity during final connections.
Installing Dual Control Points: A Practical Walkthrough
Turn off the circuit breaker feeding the installation area before touching any conductors. Use a non-contact voltage tester to confirm absence of current–probes often fail on poorly labeled circuits.
Identify the incoming power cable entering the first switch box; it typically carries live (black), neutral (white), and ground (bare/green) conductors. Label each wire with masking tape to avoid confusion during connection.
- Strip 3/8 inch of insulation from each conductor using wire strippers–never use scissors or teeth, as uneven cuts cause loose connections.
- Twist exposed copper strands clockwise to prevent fraying when inserting into terminal screws.
- Verify the second switch box contains sufficient cable length; minimum 6 inches of slack ensures proper bending radius.
Attach both switches’ common terminals (usually marked “COM” or darker in color) to the live wire from the power source using a flat-head screwdriver. Tighten screws until resistance increases sharply–over-tightening strips threads.
Connect the remaining switch terminals to the traveler wires–typically red and black–linking both control points. Ensure polarity matches: red-to-red and black-to-black across both units. Secure neutrals together with a wire nut and tuck them into the box; never leave them exposed.
Ground both switches by attaching the bare/green wire to the green terminal screw. If the box is metal, add a pigtail grounding wire to bond the switch and box. Fold wires neatly into the box, avoiding pinches, then mount the switch plates. Restore power and test each toggle independently–both should operate the fixture without flickering or delay.

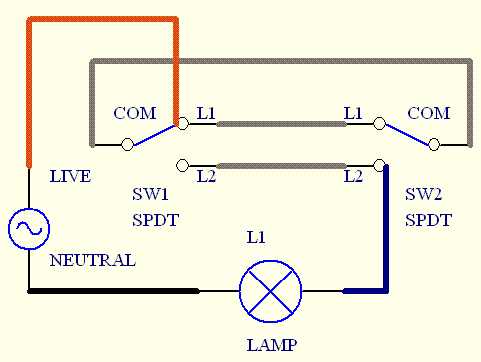

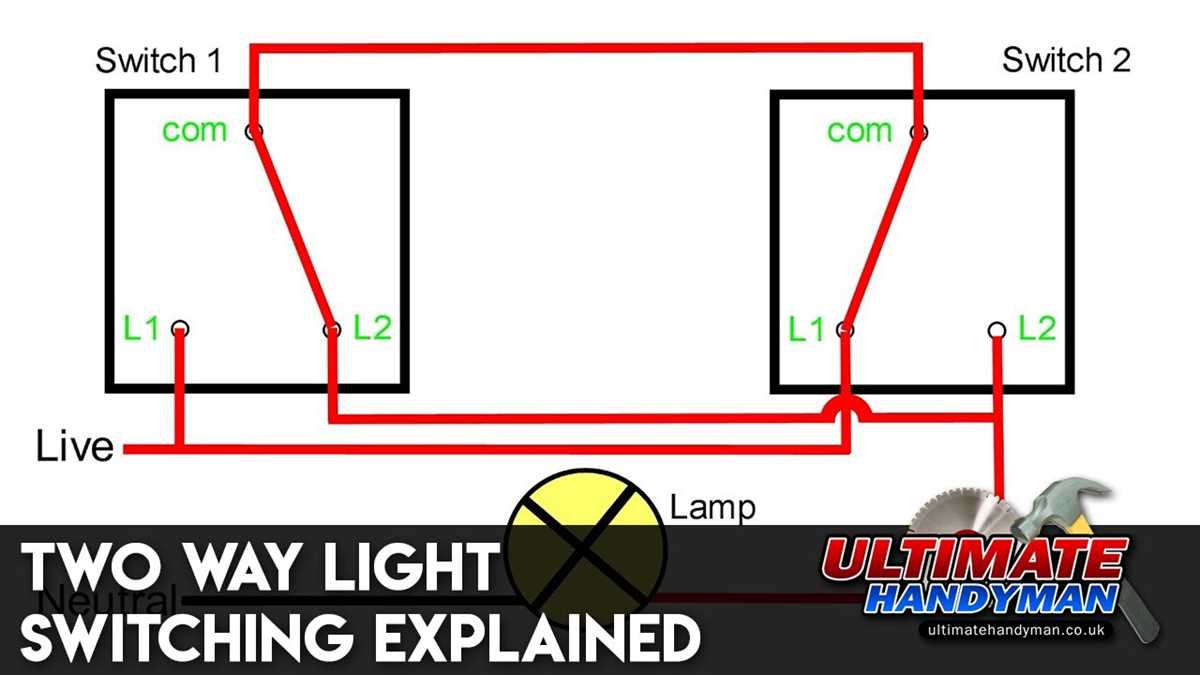

Configuring Dual Toggle Controls for One Illumination Point
Locate the common terminals on each 3-way mechanism–identify them by darker screws or labels “COM.” Attach the first conductor from the power source to one switch’s common terminal using a wire nut if needed. The remaining terminals on that switch receive the travelers; connect them with 14-gauge solid copper wire, ensuring matching colors (red/black) between both units to avoid misrouting. Failure to maintain color consistency will disrupt circuit logic.
Route the travelers between switches via a single 14/3 cable–red and black wires carry the switched paths, while white serves as neutral, capped off at both ends unless the fixture requires it. Strip 3/8 inch of insulation from each conductor before securing under terminal screws; stranded wire necessitates twisting or termination pins for solid contact. Verify torque specs on terminal screws (12-15 inch-pounds) to prevent loosening from vibration.
At the second control point, connect the second traveler pair identically, ensuring polarity matches the first unit. The common terminal here attaches to the hot lead running to the luminaire. If using a grounded metal box, bond the green or bare wire to the switch yoke; non-metallic boxes omit this step. Test continuity with a multimeter before applying power–readings should toggle between open/closed as switches cycle.
Finalize by mounting switches in enclosures, ensuring no exposed conductors remain. Power restoration should yield independent control from both locations. Faulty operation typically stems from reversed travelers, improperly terminated commons, or overlooked neutral requirements; recheck connections against color codes if issues persist.
Critical Errors in Installing Parallel Control Panels
Skipping the voltage tester before touching any terminals guarantees accidents. Always verify power is off at the circuit breaker–even “switched-off” lines can carry residual current. A non-contact tester costs less than a hospital visit.
Mixing up line and load conductors causes immediate short circuits. The incoming hot wire connects to the common screw (usually darker), while the paired travelers link to brass terminals on both devices. Misplacing these strands fries insulation and risks arcing.
Overtightening terminal screws crushes copper strands, weakening connections. Snug fits prevent loose wires that spark under load–use needle-nose pliers to twist strands before securing, then tug gently to confirm hold.
Ignoring ground continuity creates silent hazards. Both metal switch plates and junction boxes must tie into the bare copper or green grounding path. Without it, a single fault energizes enclosures, turning any contact into a shock trap.
Leaving stranded wires exposed across knockout holes invites pinching. Push excess conductor neatly into the box, coiling loops flat against the back. Exposed copper touching metal boxes shorts instantly when power returns.
Assuming same-type devices work interchangeably backfires. Smart dimmers need neutral wires; basic toggles don’t. Upgrading without checking the existing setup strands travelers or grounds, forcing rewires with incompatible gear.
Overlooking box fill limits triggers overheating. Each 14-gauge wire consumes 2 cubic inches–count all conductors including grounds. Exceeding capacity melts plastic boxes and insulation, creating hidden fire risks behind walls.
