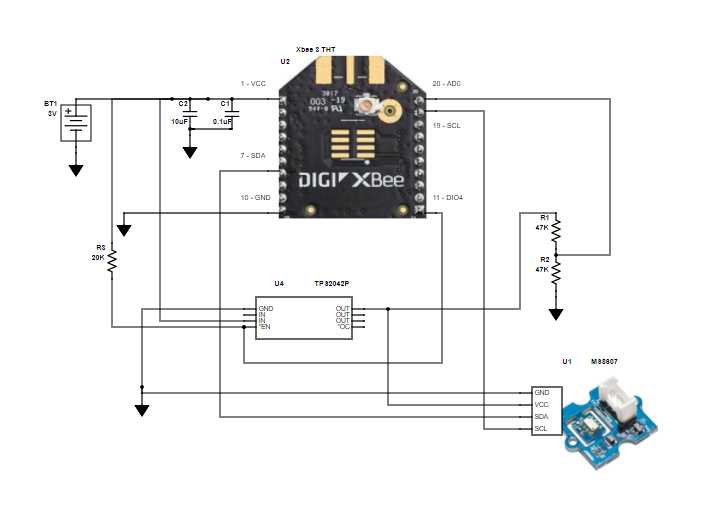

Begin by placing an 802.15.4-compliant RF transceiver at the core of your circuit. Models like the Silicon Labs EFR32MG, Texas Instruments CC2530, or NXP JN5189 provide optimal balance between power efficiency, range, and compatibility. Ensure the module’s antenna port connects through a 50-ohm trace with minimal vias–each via adds ~0.1 dB loss, degrading range by up to 3% per via. For PCB layouts, maintain a clearance of 3x trace width from ground pours to prevent detuning.
Power distribution demands a low-dropout regulator (LDO) or buck converter matched to your module’s voltage specs–most require 1.8V to 3.3V. The TPS7A05 or LT3021 are reliable choices, delivering sub-100 µA quiescent current for battery-operated nodes. Route power traces with at least 1 mm width per amp to prevent voltage drop; a 2 mm trace supports ~2A with negligible loss. Bypass capacitors (0.1 µF ceramic + 10 µF tantalum) must be placed within 2 mm of the module’s power pins to suppress noise.
Include a programming header (e.g., 10-pin ARM Cortex debug port) with pull-up resistors (10 kΩ) on data lines to avoid floating states. For sensor interfaces, prioritize I2C or SPI over UART–I2C’s two-wire bus reduces pin count while supporting multi-drop configurations. Clock signals (32 MHz or 24 MHz crystal) require a load capacitance of 8–12 pF; mismatch here causes startup failures. Ground the crystal’s metal can (via stitching vias) to minimize EMI.
Isolate analog circuitry from digital sections using a split ground plane, tied together at a single point near the RF transceiver. For battery-powered designs, add a supervisor IC (e.g., MAX809) to enforce clean power-on resets. Test your layout with a network analyzer at 2.4 GHz–tune antenna matching by adjusting the π-network (C-L-C) values in 0.5 pF increments. Validate range by measuring RSSI at 10-meter intervals; expect -70 dBm at 30 meters in open air with a standard dipole antenna.

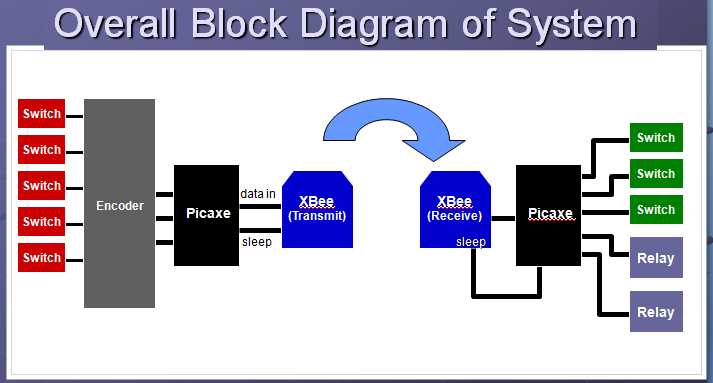

Designing Wireless Mesh Network Circuit Layouts
Start with a 2.4 GHz transceiver module compliant with IEEE 802.15.4, such as TI CC2652, Silicon Labs EFR32MG, or NXP JN5189. These chips integrate RF frontend, protocol stack, and MCU, reducing external component count. Position decoupling capacitors (100 nF and 10 μF) within 2 mm of power pins to minimize noise.
Include a balanced antenna design–PCB trace, chip, or external SMA–and ensure impedance matching with a π-network or L-section (typical 50 Ω). Use a 0 Ω resistor in series for tuning flexibility. Ground planes on both sides of the board should connect via multiple vias under the antenna area to prevent radiation pattern distortion.
- Power distribution: 3.3 V regulated source with
- Crystals: 32 MHz ±10 ppm for timing accuracy, paired with load capacitors (8–12 pF) to ensure stable oscillation.
- GPIO pins: Assign dedicated signals for reset, UART (debug), SPI (flash), and interrupt lines. Keep traces short and away from high-speed lines.
- ESD protection: TVS diodes on all exposed interfaces (reset, USB, antenna) rated at ±8 kV contact discharge.
Route clock signals on inner layers if using a 4-layer stackup, with ground planes directly beneath to reduce EMI. Maintain 3W spacing between differential pairs (e.g., USB) to prevent crosstalk. Shield sensitive traces with copper pours connected to ground.
Include test points for TX power (nominal +5 dBm), RSSI (−90 dBm threshold), and OTA update pins. Use pull-up resistors (10 kΩ) on bootstrap pins to prevent floating states during startup. Ensure JTAG/SWD connectors support boundary scan for production testing.
Peripheral Integration Checklist
- Sensors: Place I²C/SPI lines near the host controller, add series resistors (33 Ω) to dampen ringing.
- LED indicators: Current-limiting resistors (470 Ω) for status signals (link, sleep, pairing).
- Battery monitoring: ADC input with voltage divider (e.g., 1 MΩ + 470 kΩ) for accurate readings.
- Flash memory: Dedicated SPI bus with pull-up on CS/ pin to avoid bus collisions.
Firmware validation requires UART-based logging at 115,200 baud. Reserve GPIO for bootloader mode activation. PCB silkscreen should label all connectors, component designators, and polarity markings (e.g., diodes, electrolytic caps).
Conduct EMI pre-compliance testing using a spectrum analyzer (2.4–2.485 GHz) to verify spurious emissions remain below −36 dBm/MHz. Adjust trace lengths if harmonic peaks exceed limits. Finalize with a 3–5 mm keep-out zone around the antenna to maintain radiation efficiency.
Key Components for a Basic Wireless Mesh Transceiver Board
Start with a System-on-Chip (SoC) module like the TI CC2530 or Silicon Labs EFR32MG12. These integrate an RF core, 8051 or ARM Cortex-M4 MCU, and sufficient flash (256 KB) for firmware. For standalone designs, pair an MCU (STM32WB55) with a separate 2.4 GHz RF front-end (e.g., Semtech SX1280). Ensure the SoC supports IEEE 802.15.4 PHY/MAC layers and includes a hardware AES-128 engine for encrypted communication.
Power conditioning requires a buck-boost converter for battery-operated nodes. Use the TPS63020 for 2.5–5.5 V input, delivering 3.3 V at 90% efficiency. Add a 10 μF ceramic input capacitor near the regulator and a 22 μF output capacitor to stabilize voltage. For always-on routers, combine a linear regulator (AP2112) with a 100 nF bypass capacitor on the VDD pin of the RF chip to suppress noise.
| Component | Part Number | Key Specifications | Placement Notes |
|---|---|---|---|
| RF Transceiver | Semtech SX1280 | 2.4 GHz, +12.5 dBm TX, -125 dBm RX | Keep traces <25 mm, match impedance to 50 Ω |
| Balun | Johanson 2450BM15A0002 | Differential to single-ended 50 Ω | Place within 5 mm of RF pin |
| SAW Filter | Murata SF2126E | 2400–2483 MHz, 1 dB insertion loss | Include in RX path only |
RF matching demands precision: select a monolithic balun (Johanson 2450BM15A0002) and route traces on a 4-layer PCB with dedicated ground plane. Keep the differential tracks equal length (±0.1 mm) and avoid vias–use a single continuous path to the antenna. For Sub-GHz variants (e.g., 868 MHz), replace the balun with a pi-network (3.9 nH, 1.0 pF, 3.9 nH) to match 300 Ω differential to 50 Ω single-ended.
Crystal selection hinges on stability: use a 32 MHz ±10 ppm MEMS oscillator (SiT8008) for SoCs with integrated PLL. For discrete designs, pair a 40 MHz AT-cut crystal (Citizen CFV206) with 12 pF load capacitors. Route the crystal within 2 mm of the MCU/XO pins, shielding with a grounded copper pour. Include a 1 MΩ feedback resistor with ESD diodes (BAS70-04) to protect inputs.
Antennas dictate range: for compact devices, use a ceramic chip antenna (Johanson 2450AT18A100) with −3 dBi gain. Mount it on a 15×10 mm keep-out area, connecting via a 50 Ω microstrip (FR4, 0.2 mm width). Extended-range nodes (>100 m) require a monopole (60 mm, 1.6 mm diameter wire) tuned with a 0.8 pF series capacitor and grounded radials. Verify tuning with a VNA–return loss should be
Secure firmware updates with a 1 MB SPI flash (Winbond W25Q80DV). Connect CS, SCK, MISO, MOSI via 10 kΩ series resistors to allow in-circuit programming. Populate a 10-pin header (GND, VDD, SWDIO, SWCLK, NRST, UART TX/RX) for debugging. Add a 10 μF tantalum capacitor between VDD and GND near the flash to handle inrush currents during erase cycles.
ESD protection requires TVS diodes (Littlefuse SP3012) on all I/O lines–place them immediately adjacent to connectors. Use a 0 Ω resistor as a jumper on high-current traces (>50 mA) to simplify rework. For low-power sensors, add a PCA9536 I²C GPIO expander, reducing MCU wake cycles by polling inputs via interrupts instead of continuous polling.
Power Supply Requirements and Decoupling Capacitors Placement
Use a low dropout (LDO) regulator with input voltage between 3.0V and 3.6V for optimal radio module performance. Avoid linear regulators with quiescent current exceeding 50µA when supplying less than 10mA, as efficiency degrades below 80%. Switching regulators introduce noise; if unavoidable, add a π-filter (LC + ferrite bead) at the output to attenuate ripple below 10mV peak-to-peak.
Place a 10µF X5R ceramic capacitor (0805 or smaller) within 1mm of the module’s power pin, followed by a 0.1µF capacitor in parallel. Both must have a voltage rating at least 1.5× the supply voltage. For boards operating above 85°C, derate capacitor values by 20% to account for temperature-induced capacitance loss. Avoid Y5V or Z5U dielectrics due to poor stability.
Add a 1nF–10nF high-frequency capacitor (NP0 or C0G) near sensitive analog components (e.g., oscillators, PLLs) to suppress transient noise above 1MHz. Use vias (≤0.3mm diameter) to connect capacitors directly to the power plane, minimizing inductance. For dual-layer boards, stitch vias every 5mm along the power net to reduce impedance.
Decoupling capacitors should be placed on the same side of the board as the load; avoid routing power through vias before decoupling. For high-current devices (e.g., front-end amplifiers), add a 47µF–100µF polymer capacitor at the regulator output, supplemented by a 1µF–2.2µF MLCC close to the load. ESR targets: 10mΩ–100mΩ for stable operation.
Test power integrity with an oscilloscope at 100MHz bandwidth; target impedance should stay below 0.1Ω from DC to 10MHz. Use a 4-wire Kelvin connection for accurate measurements. If ringing exceeds 50mV, increase capacitor values incrementally (start with 0.1µF, then 1µF, then 10µF) or reduce trace lengths below 1cm between the capacitor and load.
